Architectural Light Shadow
05.9212.40.78 White/White

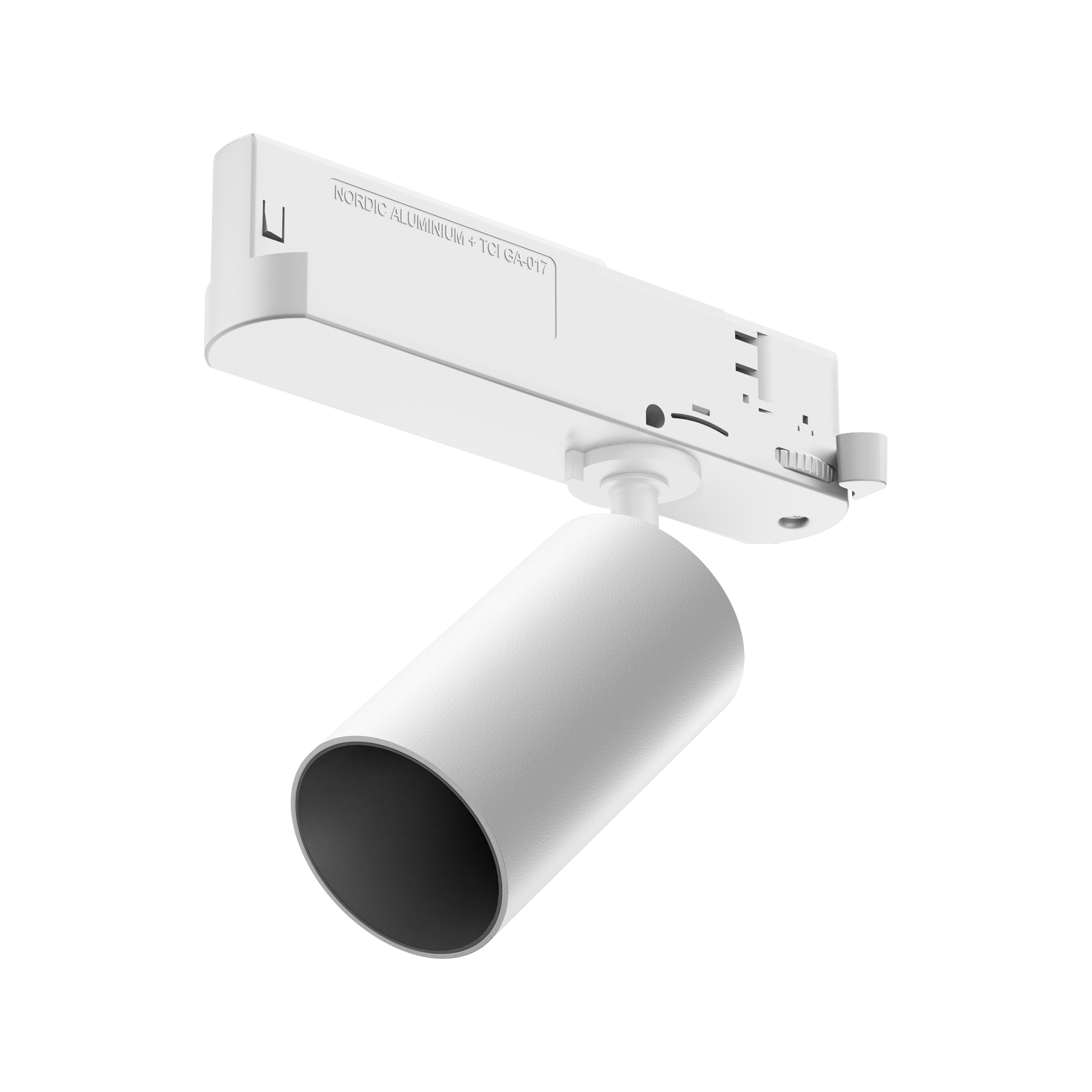

Light Shadow Spot 45 Non Dimmable

Projector to be installed on threephase track with LED light source. Built-in 220-240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high loss technical black anti-glare finish. For other finishes, please consult us.

11.5W - 739lm - 4000K - CRI> 90 - Beam° 31

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Number of heads
1
Power (W)
11.5
Source flux (lm)
915
System flux (lm)
739
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
4000
CRI>
90
Rf fidelity index
92
Rg gamut index
99
LED Life / Failure Ratio
L80B50>47.000h_Tc85ºC
Beam angle C0-180 (º)
31
Beam angle C90-270 (º)
31
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
250
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming range (%)
N/A
Physical
Colour
White/White
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.3
IP
20
CE
UKCA
Risk 1
USA
Risk 1
Gwt 850 (º)
Flammable Surface
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

optional (3)
