F3744000 Glass

Luce Orizzontale S2

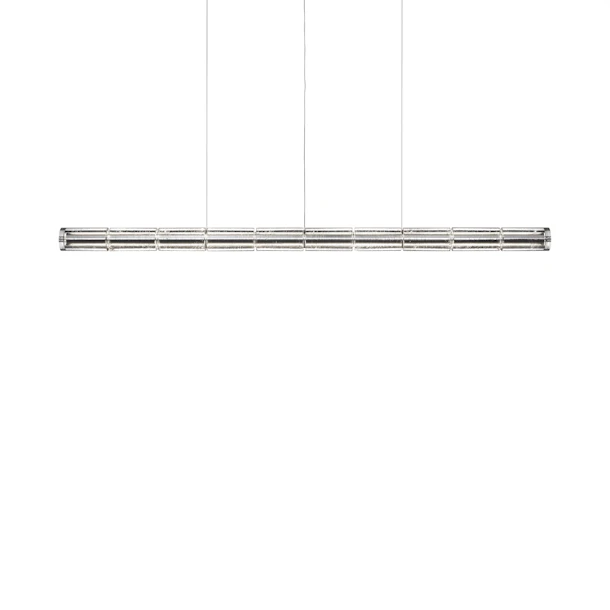

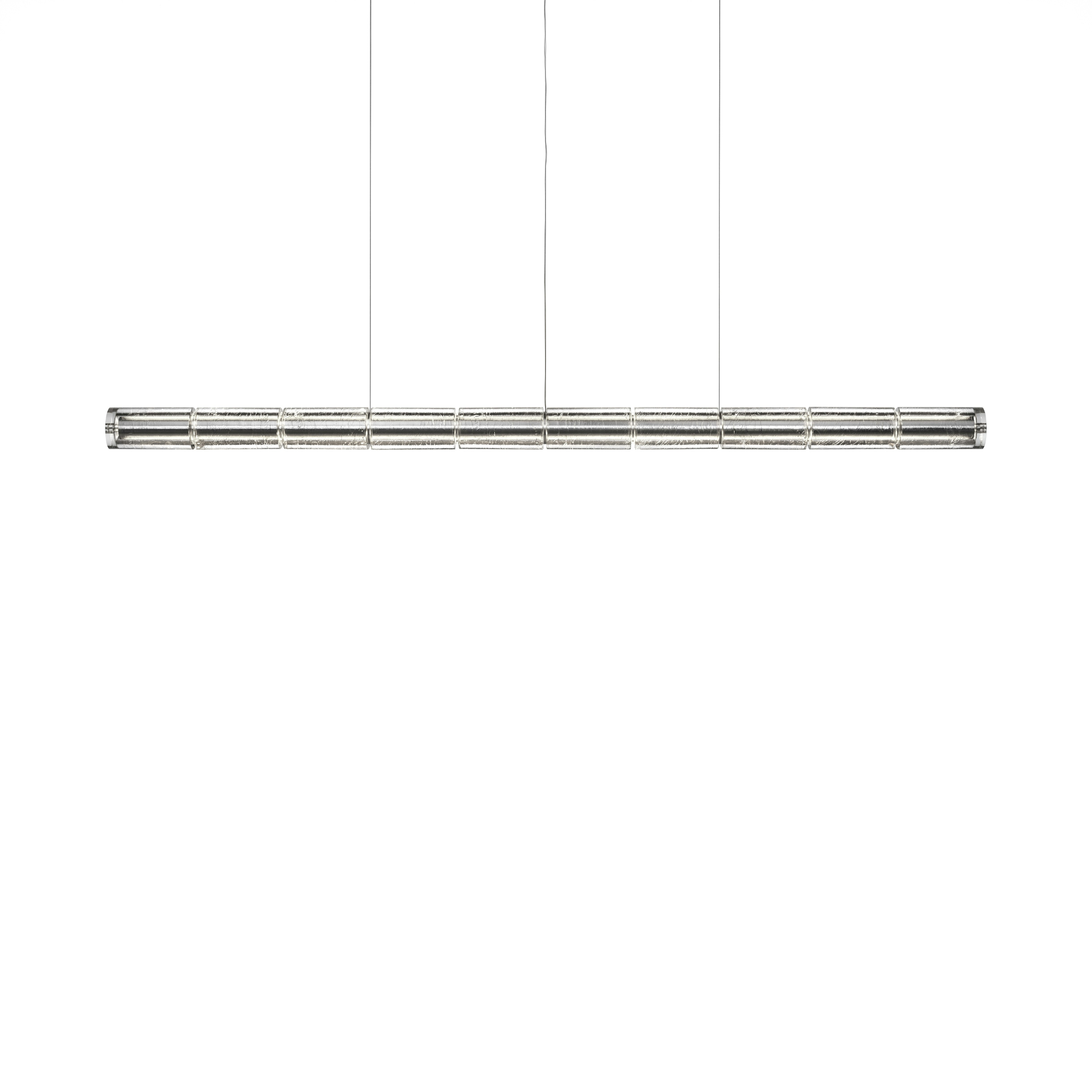

Suspended lamp consisting of interconnected glass modules that reach a length of 1.66 mt. (S1) 2.07 mt. (S2) 2.49 mt. (S3) with 2.70 m suspended power cable. The cylindrical transparent glass modules are created through an artisanal process by pouring the glass into a rotating mold to obtain an exclusive finish that makes each single piece unique. Internal structure in polished extruded aluminum equipped with two linear LED modules for direct and indirect lighting downwards. The modules can be easily removed and replaced in case of maintenance. The power supply unit and the Dali Dimmer are located within the ceiling rose while a touch control button, positioned on one end of the product, allows the luminaire to be controlled in three different modes. Control options available: TOUCH_ Features direct control via the touch button on the lamp. This option allows to dim and adjust the light intensity of both the up and down emission (individually or combined) from 10% to 100%. PUSH&TOUCH_Features remote on/off control via Push button as well as dim and adjustability of the light tensity of both the up and down emission (individually or combined) from 10% to 100% through the touch button integrated on the lamp. DALI&TOUCH_ Features remote on/off control via DALI DT6 as well as dim and adjustability of the light tensity of both the up and down emission (individually or combined) from 10% to 100% through the touch button integrated on the lamp.

145W - 6682lm - 2700K - CRI> 95

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
145
System flux (lm)
6682
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
600
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Colour
Glass
Length (mm)
2072
Cord colour
Clear
Canopy colour
White
Canopy dimension (mm)
900
Net weight (kg)
34.5
Package volume (m3)
0.22
IP
20
CE
CMIM Morocco
EAC
RETILAP
UKCA
CCC
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
