Luce OrizzontaleLuce Orizzontale S3
Designed by Ronan & Erwan Bouroullec, 2022

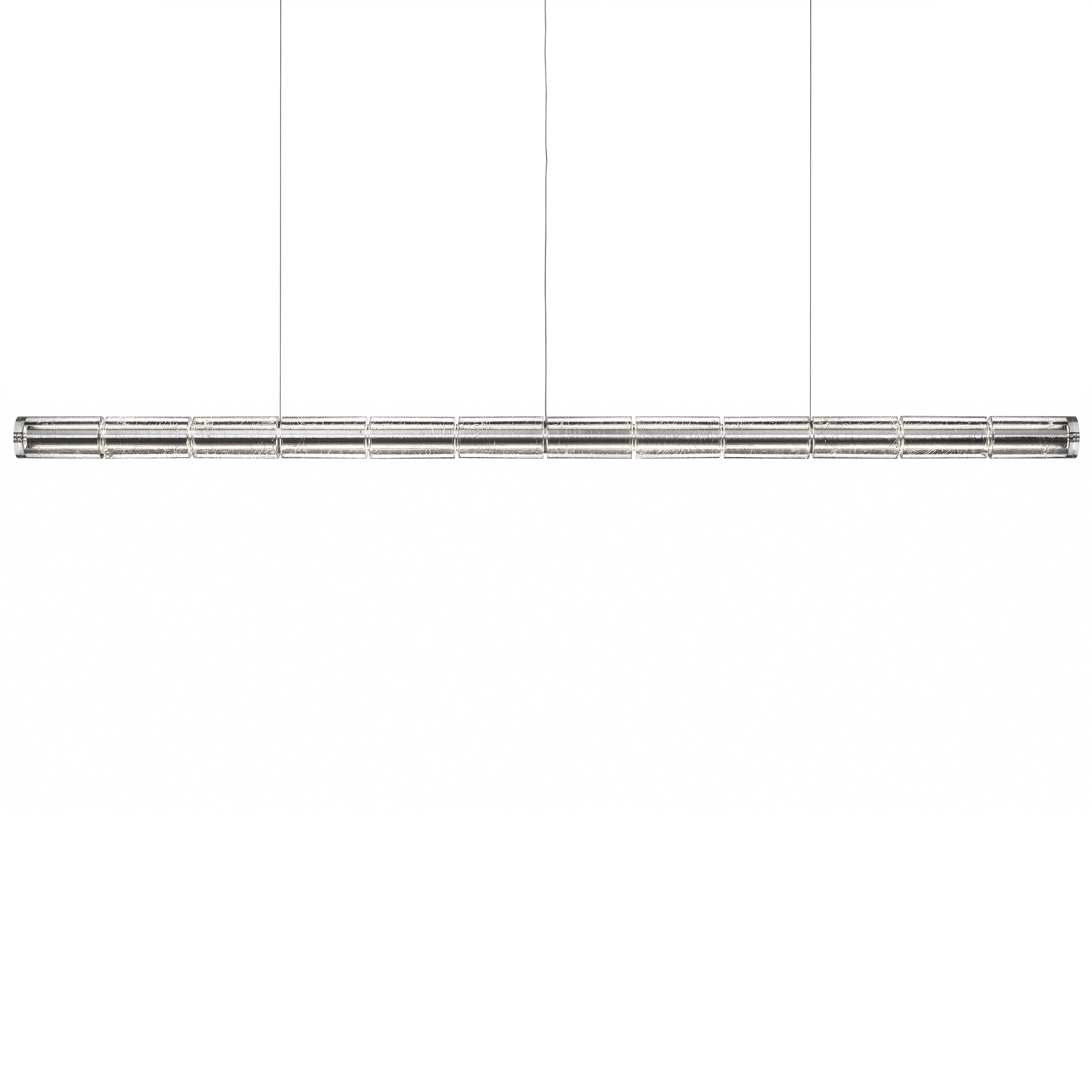

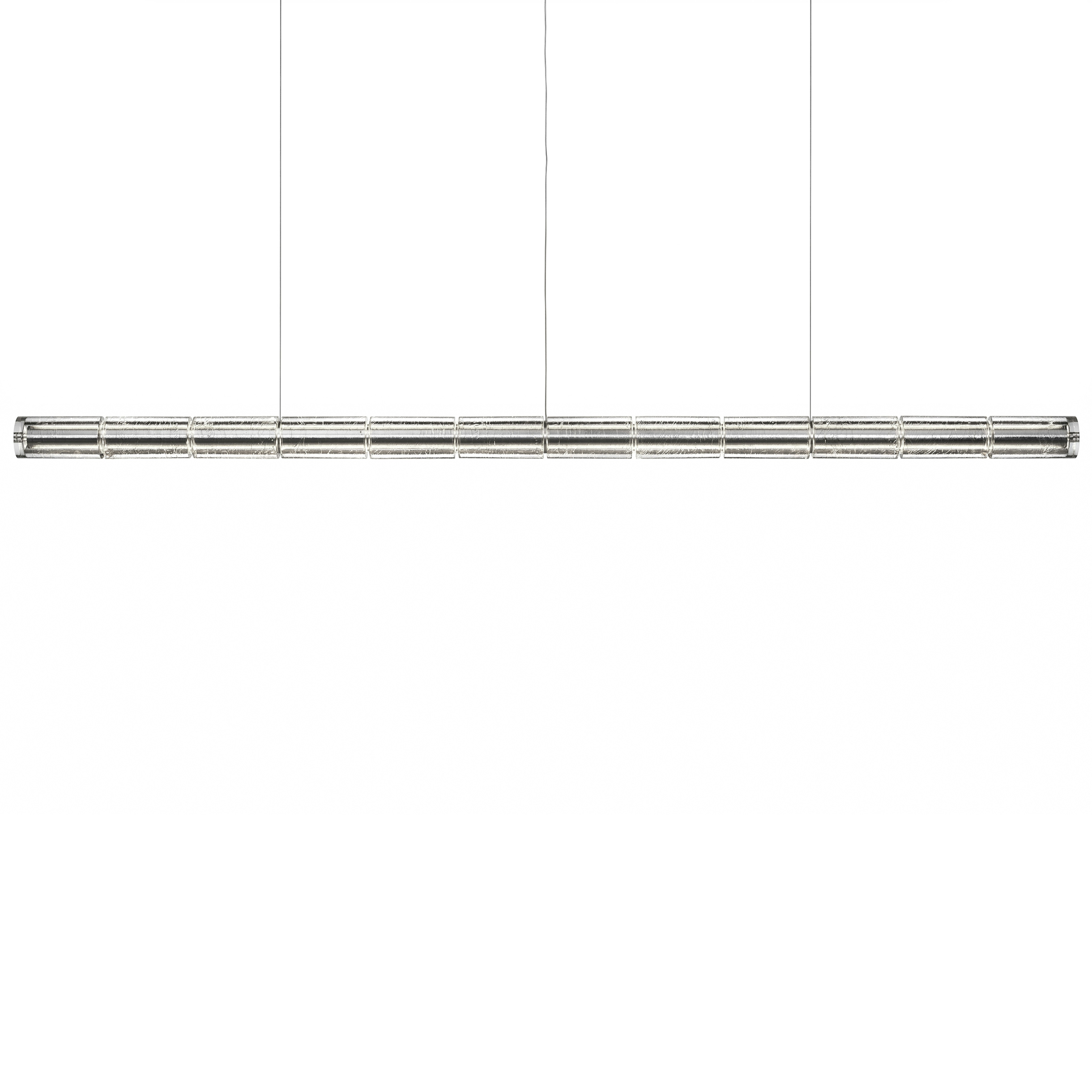

Suspension lamp emitting direct and indirect light. Composed of interconnected cylindrical poured glass modules with an internal structure in polished extruded aluminium housing two linear LED modules. Power supply unit and DALI dimmer integrated into the ceiling rose. Touch control button positioned at one end of the product with control options: TOUCH, PUSH & TOUCH, DALI & TOUCH. Dimming range 10–100%. LED modules are removable and replaceable for maintenance.
165W - 8018lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607081280
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
165
Lumen Output (lm)
8018
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
700
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Length (mm)
2488
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
1316
Canopy width (mm)
61
Canopy height (mm)
78
Net weight (kg)
40.75
Package volume (m3)
0.26
IP internal
Spare Parts
