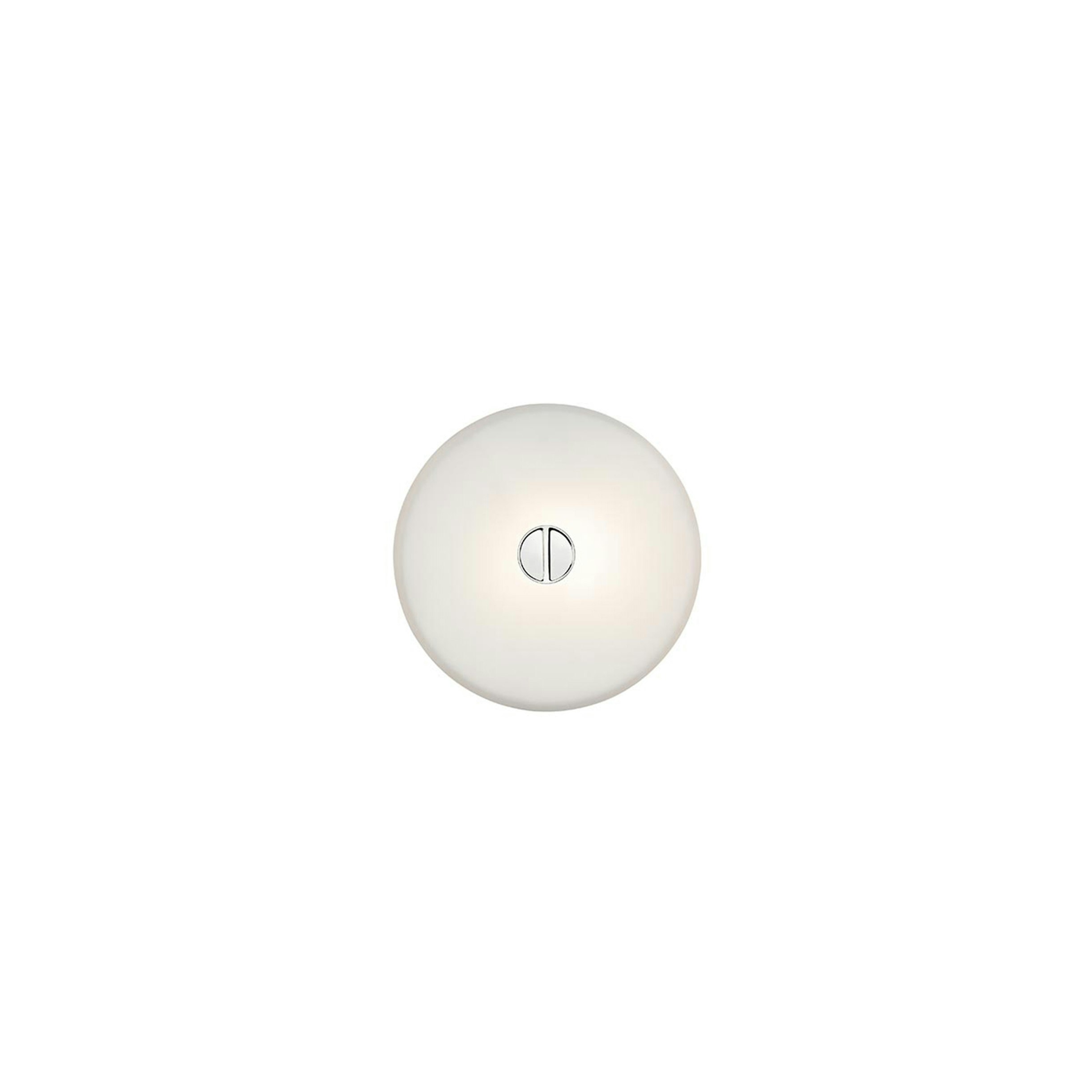

F1490009 GlassMini Button
Designed by Piero Lissoni, 2005
Wall or ceiling fixture providing diffused lighting suitable for indoor and outdoor use. Silicone elastomer dust and waterproof seal. Die-cast aluminum lamp body and wall fitting. Diffuser available in opaline glass or polycarbonate (IP44).
Halogen - 25W
Technical Drawing
Main specifications
EAN
8059607015179
Mounting
Ceiling, Wall
Enviroment
Indoor wet location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
G9
Ilcos
HSGS
Number of heads
1
Power (W)
25
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Glass
Length (mm)
140
Net weight (kg)
0.65
Package height (cm)
70
Package width (cm)
190
Package length (cm)
205
IP
44
