Decorative My Disc
F1903009 Matte White

My Disc

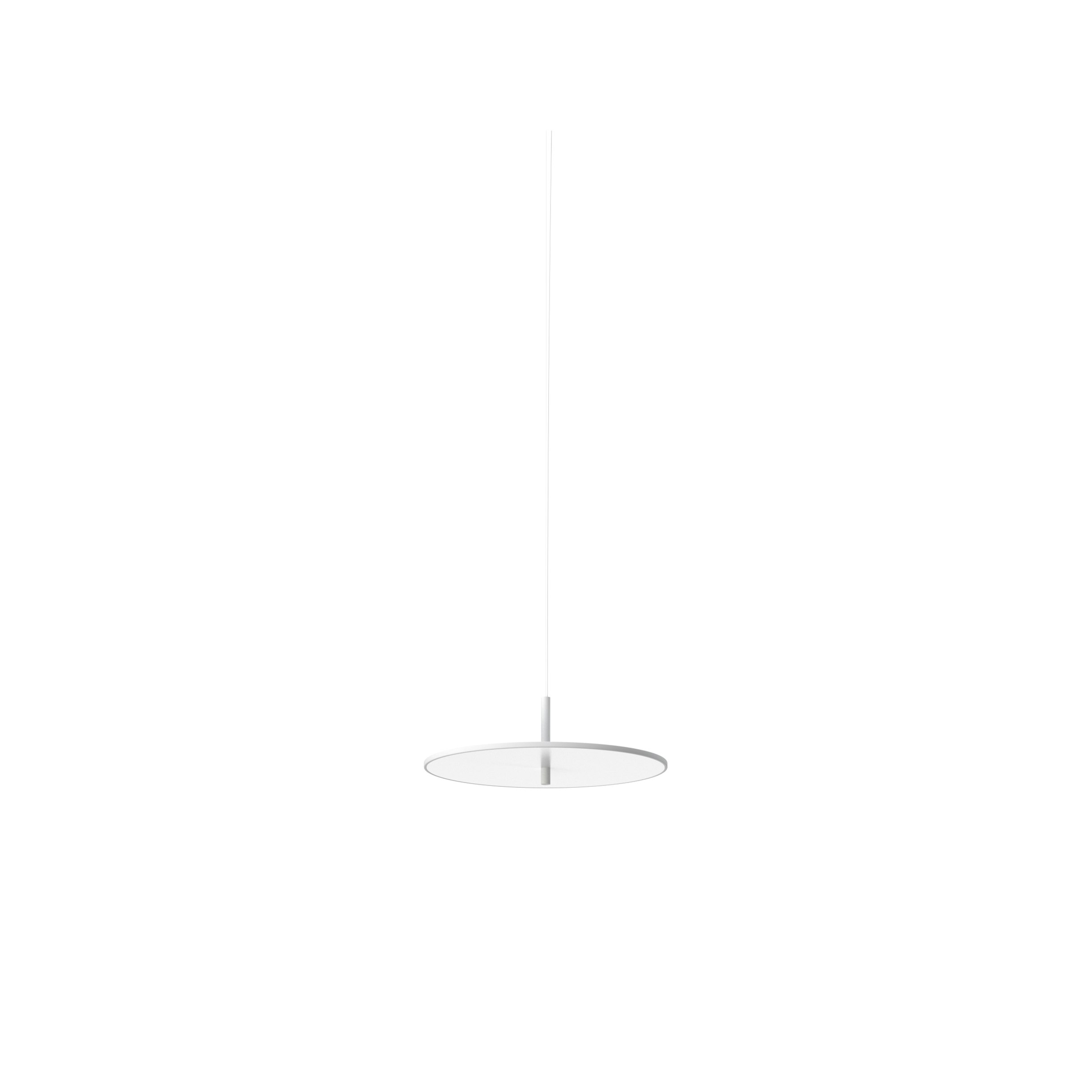

My Circuit Disc is a a suspended lamp with diffused light composed of a slender horizontal disc crossed by a vertical stem with a refined balance of geometries. Matte white painted aluminum body with polycarbonate stem. Silk screened PMMA diffuser. Edge Lighting technology light source (CRI 90) and adjustable brightness 10–100%. Usable power cable length 300 cm to be connected to a canopy with matte white finish. Canopy has to be ordered separately, the electronics integrated in the canopy enable use of dimming systems: PUSH dimming, 1-10V, DALI.

42W - 2194lm - 2700K - CRI> 90

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607057032
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
42
System flux (lm)
2194
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Main voltage (Vac)
48
Forward voltage (V)
48
Driver
Remote excluded
Dimmable
Yes
Dimming type
Electronic 48V
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Matte White
Length (mm)
600
Cord colour
White
Canopy colour
White
Canopy dimension (mm)
149
Net weight (kg)
4.5
Package height (cm)
300
Package width (cm)
695
Package length (cm)
695
Package volume (m3)
0.14
IP
20
CE
CMIM Morocco
EAC
RETILAP
UKCA
USA
Flammable Surface
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (2)
