Decorative My Lines
F1906009 Matte White

My Lines

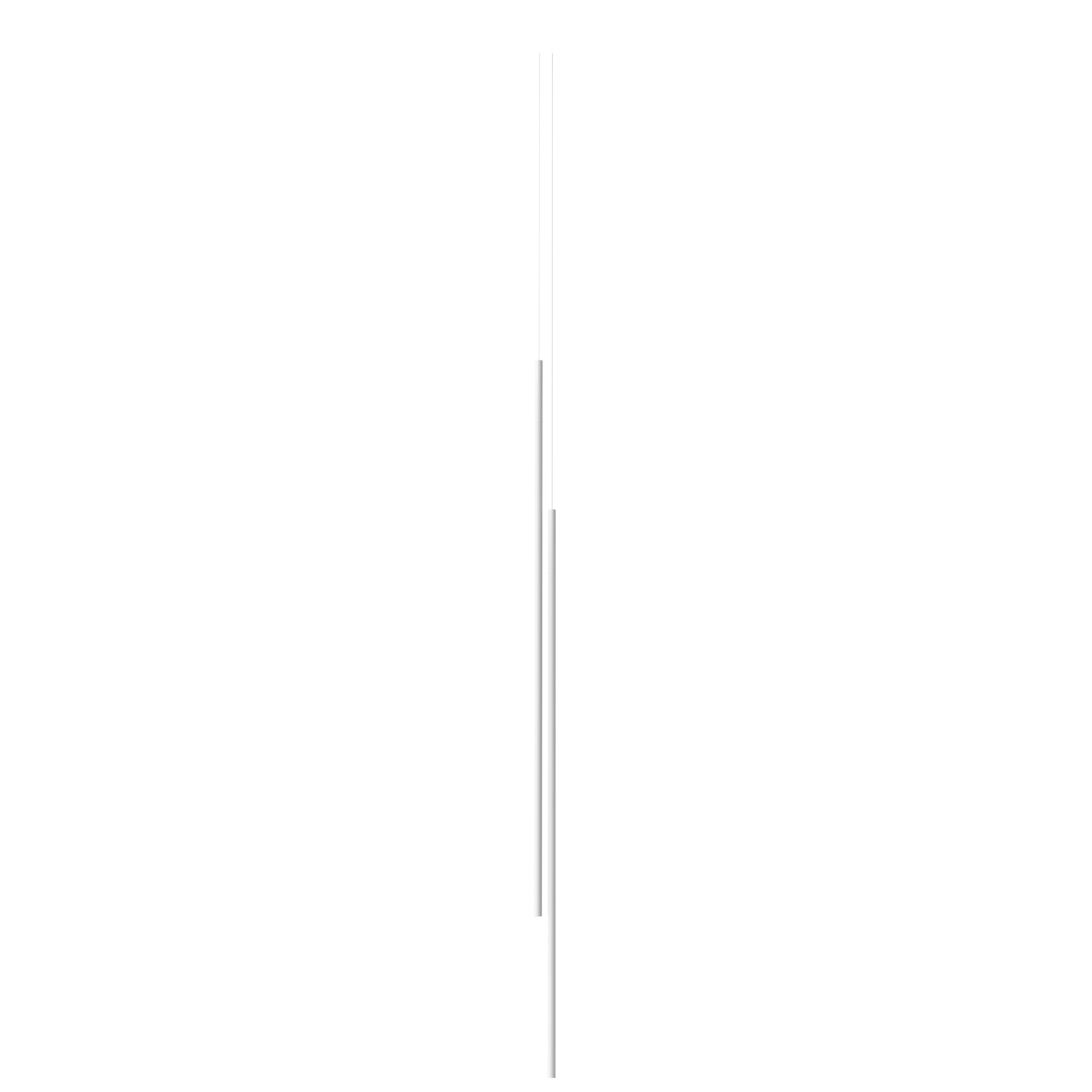

My Lines is a suspended lamp with diffused light composed of two vertical bars that can be oriented, attached to a canopy with matte white finish. Each element is made of extruded anodized aluminium with a matte white finish and a diffuser in platinum optical silicone with an integrated LED strip (CRI 90). Usable power cable length 300 cm and adjustable brightness 10–100%. Canopy has to be ordered separately, the electronics integrated in the canopy enable use of dimming systems: PUSH dimming, 1-10V, DALI.

46W - 2786lm - 2700K - CRI> 90

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607057087
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
46
System flux (lm)
2786
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
48
Forward voltage (V)
48
Driver
Remote excluded
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Matte White
Length (mm)
63
Cord colour
White
Canopy colour
White
Canopy dimension (mm)
150
Net weight (kg)
2.01
Package height (cm)
60
Package width (cm)
1960
Package length (cm)
105
Package volume (m3)
0.01
IP
20
CE
CMIM Morocco
EAC
RETILAP
UKCA
USA
Flammable Surface
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (2)
