Decorative Noctambule
F0278500

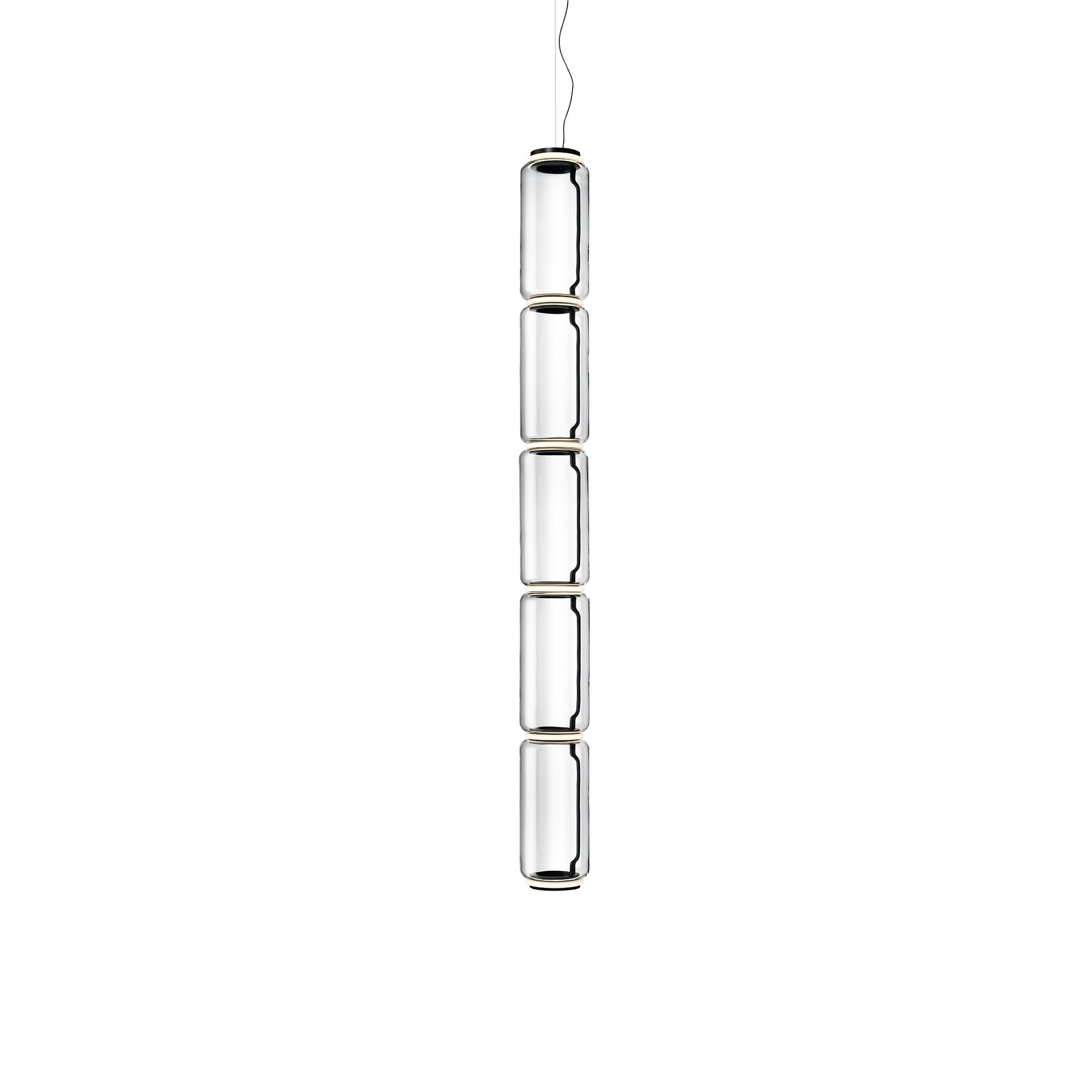

Noctambule Suspension 5 Low Cylinder

Hanging lamps consisting of interconnecting glass modules reaching a length of 3,2 mt. (126.77") with 4 mt. (157.48") suspended power cable. Cylindrical and semi-spherical transparent blown glass structure, suspended die cast aluminium ring connector, hydroformed steel internal lateral arm and injection moulded optical opal silicone outer ring diffusers. The power supply unit within the ceiling rose can be used as a dimmer to adjust the light intensity by 10% to 100% in either direction by means of the 0-10/1-10V, PUSH, DALI control.

54W - 1768lm - 2700K

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607064801
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
54
System flux (lm)
1768
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable Push, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Cord length (mm)
4000
Batteries inside
No
Physical
Length (mm)
250
Cord colour
Black
Cord length (mm)
4000
Canopy colour
Black
Canopy dimension (mm)
187
Net weight (kg)
20.4
Package volume (m3)
0.36
IP
20
CCC
Risk 0
USA
Risk 0
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts
