Noctambule
F0282500

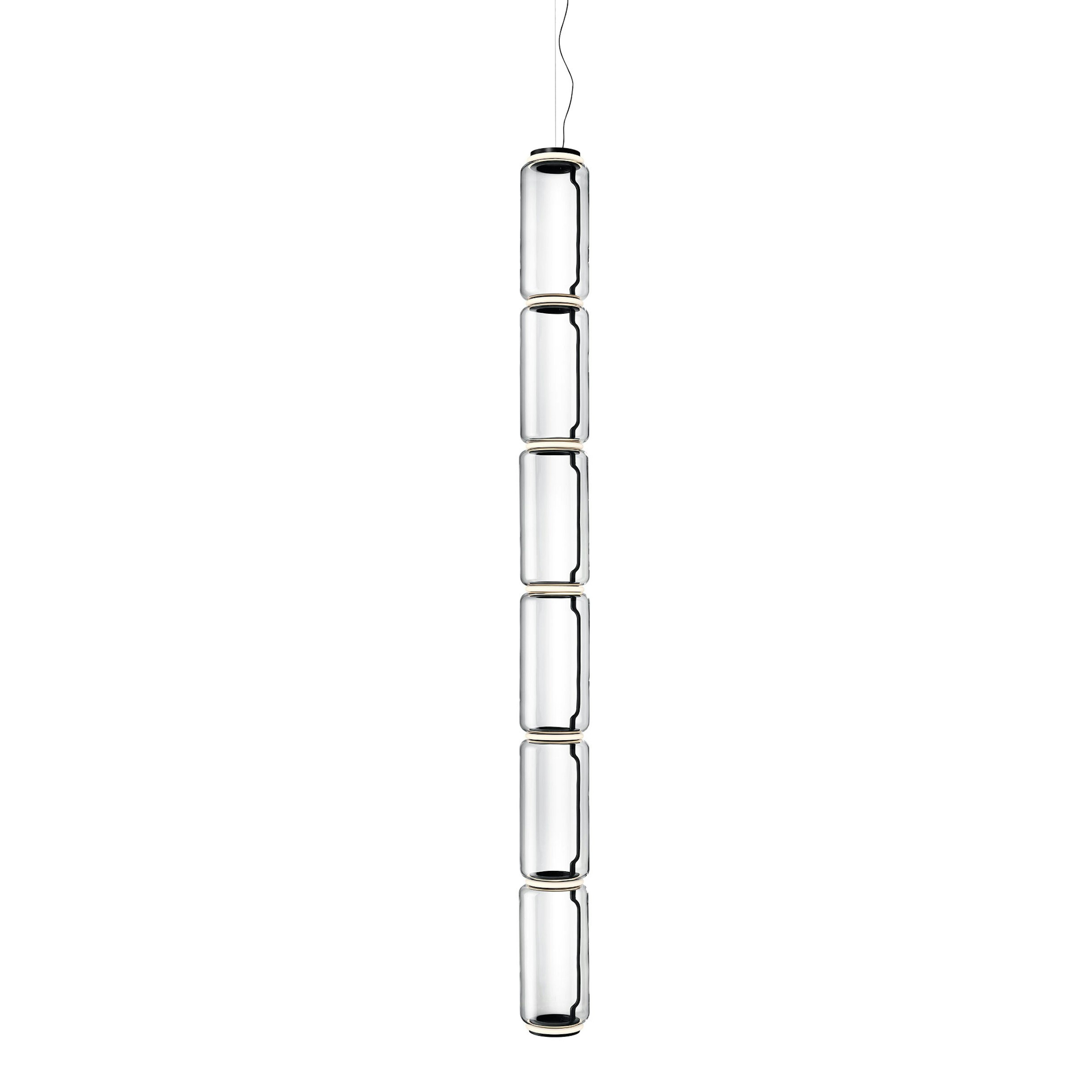

Noctambule Suspension 6 High Cylinder

Suspension lamp emitting diffused light. Composed of transparent interconnected blown-glass cylinders with a conical or semi-spherical shaped diffuser. Features die-cast aluminium ring connector, hydroformed steel internal arm and injection-moulded optical opal silicone outer-ring diffusers. Ceiling rose houses the power supply unit, enabling dimming from 10–100% via 0–10/1–10 V, PUSH or DALI control.

Designed by Konstantin Grcic, Noctambule takes its name from the French word for a ‘night owl’. By day, its transparent glass cylinders almost disappear into their surroundings. At night, LED rings at the intersections bring the lamp to life, creating luminous columns of light that can grow from three modules to towering heights. A masterful balance of restraint and drama, Noctambule is both system and sculpture, revealing its true character only when illuminated. Noctambule has received multiple design accolades.

63W - 2096lm - 2700K

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Noctambule-S6_High_Cylinder
Main specifications
EAN
8059607064849
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
63
Lumen Output (lm)
2096
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Length (mm)
250
Cord colour
Black
Cord length (mm)
4000
Canopy colour
Black
Canopy length/diameter (mm)
187
Canopy height (mm)
45
Net weight (kg)
30.6
Package volume (m3)
0.48
IP internal
20
RG
CCC
20

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
