09.8220.DW Matte Brown

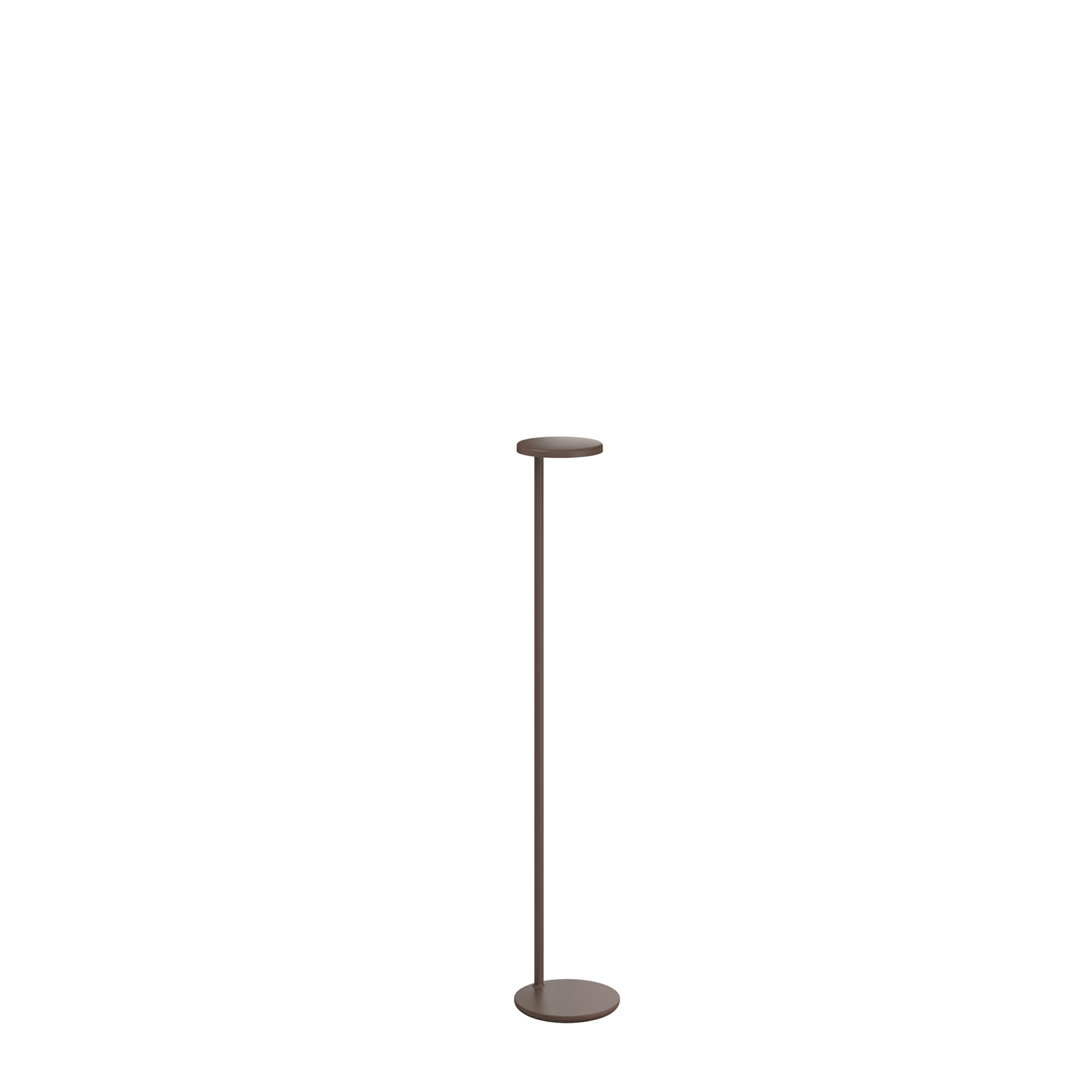

Oblique Floor
Online exclusive
Designed by Vincent Van Duysen
Floor lamp that, thanks to its innovative patented lens, offers asymmetrical light distribution and excellent visual comfort. Its shape, height and dimensions are consistent with the functionality of the product, which provides excellent reading or companion lighting while keeping the light source invisible to the user. Driver input: 24 V
LED - Top LED - 8W - 479lm - 2700K - CRI> 90 - Beam° 34
Also available in:
Technical Drawing
Main specifications
Mounting
Floor
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
8
System power (W)
10
System flux (lm)
479
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L90B10 > 50.000h (Tc=85°C)
Beam angle C0-180 (º)
34
Beam angle C90-270 (º)
46
Electrical
Frequency (Hz)
50/60
Main voltage (Vac)
110-240
Forward voltage (V)
24
Driver
Remote included
Dimmable
Yes
Dimming type
Dimmer on board
Dimming range (%)
1-100
Precabled
Yes
Cord length (mm)
2500
Plug type
Twist and Lock
Physical
Colour
Matte Brown
Length (mm)
200
Cord length (mm)
2500
Net weight (kg)
3.32
Package height (cm)
120
Package width (cm)
30
Package length (cm)
30
IP
20
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
