F4634009 WhiteOverlap Suspension 2
Designed by Michael Anastassiades, 2018

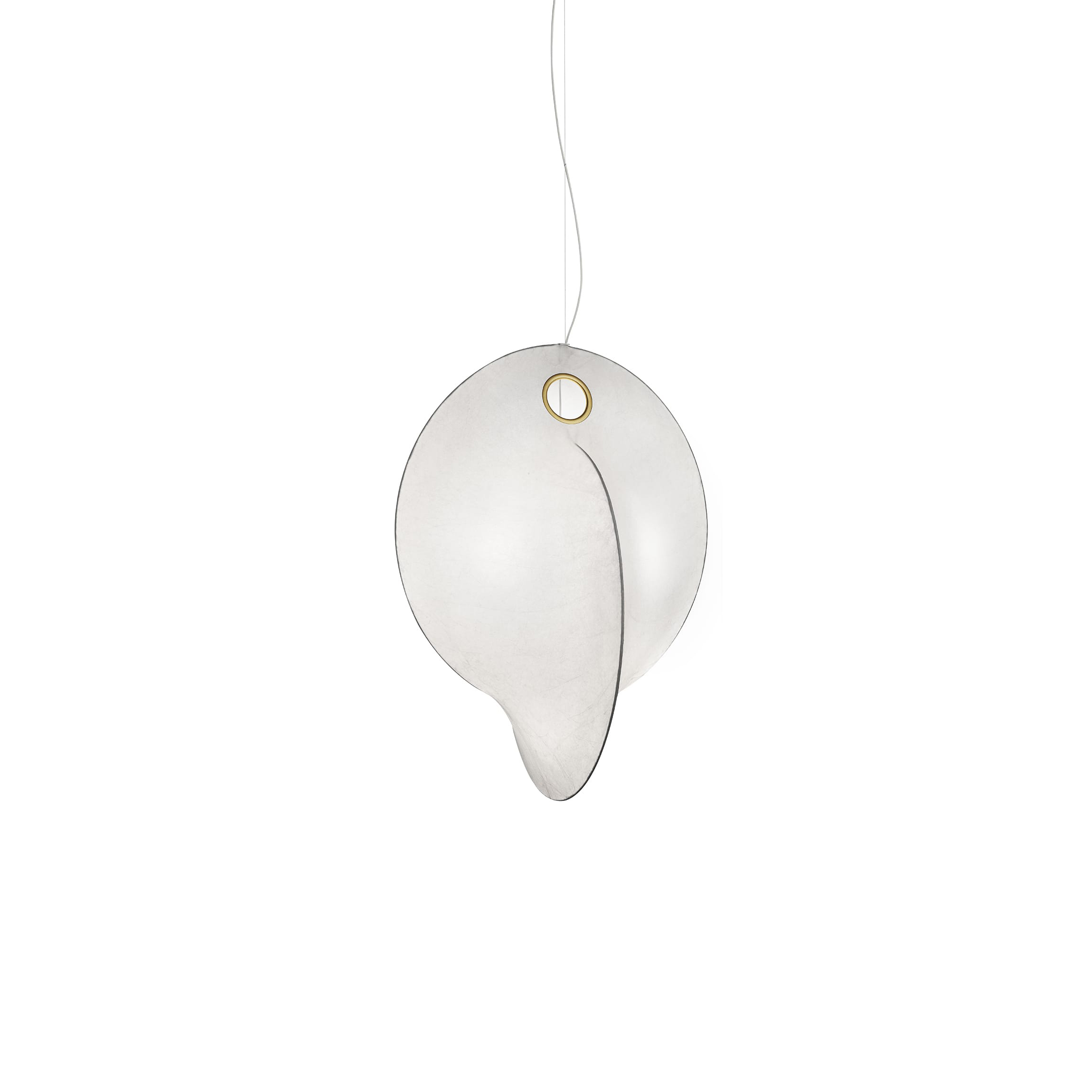

Suspended lamp with diffused light. Internal structure in white powder painted steel. Resin diffuser Cocoon sprayed on the structure, with a transparent protection created by spraying at the end of the machining, ring for substitution of printed steel diffuser in polished, Gold-plated "Galvanic" finish. Die-cast rose in Zama polished and Gold-plated "Galvanic" finish.
Halogen - 2 x 105W
Technical Drawing
Main specifications
EAN
8059607020104
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E27
Ilcos
HSGS
Number of heads
2
Power (W)
105
Photometric
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
1000
Cord colour
White
Canopy colour
Gold
Canopy dimension (mm)
113
Net weight (kg)
8.8
Package height (cm)
1400
Package width (cm)
900
Package length (cm)
900
Package volume (m3)
1.13
IP
20
