Outdoor Perseo
FA52506330 Black

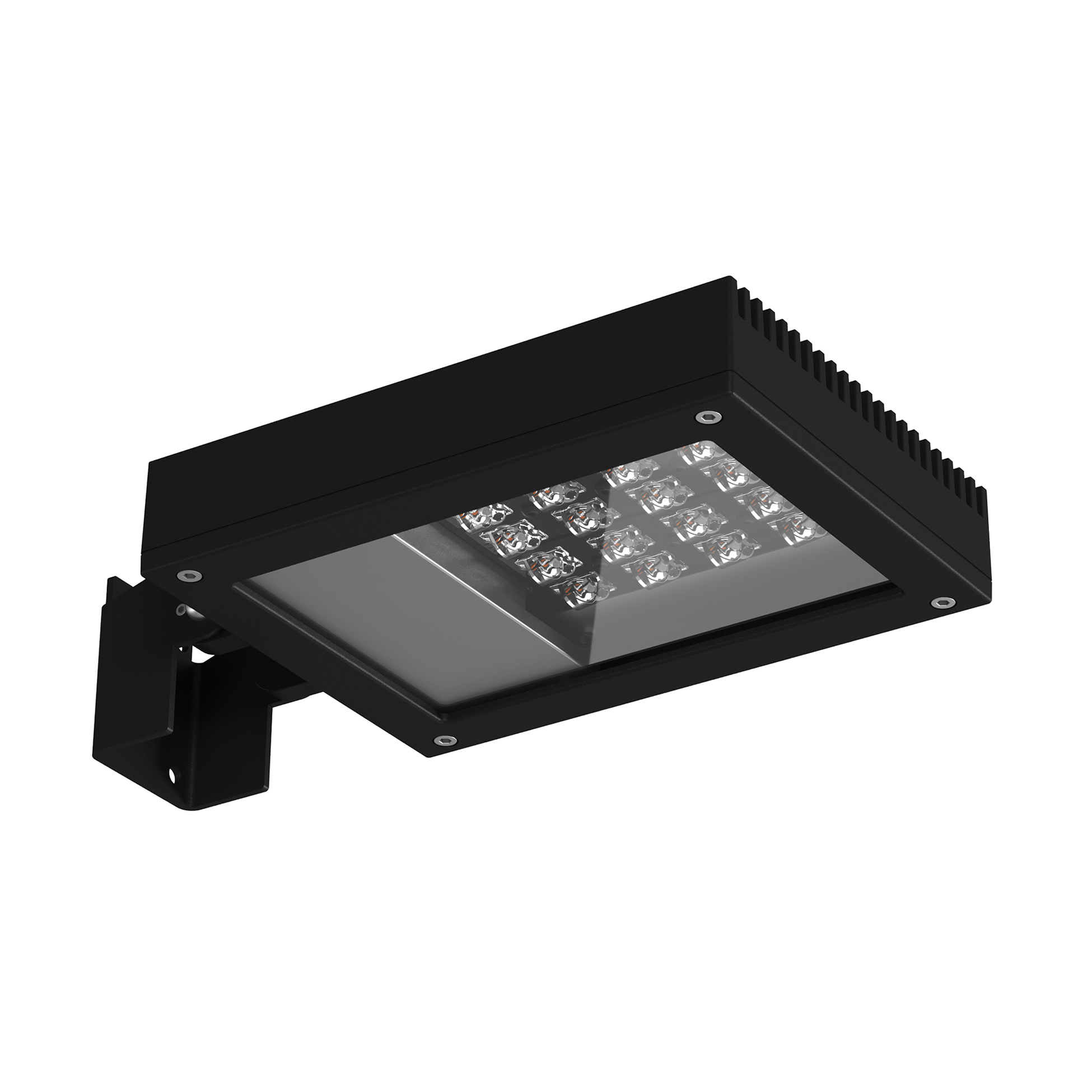

Perseo 3 Asymmetric Optic

LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a M16x1.5 cable guide (for 4.5mm<ø<10mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: protruding arm for walls; feet and arms to install the luminaire on a mast; wall-washer visor and anti-vandalism protection lid. Extraclear transparent glass.

1298lm - 3000K - CRI> 80

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793642550
Mounting
Wall, Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
System power (W)
20
Source flux (lm)
2424
System flux (lm)
1298
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Black
Orientation
Adjustable
Longitudinal tilting (°)
146
Net weight (kg)
2.28
Package height (cm)
135
Package width (cm)
190
Package length (cm)
315
Package volume (m3)
0.01
IP
65
CE
IECEE-CB
EAC
USA
65
IK07 - 2.00 Joule
IK07 - 2.00 Joule
65
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

optional (47)
All
Pole
Accessory
Bracket
x1
Pole Ø 102 mm h 4000 mm (+500 mm In-ground) FA414533
Thumbnail
x1
S.P.D. (SURGE PROTECTION DEVICE) F990E00A000
Thumbnail
x1
Pole Ø76 mm h 3500 mm(with Base) FA24806
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 500 mm Single FA22733
Thumbnail
x1
Pole Ø76 mm h 3500 mm(with Base) FA24833
Thumbnail
x1
Pole Ø76 mm h 3500 mm (+500 mm In-ground) FA25006
Thumbnail
x1
Pole Ø76 mm h 3500 mm (+500 mm In-ground) FA25033
Thumbnail
x1
Pole Ø76 mm h 4500 mm(with Base) FA24906
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 500 mm Double FA22433
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 180 mm Double FA22633
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 180 mm Single FA22106
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 180 mm Single FA22933
Thumbnail
x1
Pole Ø76 mm h 4500 mm(with Base) FA24933
Thumbnail
x1
Base Plate and Fixing Bolts for Pole Ø 102 mm h 4000/5000 mm with Base FA116
Thumbnail
x1

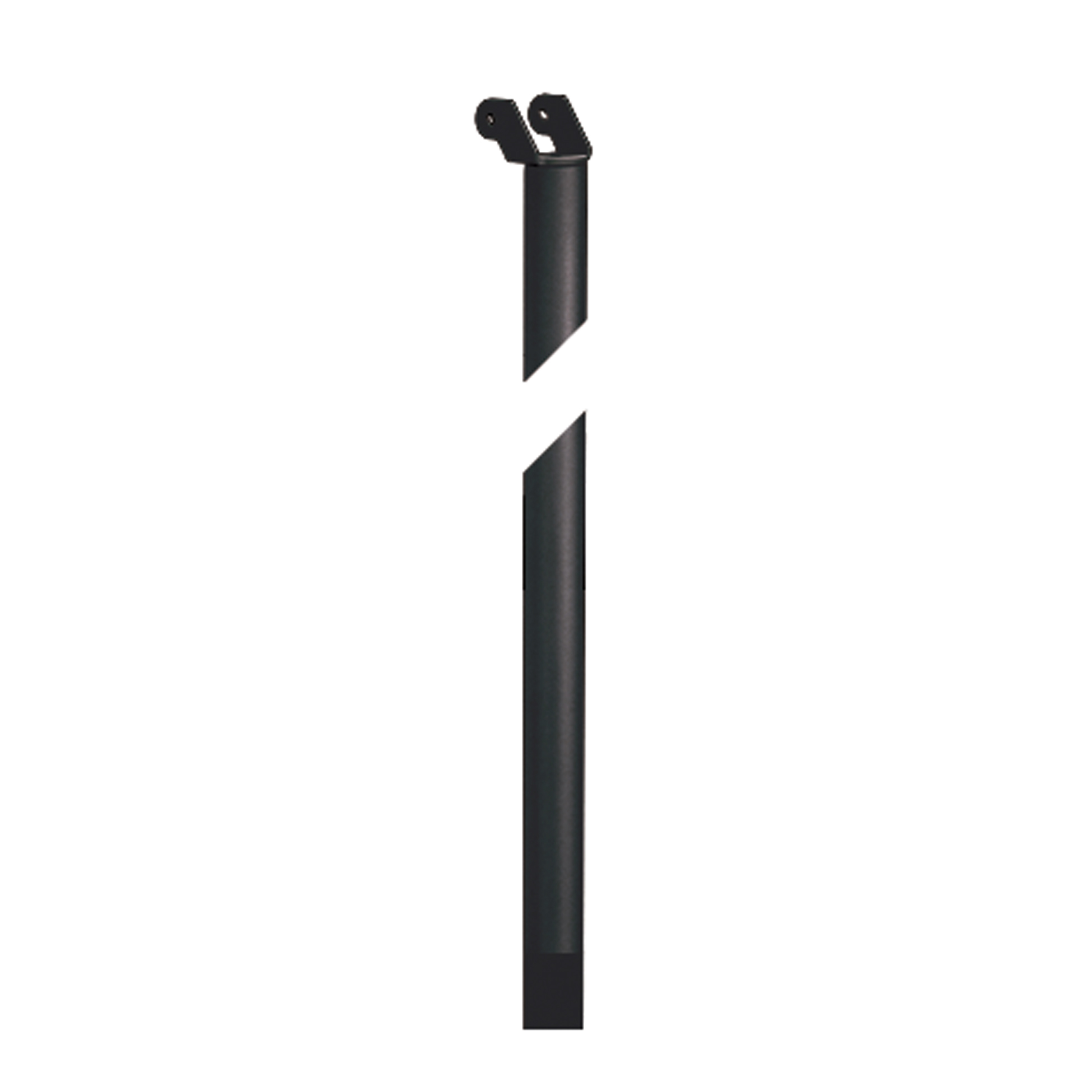

Pole Inground Perseo 3 h 2000(+300) mm FA18030
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 180 mm Single FA22506
Thumbnail
x1
Pole Ø76 mm h 4500 mm (+500 mm In-ground) FA25106
Thumbnail
x1
Pole Ø 102 mm h 5000 mm With Base FA415006
Thumbnail
x1
Pole Ø76 mm h 4500 mm (+500 mm In-ground) FA25133
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 500 mm Single FA22306
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 180 mm Double FA23033
Thumbnail
x1
Pole Ø 102 mm h 5000 mm (+500 mm In-ground) FA415506
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 180 mm Double FA23006
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 180 mm Double FA22233
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 500 mm Single FA22333
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 180 mm Double FA22606
Thumbnail
x1
Antivandal Louvre Perseo 3 FA16630
Thumbnail
x1
Pole Ø 102 mm h 5000 mm With Base FA415033
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 180 mm Double FA22206
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 500 mm Single FA22706
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 180 mm Single FA22533
Thumbnail
x1
Base Plate and Fixing Bolts Perseo 2 FA182
Thumbnail
x1
Pole with base Perseo 3 h 800 mm FA17930
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 180 mm Single FA22906
x1
Pole Ø 102 mm h 4000 mm With Base FA414006
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 500 mm Double FA23233
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 500 mm Single FA23106
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 500 mm Double FA22406
x1
Pole Ø 102 mm h 4000 mm With Base FA414033
Thumbnail
x1
Wall Washer Visor Perseo 3 FA16530
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 500 mm Double FA22806
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 500 mm Double FA23206
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 76 mm 500 mm Single FA23133
Thumbnail
x1
Wall Bracket 620 mm Franco 1/Perseo 3 FA8830
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 102 mm 180 mm Single FA22133
x1
Pole Ø 102 mm h 4000 mm (+500 mm In-ground) FA414506
Thumbnail
x1
Pole Bracket Franco 1/Perseo 3 Ø 60 mm 500 mm Double FA22833
