Outdoor Perseo
FA52512406 Grey

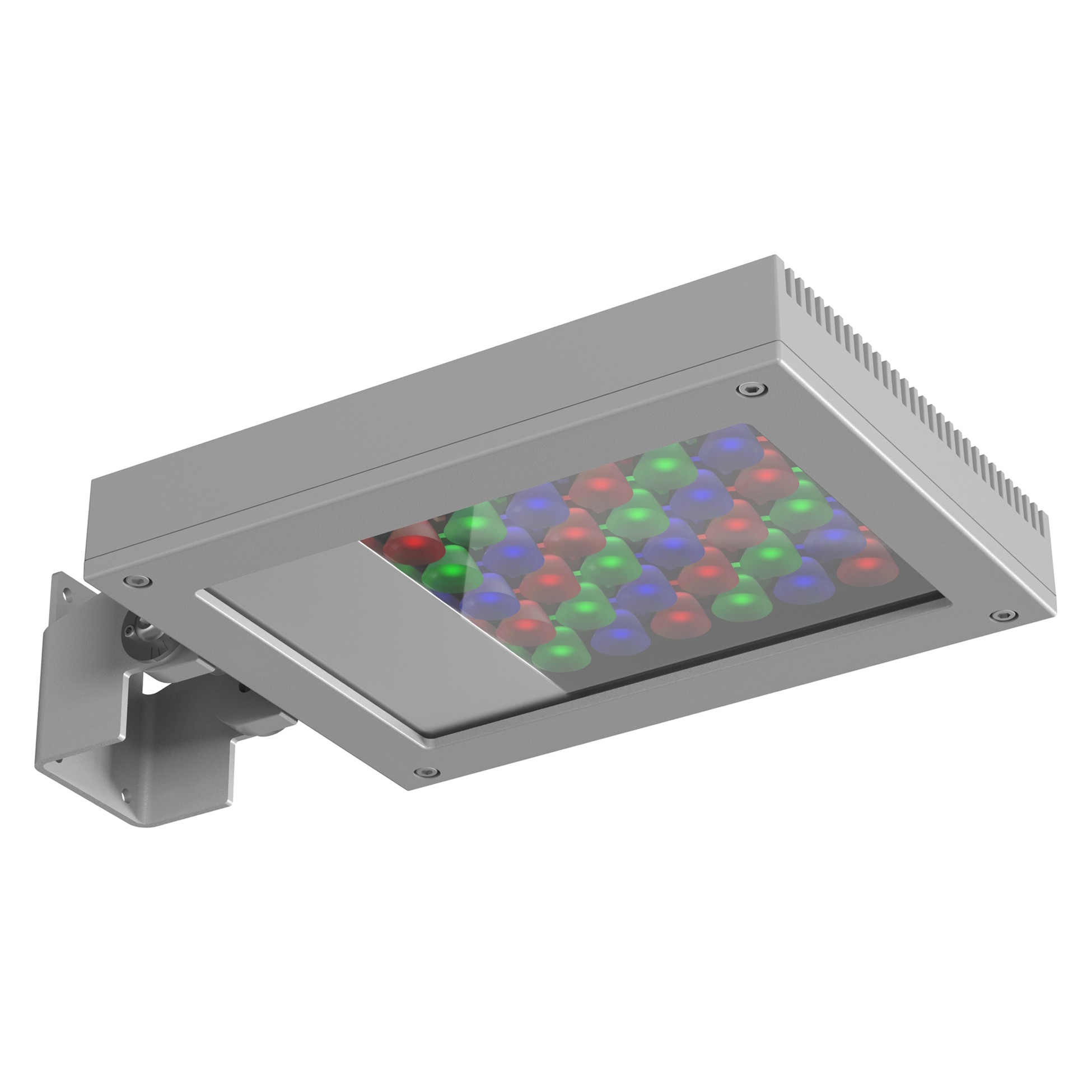

Perseo 4 RGB

LED source included. Integrated power supply 220-240V. Graduated fixing bracket included. Equipped with a M20x1.5 cable guide (for 7mm<ø<13mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: protruding arm for walls; feet and arms to install the luminaire on a mast; wall-washer visor and anti-vandalism protection lid. Extraclear transparent glass.

RGBK - Beam° 40

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793645612
Mounting
Wall, Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
System power (W)
40
Photometric
Light distribution
Symmetric
CCT (K)
RGB
Beam angle C0-180 (º)
40
Beam angle C90-270 (º)
40
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable DMX
Dimming interface
Dimmer Integrated
Emergency type
No
Physical
Colour
Grey
Orientation
Adjustable
Longitudinal tilting (°)
156
Net weight (kg)
5.06
Package height (cm)
155
Package width (cm)
265
Package length (cm)
430
Package volume (m3)
0.02
IP
65
CE
IECEE-CB
EAC
USA
65
IK07 - 2.00 Joule
IK07 - 2.00 Joule
65
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

optional (29)
All
Pole
Accessory
Bracket
x1
Pole Ø 102 mm h 4000 mm (+500 mm In-ground) FA414506
Thumbnail
x1
Pole Ø76 mm h 3500 mm(with Base) FA24806
Thumbnail
x1
DMX controller; dimmer switch for recessed box (60mm hole centres) F990B10A000
Thumbnail
x1
DMX controller; stand-alone/pc interface. F990B11A000
x1
DMX splitter 512 F990B13A000
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 60 mm 180 mm FA9306
Thumbnail
x1
DMX cable - shielded twisted pair with 110 Ohm constant impedance F990B12A000
Thumbnail
x1
S.P.D. (SURGE PROTECTION DEVICE) F990E00A000
Thumbnail
x1
Pole Ø76 mm h 3500 mm (+500 mm In-ground) FA25006
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 102 mm 500 mm Single FA7906
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 76 mm 180 mm Double FA11406
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 102 mm 500 mm Double FA8906
Thumbnail
x1
Pole Ø76 mm h 4500 mm(with Base) FA24906
Thumbnail
x1
Pole Ø76 mm h 4500 mm (+500 mm In-ground) FA25106
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 60 mm 500 mm Double FA9606
Thumbnail
x1
Antivandal Louvre Perseo 4 FA16830
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 76 mm 500 mm Double FA11506
Thumbnail
x1
Pole Ø 102 mm h 5000 mm (+500 mm In-ground) FA415506
x1
Pole Ø 102 mm h 4000 mm With Base FA414006
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 76 mm 180 mm Single FA11206
Thumbnail
x1

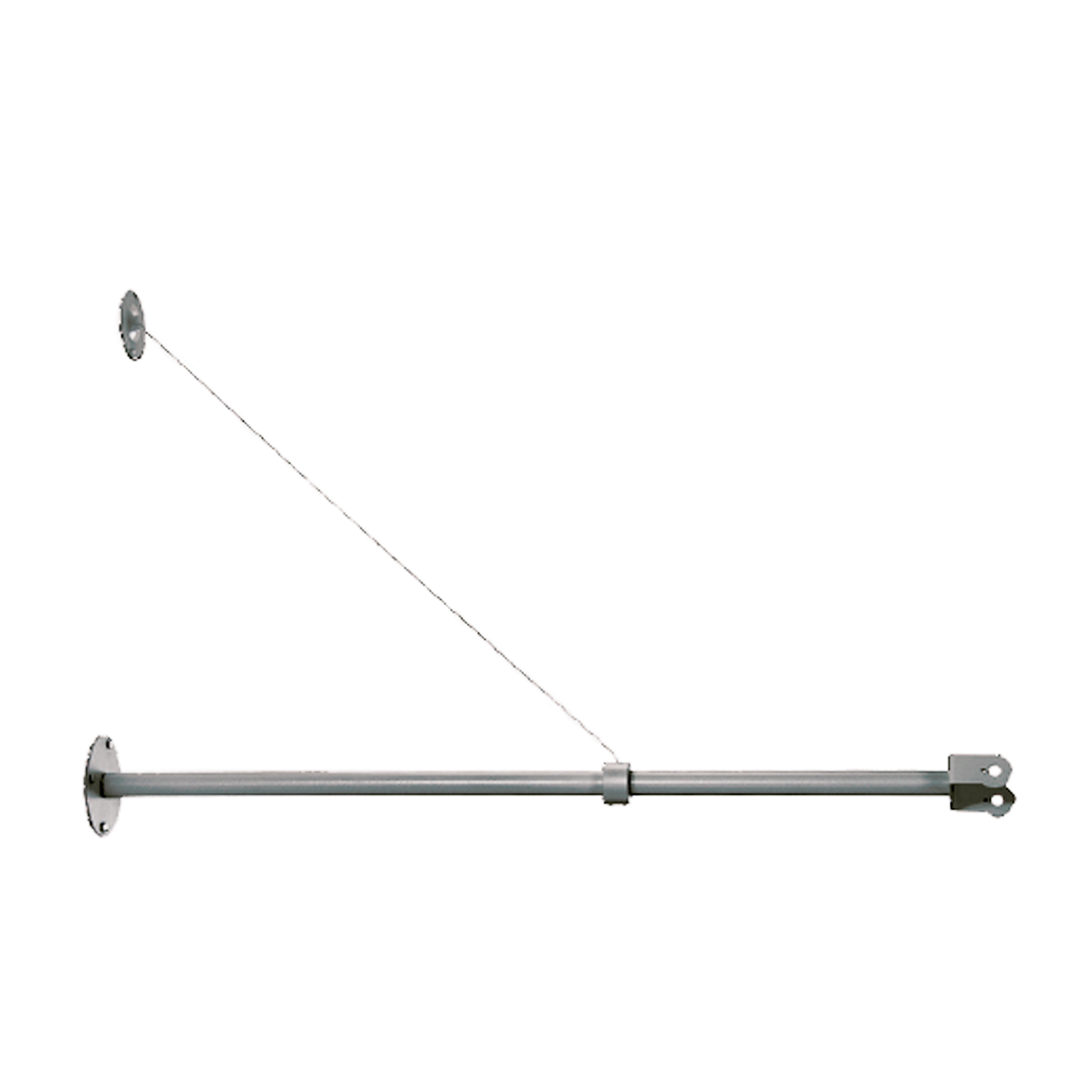

Wall Bracket Perseo 4 1000 mm FA18106
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 60 mm 180 mm Double FA9506
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 60 mm 500 mm FA9406
Thumbnail
x1
Base Plate and Fixing Bolts for Pole Ø 102 mm h 4000/5000 mm with Base FA116
Thumbnail
x1
Wall Washer Visor Perseo 4 FA16730
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 76 mm 500 mm Single FA11306
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 102 mm 180 mm Double FA9006
Thumbnail
x1
Pole Bracket Franco 2/Perseo 4 Ø 102 mm 180 mm Single FA7806
Thumbnail
x1
Pole Ø 102 mm h 5000 mm With Base FA415006
