F6393031 Anthracite

Skynest C

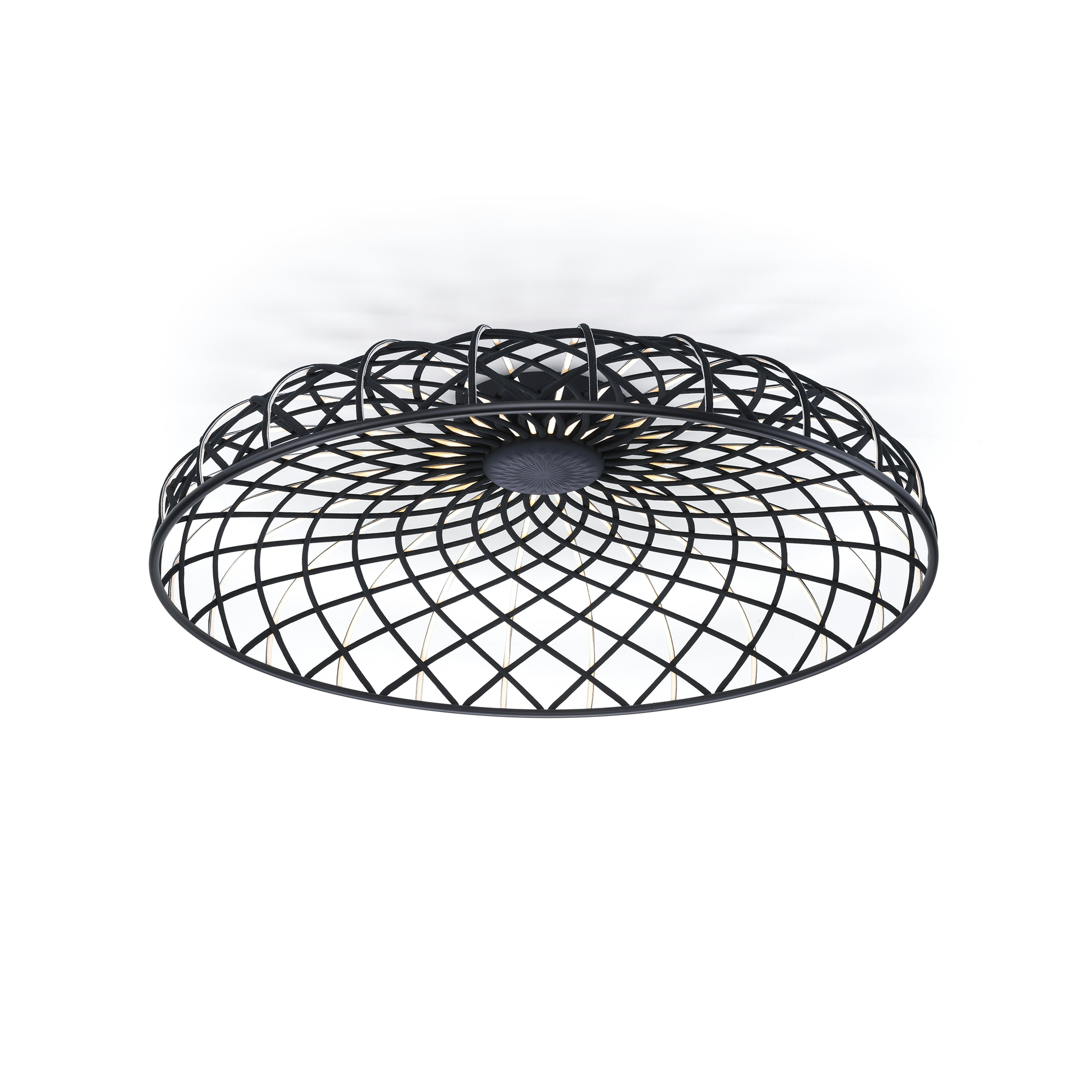

Diffuse lighting hanging appliance. The dome is a combination of luminous and dark elements arranged into a network and formed of core structures covered with a thin interwoven colourful tubular mesh made from recycled and recyclable fabric produced from polyester. Every single luminous element is powered by special micro-connectors located at the top of the dome and is covered with a two-tone mesh, while the side facing the inside of the dome is always white in order to allow for optimal light emission from the LED module. The appliance is fitted with a built-in balancing system at the top of the dome which helps adjust its balance, making it perfectly stable. The bottom of the dome is completed by an aluminium ring that keeps the dome’s entire network structure in place through a simple snap-fit system. The product is assembled with absolutely no glue so it can be fully separated to be recycled in the future and in case of any repairs or replacements. Available lamp finishes: Blue Tourmaline, Almond, Anthracite or Brick Red.Fitted with built-in electronics that allow for the use of different dimmer systems: 0-10V / 1-10V / DALI / PUSH."

57W - 1325lm - 2700-2900K - CRI> 90

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
EAN
8059607058022
Mounting
Ceiling
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
57
System power (W)
57
System flux (lm)
1325
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700-2900
CRI>
90
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Colour
Anthracite
Length (mm)
904
Canopy colour
Black
Canopy dimension (mm)
216
Net weight (kg)
4
Package height (cm)
320
Package width (cm)
1000
Package length (cm)
1000
Package volume (m3)
0.32
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
RETILAP
UKCA
CCC
USA
Flammable Surface
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

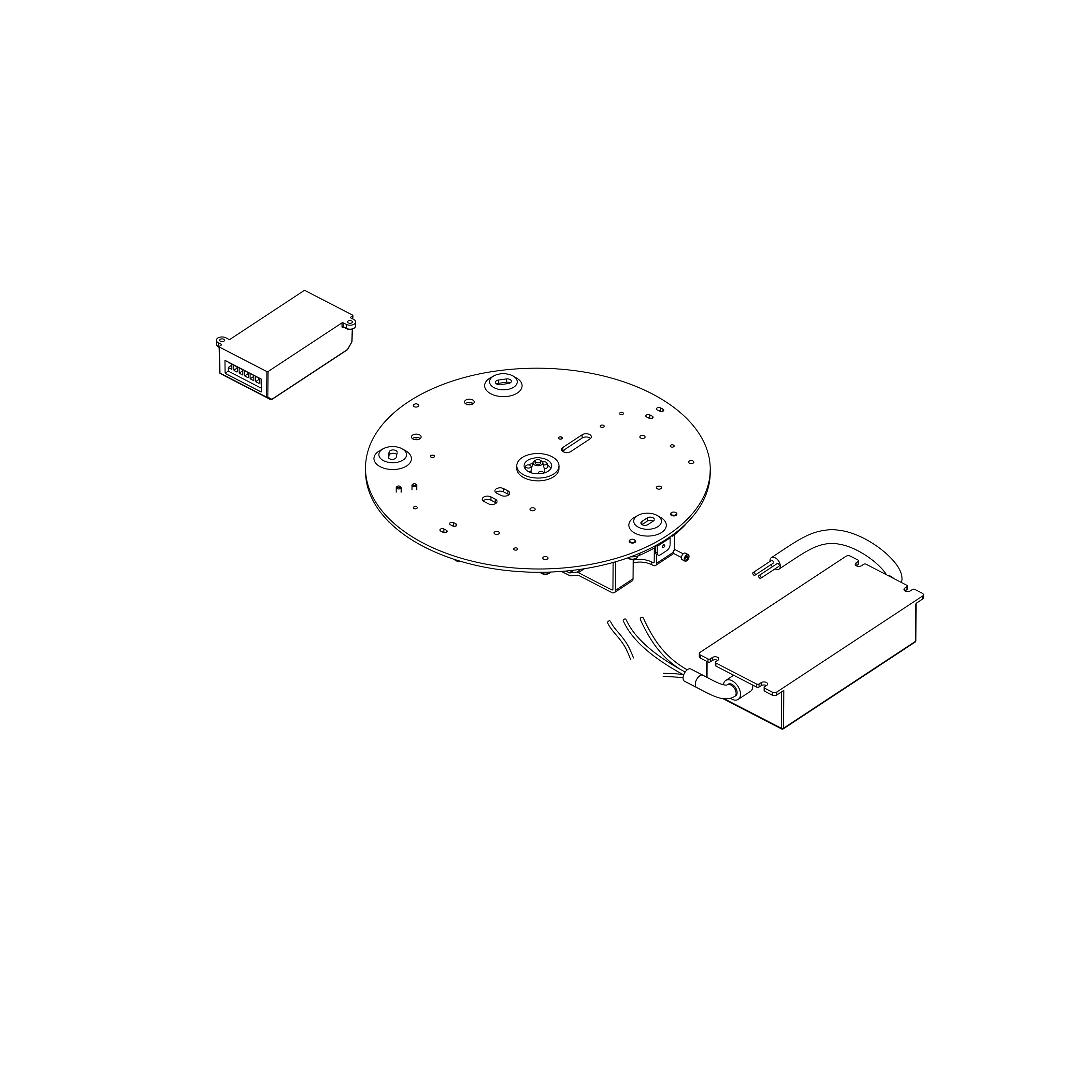

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL2 Replaceable control gear by a professional
