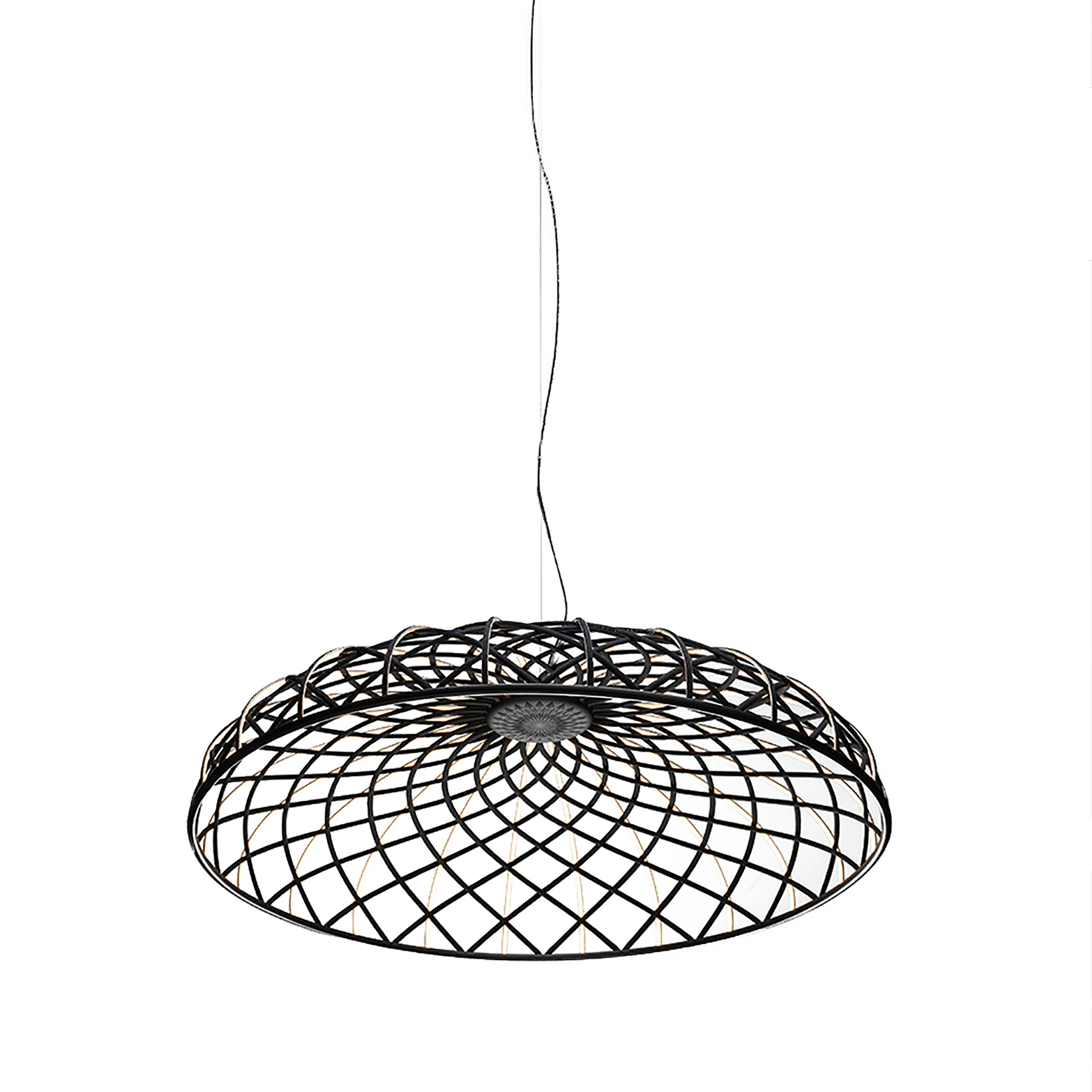

SkynestSkynest Suspension
Designed by Marcel Wanders, 2022
Suspension lamp emitting diffused light. Dome structure in polyester mesh made from recycled and recyclable fabric with luminous and dark elements powered by micro-connectors. Equipped with integrated balancing system and aluminium ring for snap-fit assembly. Glue-free construction for disassembly and recycling. Painted plastic ceiling rose with integrated electronics for 0–10/1–10 V, DALI and PUSH dimming systems.
78W - 2001lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607051849
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
78
System power (W)
78
Lumen Output (lm)
2001
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
, , ,
Dimming interface
Physical
Colour
Length (mm)
904
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
216
Canopy height (mm)
51
Net weight (kg)
3.8
Package height (mm)
250
Package width (mm)
1000
Package length (mm)
1000
Package volume (m3)
0.25
IP internal

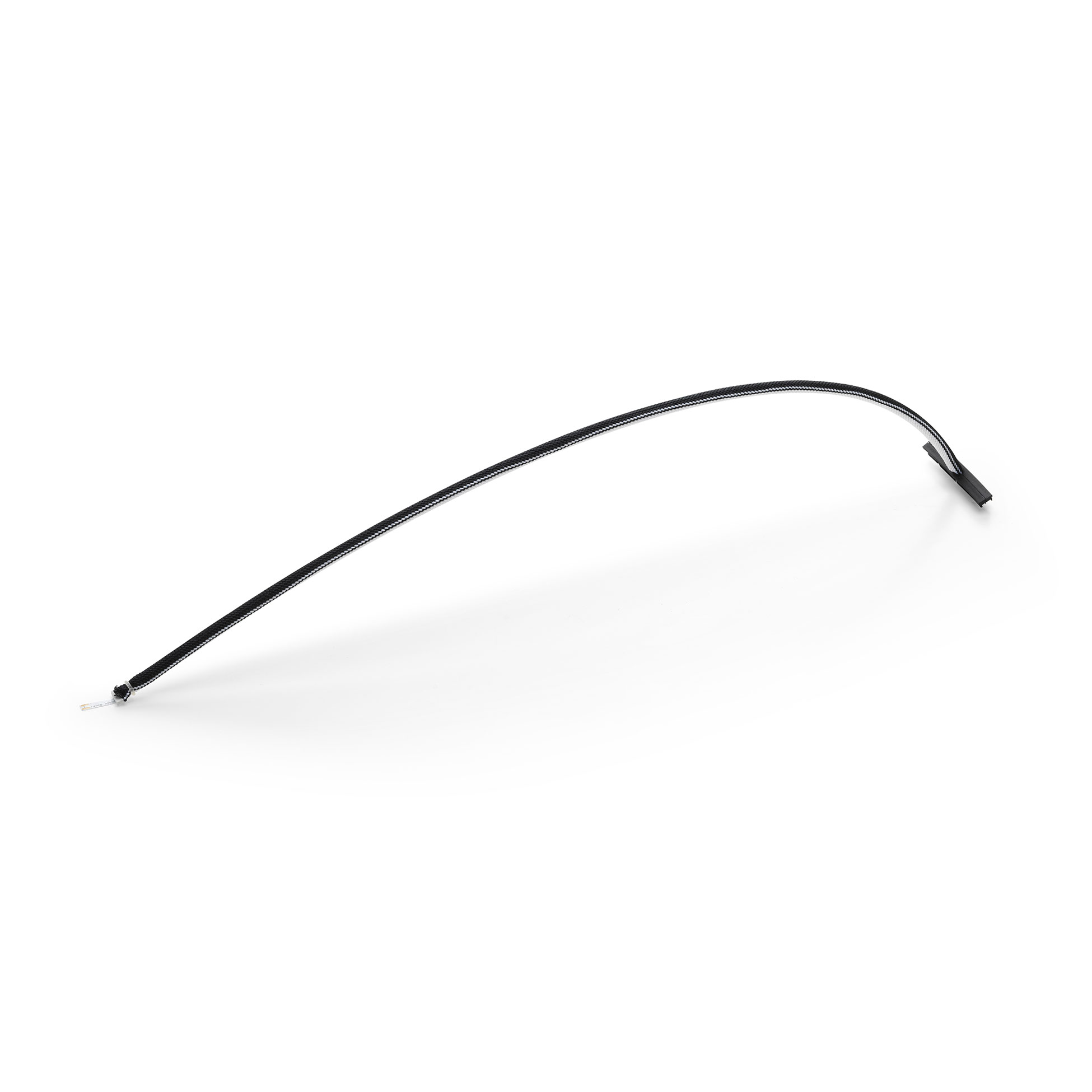

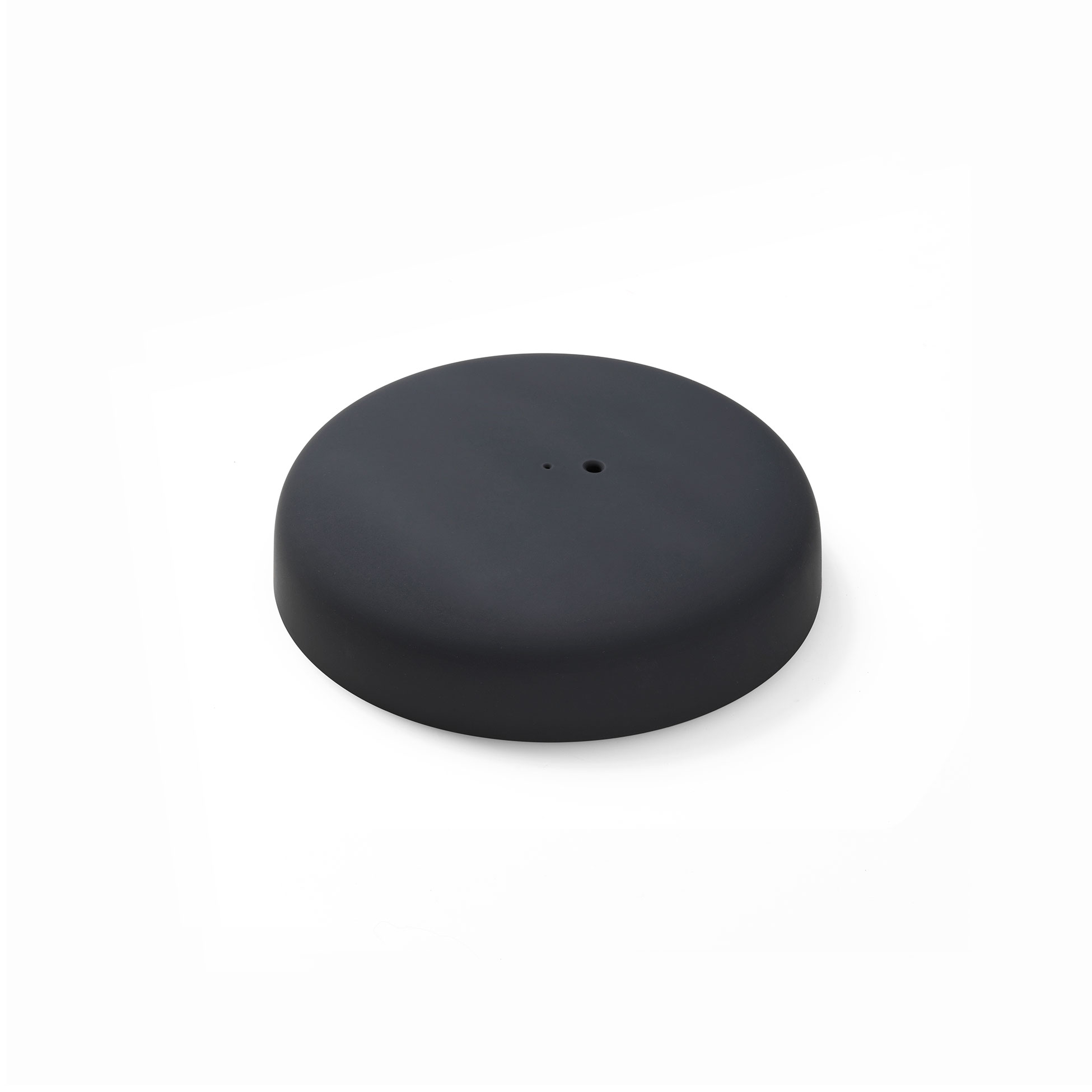

Spare Parts
