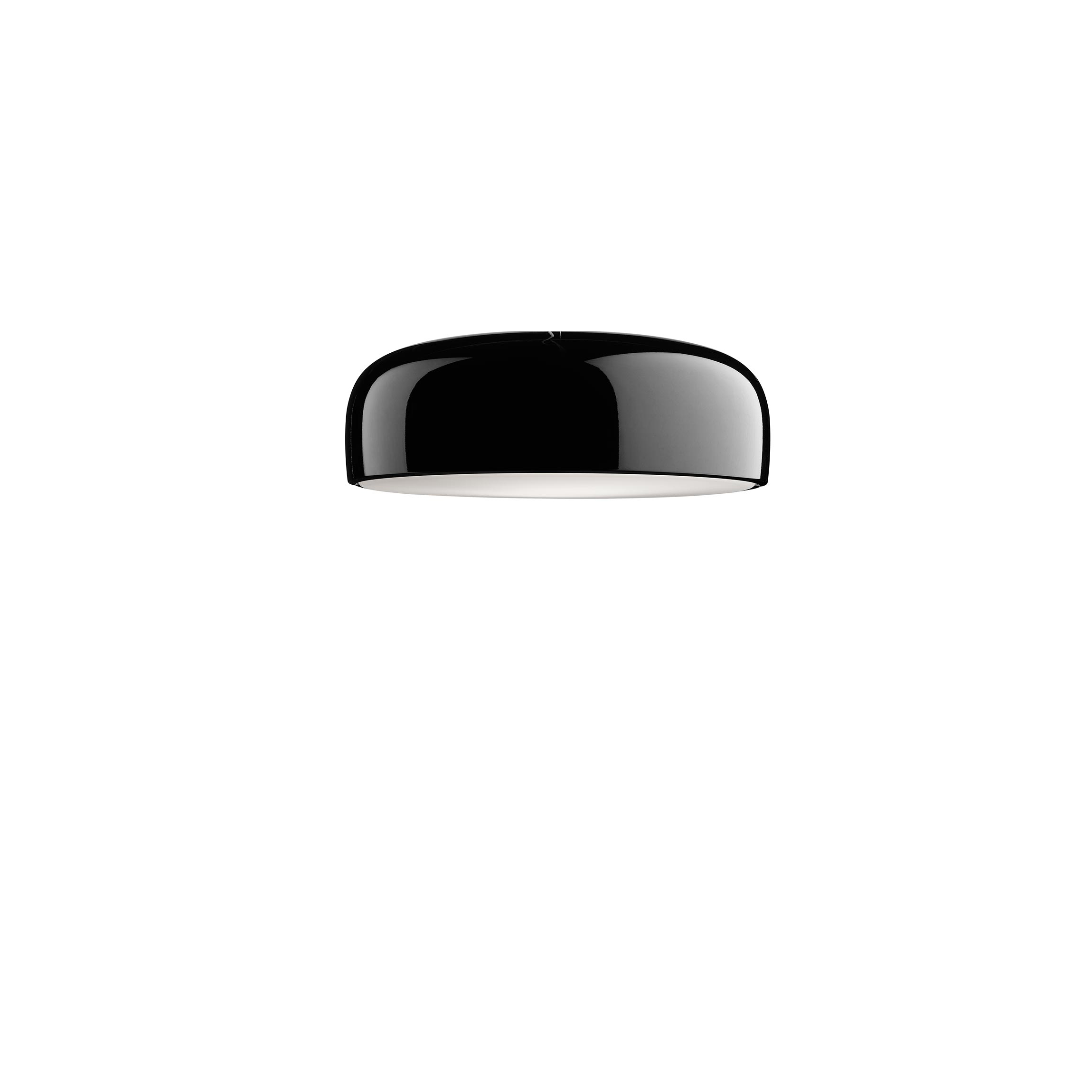

SmithfieldSmithfield Ceiling Pro
Designed by Jasper Morrison, 2009
Ceiling-mounted lamp emitting direct light. Features an aluminium body with an injection-moulded opalescent methacrylate diffuser. Steel ceiling and wall attachment. LED module integrated available in 2700K and 3000K colour temperatures; 3500K available upon request. Dimmable through Dali or Push control options.
45W - 2791lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607014899
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Power supply
Power supply type
Batteries inside
No
Physical
Colour
Length (mm)
600
Net weight (kg)
5.8
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
Spare Parts
