SmithfieldSmithfield Suspension Pro
Designed by Jasper Morrison, 2009

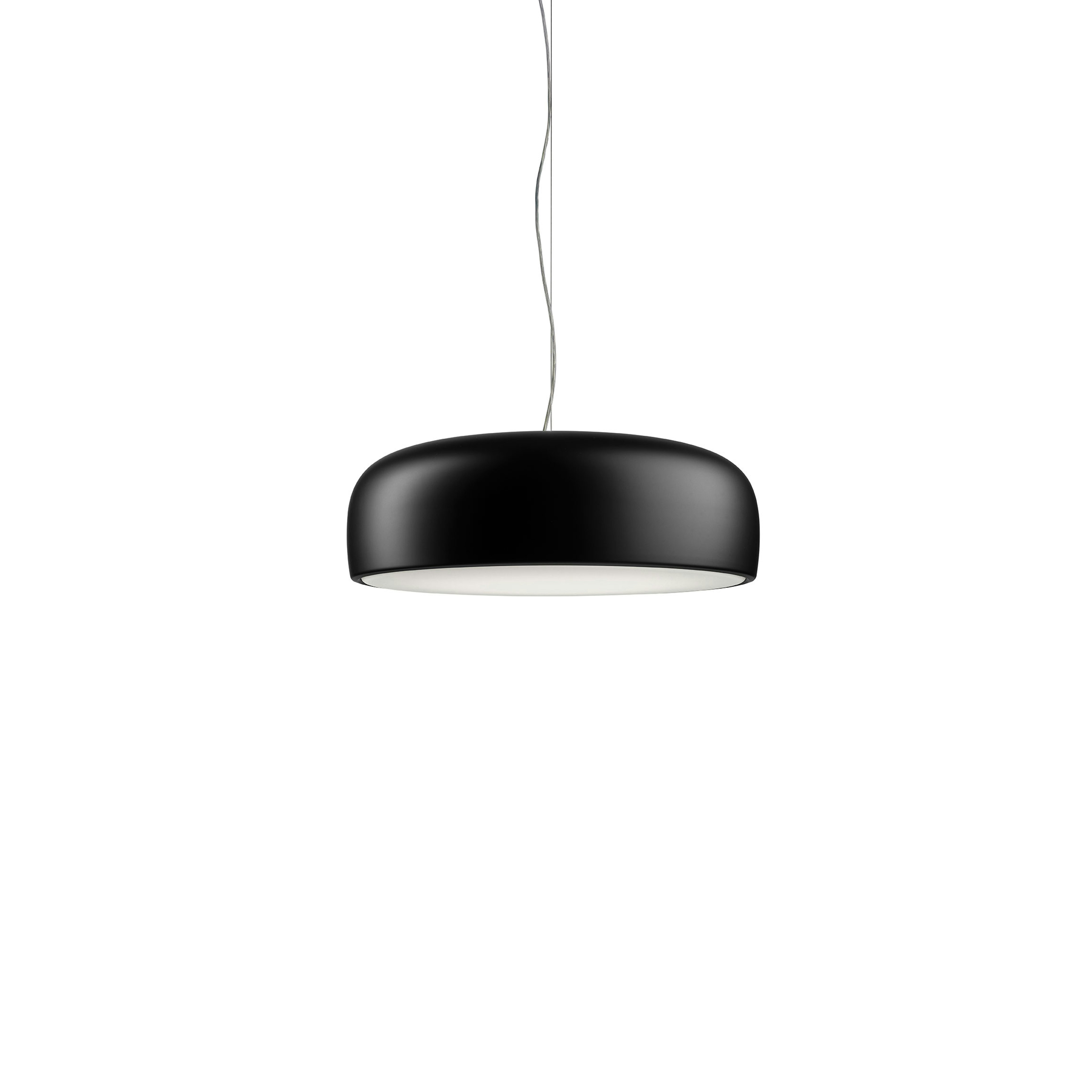

Suspension lamp with direct light. Aluminium body. Available in gloss black, matte black, red, green, white or MUD. Injection-moulded opalescent methacrylate diffuser. Steel ceiling attachment with steel suspension cable, 5 pole electric cable in PTFE double insulation, working length 2700mm.
45W - 2791lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607014981
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Power supply type
Batteries inside
No
Physical
Colour
Length (mm)
600
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
5.9
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
Spare Parts
