String Light
F6498009

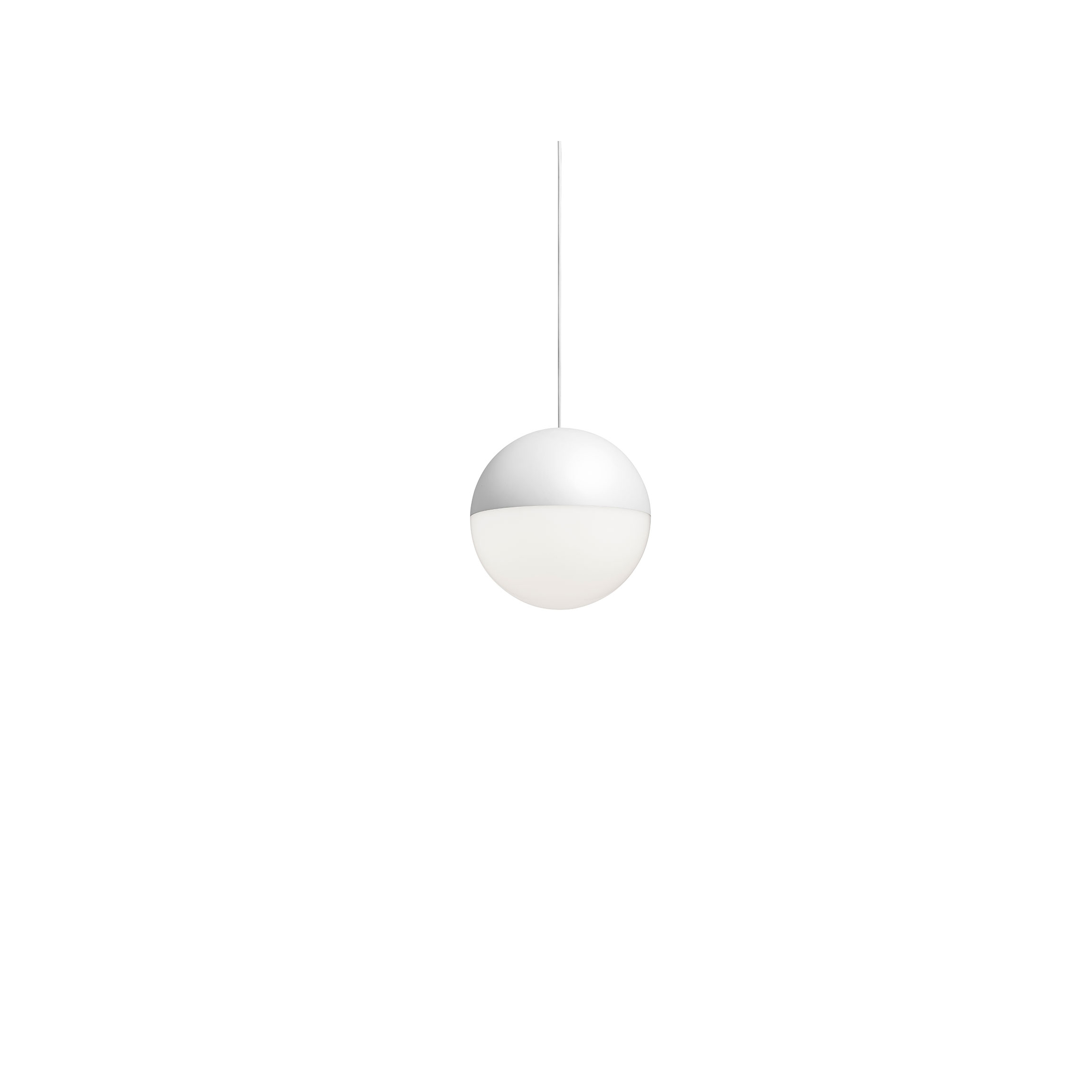

String Light - Sphere head - 22mt cable - CASAMBI Ready

Suspension lamp emitting diffused light. Varnished die-cast aluminium body coated with clear soft-touch varnish and an optical diffuser in opal polycarbonate. The suspension system (12 or 22mt long) includes a Kevlar-reinforced coaxial cable. Available with wall/ceiling connection or floor switch in black polycarbonate. The on/off switch features an electronic, optical and touch-dim mechanism or a Casambi Ready version with touch dimmer included. Must be paired with either the floor switch or ceiling/wall rose (sold separately).

21W - 1515lm - 2700K

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-String_Light-Sphere_Head_22m
Main specifications
EAN
8059607042328
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
21
Lumen Output (lm)
1515
Schematic light drawing
F64980XXWSTRING-LIGHT-SPHERE-APP-CONTR-M22_21W-LED
Photometric
Light distribution
CCT (K)
Electrical
Insulation class
Main voltage (Vac)
48
Forward voltage (V)
48
Power supply
Power supply type
Batteries inside
No
Physical
Colour
Length (mm)
190
Cord colour
productFields.physical.cordLength
22000
Net weight (kg)
1.27
Package height (mm)
300
Package width (mm)
300
Package length (mm)
300
Package volume (m3)
0.03
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

Accessories & Power Supply

Required(1)
Optional(1)

Spare Parts

F6498009-string-light-sphere-flos-boom
