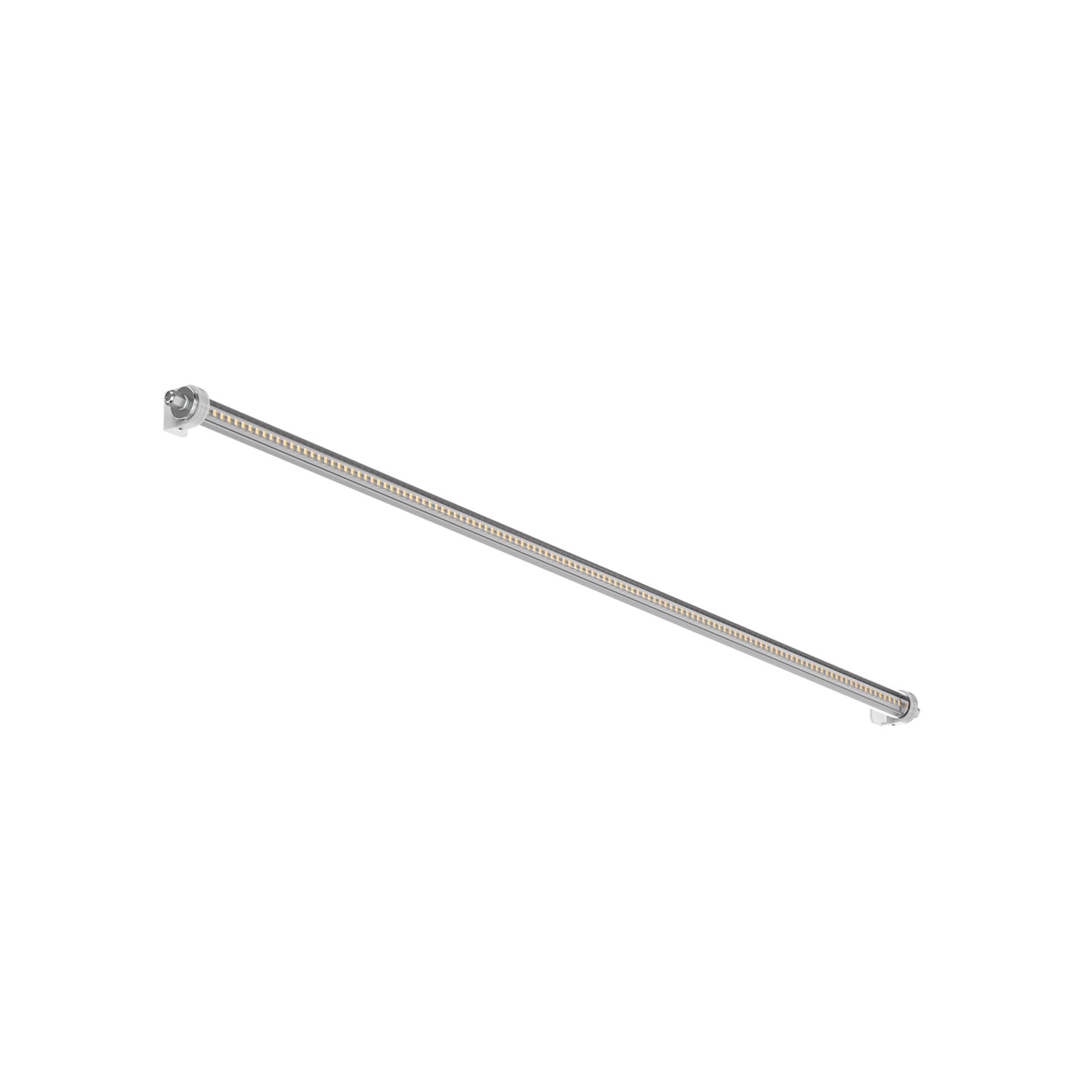

Outdoor Tau
FA523043 Transparent

Tau L 1054

LED light source included. Screw connector at the tube’s end. 24V dc remote electric power supply and individual or series feeding cables, to be ordered separately. Transparent polycarbonate diffuser. Adjustable light intensity.

10W - 768lm - 3000K - CRI> 80 - Beam° 110

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793640365
Mounting
Ceiling, Wall
Enviroment
Outdoor wet location
LED type
Power LED
Power (W)
10
System power (W)
10
Source flux (lm)
840
System flux (lm)
768
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
108
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Driver
Remote excluded
Dimming type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Emergency type
No
Physical
Colour
Transparent
Orientation
Fixed
Net weight (kg)
0.63
Package height (cm)
1190
Package width (cm)
73
Package length (cm)
73
Package volume (m3)
0.01
IP
65
CE
EAC
UKCA
USA
65
IK06 - 1.00 Joule
IK06 - 1.00 Joule
65
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

optional (8)
required (1)
