Architectural UT The Tracking Power Evo
09.7374.40 White

UT Pro 175 Lens GA-69 On Board Dimmer

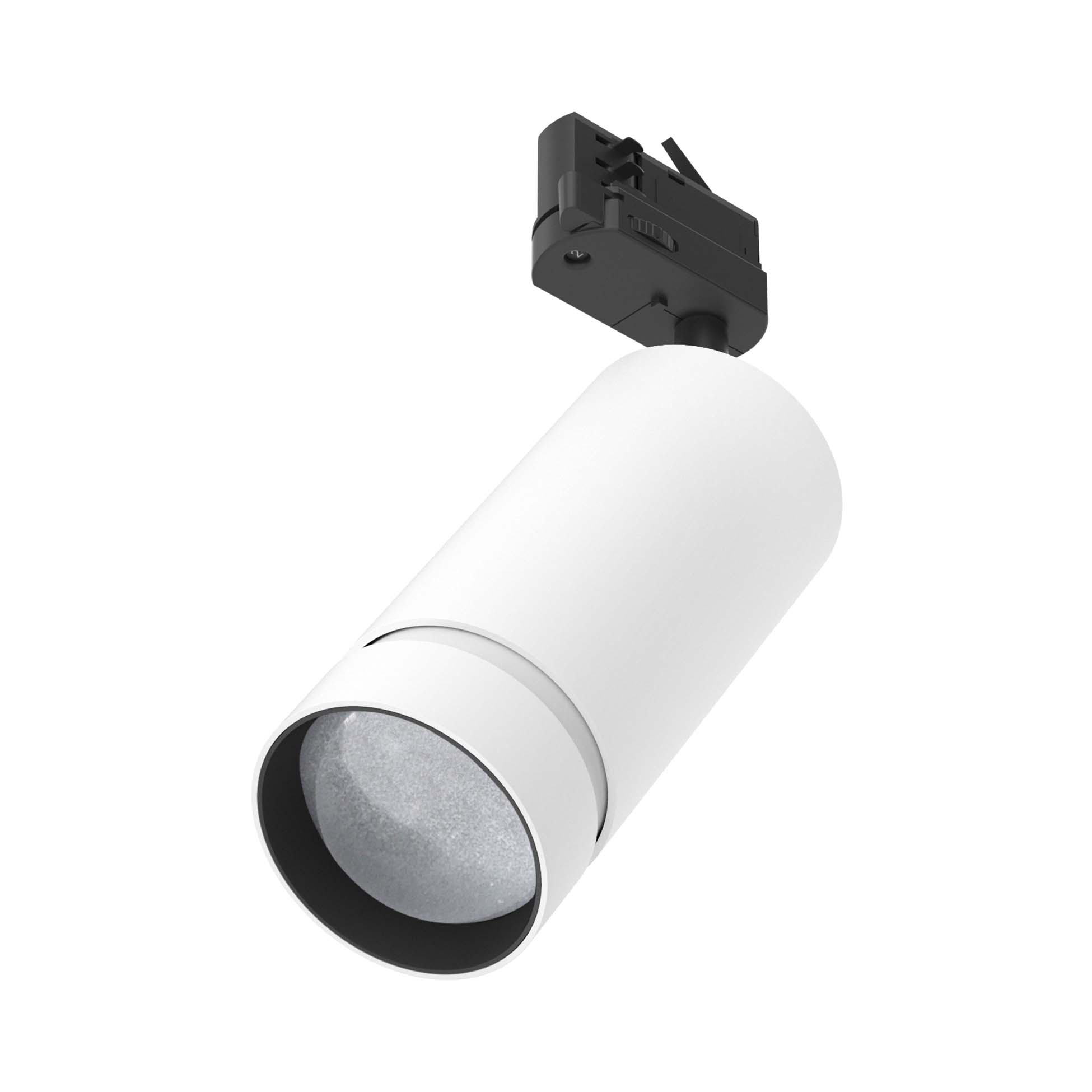

Spotlight to be installed in standard 3-phase track with LED light source. Includes adjustable lens allowing opening angle calibration from 13º to 56º. 120-270V power supply integrated. .40 versions come with the track adapter, the arm and the rear of the head in black.

LED - LED array - 35.3W - 2866lm - 3000K - CRI> 90 - Beam° 56

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
35.3
System power (W)
35.3
Source flux (lm)
3302.01
System flux (lm)
2866
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
56
Beam angle C90-270 (º)
56
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Alternating current voltage (Vac)
230
LED current (mA)
940
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Emergency type
No
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
75
Net weight (kg)
1.14
IP
20
IP external
20
EAC
CE
RETILAP
UKCA
Risk 1
USA
Risk 1
20
Gwt 850 (º)
20
20
20
20

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
