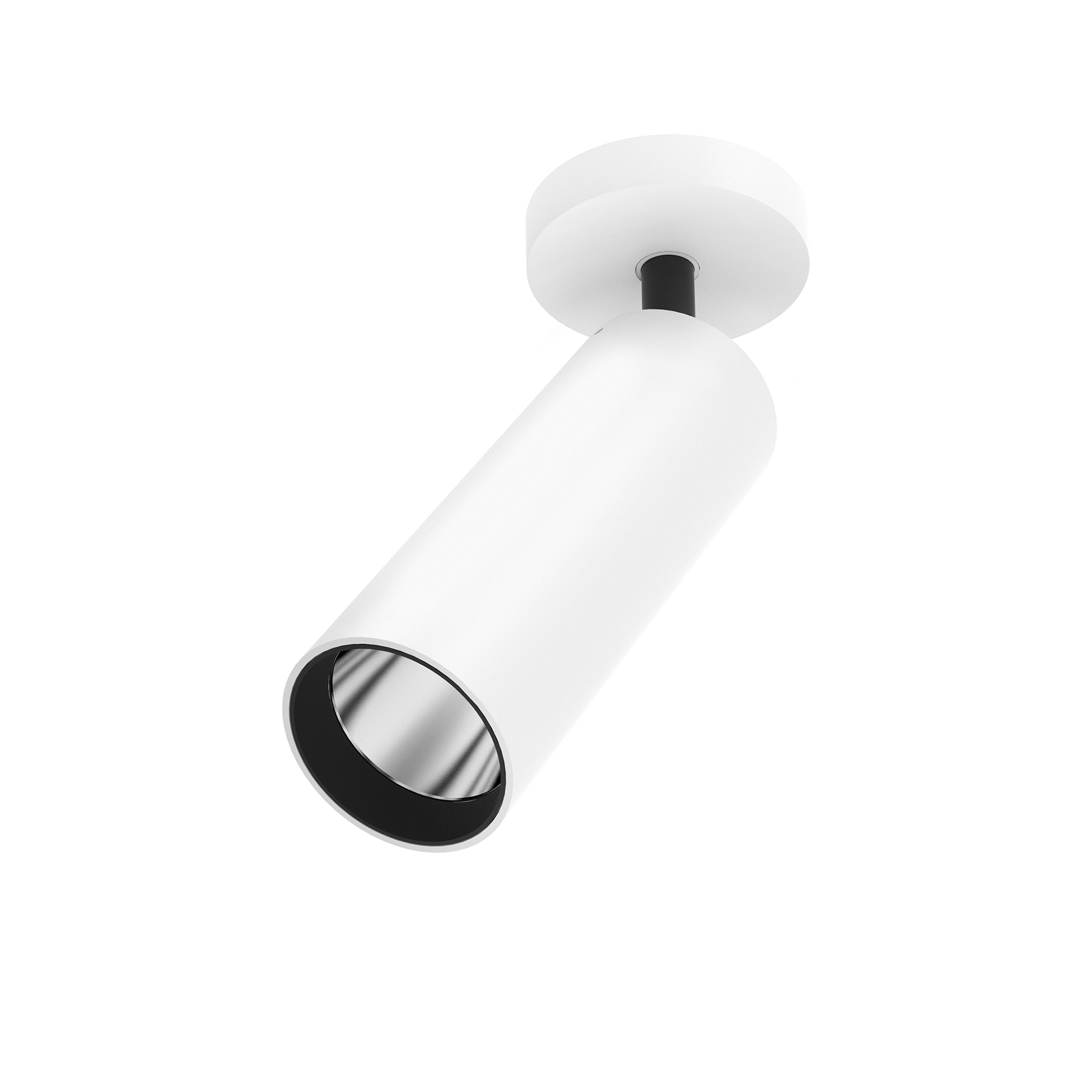

09.7291.40B WhiteUT Pro Surface 150 On Board Dimmer Included
Designed by FLOS Architectural, 2018
LED light source projector for surface installation. 120-277V power supply unit and potentiometer included.
LED - LED array - 1779lm - 4000K - CRI> 90 - Beam° 21
Technical Drawing
Main specifications
Mounting
Ceiling surface
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
System power (W)
21
Source flux (lm)
2360
System flux (lm)
1779
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
4000
CRI>
90
Beam angle C0-180 (º)
21
Beam angle C90-270 (º)
21
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
LED current (mA)
500
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming range (%)
10-100
Dimming interface
Dimmer Integrated
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.52
IP
20
Notes
Screening crosspiece, lenses and honeycomb directly installable on the head of the luminaire without needing any fastening accessory. Installation compatible with honeycomb + lense at the same time.
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
