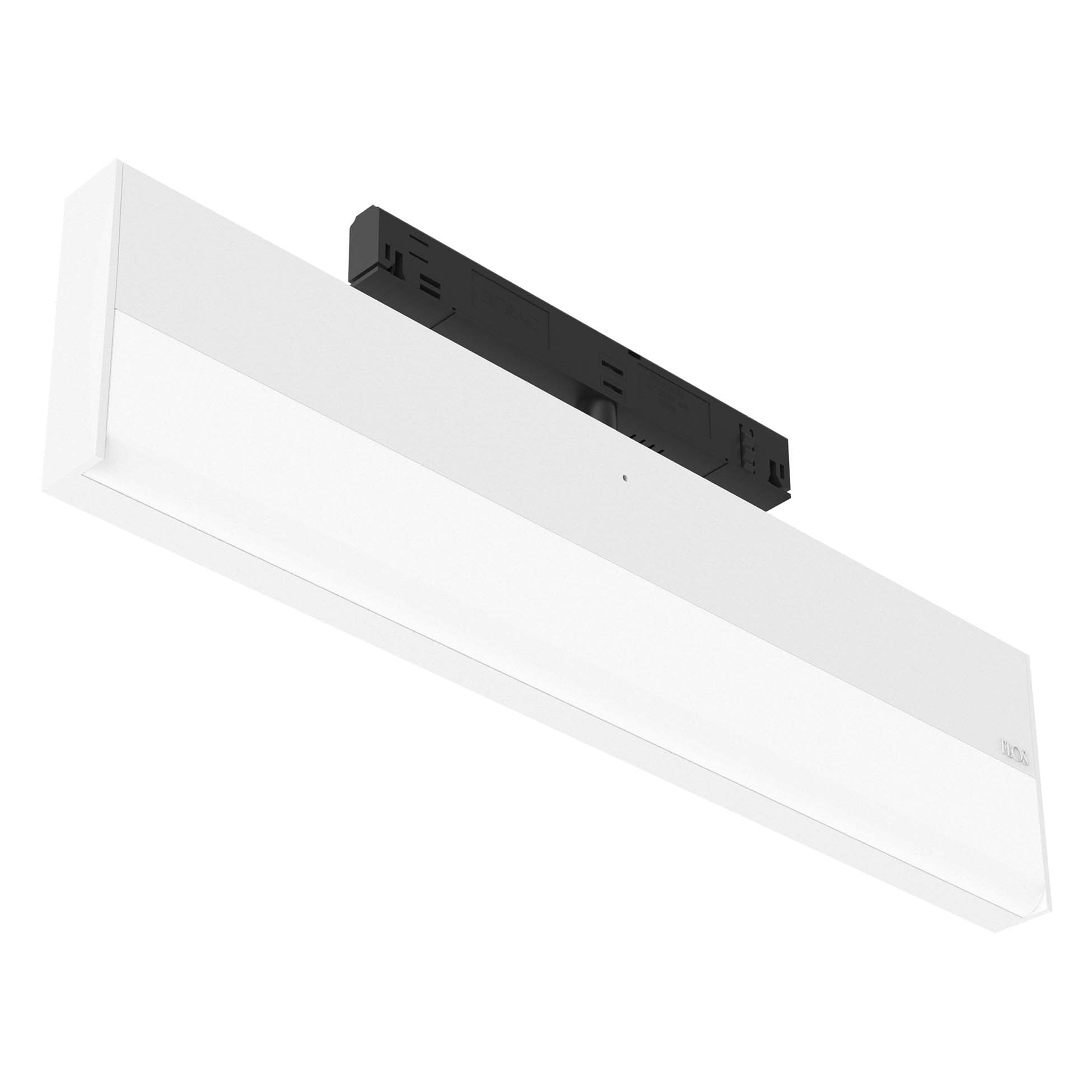

09.7501.40A WhiteUT Pro Wall-Washer
Designed by FLOS Architectural, 2017
Wall-Washer lighting module to be installed in Tracking Power profile with LED light source. 220-240V power supply integrated. .40 versions come with the track adapter, the arm and the rear of the head in black.
LED - Top LED - 25.5W - 1700lm - 4000K - CRI> 90 - Beam° 36
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
25.5
Source flux (lm)
3154
System flux (lm)
1700
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
4000
CRI>
90
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
75
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Emergency type
No
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
15
Length (mm)
420
Net weight (kg)
1.05
IP
20
IP external
20
Photometric Files
