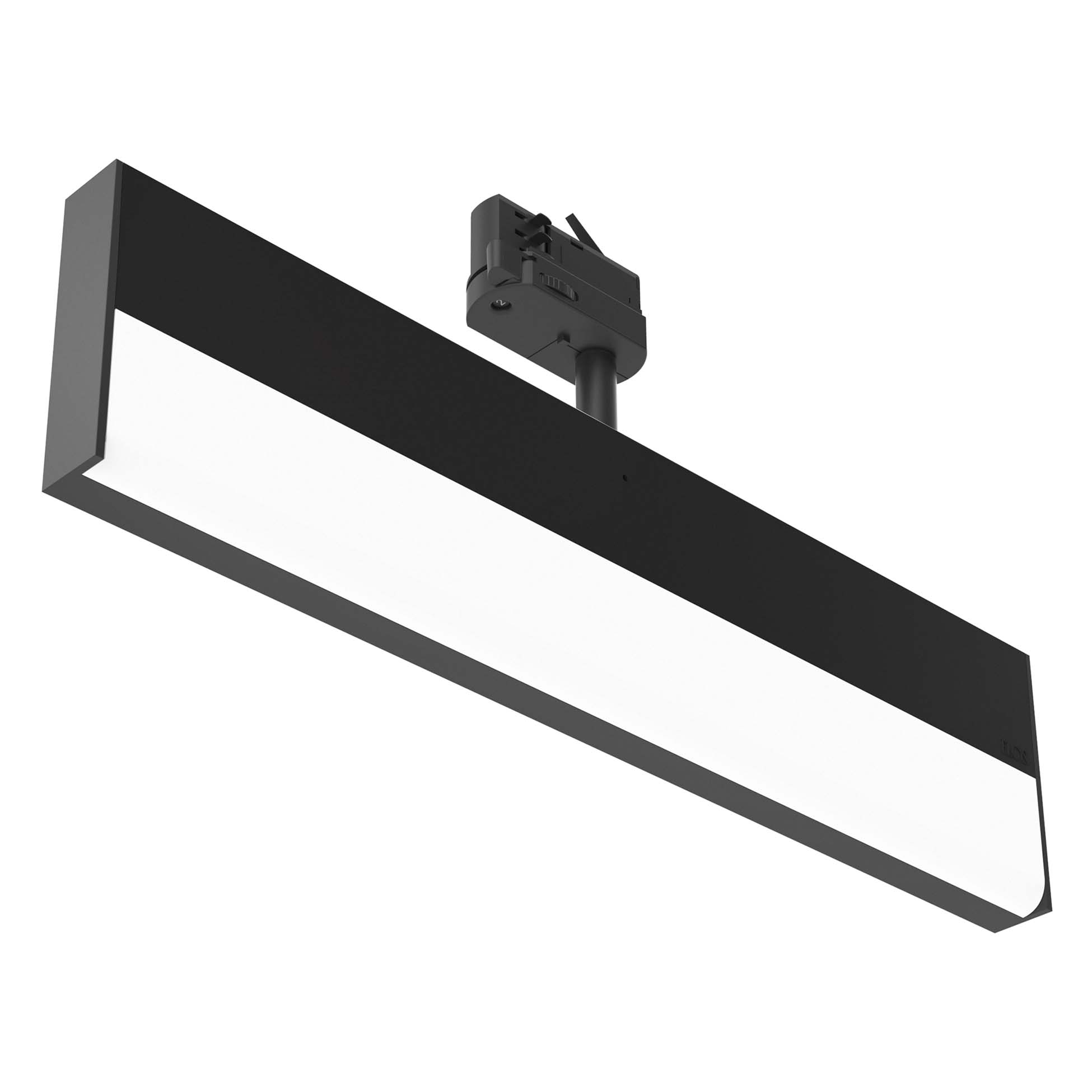

Thumbnail
Related to
Architectural UT The Tracking Power Evo
09.7505.14.DA Black

UT Pro Wall-Washer Dali Version GA-600

Wall-Washer lighting module to be installed in standard 3-phase track with LED light source. 220-240V power supply integrated. DALI version requires dimmable tracks (please refer to the “Tracks” chapter).

LED - Top LED - 25.2W - 1700lm - 4000K - Beam° 36

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
25.2
System power (W)
25.5
Source flux (lm)
3154
System flux (lm)
1700
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
4000
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
75
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Alternating current voltage (Vac)
230
LED current (mA)
700
Driver
Integrated
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
15
Length (mm)
420
Net weight (kg)
1.05
IP
20
IP external
20
EAC
CE
RETILAP
UKCA
Risk 1
USA
Risk 1
20
Gwt 850 (º)
20
20
20
20

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
