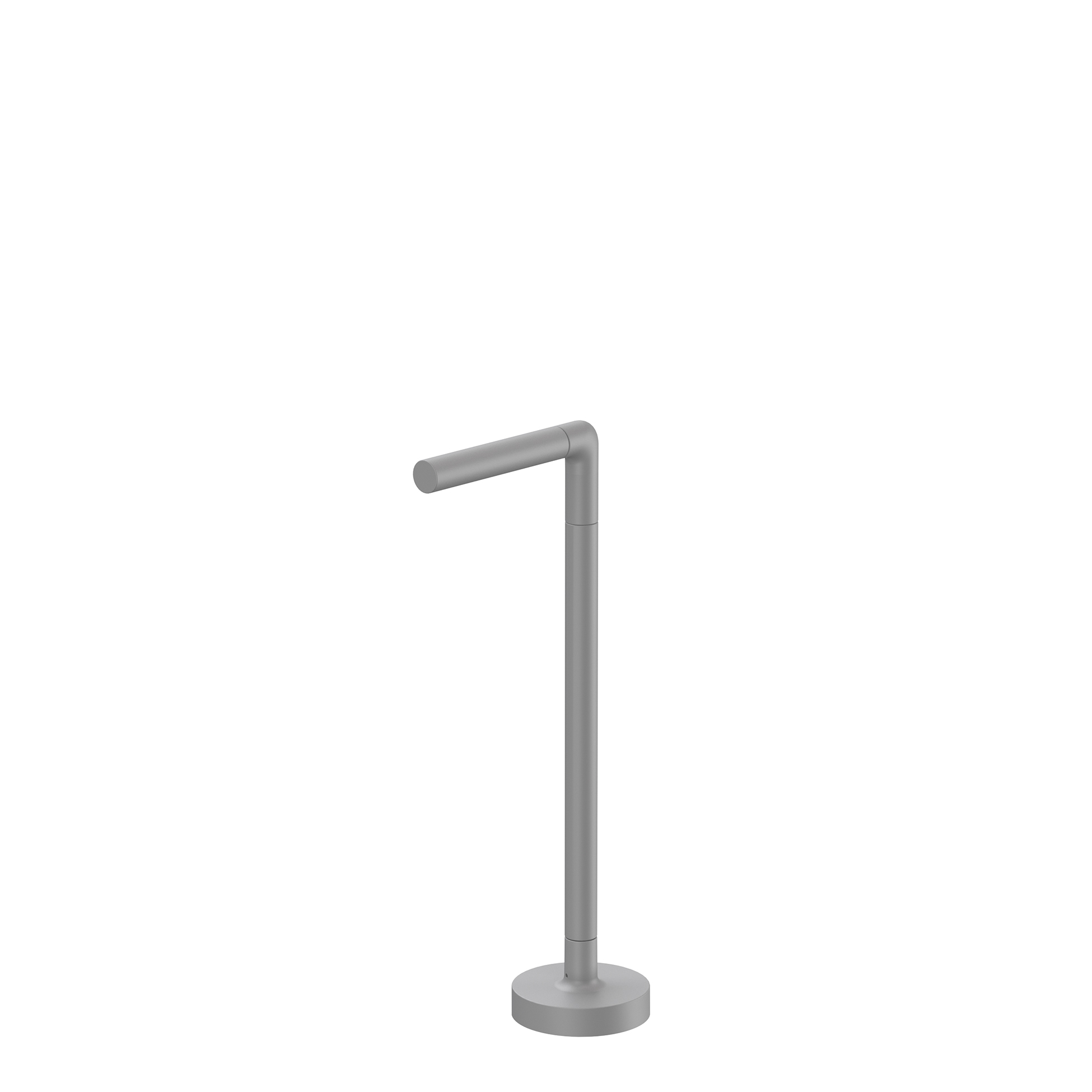

F010H21A006 GreyWalkstick Pipe 1 H 600 mm Non Dimmable
Designed by Antonio Citterio, 2019
220-240V power supply included. Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
7W - 483lm - 2700K - CRI> 80 - Beam° 97
Technical Drawing
Main specifications
EAN
8054793207278
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
7
System power (W)
7
System flux (lm)
483
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
97
Beam angle C90-270 (º)
97
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Grey
Trim
No
Orientation
Adjustable
Net weight (kg)
1.8
Package height (cm)
671
Package width (cm)
260
Package length (cm)
185
Package volume (m3)
0.03
IP
65
Dynamic load (kg)
No
Notes
Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class D
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
