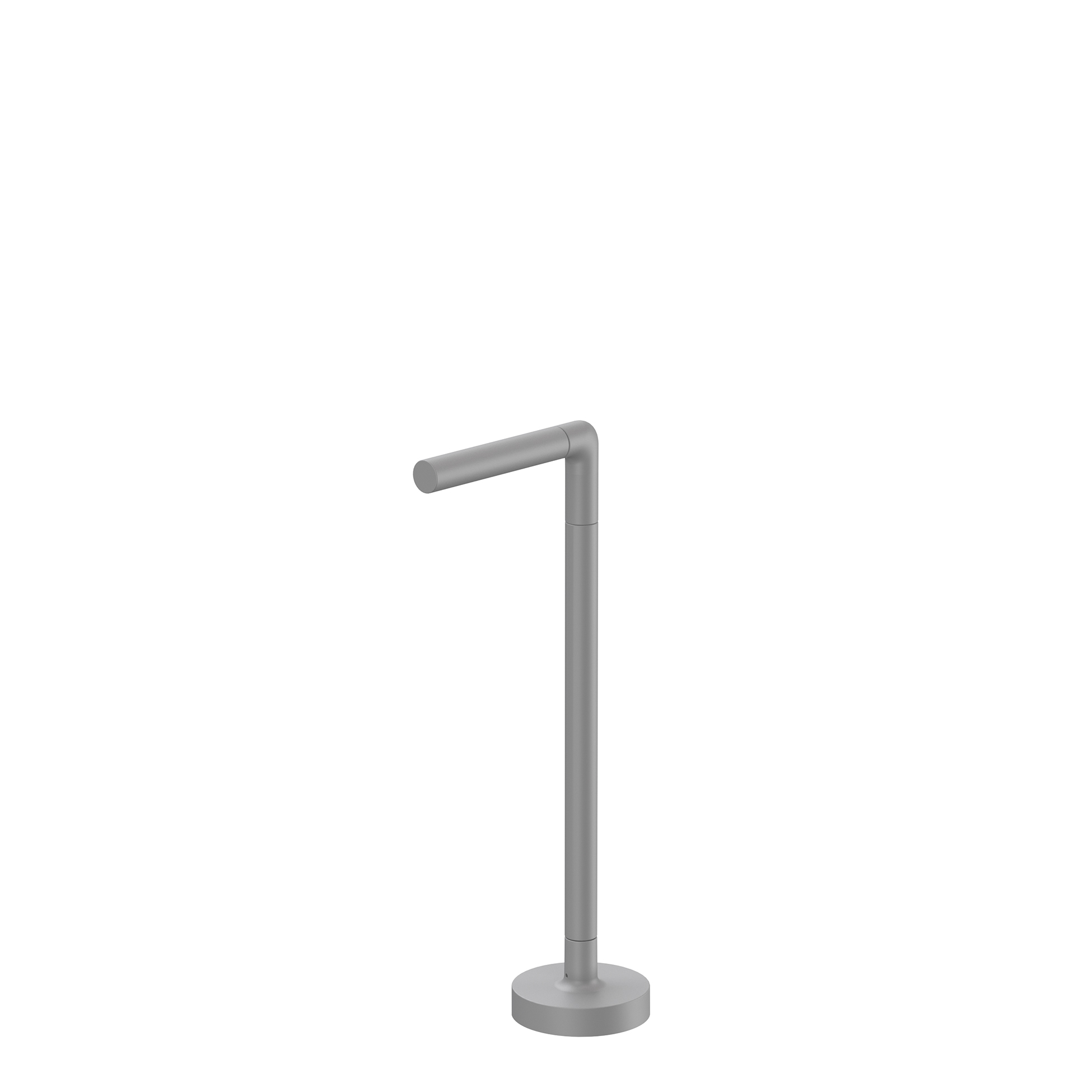

WalkstickWalkstick Pipe 1 H 600 mm Non Dimmable
Designed by Antonio Citterio, 2019
220-240V power supply included. Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
7W - 448lm - 3000K - CRI> 80 - Beam° 97
Technical Drawing
Main specifications
EAN
8054793207513
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
7
System power (W)
7
Lumen Output (lm)
448
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
97
Beam angle C90-270 (º)
97
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Trim
No
Orientation
Net weight (kg)
1.8
Package height (mm)
671
Package width (mm)
260
Package length (mm)
185
Package volume (m3)
0.03
IP internal
Dynamic load (kg)
No
Notes
Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
