WirelineWireline
Designed by Formafantasma, 2019

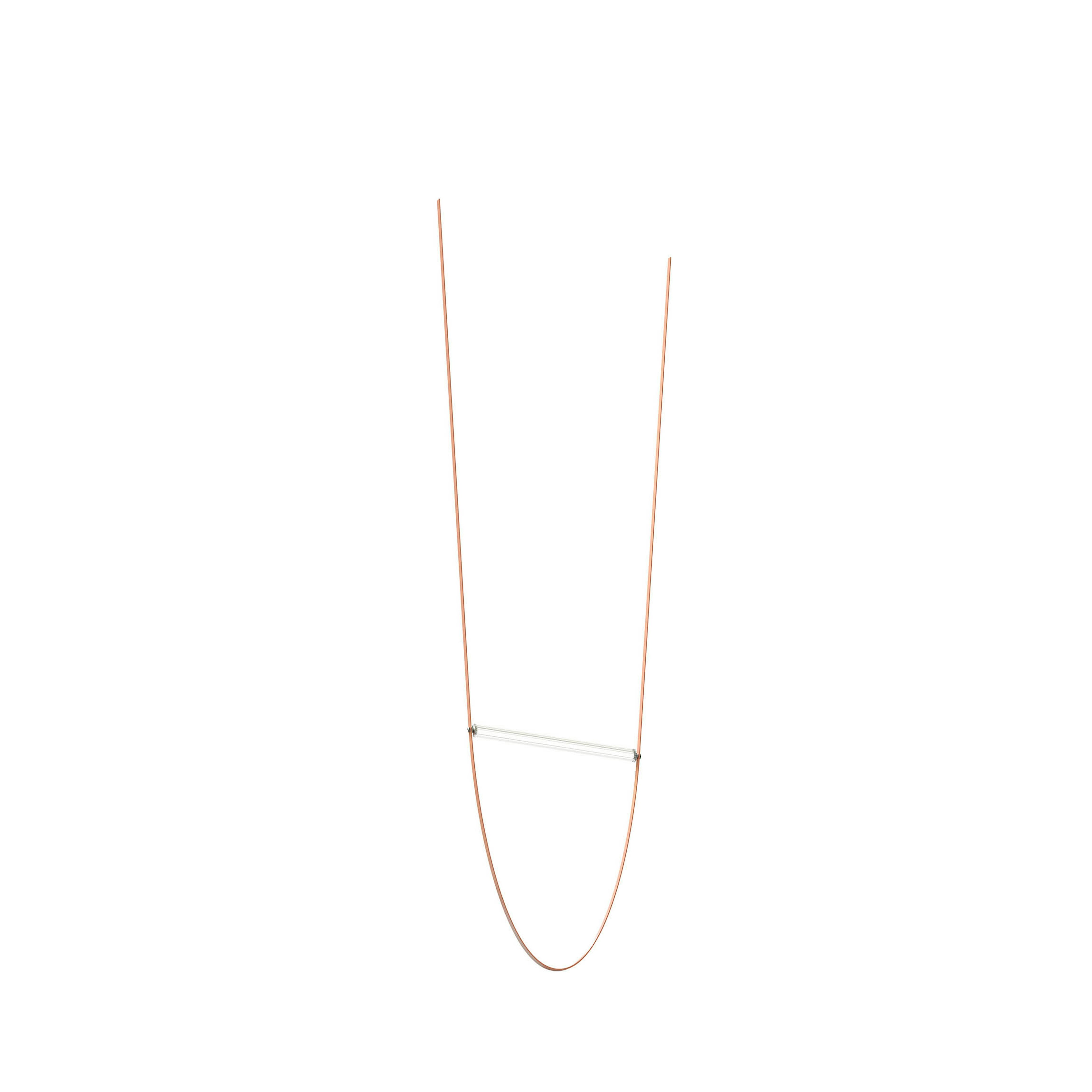

Suspension lamp with diffused light. Tubular in transparent extruded glass and internal diffuser in opal PC. Ferrules made with CNC technology in satin stainless steel. Extruded cable in pink and forest green rubber. Injection molded PC rosette in the same finishes as the cable. The electronics integrated in the ceiling rose allows the use of different dimerization systems: push, 1-10, potentiometer, DALI. In the absence of these systems, the luminous flux can be set during installation, with the push system included in the canopy. Useful length of the cable 3mt.
45W - 2793lm - 2700K - CRI> 90
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
System power (W)
45
Lumen Output (lm)
2793
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Power supply
Dimmable
Power supply type
, , ,
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1300
Cord colour
productFields.physical.cordLength
4050
Canopy colour
Canopy length/diameter (mm)
130
Canopy height (mm)
70
Net weight (kg)
7.8
Package volume (m3)
0.05
IP internal
Spare Parts
