Architectural Workmates
05.6210.14.CB Black

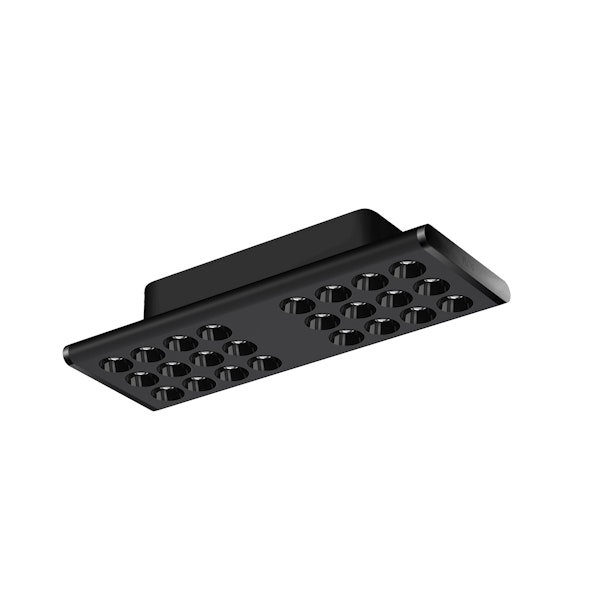

Workmates Surface Small Full Spectrum Casambi
New

Ceiling surface luminaire. Highquality colour rendering Full Spectrum light source. Integrated driver. UGR<16. EN12464 - cd/m2 @ 65º<3000 compliant. Casambi, maximum distance between fixtures: 50m.

LED - Top LED - 14W - 1145lm - 3000K - CRI> 98 - Beam° 76

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Ceiling surface
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
14
System power (W)
15
Source flux (lm)
1518
System flux (lm)
1145
Efficacy (lm/W)
77
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
98
McAdam steps (SDCM)
3
Rf fidelity index
87
Rg gamut index
103
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
76
Beam angle C90-270 (º)
76
Extreme cut off
Yes
UGRL
<16
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
48
LED current (mA)
350
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable Casambi
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Black
Orientation
Fixed
Net weight (kg)
0.6
IP
20
CE
UKCA
Risk 0
USA
Risk 0
Gwt 850 (º)
20
20
Notes

Before placing your order, please consult the product details also on the catalogue, in its technical data sheet and in the installation and assembly instructions to find all the information that may not be included in this site or that could be relevant to your specific project or installation.

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
