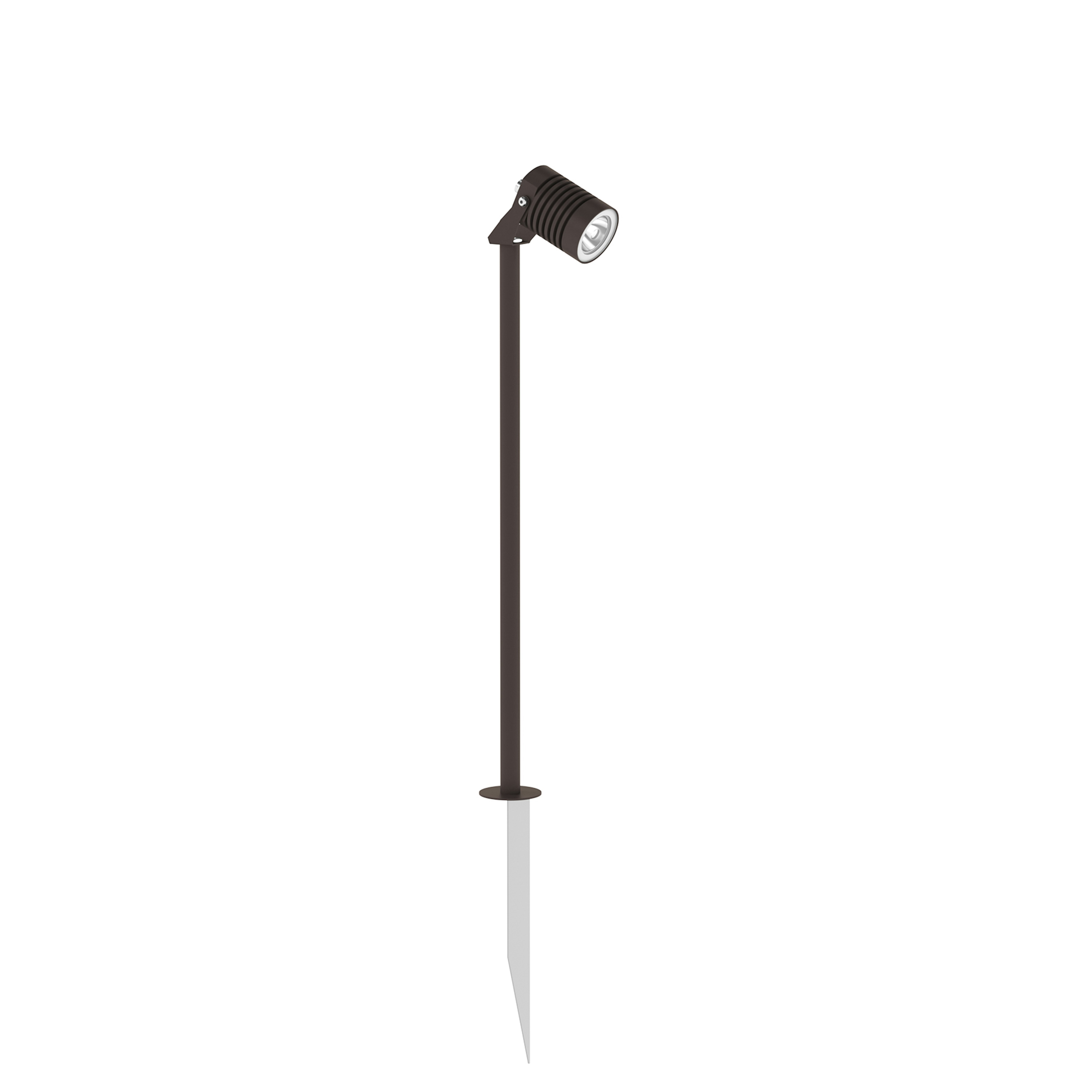

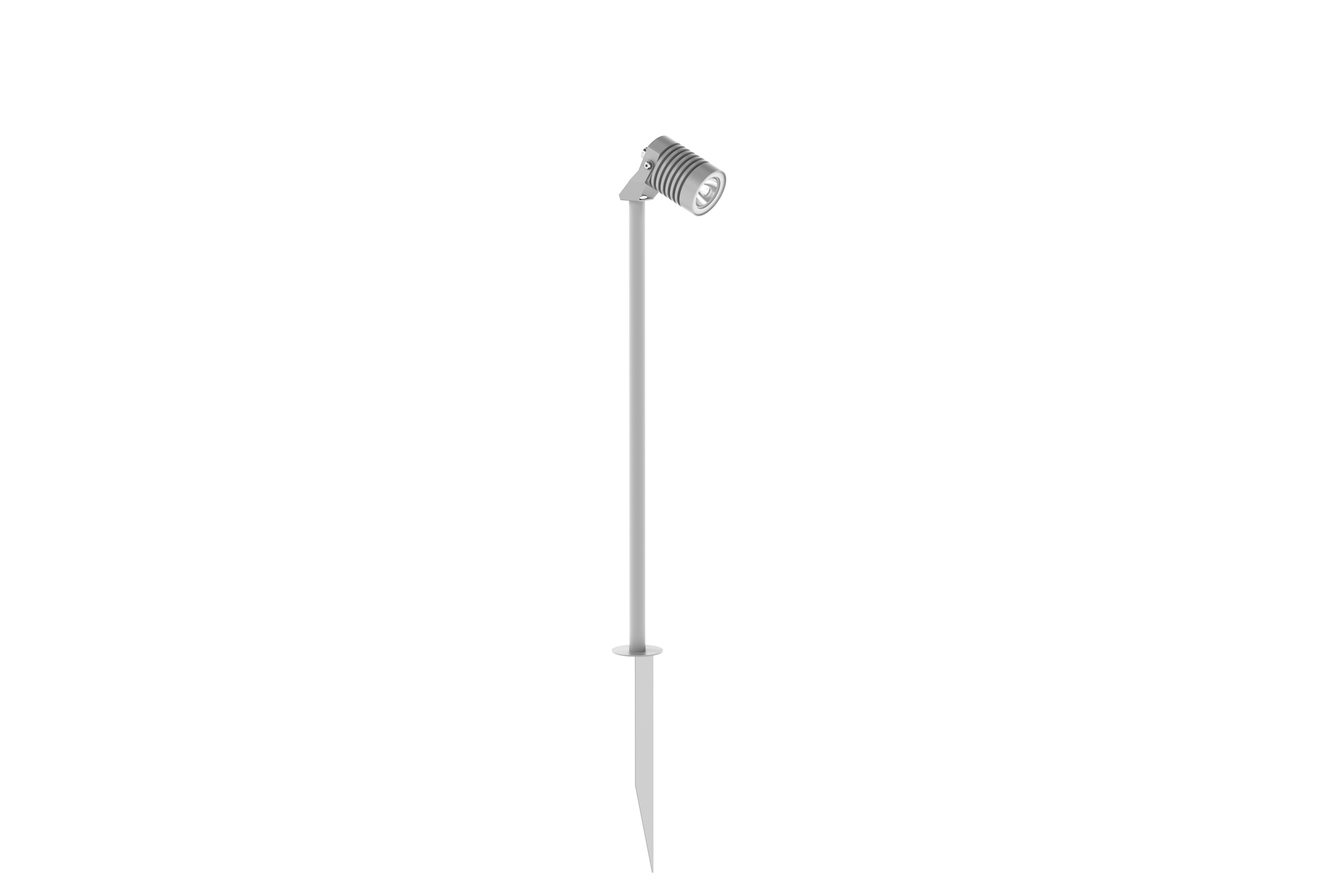

Aimer 2 Pole 500

Designed by FLOS Outdoor

Outdoor bollard of the Aimer family characterized by a metal pole topped by a compact cylindrical shape.

Download Documentation

Product highlight

The magic of circles

The magic of combining circles and round shapes is the fulcrum of Aimer’s design, a family of adjustable outdoor lighting fixtures.

Luminaire

(36)

Optical Type

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
FA51309033	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51309030	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51309018	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51309012	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51309006	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51309001	Aimer 2 Pole 500	2	121	2700	80	24	Non Dimmable	Ground
FA51308833	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51308830	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51308818	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51308812	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51308806	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51308801	Aimer 2 Pole 500	2	138	2700	80	12	Non Dimmable	Ground
FA51303933	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303930	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303918	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303912	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303906	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303901	Aimer 2 Pole 500	2	131	3000	80	24	Non Dimmable	Ground
FA51303833	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303830	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303818	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303812	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303806	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303801	Aimer 2 Pole 500	2	136	4000	80	24	Non Dimmable	Ground
FA51303633	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303630	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303618	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303612	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303606	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303601	Aimer 2 Pole 500	2	224	3000	80	12	Non Dimmable	Ground
FA51303533	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
FA51303530	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
FA51303518	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
FA51303512	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
FA51303506	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
FA51303501	Aimer 2 Pole 500	2	155	4000	80	12	Non Dimmable	Ground
