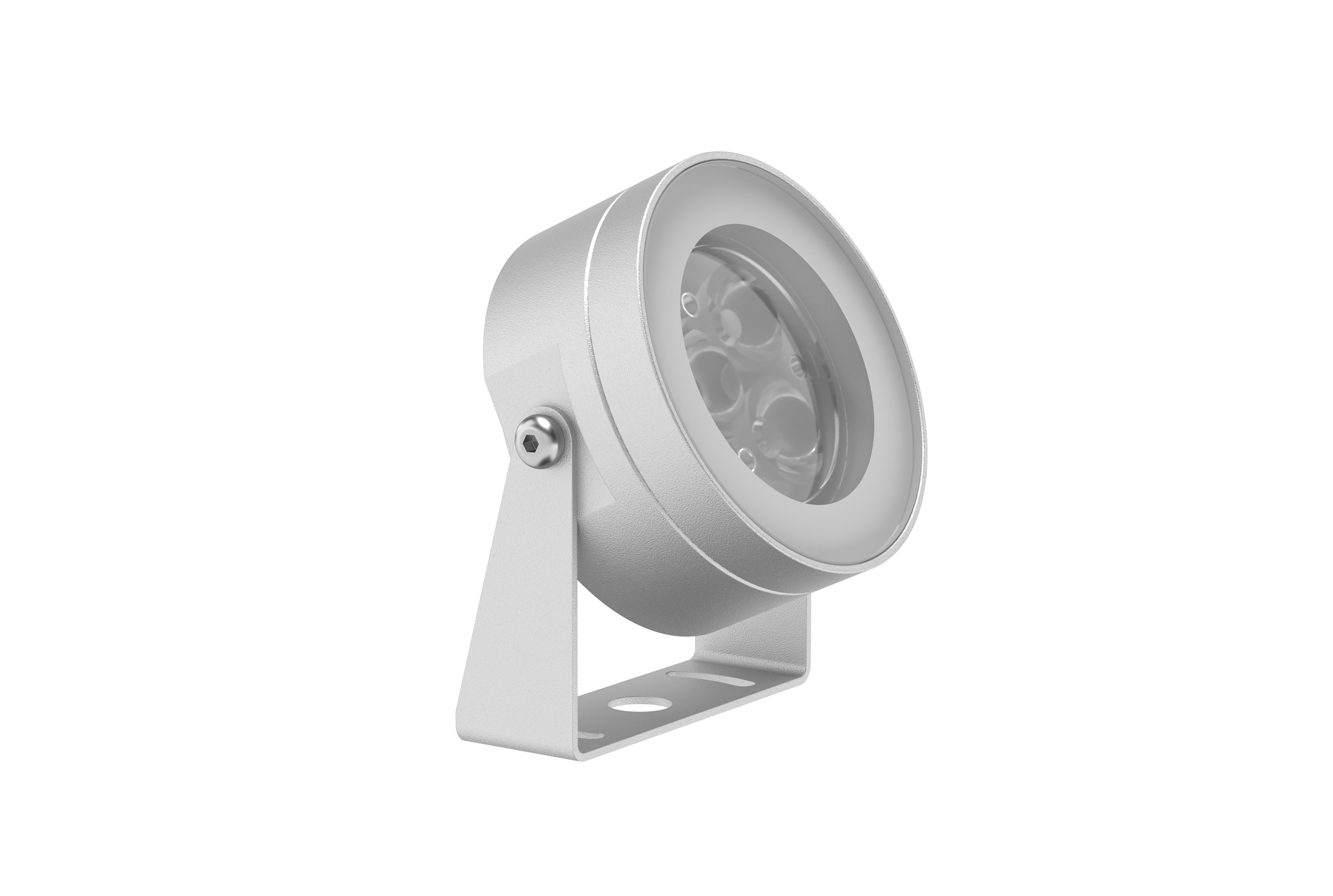

Aimer 3

Designed by FLOS Outdoor

Outdoor spotlight characterized by the compact cylindrical shape declined in different sizes and by various beam openings per dimension.

Download Documentation

Luminaire

(140)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
FA105562270	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562233	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562230	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562218	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562212	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562206	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562201	Aimer 3 Constant Voltage	3	359	2700	80	14	Non Dimmable	Ground
FA105562170	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562133	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562130	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562118	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562112	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562106	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562101	Aimer 3 Constant Voltage	3	364	2700	80	30	Non Dimmable	Ground
FA105562070	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562033	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562030	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562018	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562012	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562006	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105562001	Aimer 3 Constant Voltage	3	329	2700	80	50	Non Dimmable	Ground
FA105561270	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561233	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561230	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561218	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561212	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561206	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561201	Aimer 3 Constant Voltage	3	389	3000	80	14	Non Dimmable	Ground
FA105561170	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561133	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561130	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561118	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561112	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561106	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105561101	Aimer 3 Constant Voltage	3	395	3000	80	30	Non Dimmable	Ground
FA105560070	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560033	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560030	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560018	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560012	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560006	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA105560001	Aimer 3 Constant Voltage	3	357	3000	80	50	Non Dimmable	Ground
FA1051901270	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901233	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901230	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901218	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901212	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901206	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901201	Aimer 3 Constant Current	5	404	4000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901170	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901133	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901130	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901118	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901112	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901106	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051901101	Aimer 3 Constant Current	5	410	4000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900070	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900033	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900030	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900018	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900012	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900006	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051900001	Aimer 3 Constant Current	5	371	4000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051741270	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741233	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741230	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741218	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741212	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741206	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051741201	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740070	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740033	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740030	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740018	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740012	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740006	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051740001	Aimer 3 Rgb	3	-	RGB	-	-	Dimmable DMX	Ground
FA1051721270	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721233	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721230	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721218	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721212	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721206	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721201	Aimer 3 Constant Voltage	3	404	4000	80	14	Non Dimmable	Ground
FA1051721170	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721133	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721130	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721118	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721112	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721106	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051721101	Aimer 3 Constant Voltage	3	410	4000	80	30	Non Dimmable	Ground
FA1051720070	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720033	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720030	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720018	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720012	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720006	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051720001	Aimer 3 Constant Voltage	3	371	4000	80	50	Non Dimmable	Ground
FA1051072270	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072233	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072230	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072218	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072212	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072206	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072201	Aimer 3 Constant Current	5	359	2700	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072170	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072133	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072130	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072118	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072112	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072106	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072101	Aimer 3 Constant Current	5	364	2700	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072070	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072033	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072030	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072018	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072012	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072006	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051072001	Aimer 3 Constant Current	5	329	2700	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071270	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071233	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071230	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071218	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071212	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071206	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071201	Aimer 3 Constant Current	5	389	3000	80	14	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071170	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071133	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071130	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071118	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071112	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071106	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051071101	Aimer 3 Constant Current	5	395	3000	80	30	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070070	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070033	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070030	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070018	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070012	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070006	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
FA1051070001	Aimer 3 Constant Current	5	357	3000	80	50	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Ground
