Bellhop Pole with Base

Designed by Edward Barber and Jay Osgerby

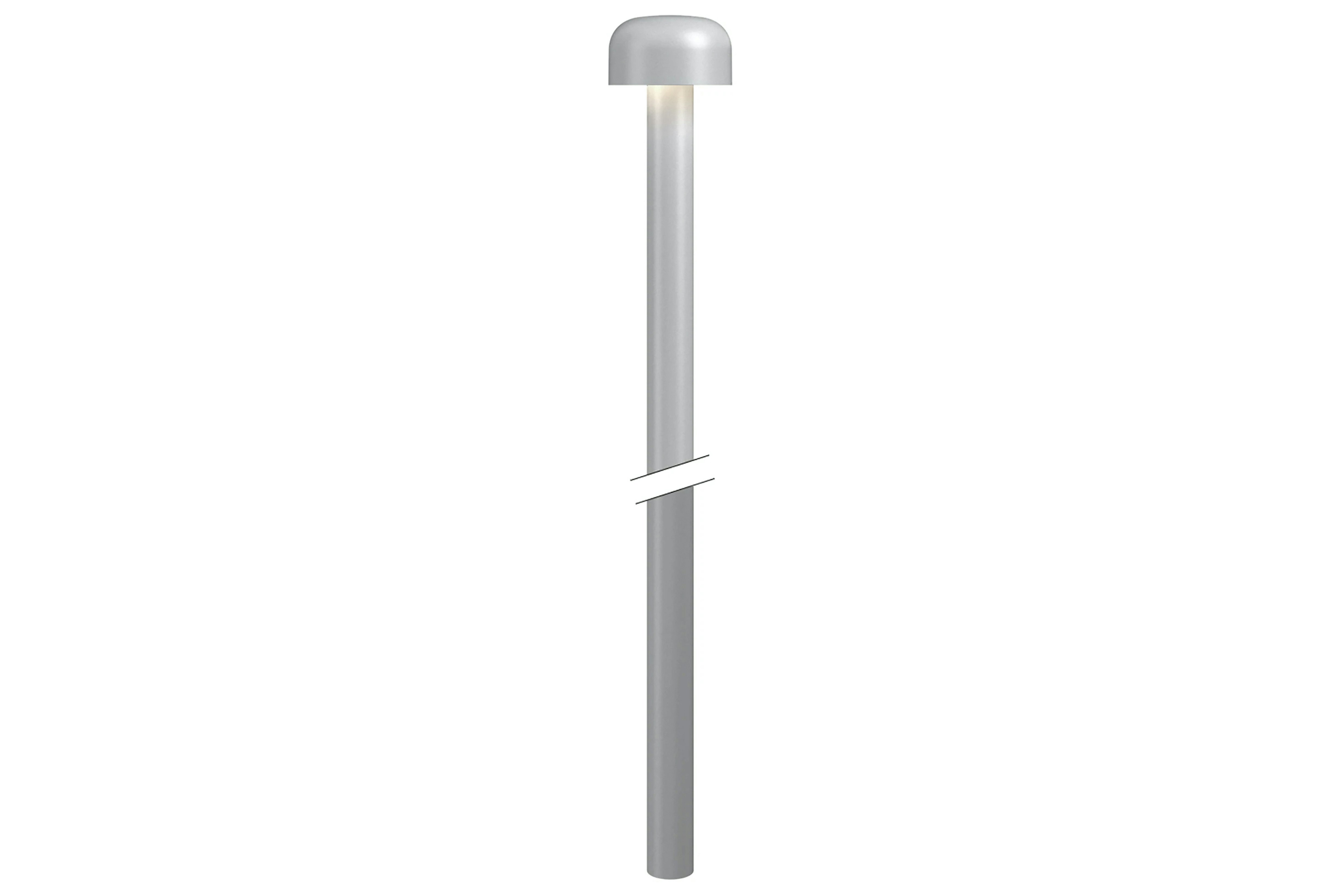

Installable on rigid surfaces or ground, the Pole model casts diffused light via an aluminum head topping a 3m or 4m long extruded pole.

Download Documentation

Product highlight

Strength in simplicity

A simple lamp archetype adapted to outdoor wall and bollard models.


Luminaire

(54)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
F003L41D033	Bellhop Pole with base H 4020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003L41D018	Bellhop Pole with base H 4020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003L41D006	Bellhop Pole with base H 4020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003L41B033	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003L41B018	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003L41B006	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003L41A033	Bellhop Pole with base H 4020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003L41A018	Bellhop Pole with base H 4020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003L41A006	Bellhop Pole with base H 4020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003L31D033	Bellhop Pole with base H 4020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003L31D018	Bellhop Pole with base H 4020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003L31D006	Bellhop Pole with base H 4020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003L31B033	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003L31B018	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003L31B006	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003L31A033	Bellhop Pole with base H 4020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003L31A018	Bellhop Pole with base H 4020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003L31A006	Bellhop Pole with base H 4020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003L21D033	Bellhop Pole with base H 4020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003L21D018	Bellhop Pole with base H 4020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003L21D006	Bellhop Pole with base H 4020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003L21B033	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003L21B018	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003L21B006	Bellhop Pole with base H 4020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003L21A033	Bellhop Pole with base H 4020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
F003L21A018	Bellhop Pole with base H 4020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
F003L21A006	Bellhop Pole with base H 4020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
F003H41D033	Bellhop Pole with base H 3020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003H41D018	Bellhop Pole with base H 3020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003H41D006	Bellhop Pole with base H 3020 mm Dali	30	2760	4000	80	93	Dimmable DALI 1	Pole Top
F003H41B033	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003H41B018	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003H41B006	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2760	4000	80	93	Dimmable 1-10V	Pole Top
F003H41A033	Bellhop Pole with base H 3020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003H41A018	Bellhop Pole with base H 3020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003H41A006	Bellhop Pole with base H 3020 mm Non Dimmable	30	2760	4000	80	93	Non Dimmable	Pole Top
F003H31D033	Bellhop Pole with base H 3020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003H31D018	Bellhop Pole with base H 3020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003H31D006	Bellhop Pole with base H 3020 mm Dali	30	2590	3000	80	93	Dimmable DALI 1	Pole Top
F003H31B033	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003H31B018	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003H31B006	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2590	3000	80	93	Dimmable 1-10V	Pole Top
F003H31A033	Bellhop Pole with base H 3020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003H31A018	Bellhop Pole with base H 3020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003H31A006	Bellhop Pole with base H 3020 mm Non Dimmable	30	2590	3000	80	93	Non Dimmable	Pole Top
F003H21D033	Bellhop Pole with base H 3020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003H21D018	Bellhop Pole with base H 3020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003H21D006	Bellhop Pole with base H 3020 mm Dali	30	2490	2700	80	93	Dimmable DALI 1	Pole Top
F003H21B033	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003H21B018	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003H21B006	Bellhop Pole with base H 3020 mm Dimmable 1-10V	30	2490	2700	80	93	Dimmable 1-10V	Pole Top
F003H21A033	Bellhop Pole with base H 3020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
F003H21A018	Bellhop Pole with base H 3020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
F003H21A006	Bellhop Pole with base H 3020 mm Non Dimmable	30	2490	2700	80	93	Non Dimmable	Pole Top
