Bellhop Wall

Designed by Edward Barber and Jay Osgerby

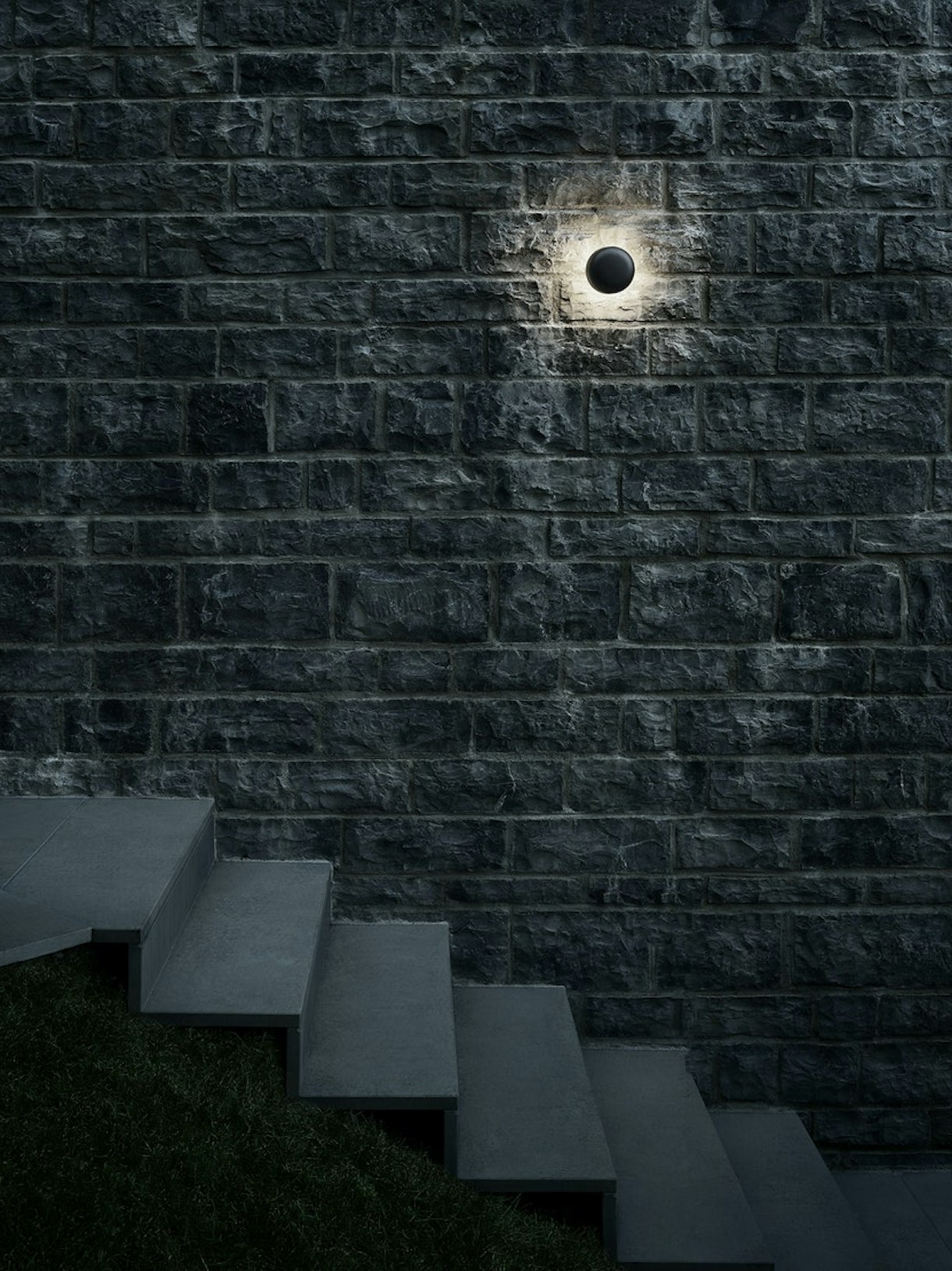

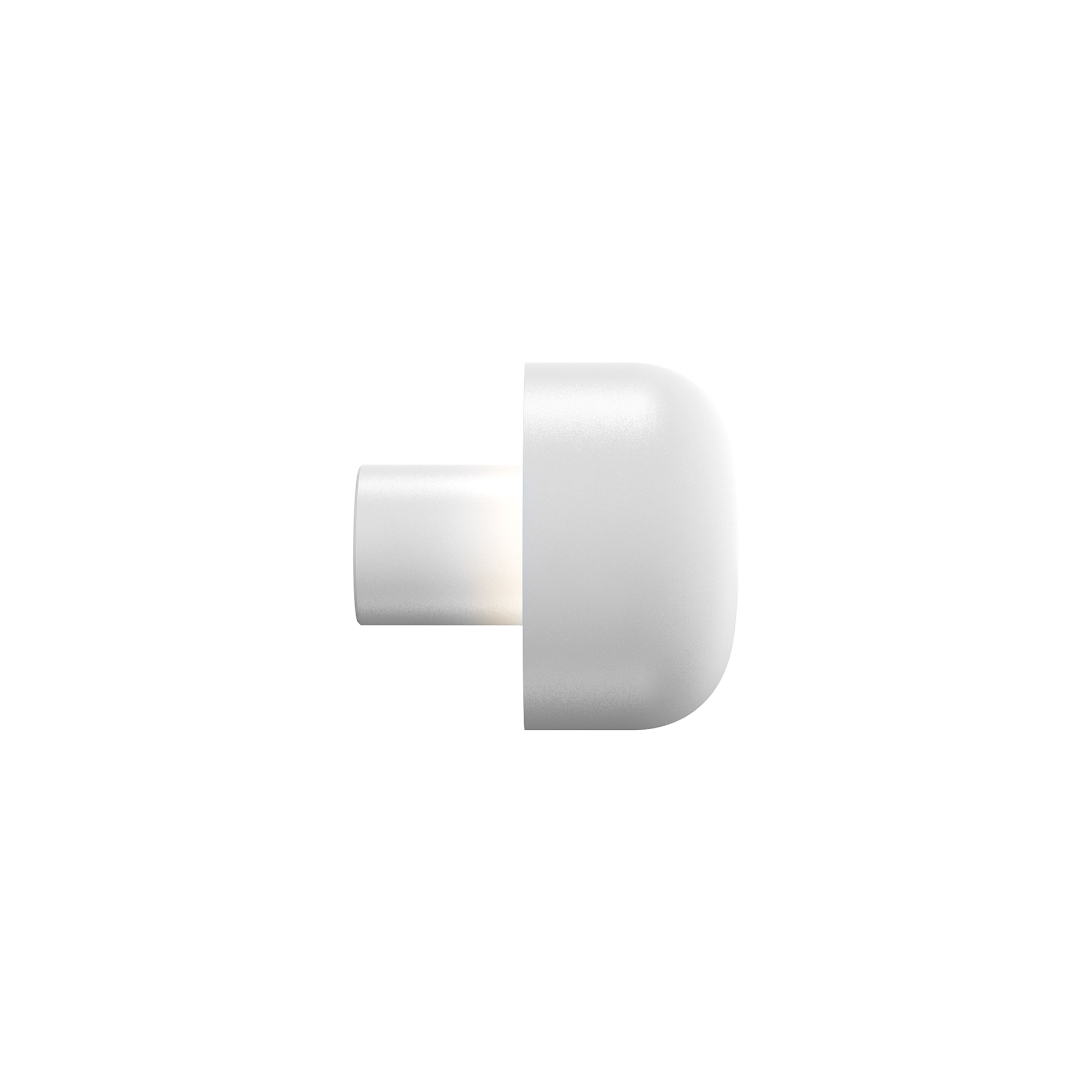

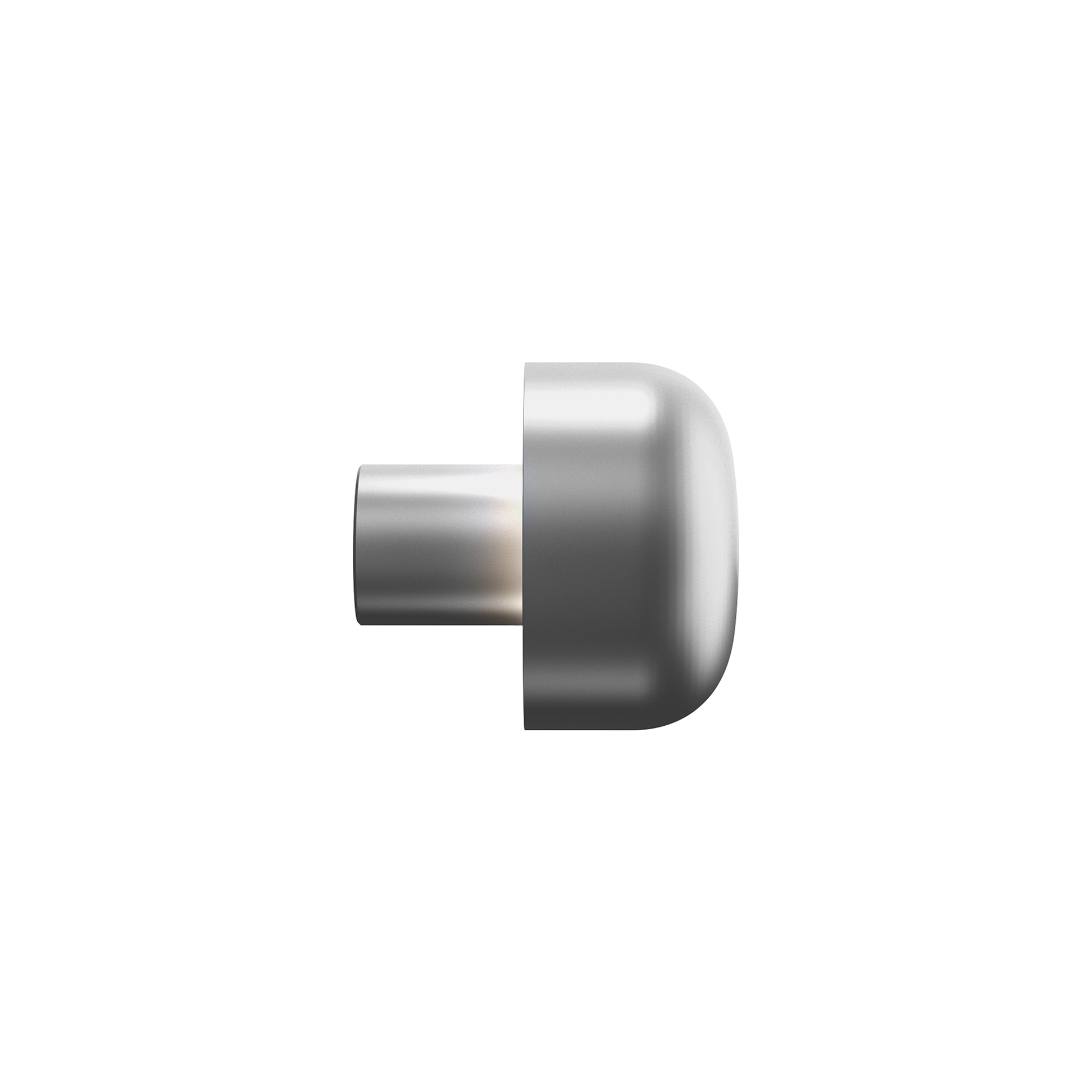

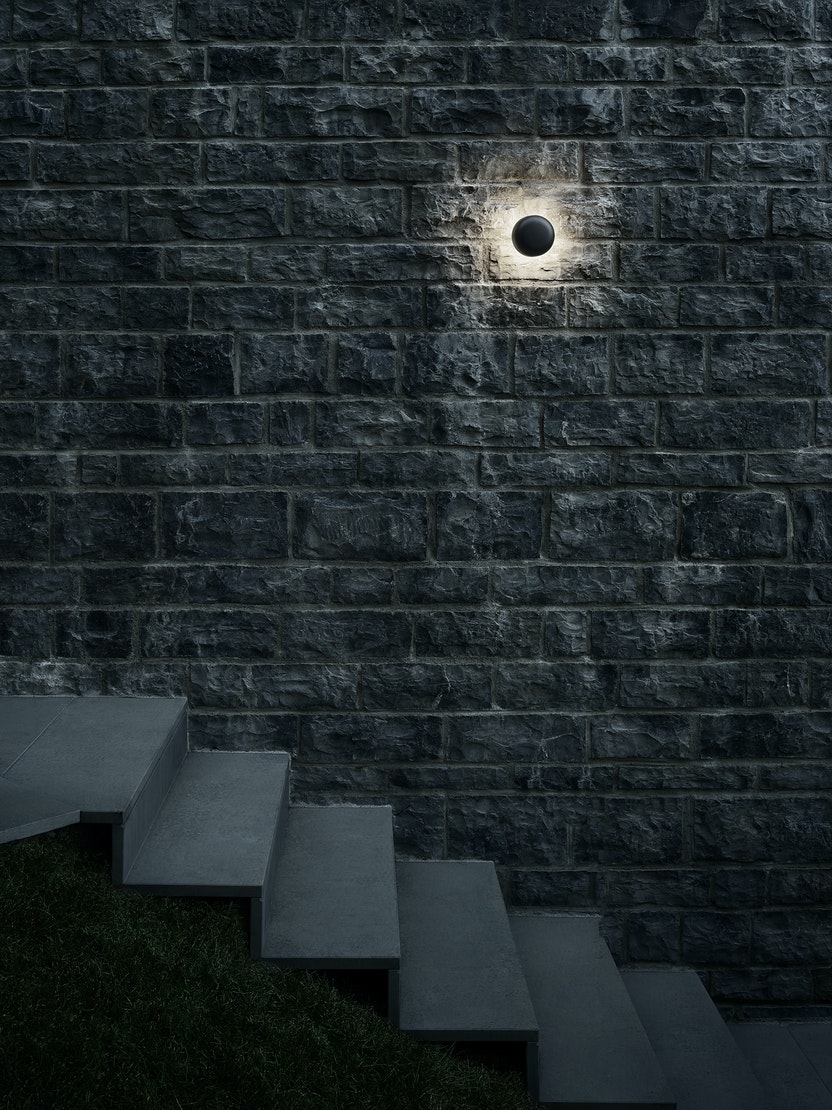

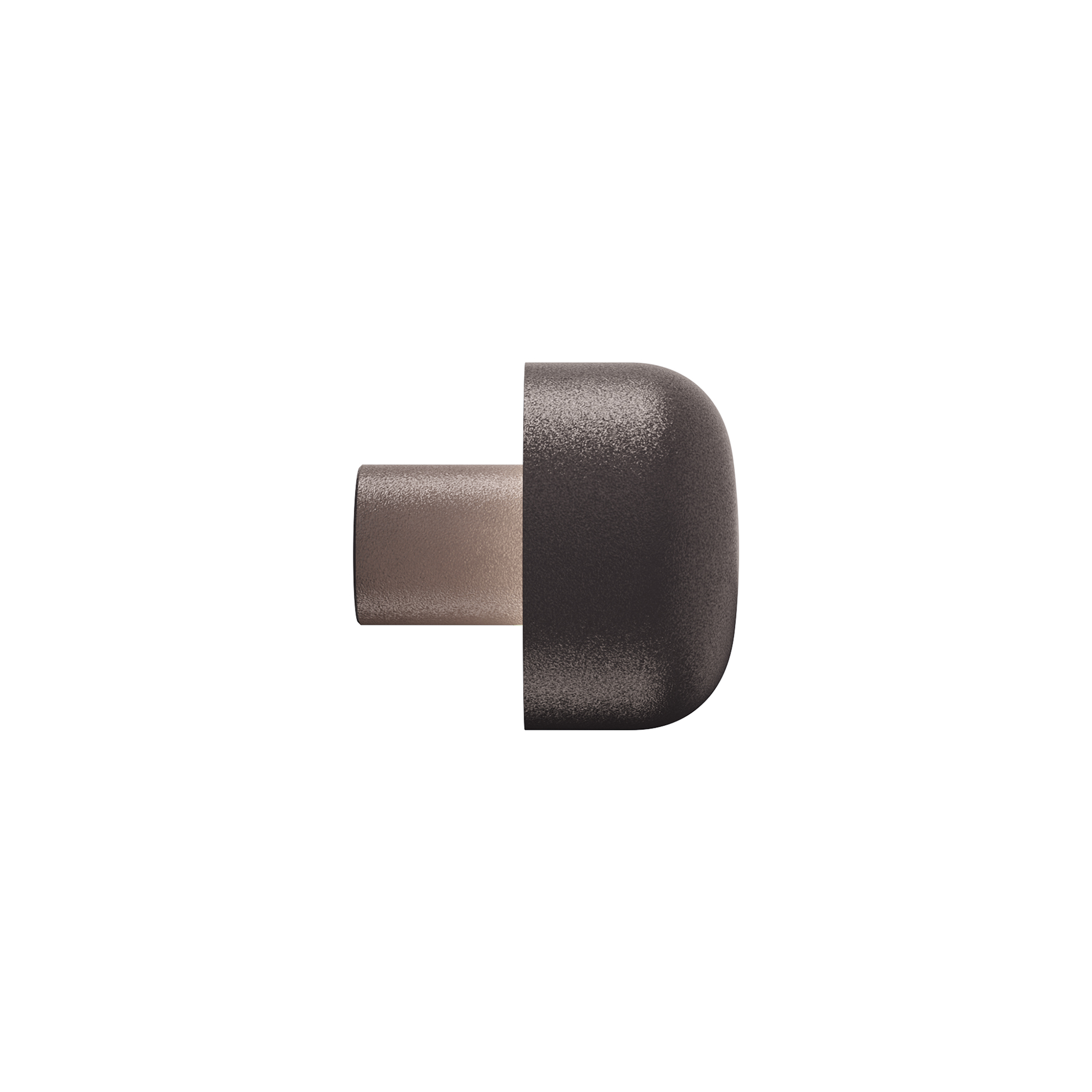

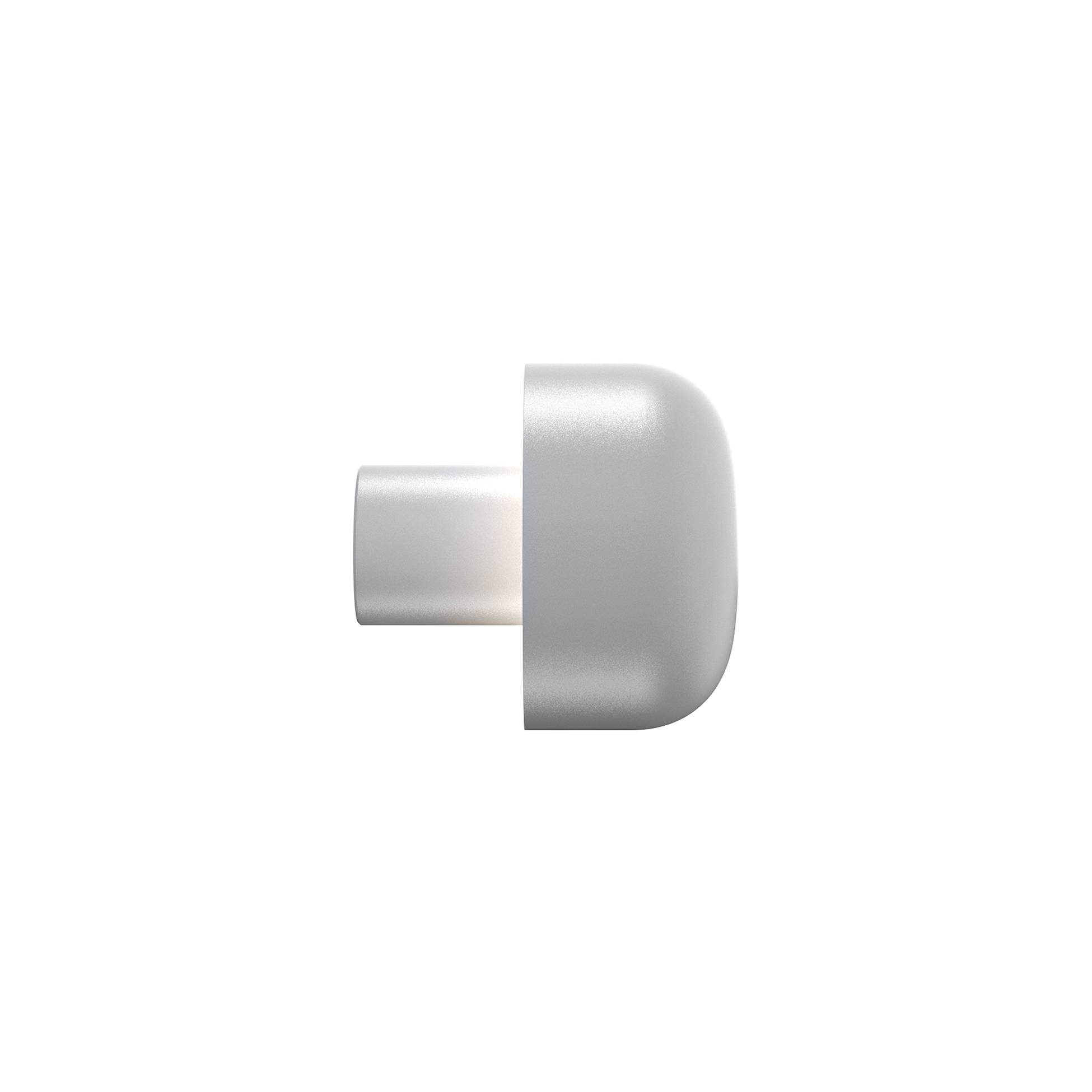

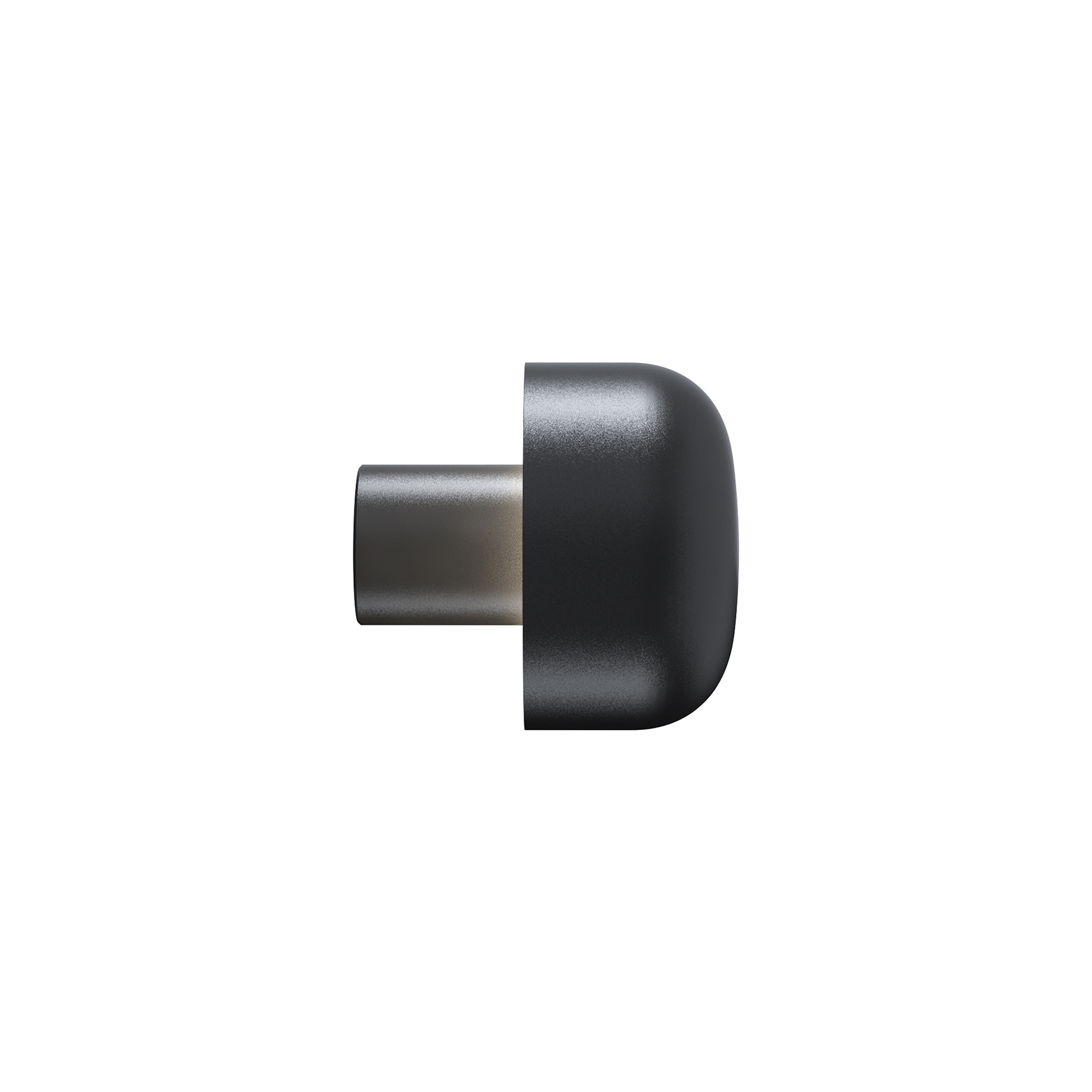

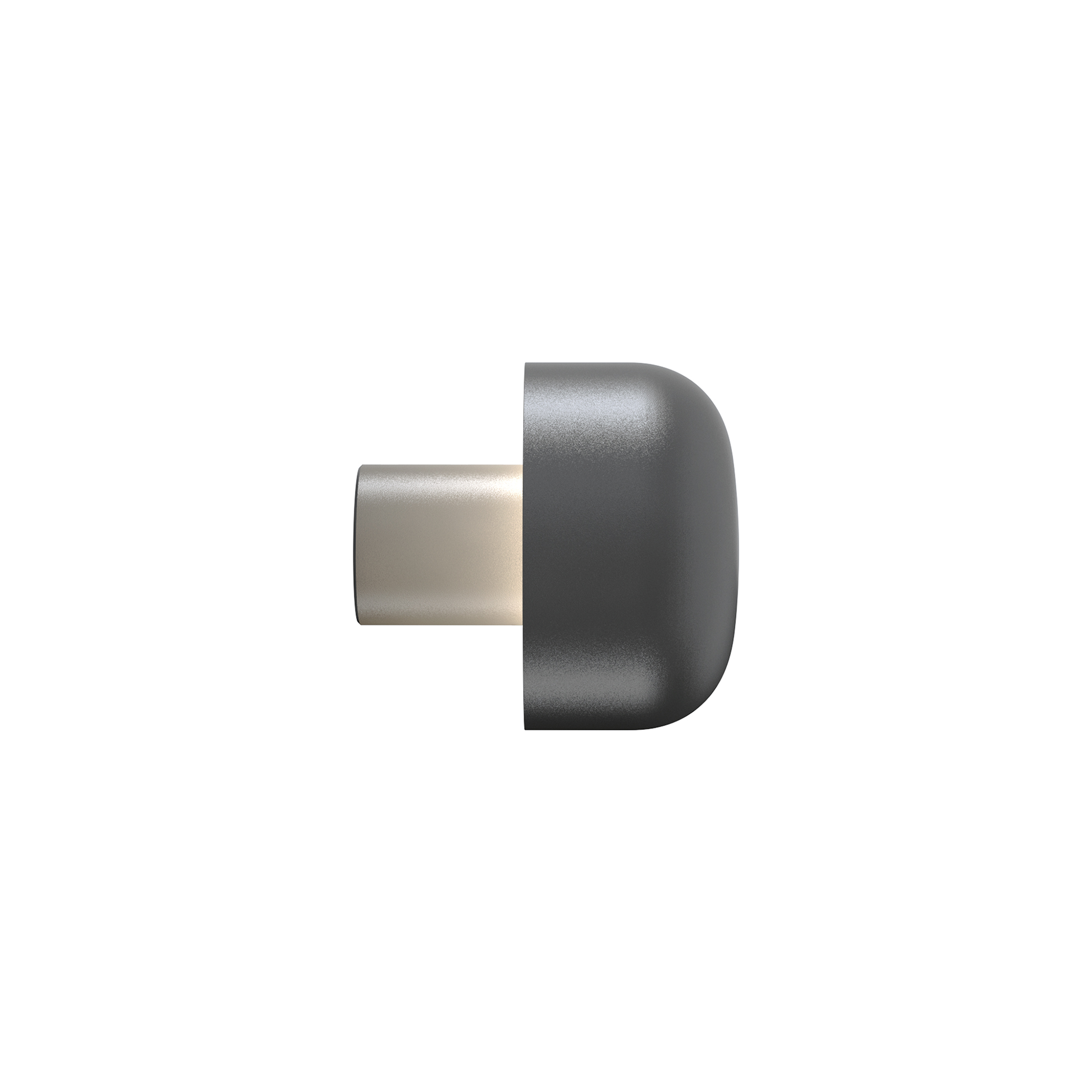

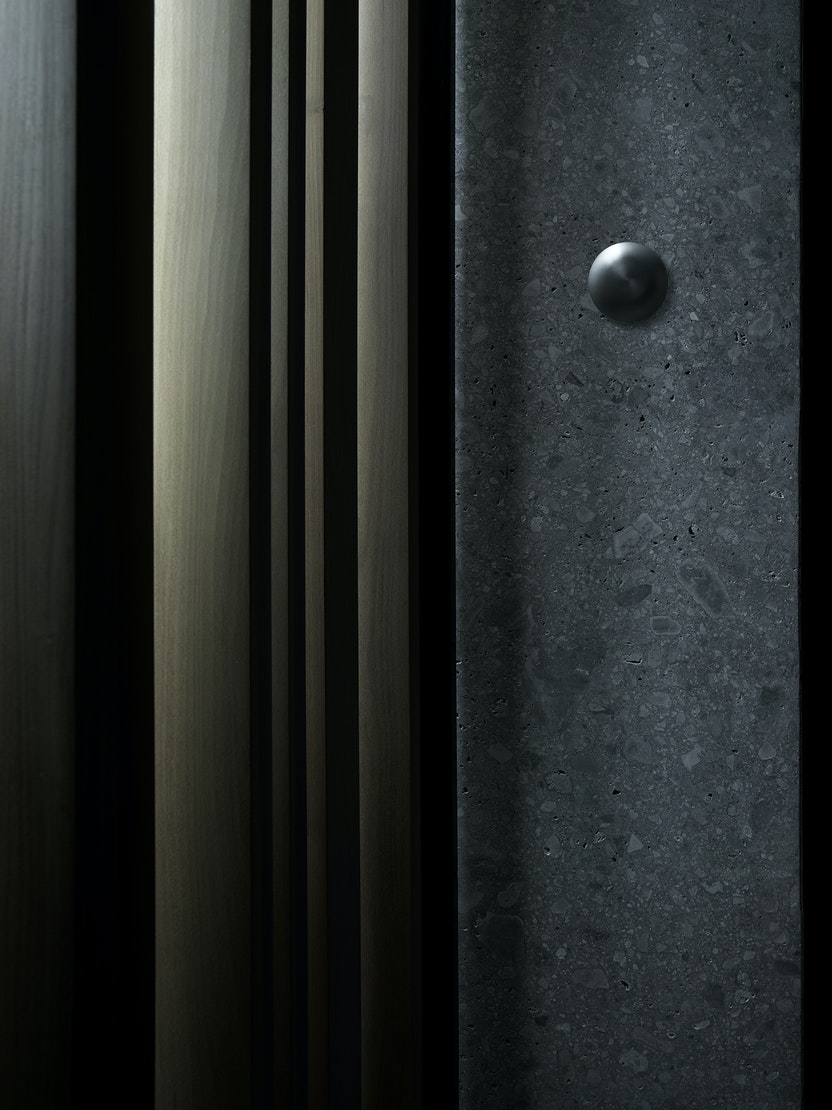

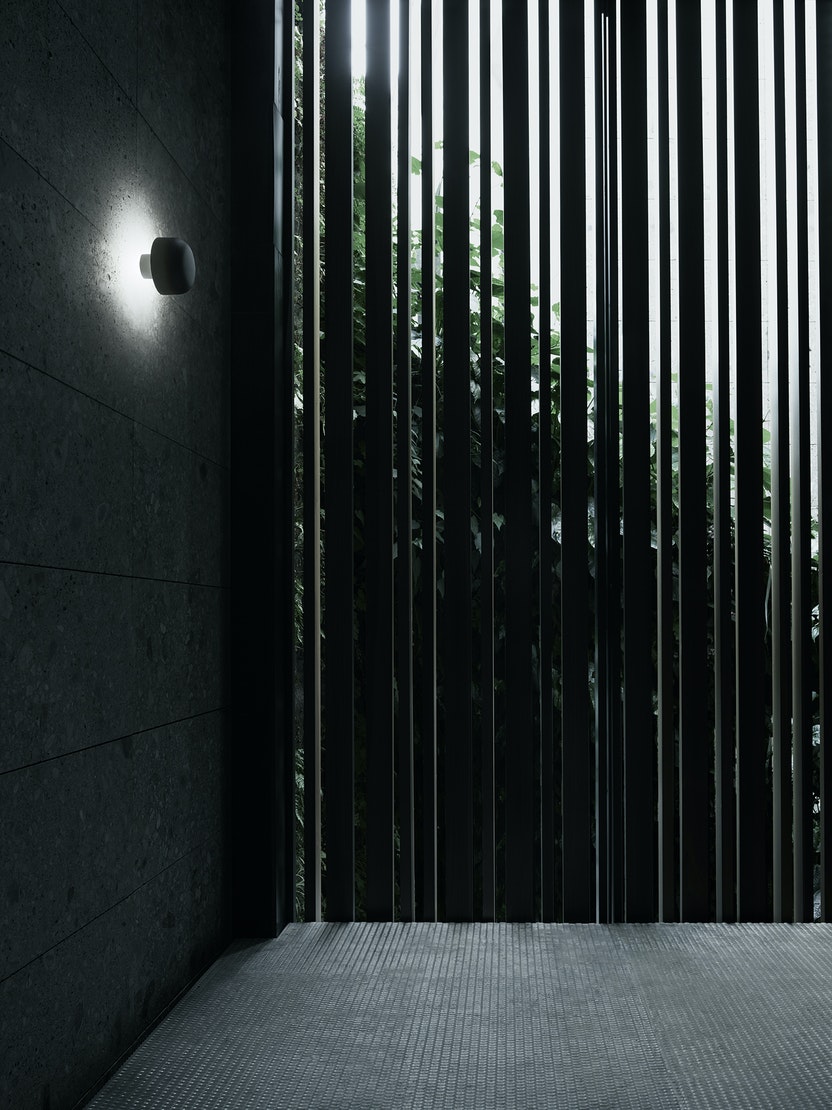

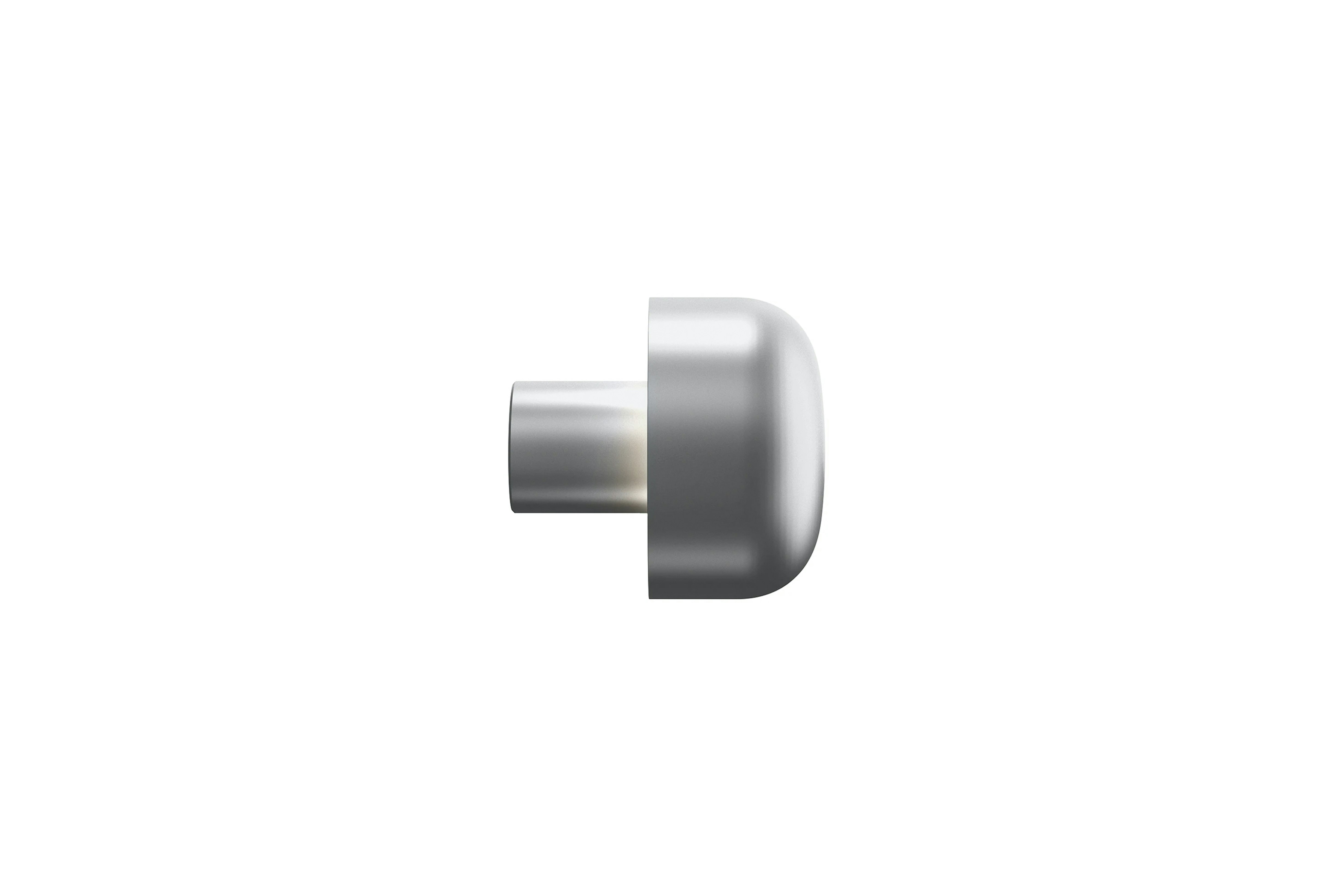

The outdoor wall/ceiling Bellhop version is characterized by diffuse light and made of extruded, and die-cast aluminum or stainless steel.

Download Documentation

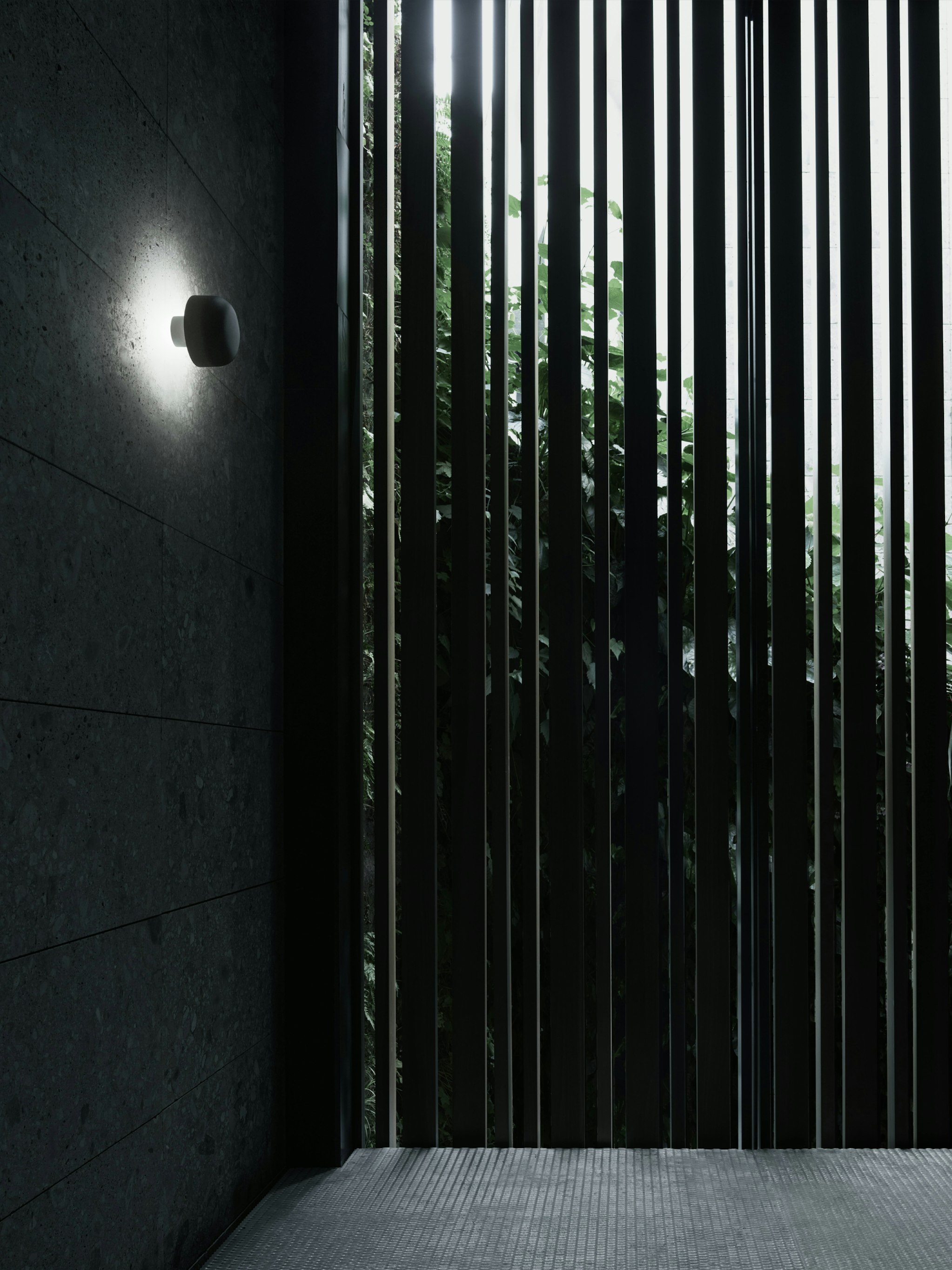

Product highlight

Strength in simplicity

A simple lamp archetype adapted to outdoor wall and bollard models.

Luminaire

(63)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
F003C41D056	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D033	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D030	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D018	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D012	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D006	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41D001	Bellhop Wall Dali	8	607	4000	80	85	Dimmable DALI 1	Wall
F003C41B056	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B033	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B030	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B018	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B012	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B006	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41B001	Bellhop Wall Dimmable 1-10V	8	607	4000	80	85	Dimmable 1-10V	Wall
F003C41A056	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A033	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A030	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A018	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A012	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A006	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C41A001	Bellhop Wall Non Dimmable	8	607	4000	80	85	Non Dimmable	Wall
F003C31D056	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D033	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D030	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D018	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D012	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D006	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31D001	Bellhop Wall Dali	8	580	3000	80	85	Dimmable DALI 1	Wall
F003C31B056	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B033	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B030	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B018	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B012	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B006	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31B001	Bellhop Wall Dimmable 1-10V	8	580	3000	80	85	Dimmable 1-10V	Wall
F003C31A056	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A033	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A030	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A018	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A012	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A006	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C31A001	Bellhop Wall Non Dimmable	8	580	3000	80	85	Non Dimmable	Wall
F003C21D056	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D033	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D030	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D018	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D012	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D006	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21D001	Bellhop Wall Dali	8	551	2700	80	85	Dimmable DALI 1	Wall
F003C21B056	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B033	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B030	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B018	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B012	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B006	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21B001	Bellhop Wall Dimmable 1-10V	8	551	2700	80	85	Dimmable 1-10V	Wall
F003C21A056	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A033	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A030	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A018	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A012	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A006	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
F003C21A001	Bellhop Wall Non Dimmable	8	551	2700	80	85	Non Dimmable	Wall
