Belt Fabric System
New

Designed by Ronan & Erwan Bouroullec

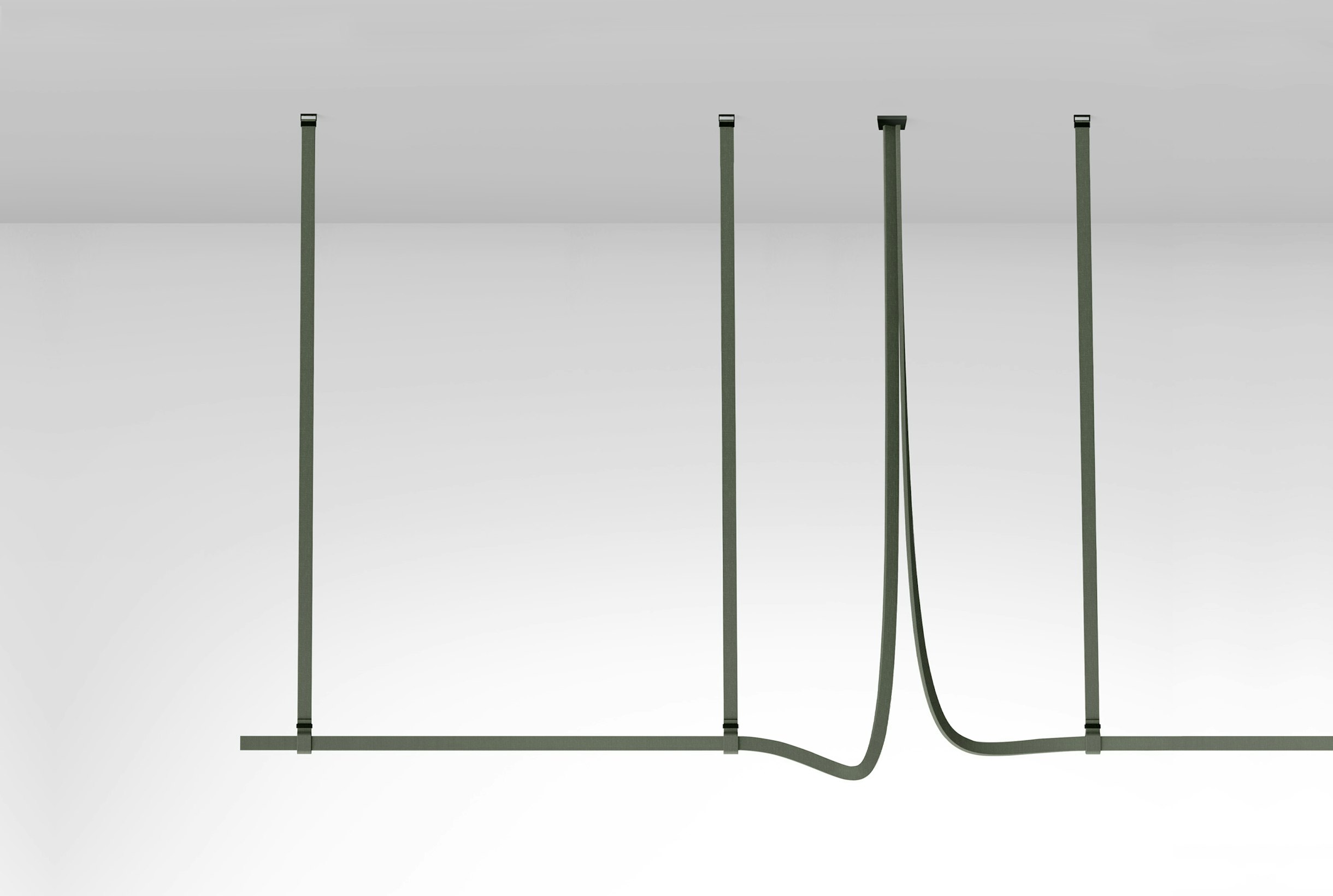

Belt vaunts pure flexibility thanks to a sinuous line whose nature is in balance between the softness of fabric and the rigidity of aluminum.

Download Documentation

Product highlight

Sinuous continuity

Developed to achieve a sinuous line without apparent interruptions.

Discover the Story

Luminaire

(24)

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.8506.M5.DA	Belt Fabric L 3000 mm Dali Version	83	2872	3000	95	60	Dimmable DALI 1	Suspension
03.8506.M5.CB	Belt Fabric L 3000 mm Casambi integrated	83	2872	3000	95	60	Dimmable Casambi	Suspension
03.8506.M5.1V	Belt Fabric L 3000 mm Dimmable 1-10V	83	2872	3000	95	60	Dimmable 1-10V	Suspension
03.8506.GO.DA	Belt Fabric L 3000 mm Dali Version	83	2872	3000	95	60	Dimmable DALI 1	Suspension
03.8506.GO.CB	Belt Fabric L 3000 mm Casambi integrated	83	2872	3000	95	60	Dimmable Casambi	Suspension
03.8506.GO.1V	Belt Fabric L 3000 mm Dimmable 1-10V	83	2872	3000	95	60	Dimmable 1-10V	Suspension
03.8505.M5.DA	Belt Fabric L 2000 mm Dali Version	55	1915	3000	95	60	Dimmable DALI 1	Suspension
03.8505.M5.CB	Belt Fabric L 2000 mm Casambi integrated	55	1915	3000	95	60	Dimmable Casambi	Suspension
03.8505.M5.1V	Belt Fabric L 2000 mm Dimmable 1-10V	55	1915	3000	95	60	Dimmable 1-10V	Suspension
03.8505.GO.DA	Belt Fabric L 2000 mm Dali Version	55	1915	3000	95	60	Dimmable DALI 1	Suspension
03.8505.GO.CB	Belt Fabric L 2000 mm Casambi integrated	55	1915	3000	95	60	Dimmable Casambi	Suspension
03.8505.GO.1V	Belt Fabric L 2000 mm Dimmable 1-10V	55	1915	3000	95	60	Dimmable 1-10V	Suspension
03.8501.M5.DA	Belt Fabric L 3000 mm Dali Version	83	2542	2700	95	60	Dimmable DALI 1	Suspension
03.8501.M5.CB	Belt Fabric L 3000 mm Casambi integrated	83	2542	2700	95	60	Dimmable Casambi	Suspension
03.8501.M5.1V	Belt Fabric L 3000 mm Dimmable 1-10V	83	2542	2700	95	60	Dimmable 1-10V	Suspension
03.8501.GO.DA	Belt Fabric L 3000 mm Dali Version	83	2542	2700	95	60	Dimmable DALI 1	Suspension
03.8501.GO.CB	Belt Fabric L 3000 mm Casambi integrated	83	2542	2700	95	60	Dimmable Casambi	Suspension
03.8501.GO.1V	Belt Fabric L 3000 mm Dimmable 1-10V	83	2542	2700	95	60	Dimmable 1-10V	Suspension
03.8500.M5.DA	Belt Fabric L 2000 mm Dali Version	55	1694	2700	95	60	Dimmable DALI 1	Suspension
03.8500.M5.CB	Belt Fabric L 2000 mm Casambi integrated	55	1694	2700	95	60	Dimmable Casambi	Suspension
03.8500.M5.1V	Belt Fabric L 2000 mm Dimmable 1-10V	55	1694	2700	95	60	Dimmable 1-10V	Suspension
03.8500.GO.DA	Belt Fabric L 2000 mm Dali Version	55	1694	2700	95	60	Dimmable DALI 1	Suspension
03.8500.GO.CB	Belt Fabric L 2000 mm Casambi integrated	55	1694	2700	95	60	Dimmable Casambi	Suspension
03.8500.GO.1V	Belt Fabric L 2000 mm Dimmable 1-10V	55	1694	2700	95	60	Dimmable 1-10V	Suspension
