Belvedere Spot F1

Designed by Antonio Citterio/assistant Toan Nguyen

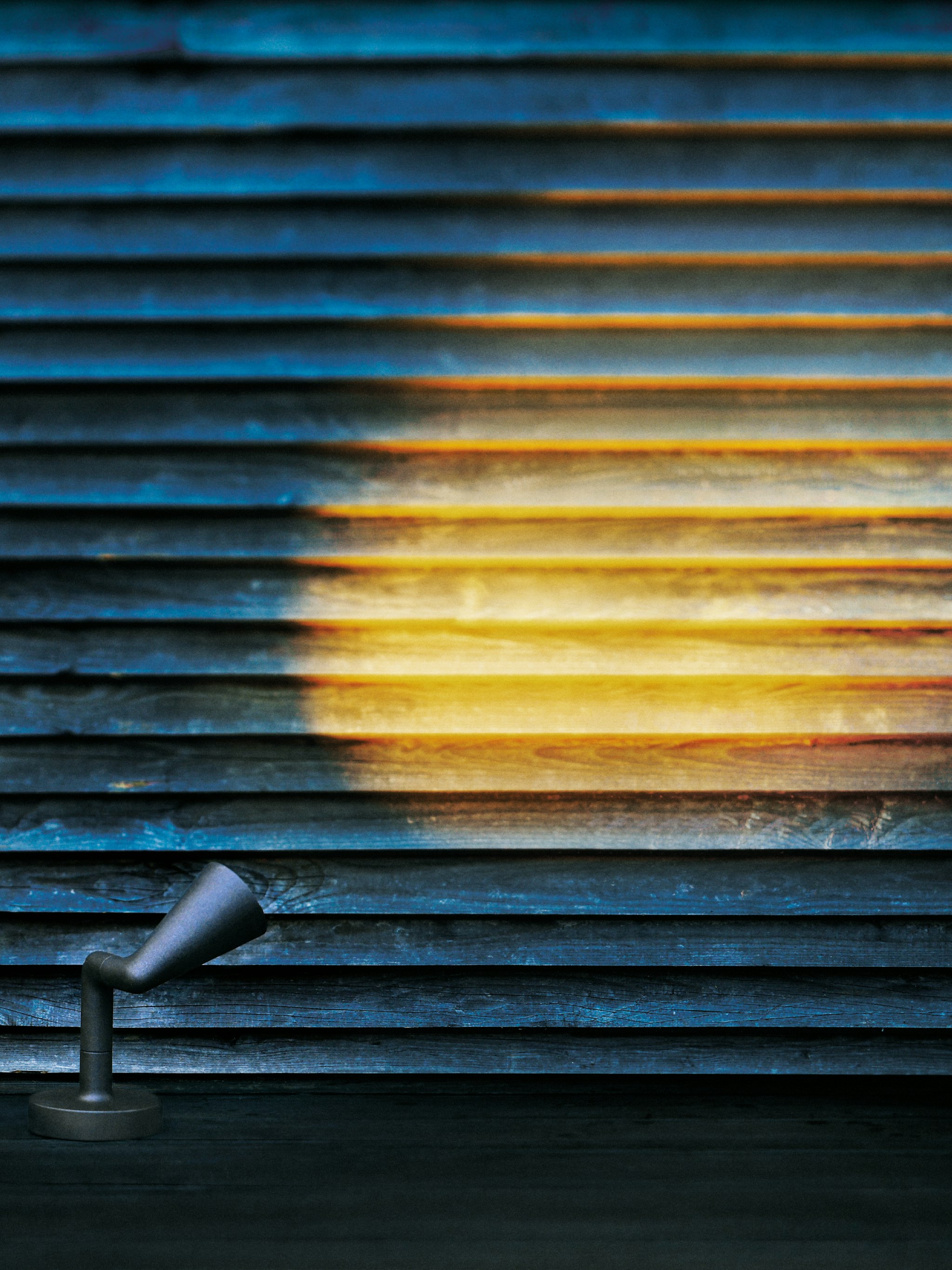

Belvedere Spot belongs to a family of adjustable outdoor LED lighting luminaires suitable for floor installations (ground or buried).

Download Documentation

Product highlight

Understated design

The lamps have been aptly conceived as outdoor camouflageable, discreet objects.

Luminaire

(54)

Optical Type

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
F001C43A033	Belvedere Spot F1 Non Dimmable Anthracite	6	360	4000	80	28	Non Dimmable	Ground
F001C43A030	Belvedere Spot F1 Non Dimmable Black	6	360	4000	80	28	Non Dimmable	Ground
F001C43A018	Belvedere Spot F1 Non Dimmable Deep Brown	6	360	4000	80	28	Non Dimmable	Ground
F001C43A012	Belvedere Spot F1 Non Dimmable Forest Green	6	360	4000	80	28	Non Dimmable	Ground
F001C43A006	Belvedere Spot F1 Non Dimmable Grey	6	360	4000	80	28	Non Dimmable	Ground
F001C43A001	Belvedere Spot F1 Non Dimmable White	6	360	4000	80	28	Non Dimmable	Ground
F001C42A033	Belvedere Spot F1 Non Dimmable Anthracite	6	360	4000	80	17	Non Dimmable	Ground
F001C42A030	Belvedere Spot F1 Non Dimmable Black	6	360	4000	80	17	Non Dimmable	Ground
F001C42A018	Belvedere Spot F1 Non Dimmable Deep Brown	6	360	4000	80	17	Non Dimmable	Ground
F001C42A012	Belvedere Spot F1 Non Dimmable Forest Green	6	360	4000	80	17	Non Dimmable	Ground
F001C42A006	Belvedere Spot F1 Non Dimmable Grey	6	360	4000	80	17	Non Dimmable	Ground
F001C42A001	Belvedere Spot F1 Non Dimmable White	6	360	4000	80	17	Non Dimmable	Ground
F001C41A033	Belvedere Spot F1 Non Dimmable Anthracite	6	389	4000	80	10	Non Dimmable	Ground
F001C41A030	Belvedere Spot F1 Non Dimmable Black	6	389	4000	80	10	Non Dimmable	Ground
F001C41A018	Belvedere Spot F1 Non Dimmable Deep Brown	6	389	4000	80	10	Non Dimmable	Ground
F001C41A012	Belvedere Spot F1 Non Dimmable Forest Green	6	389	4000	80	10	Non Dimmable	Ground
F001C41A006	Belvedere Spot F1 Non Dimmable Grey	6	389	4000	80	10	Non Dimmable	Ground
F001C41A001	Belvedere Spot F1 Non Dimmable White	6	389	4000	80	10	Non Dimmable	Ground
F001C33A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	360	3000	80	28	Non Dimmable	Ground
F001C33A030.A	Belvedere Spot F1 Non Dimmable Black	6	360	3000	80	28	Non Dimmable	Ground
F001C33A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	360	3000	80	28	Non Dimmable	Ground
F001C33A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	360	3000	80	28	Non Dimmable	Ground
F001C33A006.A	Belvedere Spot F1 Non Dimmable Grey	6	360	3000	80	28	Non Dimmable	Ground
F001C33A001.A	Belvedere Spot F1 Non Dimmable White	6	360	3000	80	28	Non Dimmable	Ground
F001C32A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	382	3000	80	17	Non Dimmable	Ground
F001C32A030.A	Belvedere Spot F1 Non Dimmable Black	6	382	3000	80	17	Non Dimmable	Ground
F001C32A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	382	3000	80	17	Non Dimmable	Ground
F001C32A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	382	3000	80	17	Non Dimmable	Ground
F001C32A006.A	Belvedere Spot F1 Non Dimmable Grey	6	382	3000	80	17	Non Dimmable	Ground
F001C32A001.A	Belvedere Spot F1 Non Dimmable White	6	382	3000	80	17	Non Dimmable	Ground
F001C31A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	380	3000	80	10	Non Dimmable	Ground
F001C31A030.A	Belvedere Spot F1 Non Dimmable Black	6	380	3000	80	10	Non Dimmable	Ground
F001C31A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	380	3000	80	10	Non Dimmable	Ground
F001C31A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	380	3000	80	10	Non Dimmable	Ground
F001C31A006.A	Belvedere Spot F1 Non Dimmable Grey	6	380	3000	80	10	Non Dimmable	Ground
F001C31A001.A	Belvedere Spot F1 Non Dimmable White	6	380	3000	80	10	Non Dimmable	Ground
F001C23A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	351	2700	80	28	Non Dimmable	Ground
F001C23A030.A	Belvedere Spot F1 Non Dimmable Black	6	351	2700	80	28	Non Dimmable	Ground
F001C23A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	351	2700	80	28	Non Dimmable	Ground
F001C23A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	351	2700	80	28	Non Dimmable	Ground
F001C23A006.A	Belvedere Spot F1 Non Dimmable Grey	6	351	2700	80	28	Non Dimmable	Ground
F001C23A001.A	Belvedere Spot F1 Non Dimmable White	6	351	2700	80	28	Non Dimmable	Ground
F001C22A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	368	2700	80	17	Non Dimmable	Ground
F001C22A030.A	Belvedere Spot F1 Non Dimmable Black	6	368	2700	80	17	Non Dimmable	Ground
F001C22A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	368	2700	80	17	Non Dimmable	Ground
F001C22A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	368	2700	80	17	Non Dimmable	Ground
F001C22A006.A	Belvedere Spot F1 Non Dimmable Grey	6	368	2700	80	17	Non Dimmable	Ground
F001C22A001.A	Belvedere Spot F1 Non Dimmable White	6	368	2700	80	17	Non Dimmable	Ground
F001C21A033.A	Belvedere Spot F1 Non Dimmable Anthracite	6	371	2700	80	10	Non Dimmable	Ground
F001C21A030.A	Belvedere Spot F1 Non Dimmable Black	6	371	2700	80	10	Non Dimmable	Ground
F001C21A018.A	Belvedere Spot F1 Non Dimmable Deep Brown	6	371	2700	80	10	Non Dimmable	Ground
F001C21A012.A	Belvedere Spot F1 Non Dimmable Forest Green	6	371	2700	80	10	Non Dimmable	Ground
F001C21A006.A	Belvedere Spot F1 Non Dimmable Grey	6	371	2700	80	10	Non Dimmable	Ground
F001C21A001.A	Belvedere Spot F1 Non Dimmable White	6	371	2700	80	10	Non Dimmable	Ground
