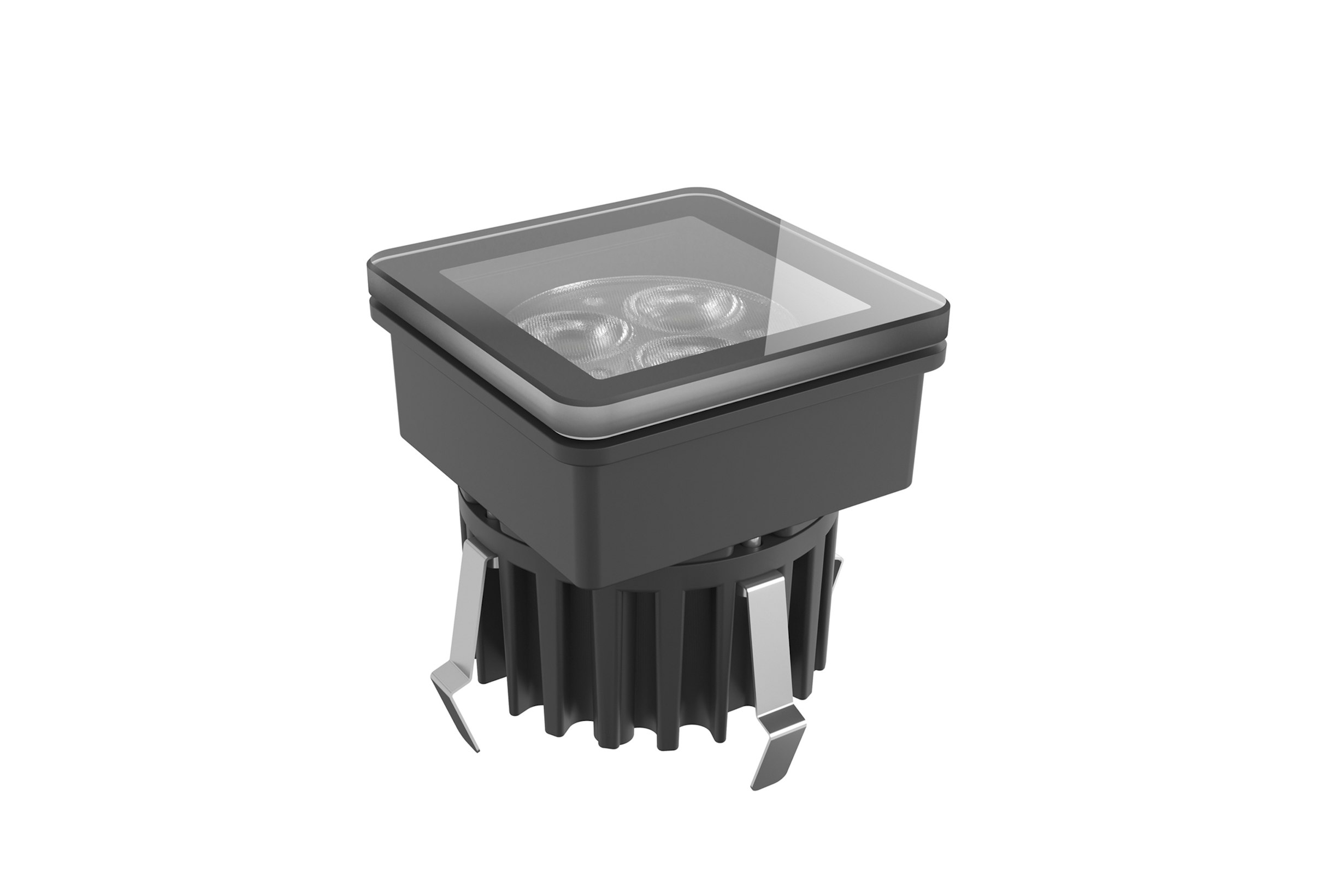

C-Me Square 70

Recessed floor or wall mounted lighting fixtures characterized by flush floor installation, available in different sizes and opening beams.

Download Documentation

Family of geometrical recessed floor or wall mounted lighting fixtures with LED light source, available in square and round versions.

(15)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
FA10018241	C-Me Square 70	5	329	2700	80	50	Non Dimmable	In-ground
FA100182132	C-Me Square 70	5	359	2700	80	14	Non Dimmable	In-ground
FA100182130	C-Me Square 70	5	364	2700	80	30	Non Dimmable	In-ground
FA100182125	C-Me Square 70 Opal	1	80	2700	80	110	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	In-ground
FA10018041	C-Me Square 70	5	371	4000	80	50	Non Dimmable	In-ground
FA100180132	C-Me Square 70	5	404	4000	80	14	Non Dimmable	In-ground
FA100180130	C-Me Square 70	5	410	4000	80	30	Non Dimmable	In-ground
FA100180125	C-Me Square 70 Opal	1	83	4000	80	110	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	In-ground
FA10017941	C-Me Square 70	5	357	3000	80	50	Non Dimmable	In-ground
FA100179132	C-Me Square 70	5	389	3000	80	14	Non Dimmable	In-ground
FA100179130	C-Me Square 70	5	395	3000	80	30	Non Dimmable	In-ground
FA100179125	C-Me Square 70 Opal	1	82	3000	80	110	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	In-ground
FA10017441	C-Me Square 70 Rgb	3	-	RGB	-	-	Dimmable DMX	In-ground
FA100174132	C-Me Square 70 Rgb	3	-	RGB	-	-	Dimmable DMX	In-ground
FA100174125	C-Me Square 70 Opal Rgb	3	-	RGB	-	-	Dimmable DMX	In-ground
