Camouflage 240

Designed by Piero Lissoni

As part of a collection of products for outdoor use, Camouflage 200 is an LED wall installation with a transparent polycarbonate diffuser.

Download Documentation

Product highlight

The art of mimesis

The refinement of the stone finishes allows the perfect integration with the architecture.

Discover the Story

Luminaire

(90)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
F1317090-310	Camouflage 240 mm Dimmable 1-10V Crema d'Orcia Stone	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317090-300	Camouflage 240 mm Dimmable DALI Crema d'Orcia Stone	-	944	4000	80	151	Dimmable DALI 1	Wall

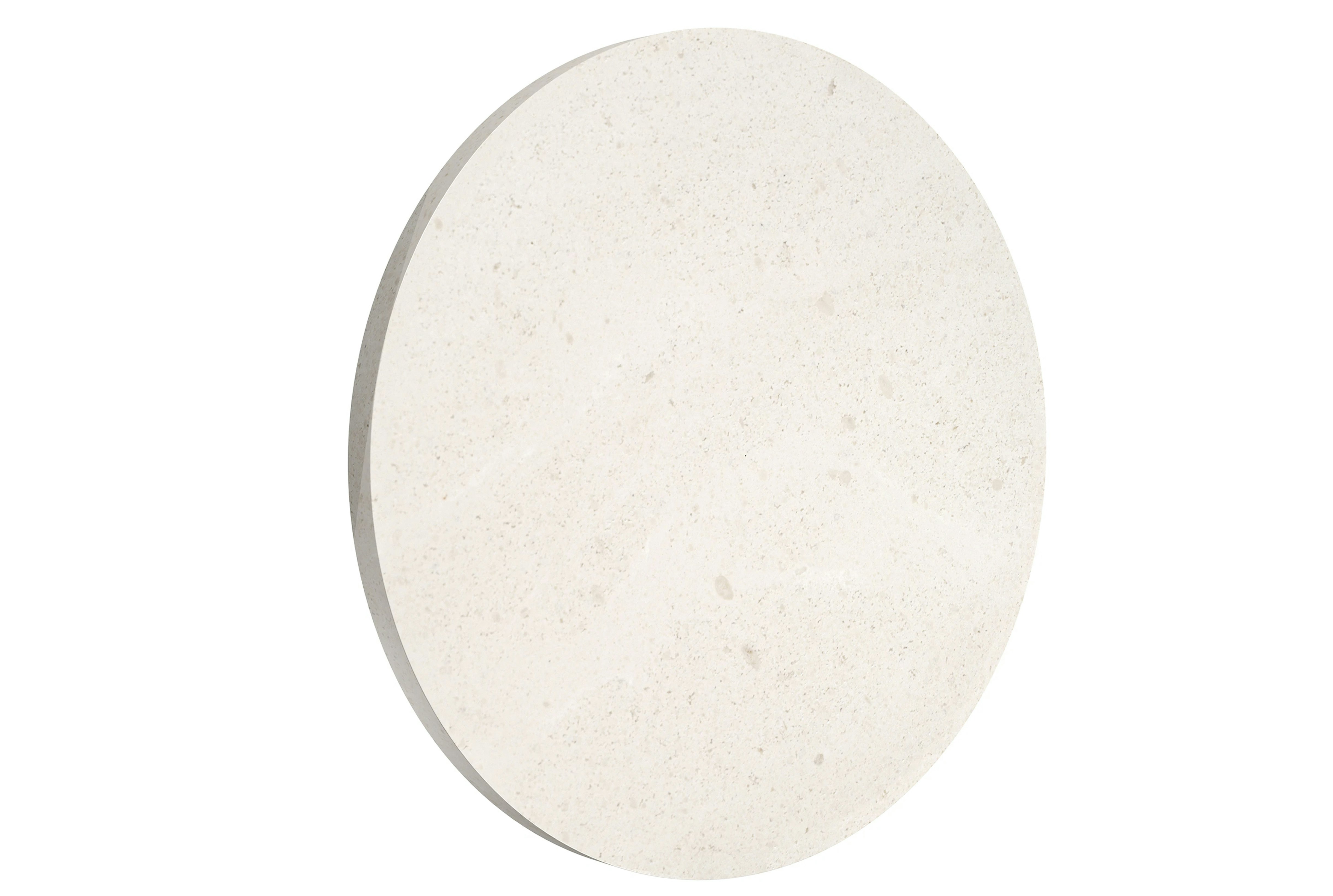

F1317090	Camouflage 240 mm Non Dimmable Crema d'Orcia Stone	-	944	4000	80	151	Non Dimmable	Wall

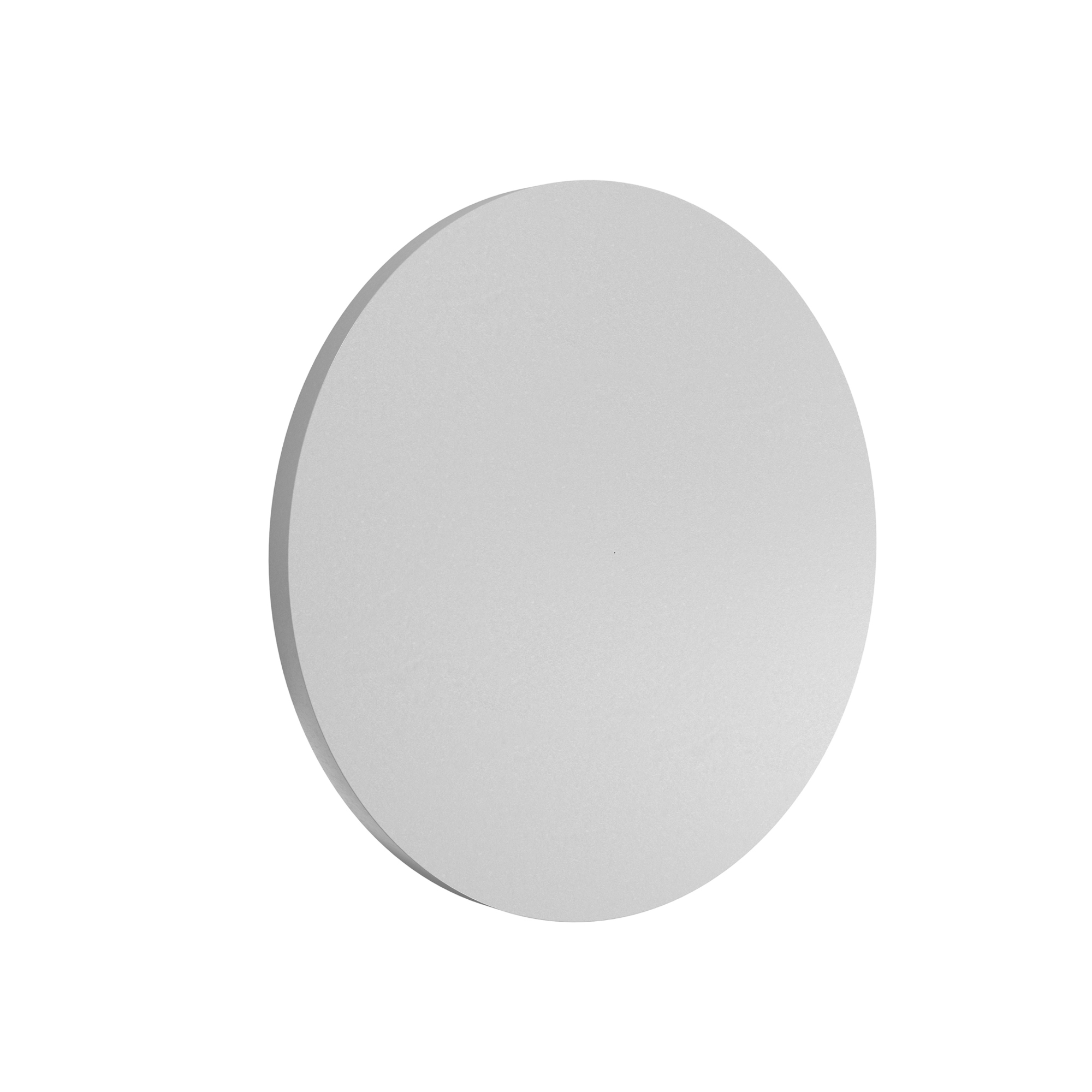

F1317089-310	Camouflage 240 mm Dimmable 1-10V Concrete	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317089-300	Camouflage 240 mm Dimmable DALI Concrete	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317089	Camouflage 240 mm Non Dimmable Concrete	-	944	4000	80	151	Non Dimmable	Wall

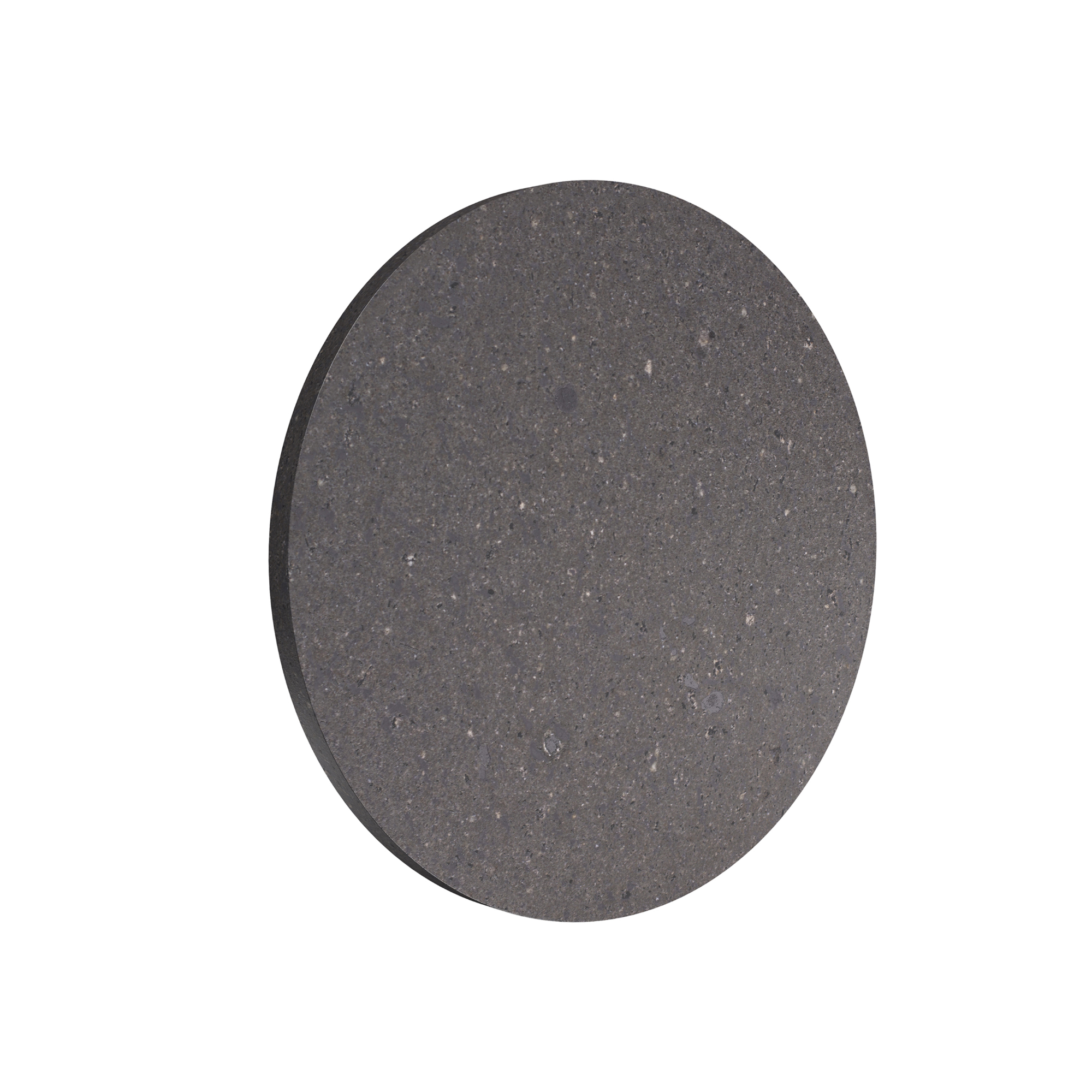

F1317087-310	Camouflage 240 mm Dimmable 1-10V Basaltina Stone	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317087-300	Camouflage 240 mm Dimmable DALI Basaltina Stone	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317087	Camouflage 240 mm Non Dimmable Basaltina Stone	-	944	4000	80	151	Non Dimmable	Wall

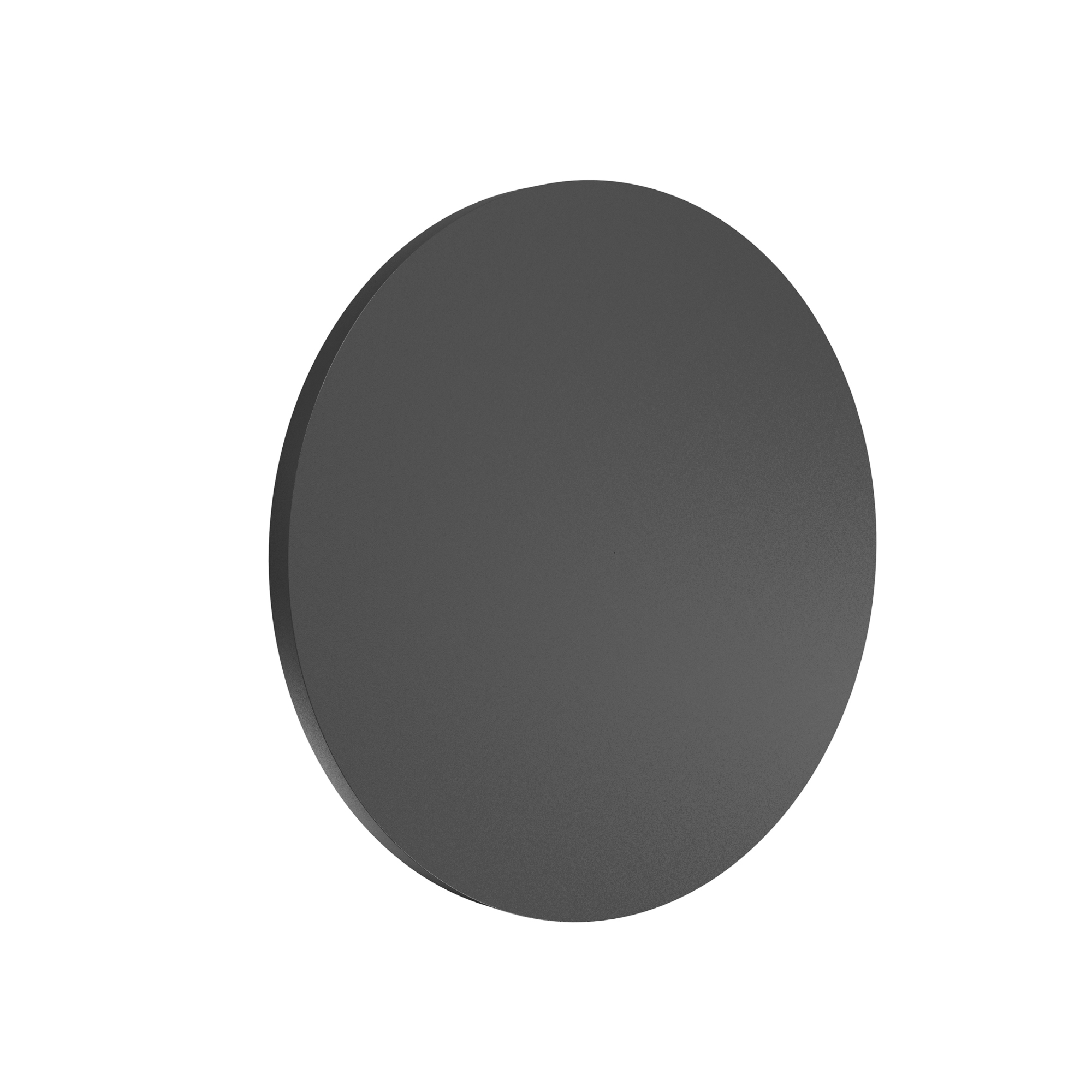

F1317033-310	Camouflage 240 mm Dimmable 1-10V Anthracite_	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317033-300	Camouflage 240 mm Dimmable DALI Anthracite	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317033	Camouflage 240 mm Non Dimmable Anthracite	-	944	4000	80	151	Non Dimmable	Wall
F1317030-310	Camouflage 240 mm Dimmable 1-10V Black_	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317030-300	Camouflage 240 mm Dimmable DALI Black	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317030	Camouflage 240 mm Non Dimmable Black	-	944	4000	80	151	Non Dimmable	Wall

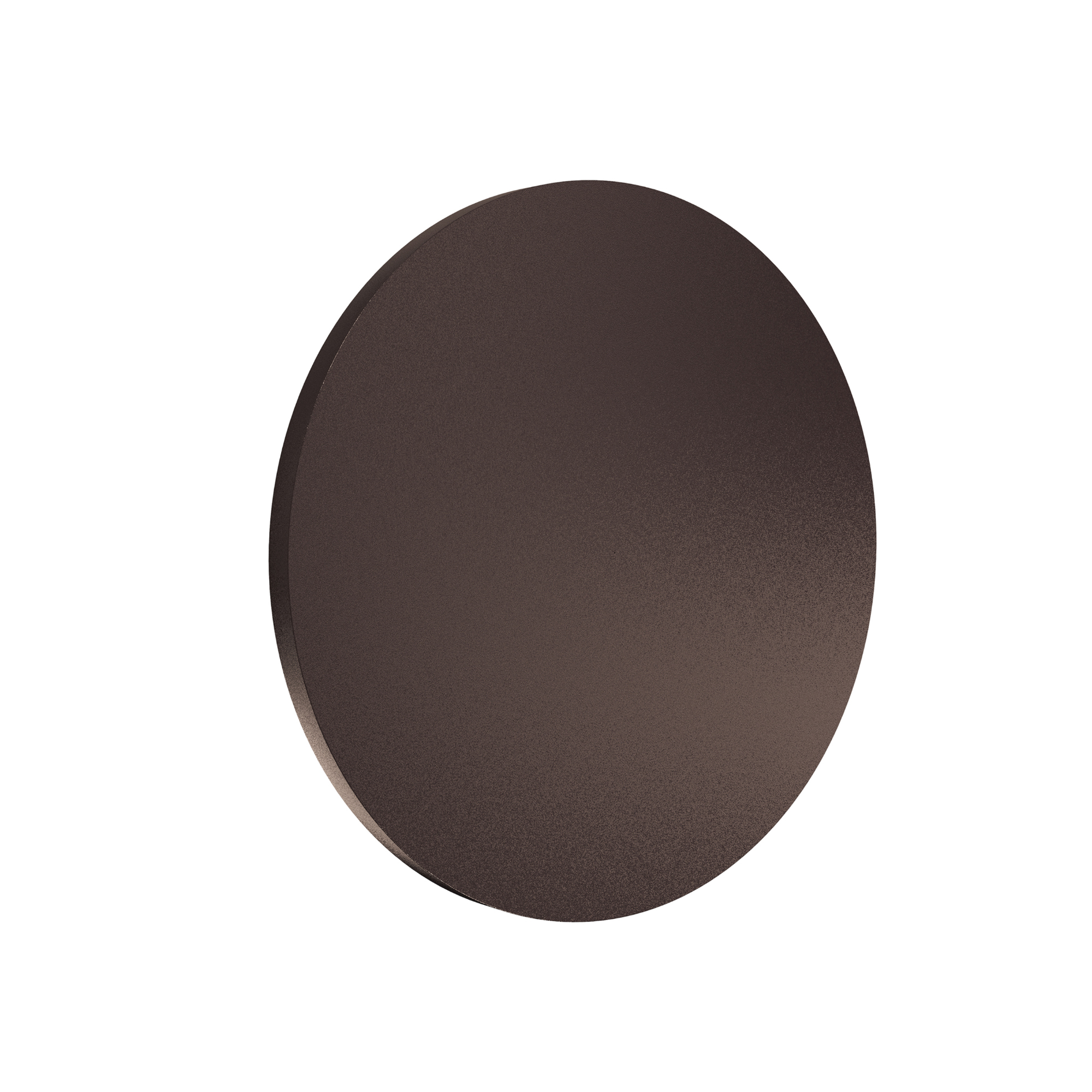

F1317018-310	Camouflage 240 mm Dimmable 1-10V Deep Brown	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317018-300	Camouflage 240 mm Dimmable DALI Deep Brown	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317018	Camouflage 240 mm Non Dimmable Deep Brown	-	944	4000	80	151	Non Dimmable	Wall

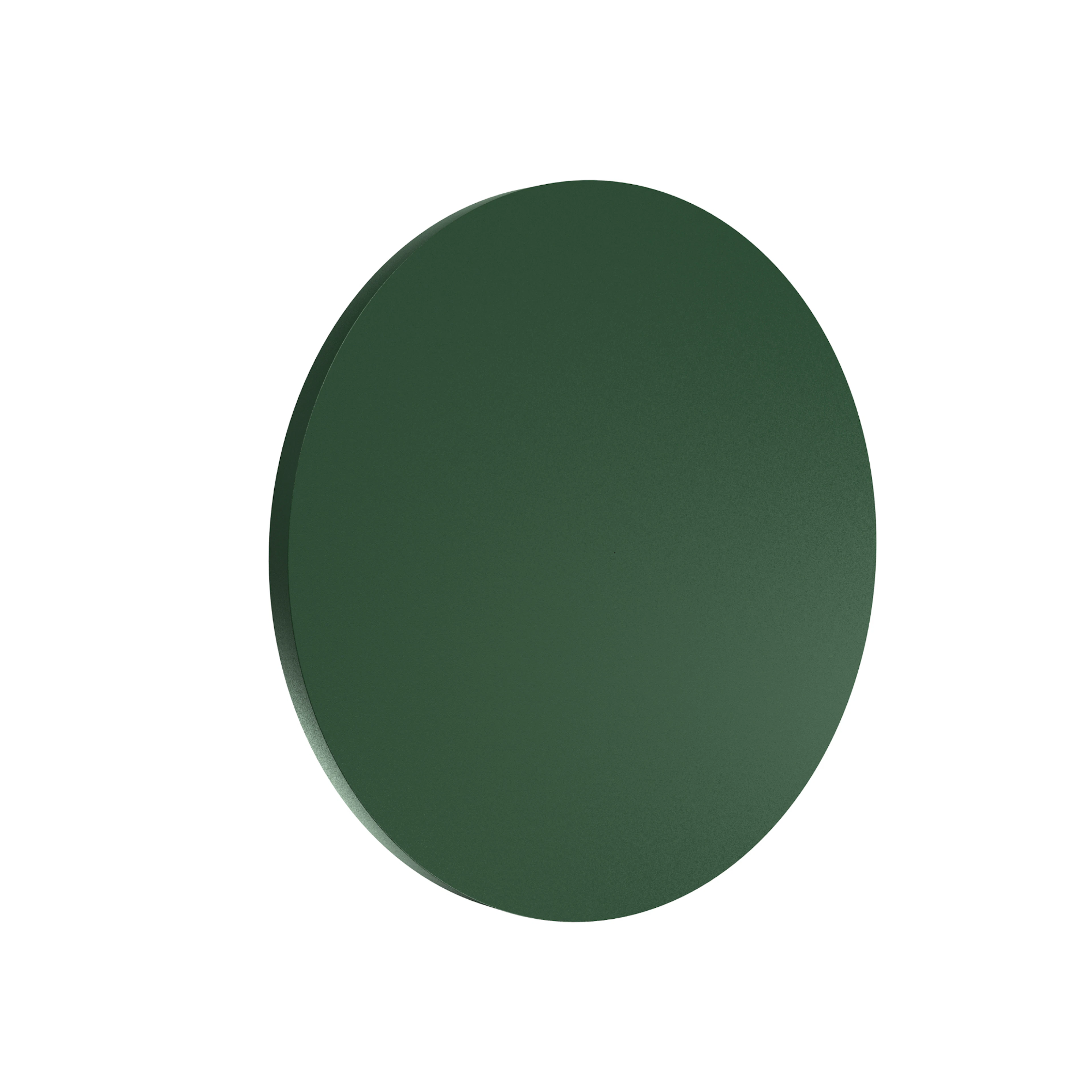

F1317012-310	Camouflage 240 mm Dimmable 1-10V Forest Green	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317012-300	Camouflage 240 mm Dimmable DALI Forest Green	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317012	Camouflage 240 mm Non Dimmable Forest Green	-	944	4000	80	151	Non Dimmable	Wall

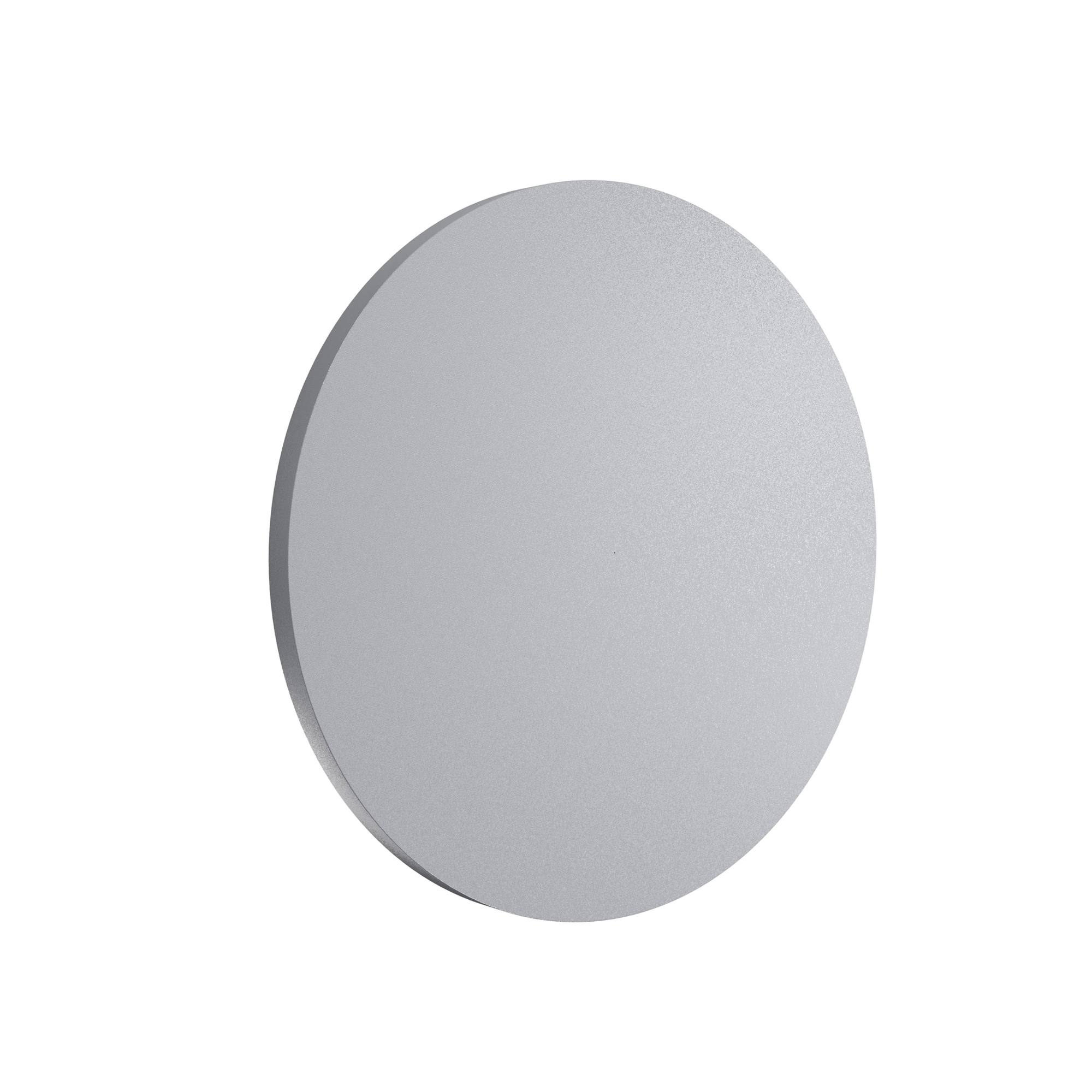

F1317006-310	Camouflage 240 mm Dimmable 1-10V Grey	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317006-300	Camouflage 240 mm Dimmable DALI Grey	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317006	Camouflage 240 mm Non Dimmable Grey	-	944	4000	80	151	Non Dimmable	Wall

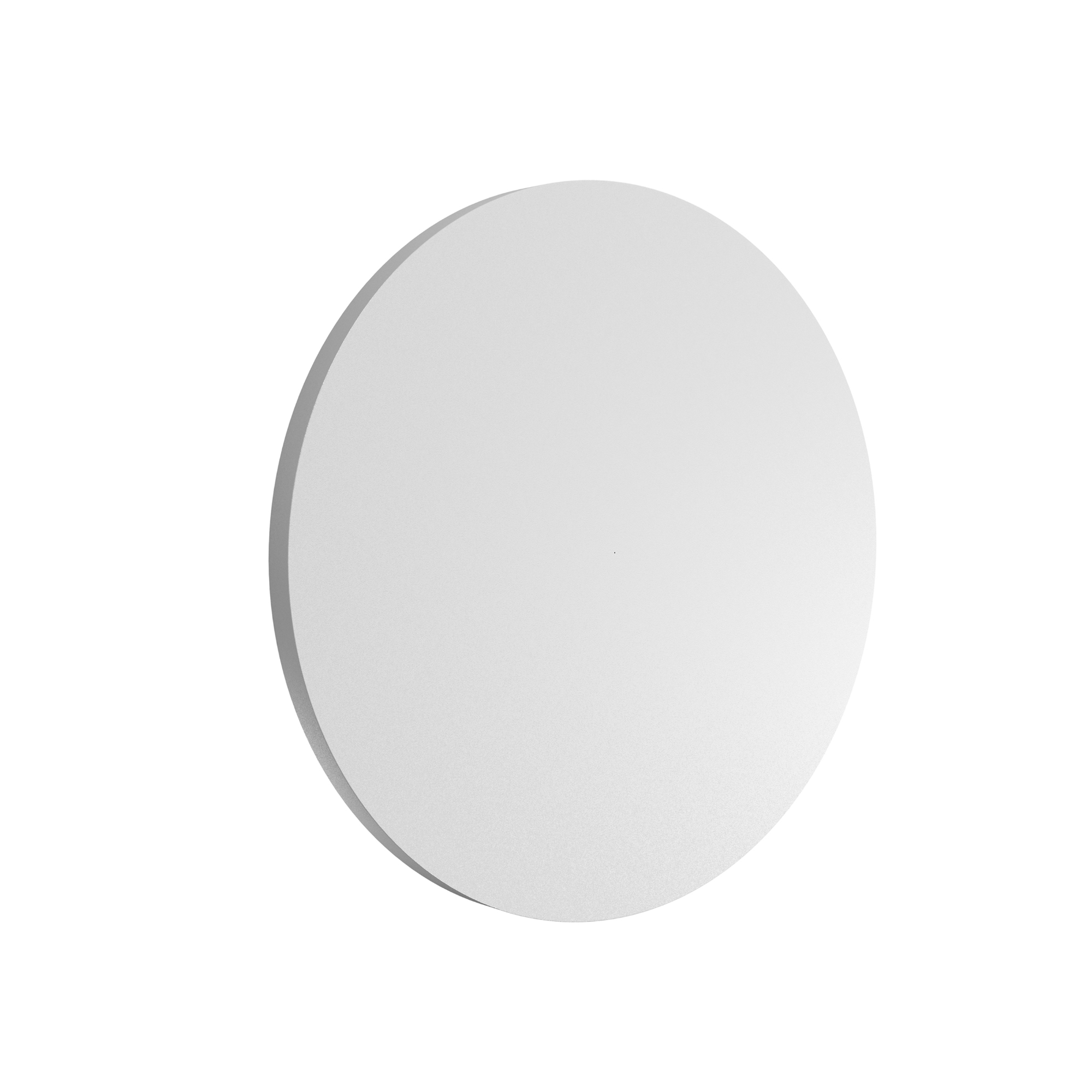

F1317001-310	Camouflage 240 mm Dimmable 1-10V White	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317001-300	Camouflage 240 mm Dimmable DALI White	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317001	Camouflage 240 mm Non Dimmable White	-	944	4000	80	151	Non Dimmable	Wall

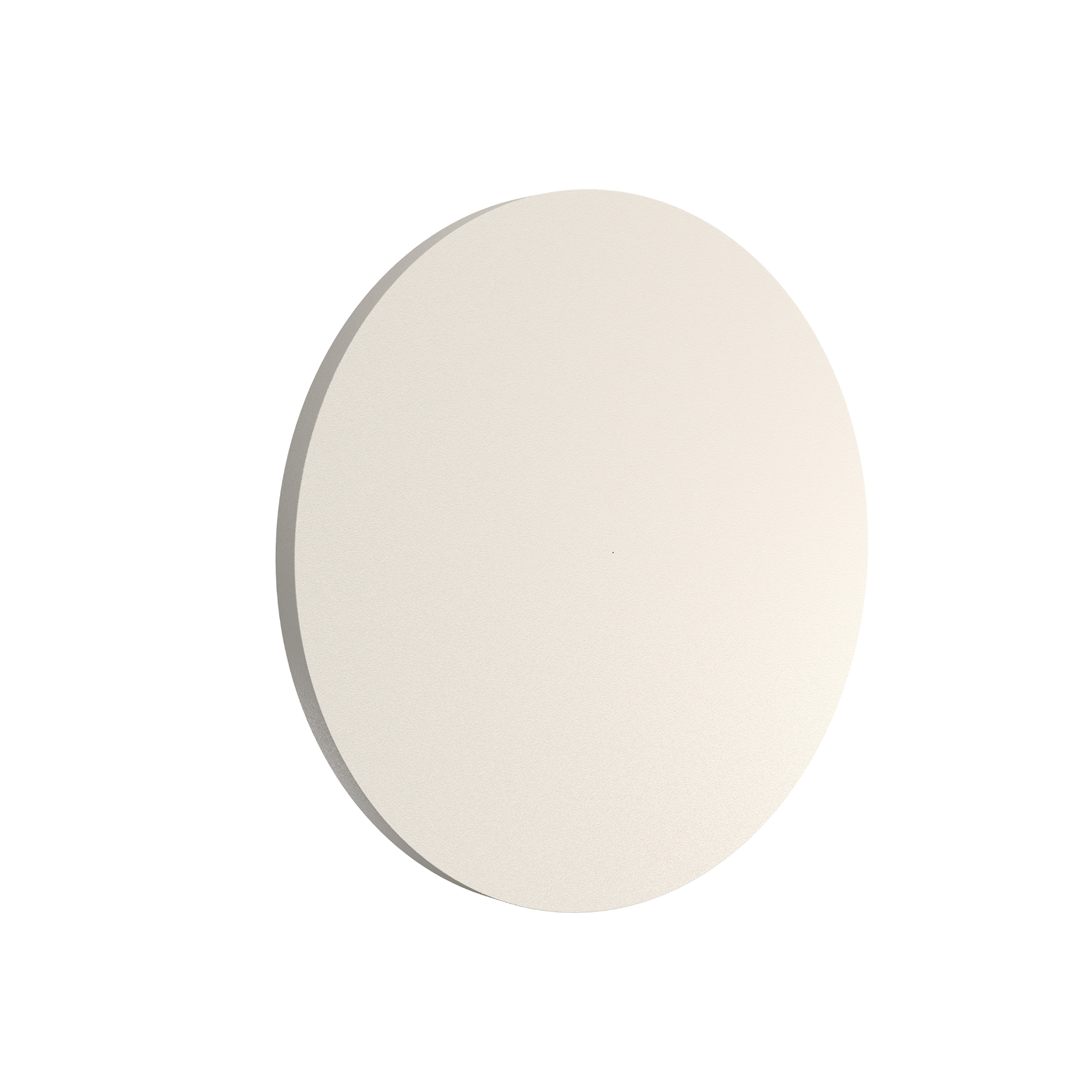

F1317000-310	Camouflage 240 mm Dimmable 1-10V Primer	-	944	4000	80	151	Dimmable 1-10V	Wall
F1317000-300	Camouflage 240 mm Dimmable DALI Primer	-	944	4000	80	151	Dimmable DALI 1	Wall
F1317000	Camouflage 240 mm Non Dimmable Primer	-	944	4000	80	151	Non Dimmable	Wall
F1316090-310	Camouflage 240 mm Dimmable 1-10V Crema d'Orcia Stone	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316090-300	Camouflage 240 mm Dimmable DALI Crema d'Orcia Stone	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316090	Camouflage 240 mm Non Dimmable Crema d'Orcia Stone	-	898	3000	80	151	Non Dimmable	Wall
F1316089-310	Camouflage 240 mm Dimmable 1-10V Concrete	-	898	3000	80	151	-	Wall
F1316089-300	Camouflage 240 mm Dimmable DALI Concrete	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316089	Camouflage 240 mm Non Dimmable Concrete	-	898	3000	80	151	Non Dimmable	Wall
F1316087-310	Camouflage 240 mm Dimmable 1-10V Basaltina Stone	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316087-300	Camouflage 240 mm Dimmable DALI Basaltina Stone	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316087	Camouflage 240 mm Non Dimmable Basaltina Stone	-	898	3000	80	151	Non Dimmable	Wall
F1316033-310	Camouflage 240 mm Dimmable 1-10V Anthracite_	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316033-300	Camouflage 240 mm Dimmable DALI Anthracite	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316033	Camouflage 240 mm Non Dimmable Anthracite	-	898	3000	80	151	Non Dimmable	Wall
F1316030-310	Camouflage 240 mm Dimmable 1-10V Black_	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316030-300	Camouflage 240 mm Dimmable DALI Black	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316030	Camouflage 240 mm Non Dimmable Black	-	898	3000	80	151	Non Dimmable	Wall
F1316018-310	Camouflage 240 mm Dimmable 1-10V Deep Brown	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316018-300	Camouflage 240 mm Dimmable DALI Deep Brown	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316018	Camouflage 240 mm Non Dimmable Deep Brown	-	898	3000	80	151	Non Dimmable	Wall
F1316012-310	Camouflage 240 mm Dimmable 1-10V Forest Green	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316012-300	Camouflage 240 mm Dimmable DALI Forest Green	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316012	Camouflage 240 mm Non Dimmable Forest Green	-	898	3000	80	151	Non Dimmable	Wall
F1316006-310	Camouflage 240 mm Dimmable 1-10V Grey	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316006-300	Camouflage 240 mm Dimmable DALI Grey	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316006	Camouflage 240 mm Non Dimmable Grey	-	898	3000	80	151	Non Dimmable	Wall
F1316001-310	Camouflage 240 mm Dimmable 1-10V White	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316001-300	Camouflage 240 mm Dimmable DALI White	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316001	Camouflage 240 mm Non Dimmable White	-	898	3000	80	151	Non Dimmable	Wall
F1316000-310	Camouflage 240 mm Dimmable 1-10V Primer	-	898	3000	80	151	Dimmable 1-10V	Wall
F1316000-300	Camouflage 240 mm Dimmable DALI Primer	-	898	3000	80	151	Dimmable DALI 1	Wall
F1316000	Camouflage 240 mm Non Dimmable Primer	-	898	3000	80	151	Non Dimmable	Wall
F1315090-310	Camouflage 240 mm Dimmable 1-10V Crema d'Orcia Stone	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315090-300	Camouflage 240 mm Dimmable DALI Crema d'Orcia Stone	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315090	Camouflage 240 mm Non Dimmable Crema d'Orcia Stone	-	773	2700	80	151	Non Dimmable	Wall
F1315089-310	Camouflage 240 mm Dimmable 1-10V Concrete	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315089-300	Camouflage 240 mm Dimmable DALI Concrete	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315089	Camouflage 240 mm Non Dimmable Concrete	-	773	2700	80	151	Non Dimmable	Wall
F1315087-310	Camouflage 240 mm Dimmable 1-10V Basaltina Stone	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315087-300	Camouflage 240 mm Dimmable DALI Basaltina Stone	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315087	Camouflage 240 mm Non Dimmable Basaltina Stone	-	773	2700	80	151	Non Dimmable	Wall
F1315033-310	Camouflage 240 mm Dimmable 1-10V Anthracite_	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315033-300	Camouflage 240 mm Dimmable DALI Anthracite	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315033	Camouflage 240 mm Non Dimmable Anthracite	-	773	2700	80	151	Non Dimmable	Wall
F1315030-310	Camouflage 240 mm Dimmable 1-10V Black_	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315030-300	Camouflage 240 mm Dimmable DALI Black	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315030	Camouflage 240 mm Non Dimmable Black	-	773	2700	80	151	Non Dimmable	Wall
F1315018-310	Camouflage 240 mm Dimmable 1-10V Deep Brown	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315018-300	Camouflage 240 mm Dimmable DALI Deep Brown	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315018	Camouflage 240 mm Non Dimmable Deep Brown	-	773	2700	80	151	Non Dimmable	Wall
F1315012-310	Camouflage 240 mm Dimmable 1-10V Forest Green	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315012-300	Camouflage 240 mm Dimmable DALI Forest Green	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315012	Camouflage 240 mm Non Dimmable Forest Green	-	773	2700	80	151	Non Dimmable	Wall
F1315006-310	Camouflage 240 mm Dimmable 1-10V Grey	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315006-300	Camouflage 240 mm Dimmable DALI Grey	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315006	Camouflage 240 mm Non Dimmable Grey	-	773	2700	80	151	Non Dimmable	Wall
F1315001-310	Camouflage 240 mm Dimmable 1-10V White	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315001-300	Camouflage 240 mm Dimmable DALI White	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315001	Camouflage 240 mm Non Dimmable White	-	773	2700	80	151	Non Dimmable	Wall
F1315000-310	Camouflage 240 mm Dimmable 1-10V Primer	-	773	2700	80	151	Dimmable 1-10V	Wall
F1315000-300	Camouflage 240 mm Dimmable DALI Primer	-	773	2700	80	151	Dimmable DALI 1	Wall
F1315000	Camouflage 240 mm Non Dimmable Primer	-	773	2700	80	151	Non Dimmable	Wall
