Easy Kap 105

Designed by FLOS Architectural

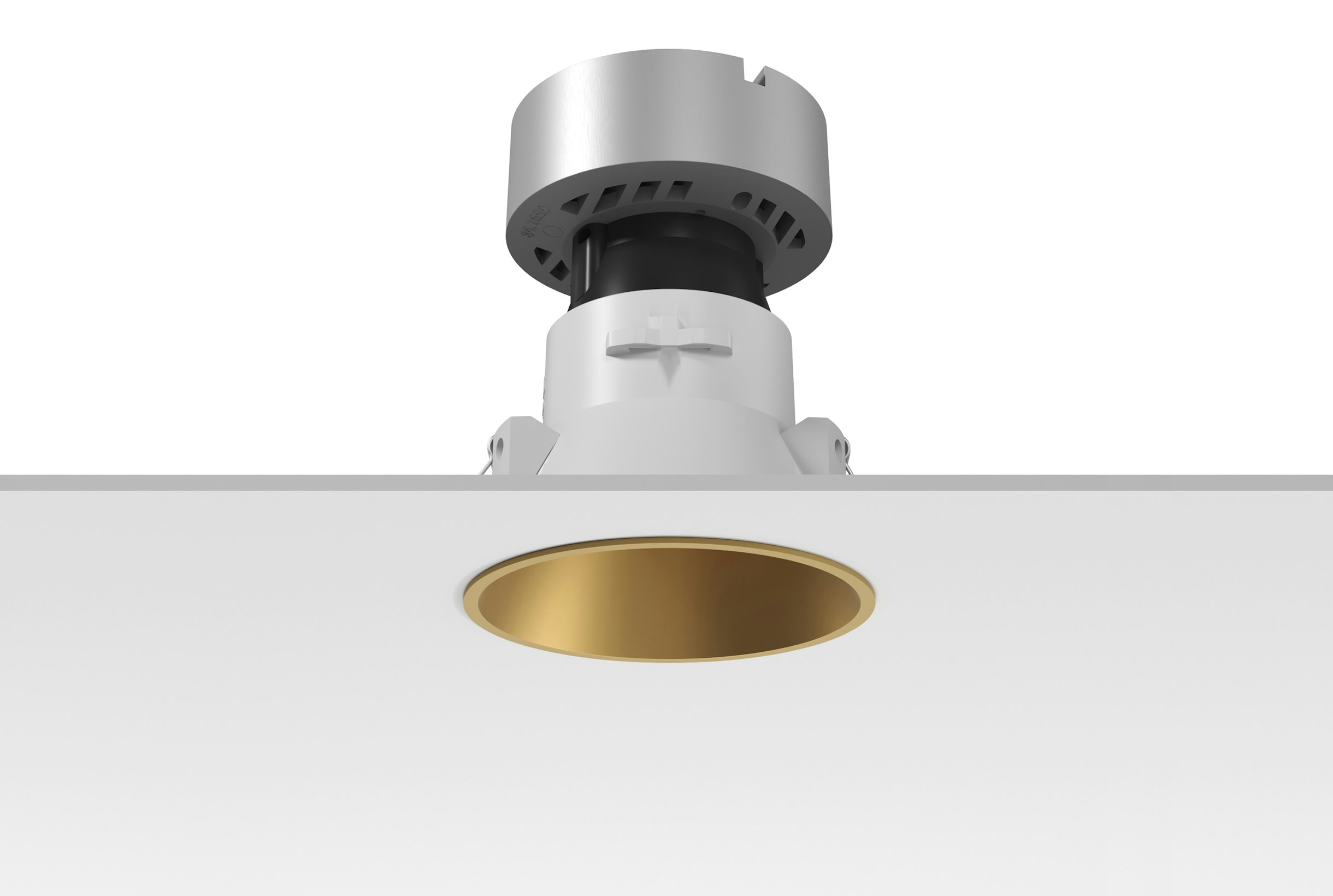

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Download Documentation

Product highlight

Functional minimalism

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Discover the Story


Luminaire

(60)

Orientation

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

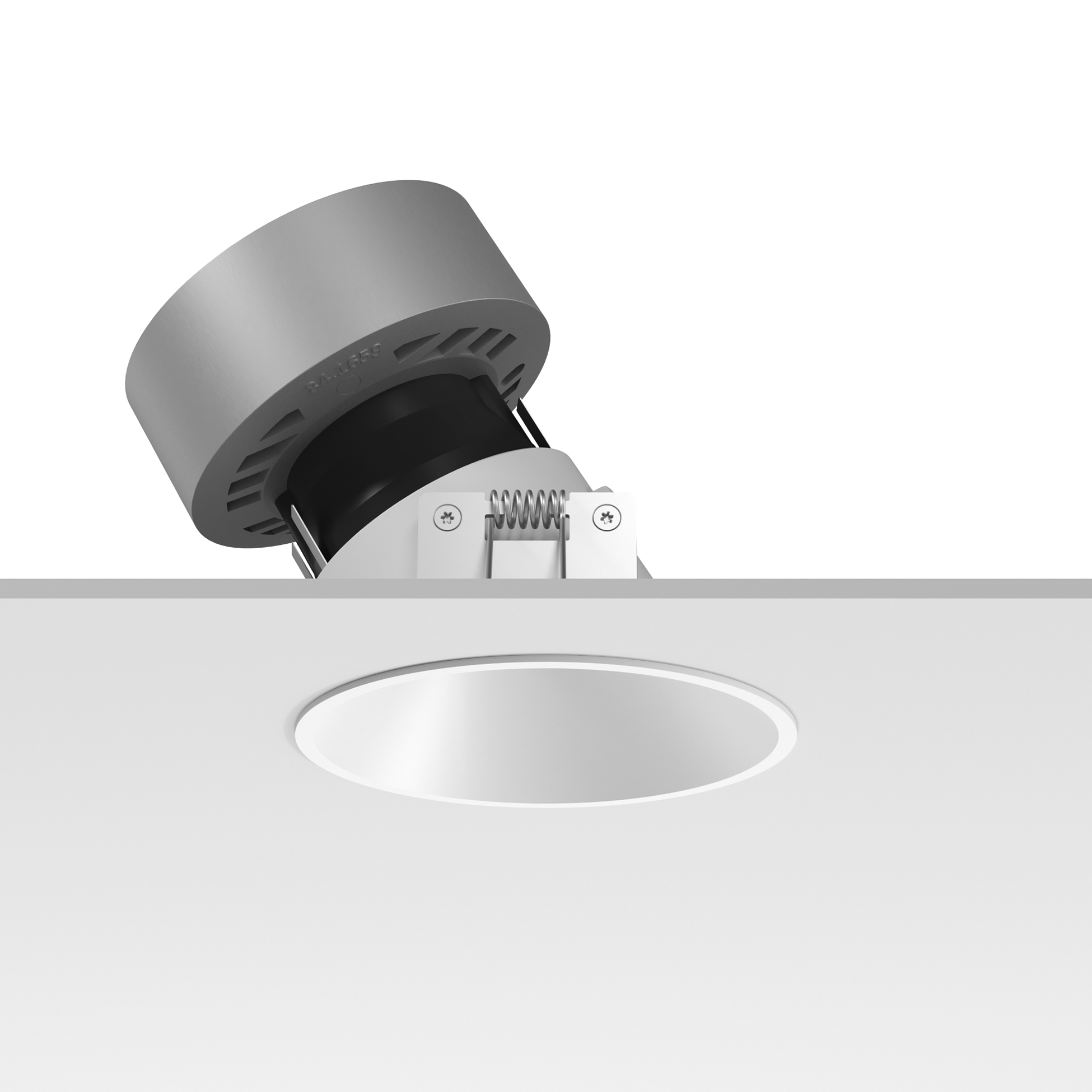

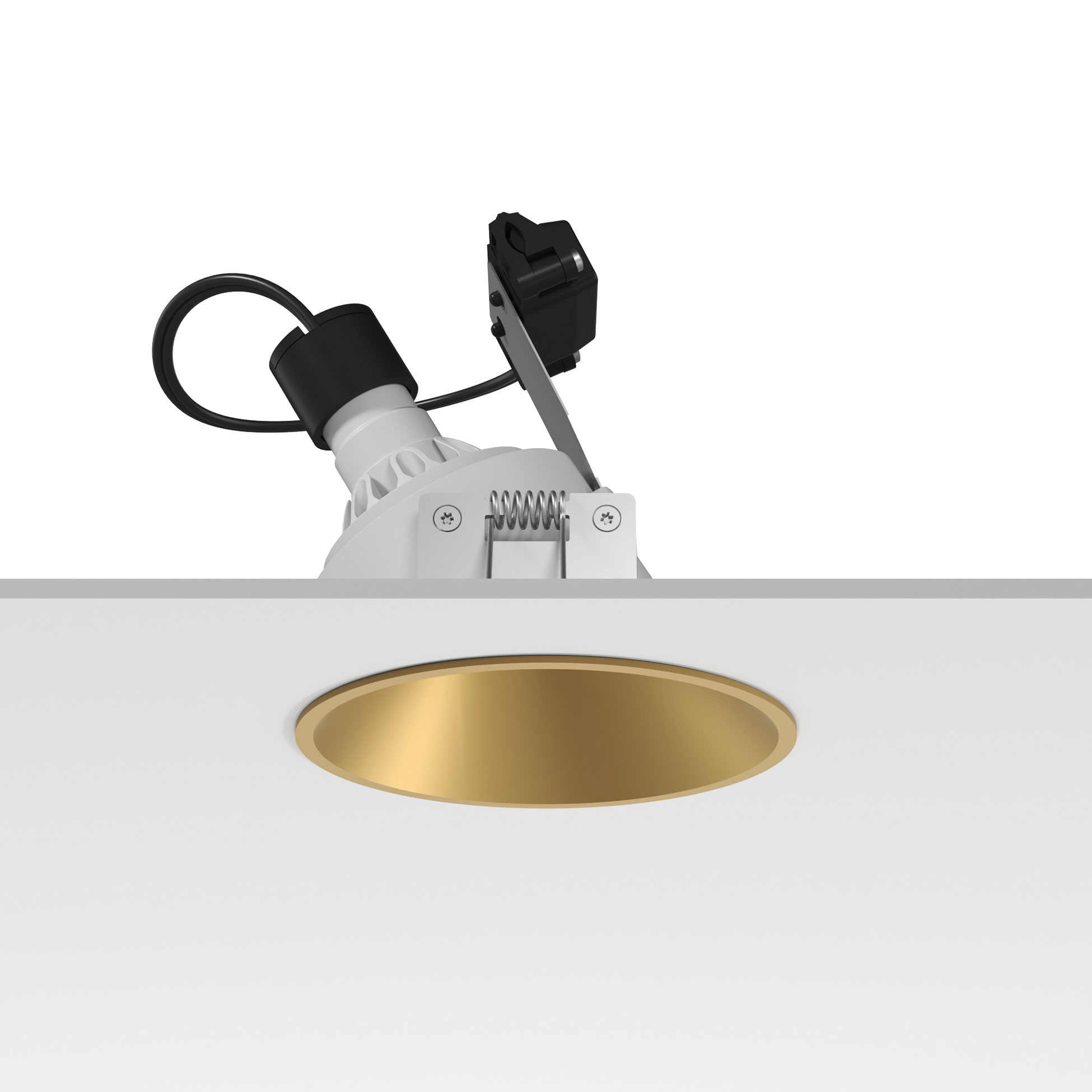

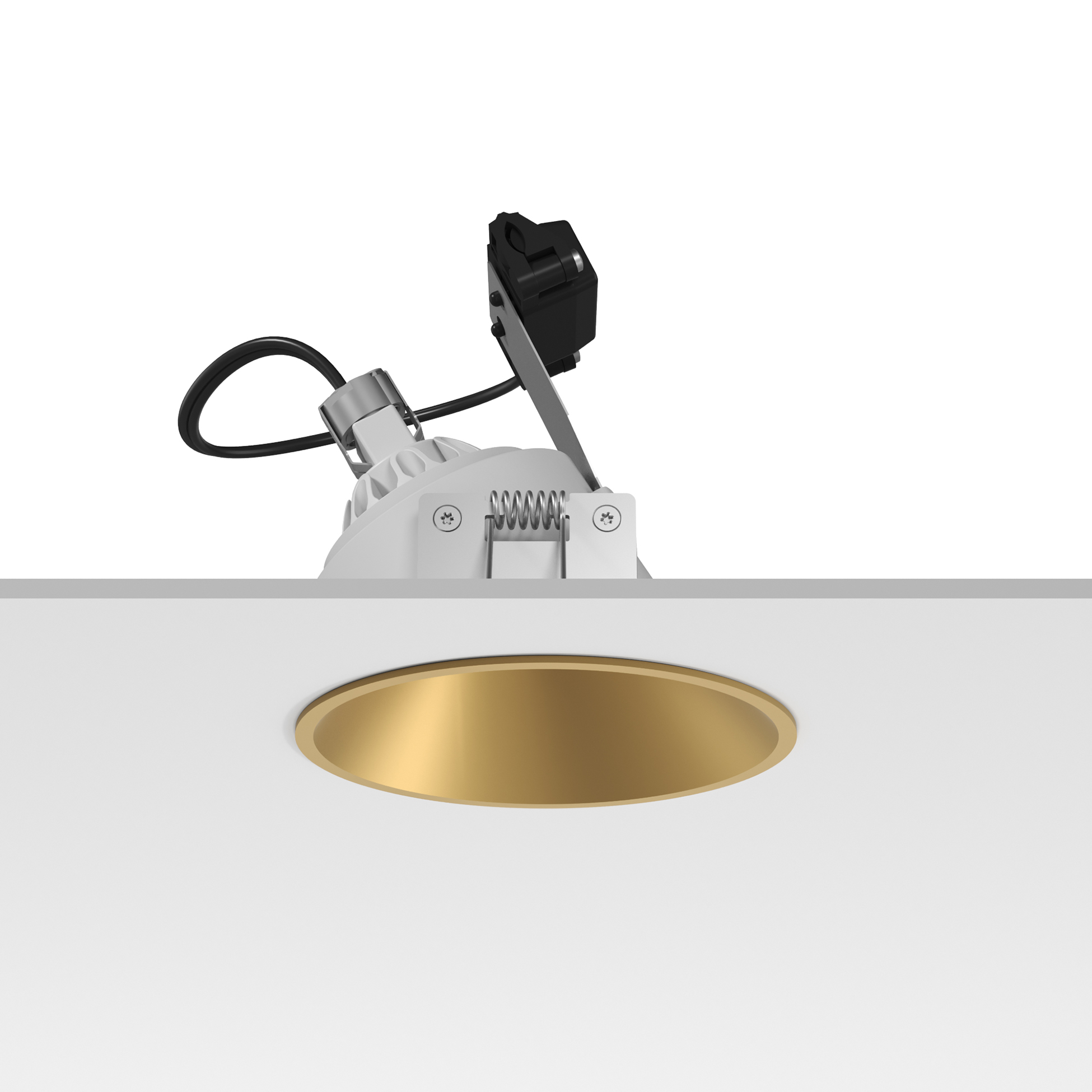

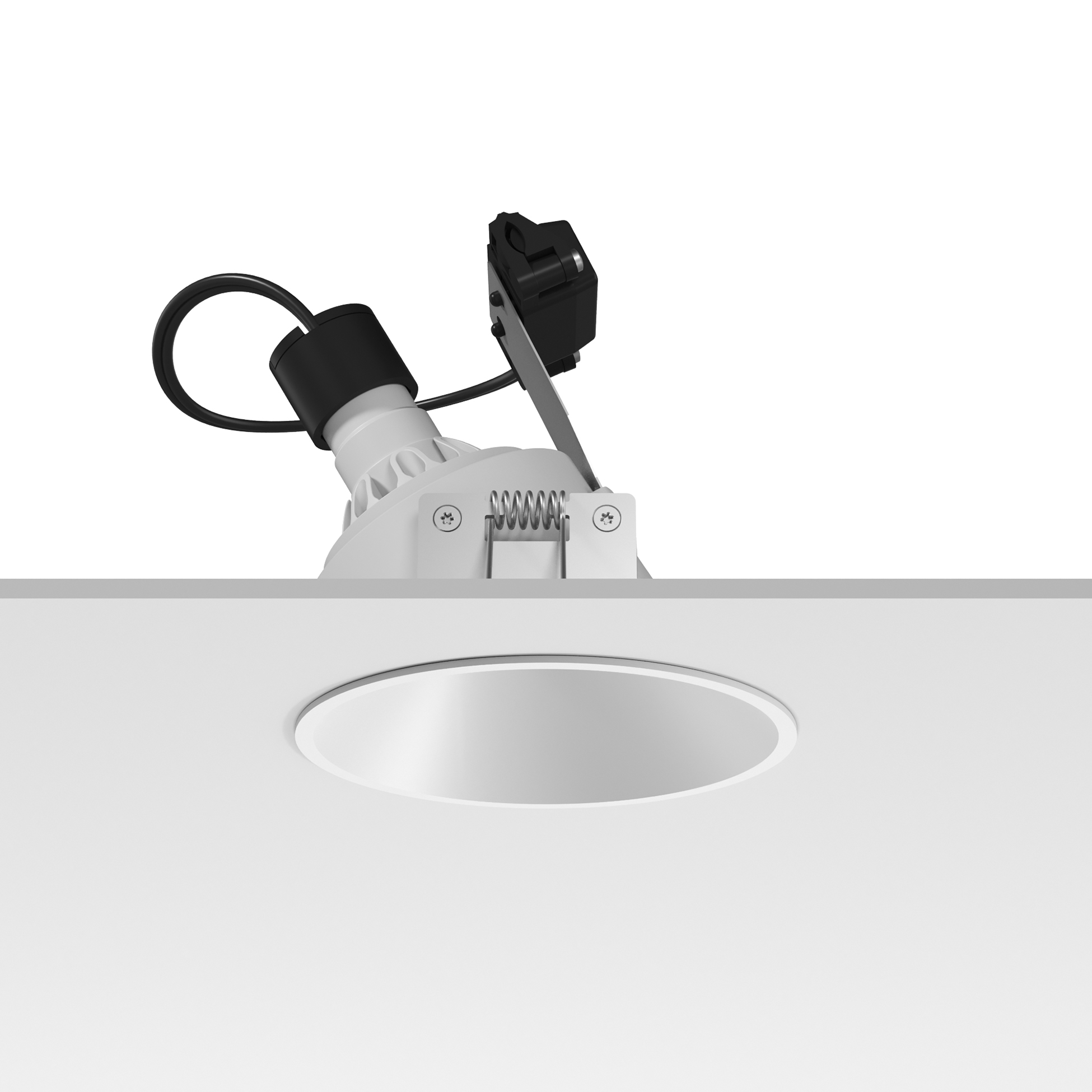

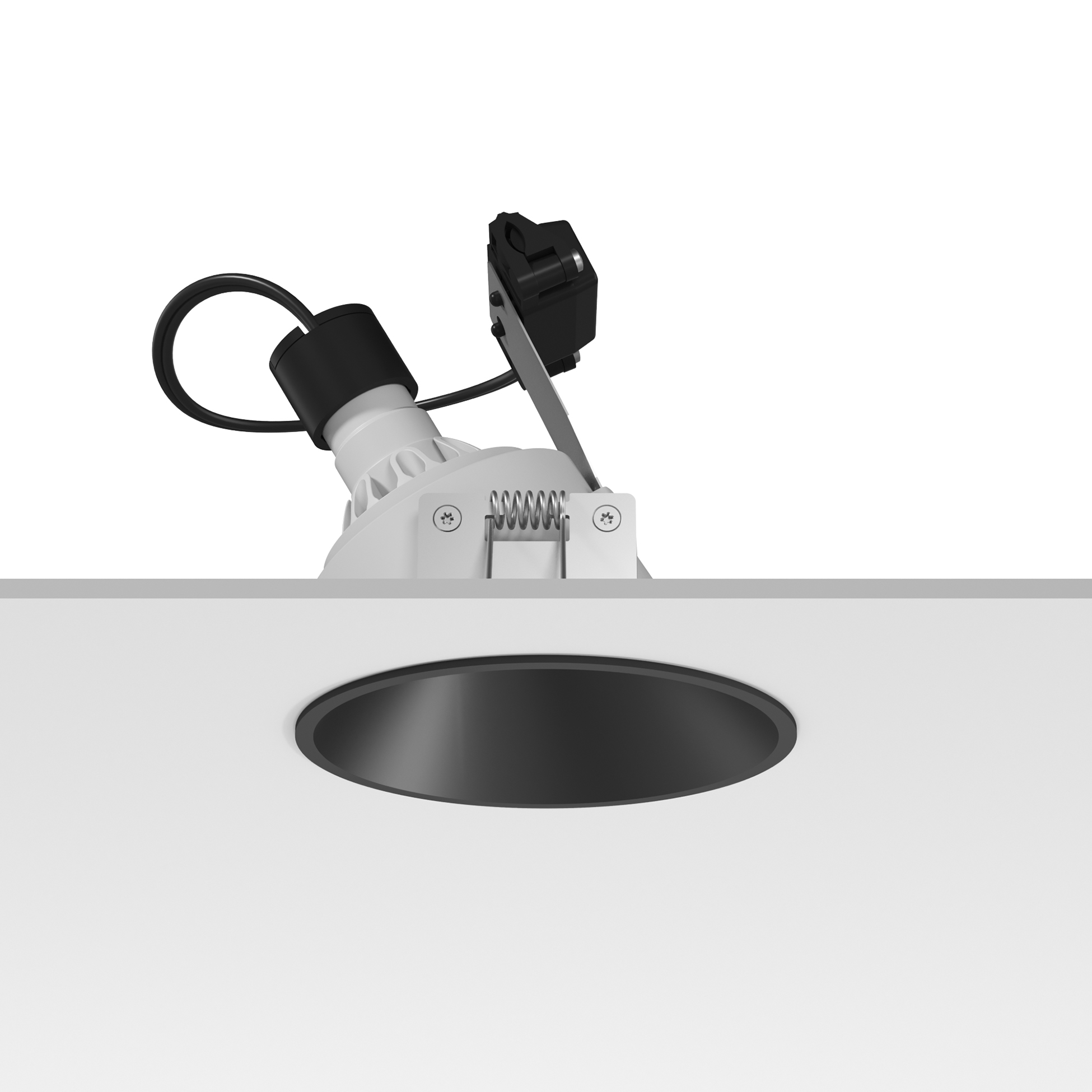

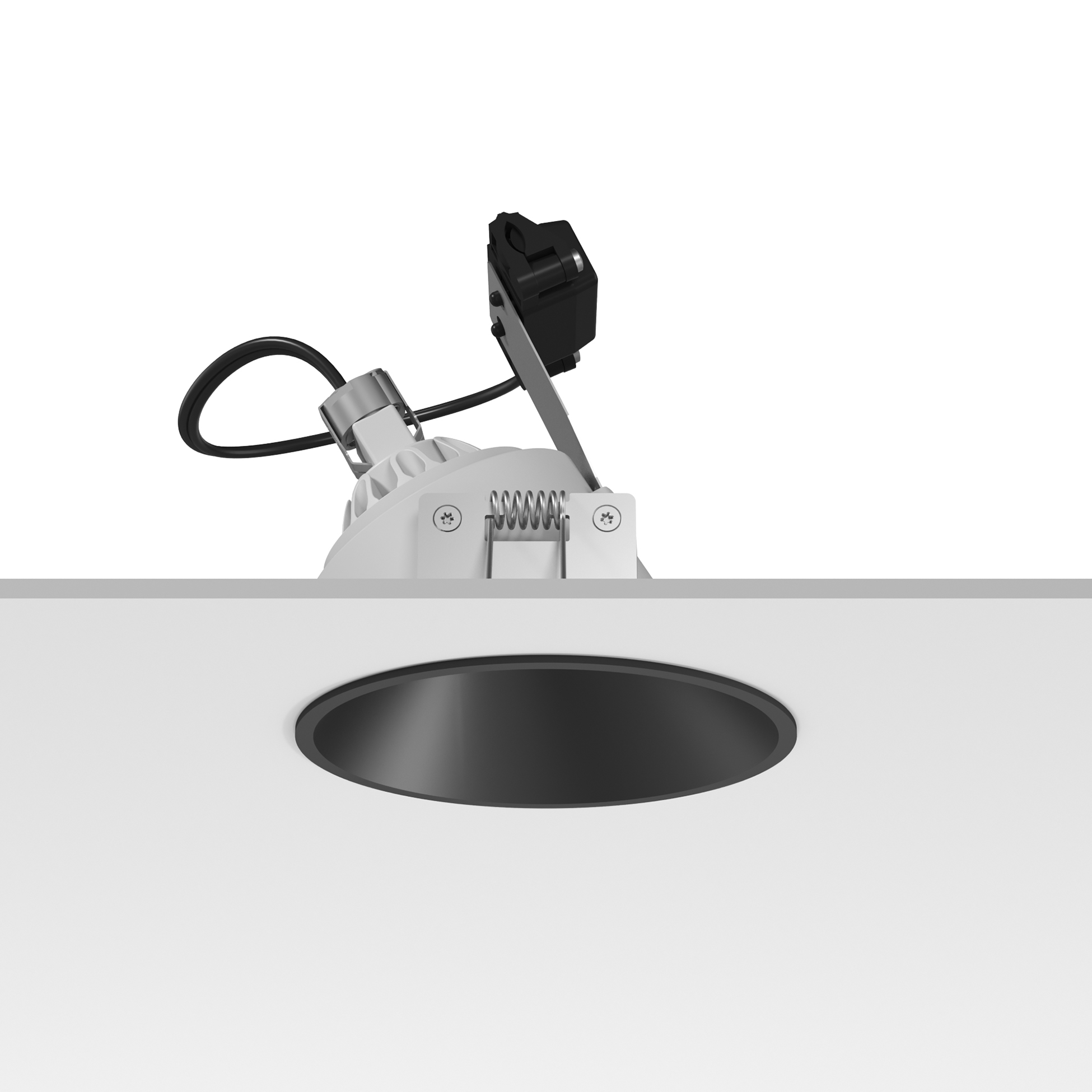

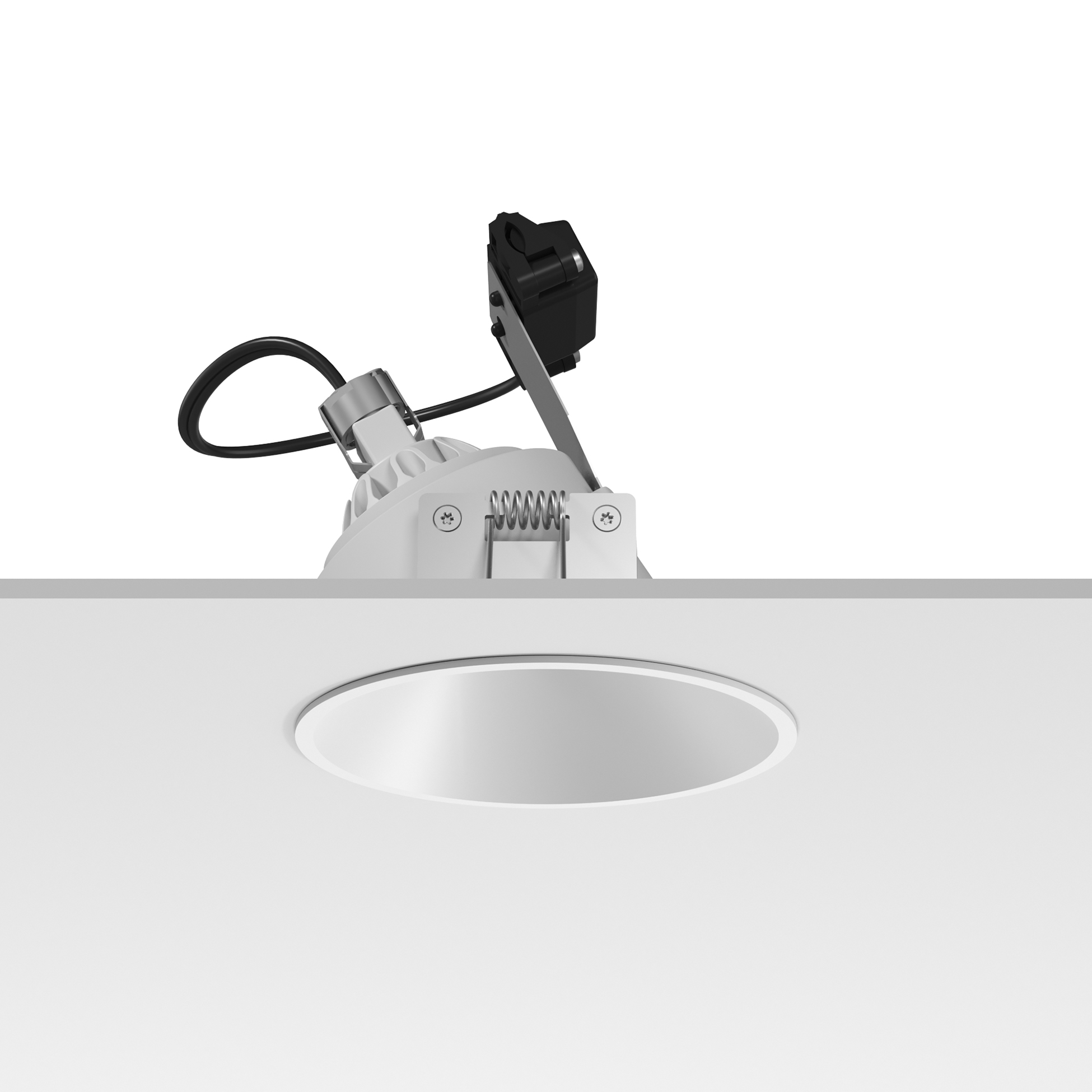

05.7041.GL	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
05.7041.B1	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
05.7041.74	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
05.7040.GL	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
05.7040.B1	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
05.7040.74	Easy Kap Ø 105 Wall-Washer	-	-	-	-	-	-	Ceiling recessed

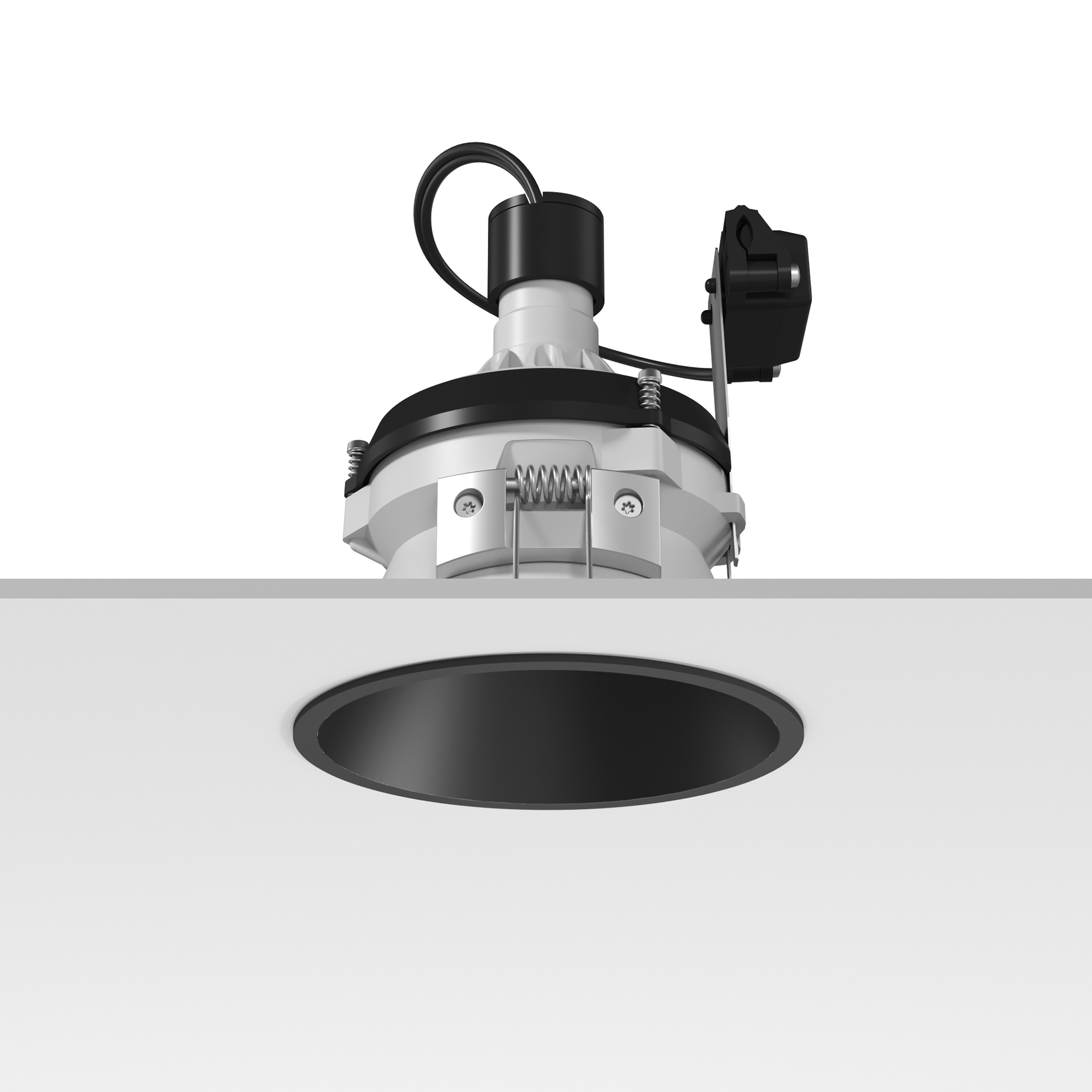

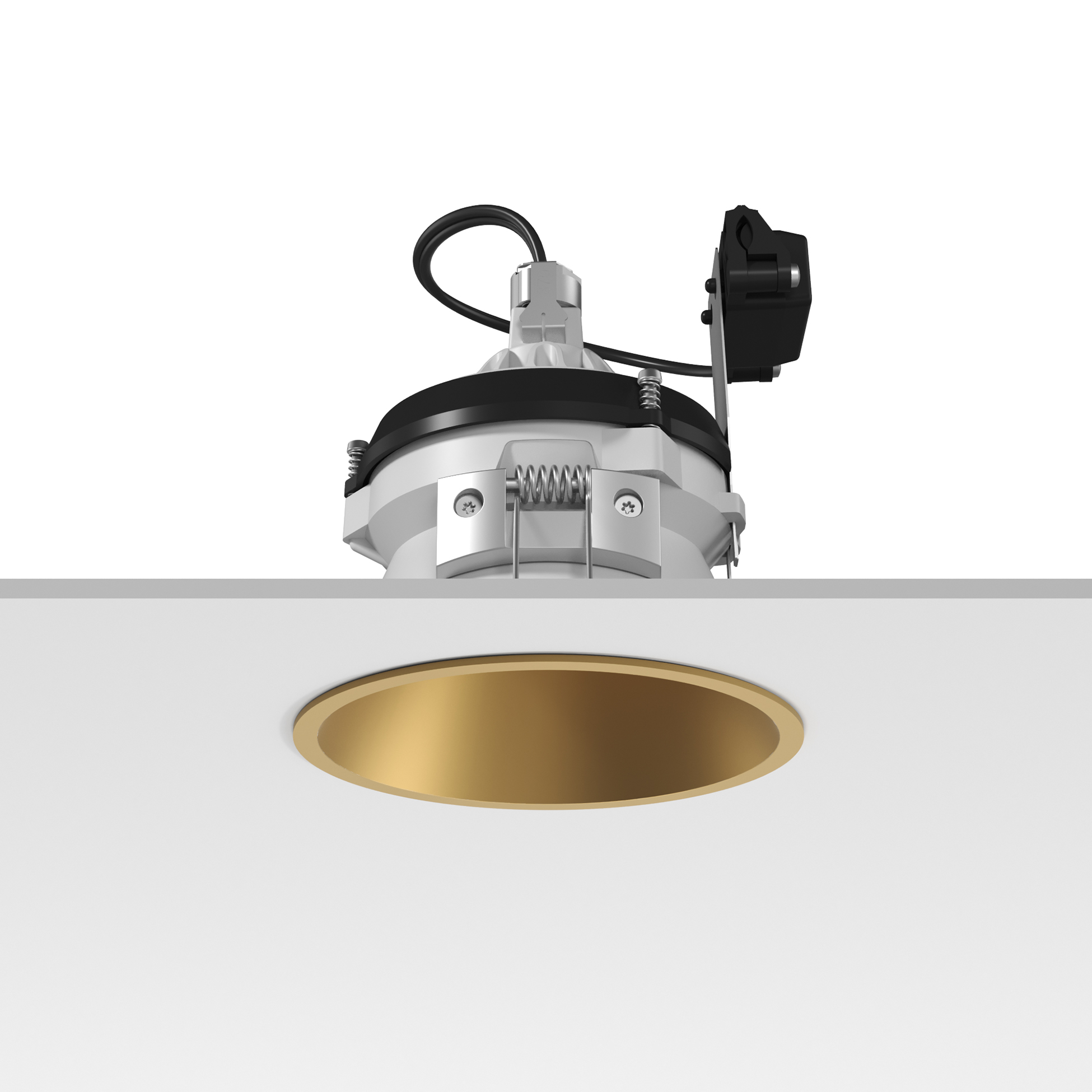

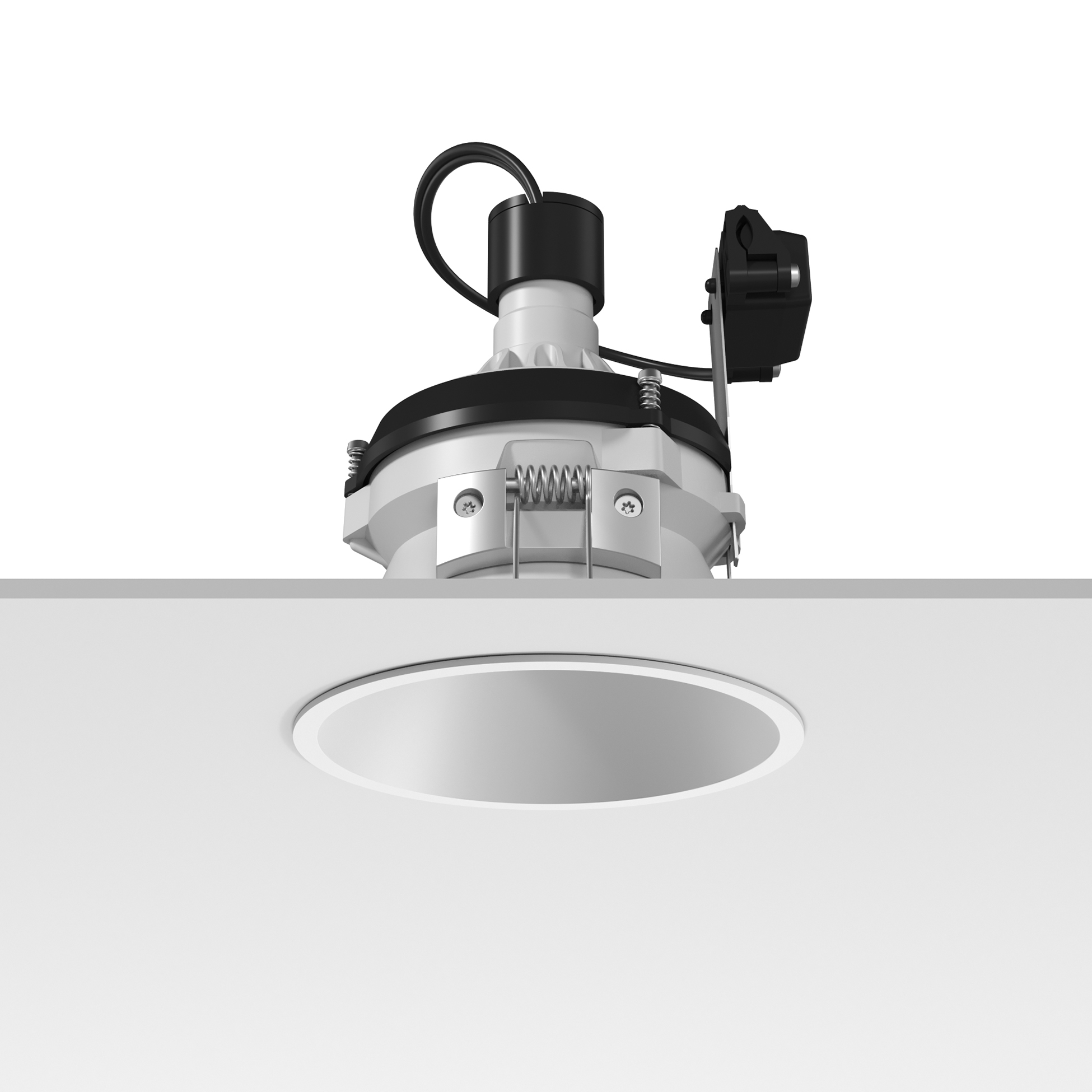

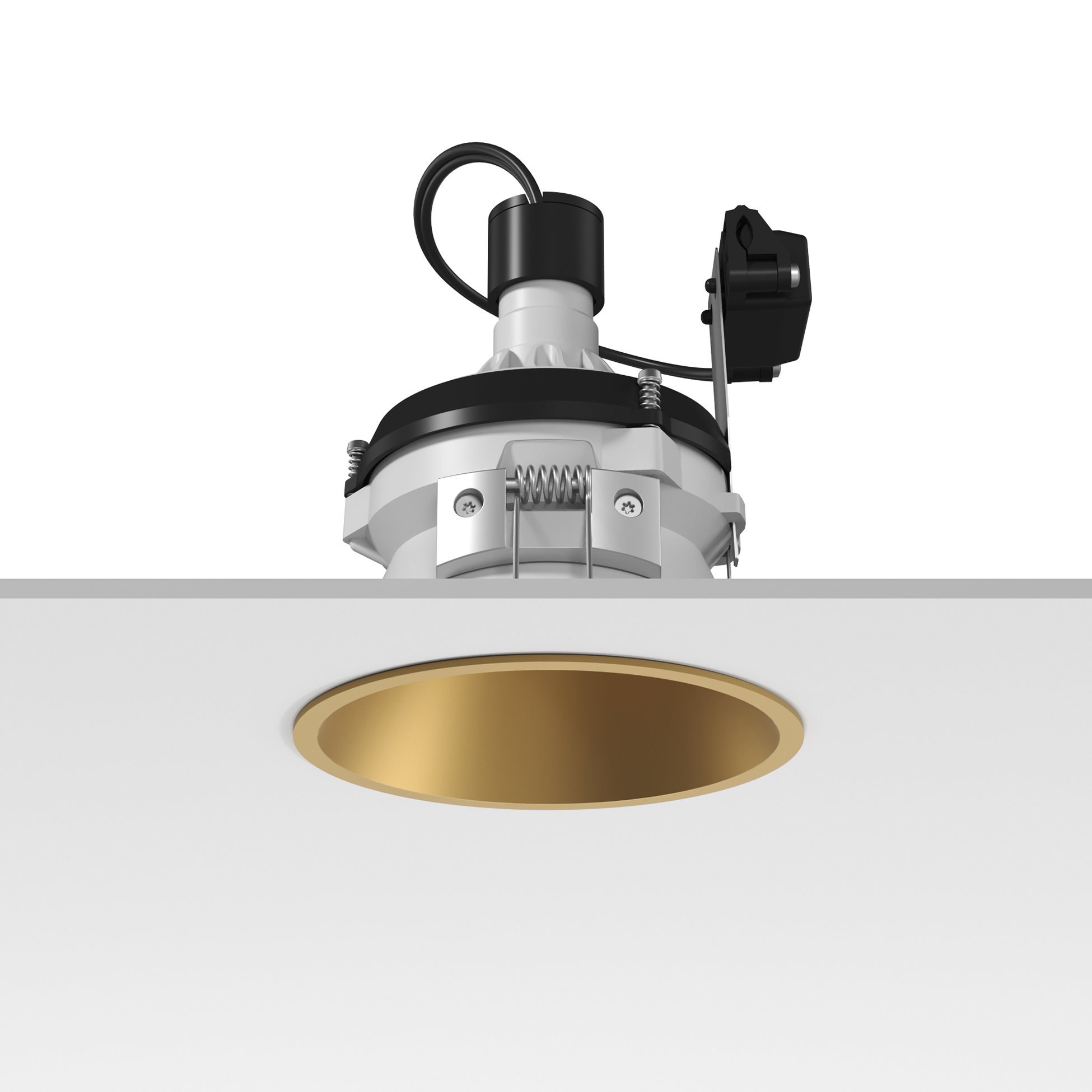

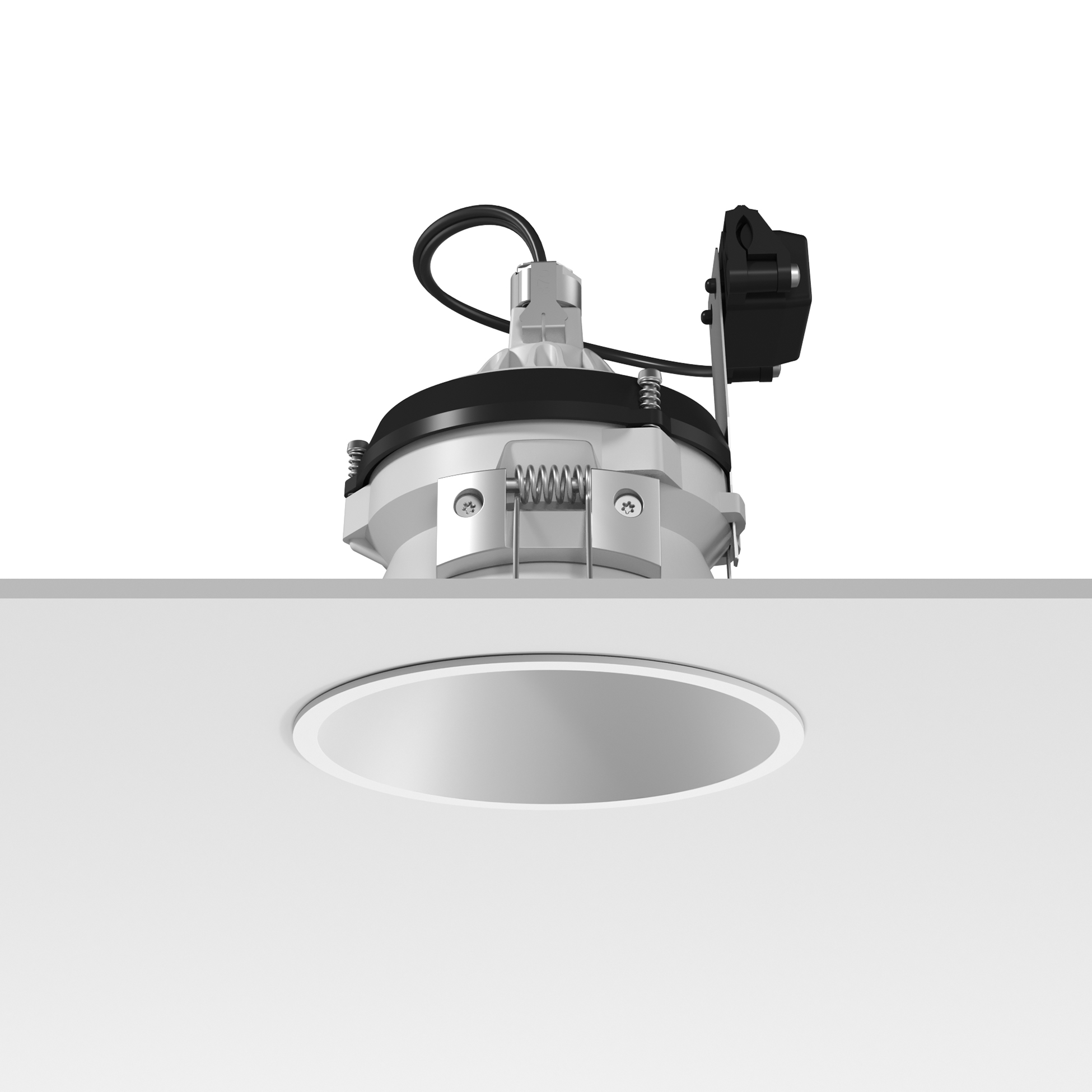

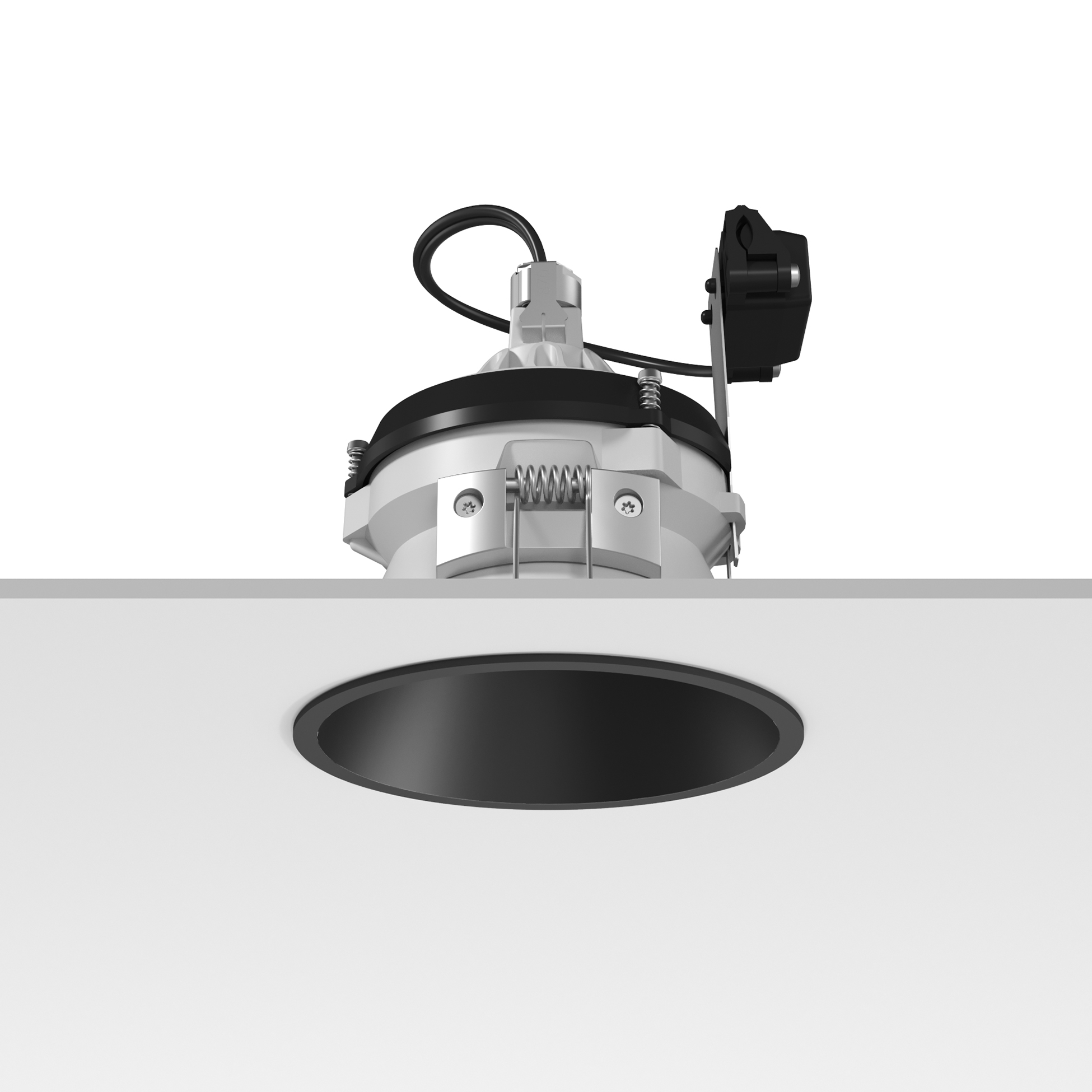

05.7036.GL	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed
05.7036.B1	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed
05.7036.74	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed
05.7035.GL	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed
05.7035.B1	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed
05.7035.74	Easy Kap Ø 105 Adjustable	-	-	-	-	-	-	Ceiling recessed

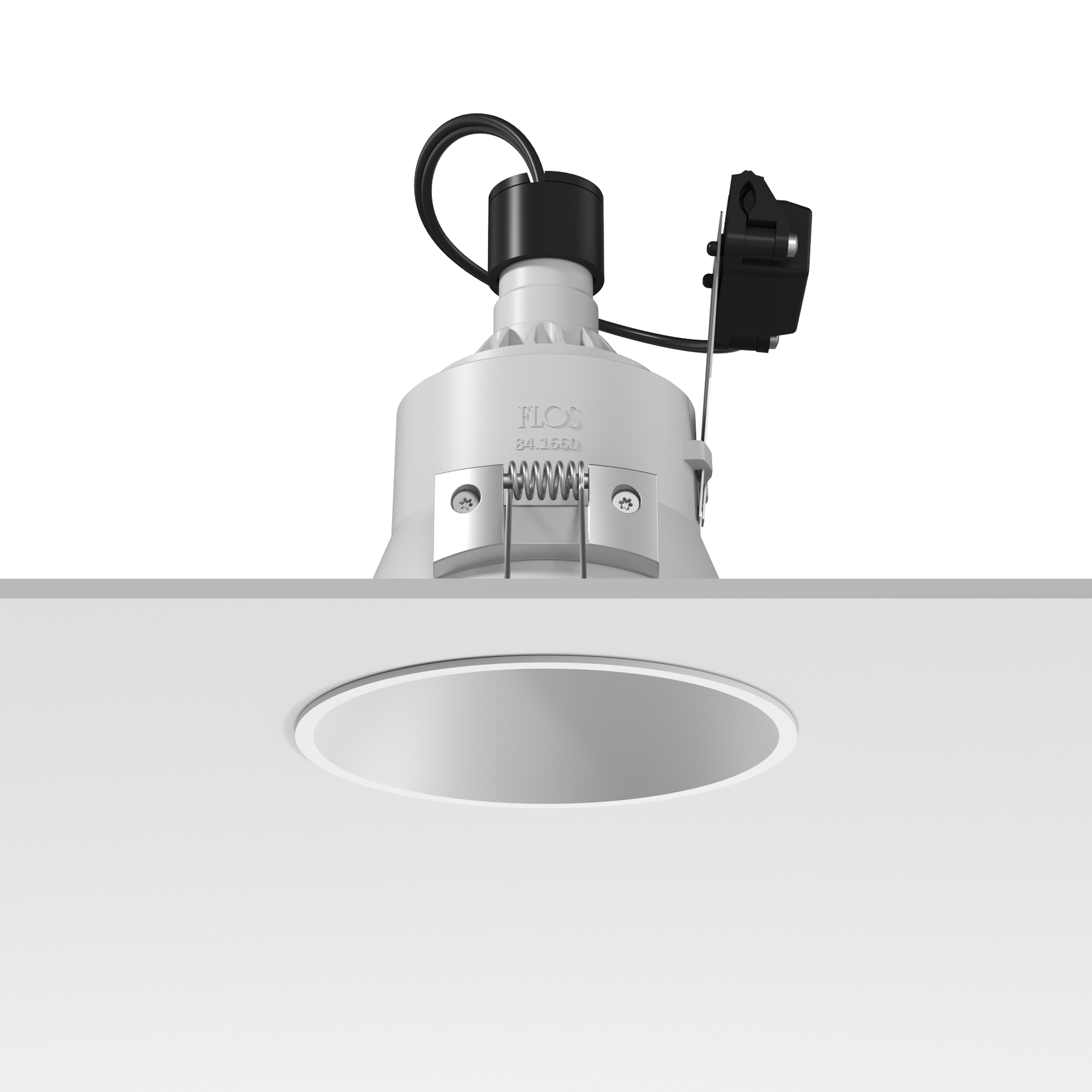

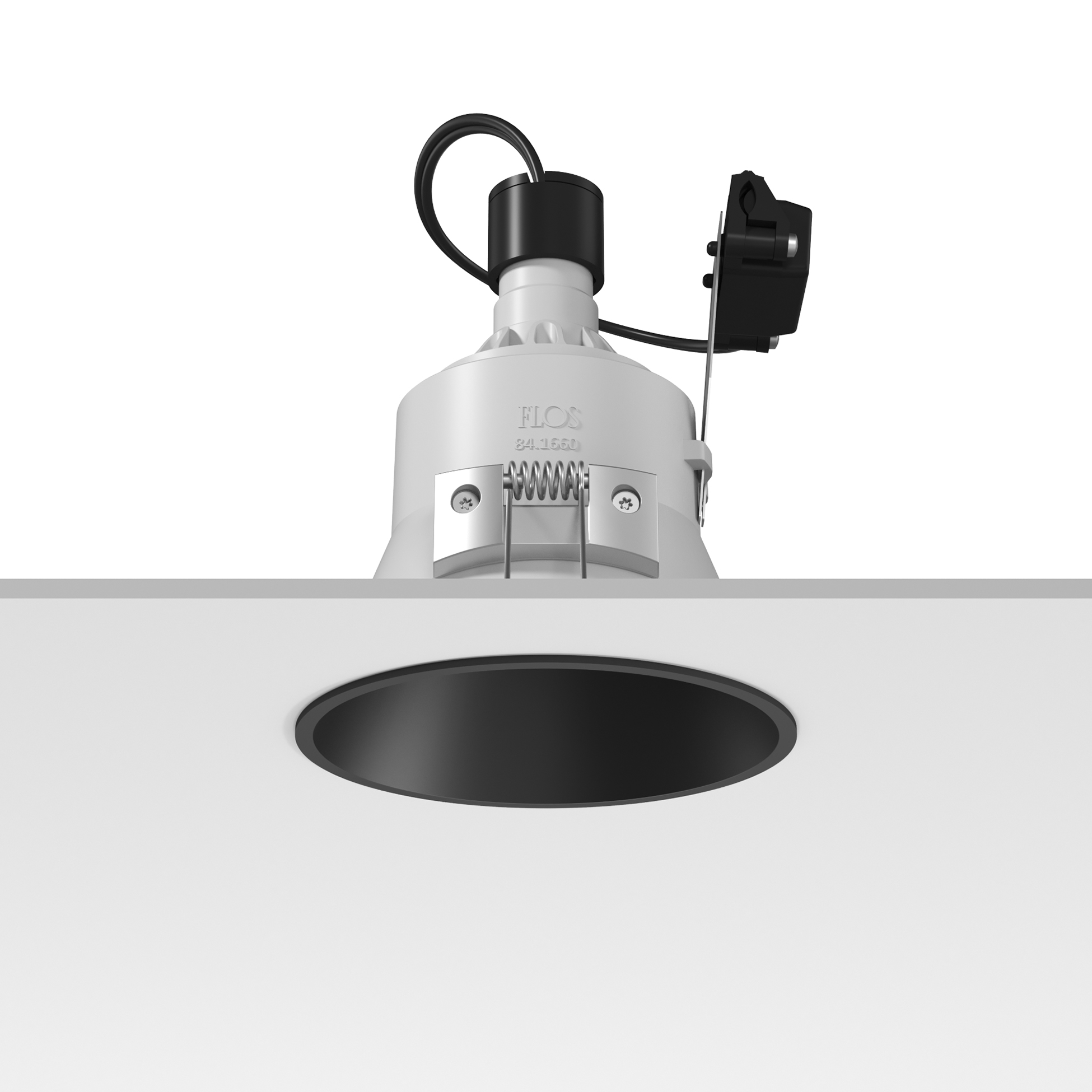

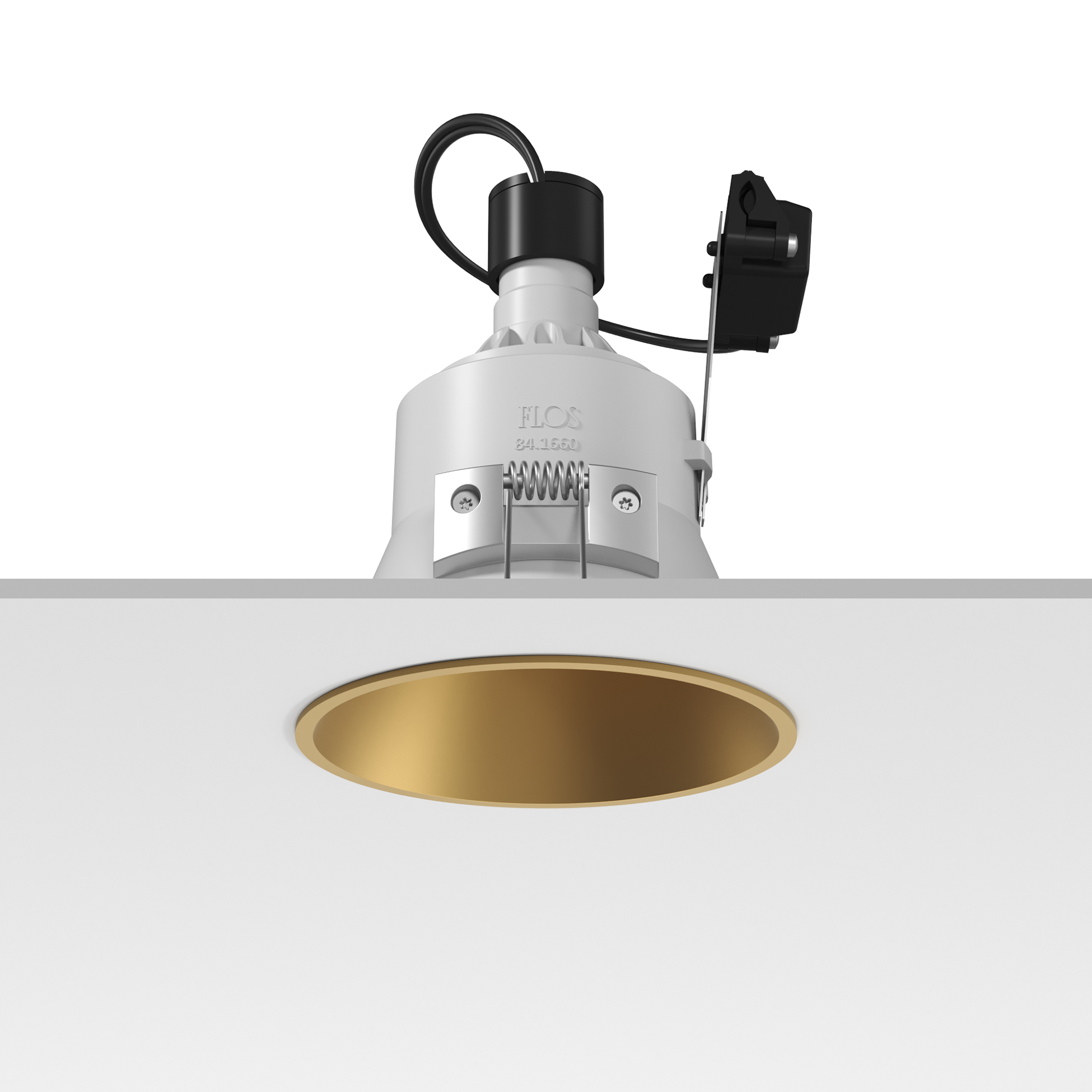

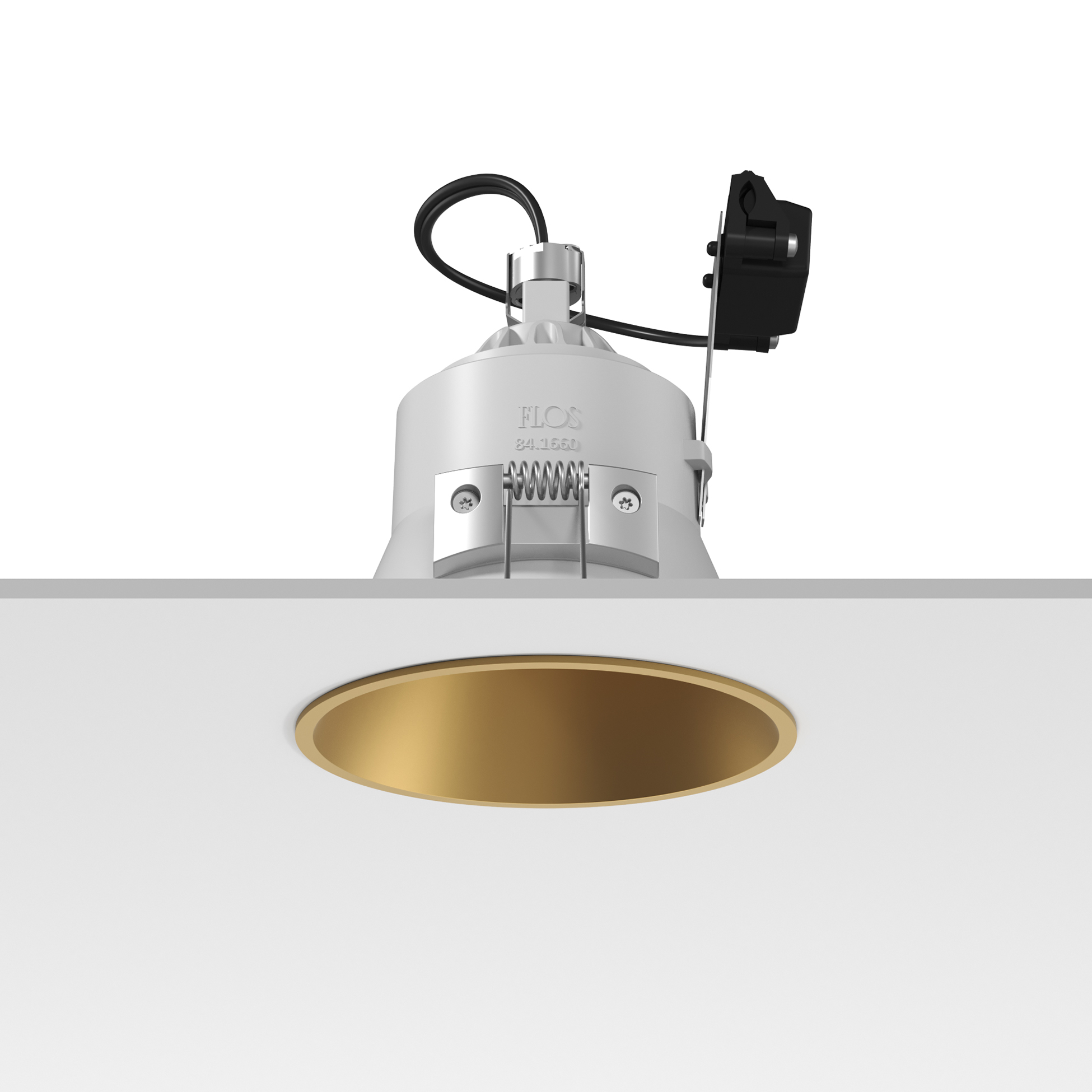

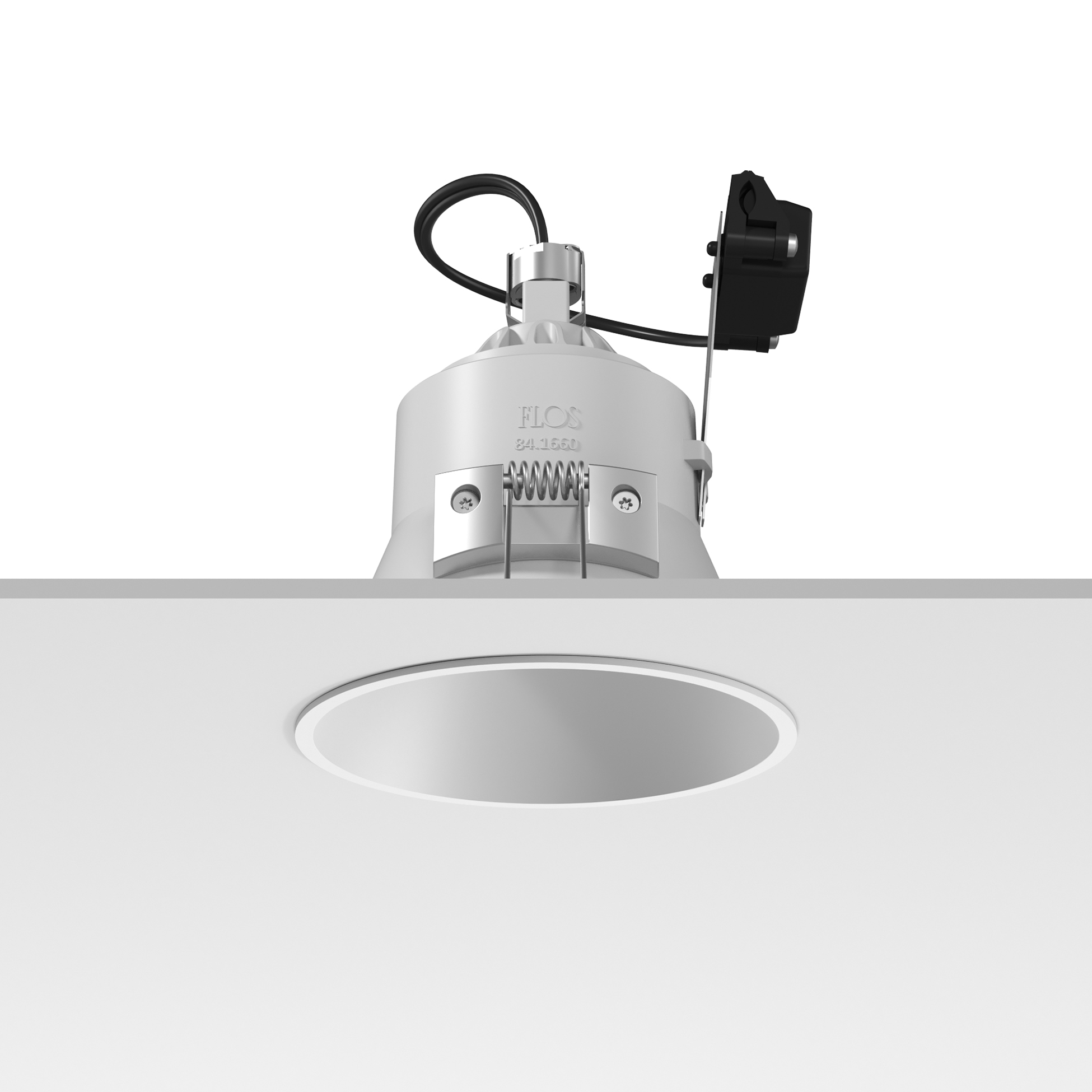

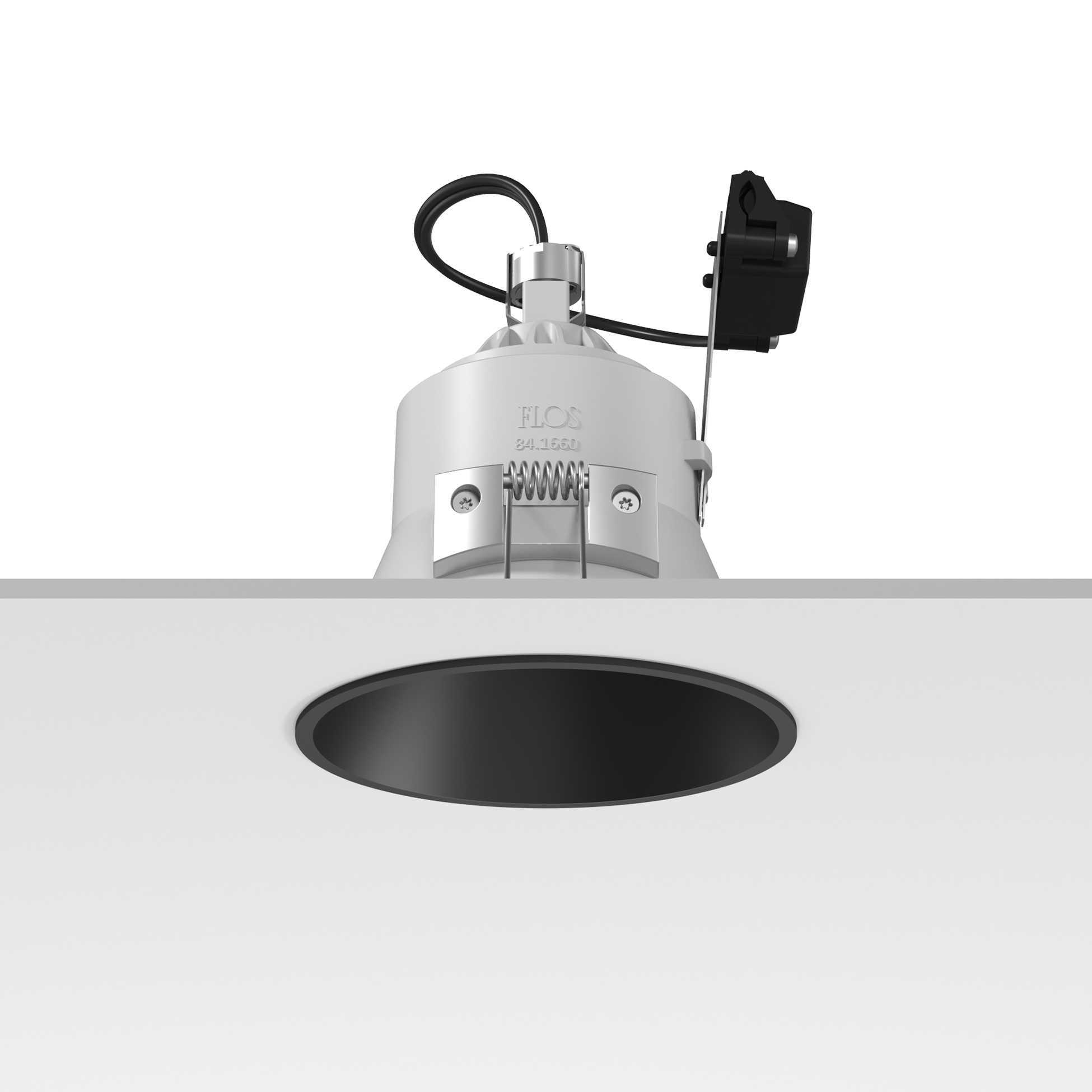

05.7031.GL	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed
05.7031.B1	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed
05.7031.74	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed
05.7030.GL	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed
05.7030.B1	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed
05.7030.74	Easy Kap Ø 105 Fixed EVO	-	-	-	-	-	-	Ceiling recessed

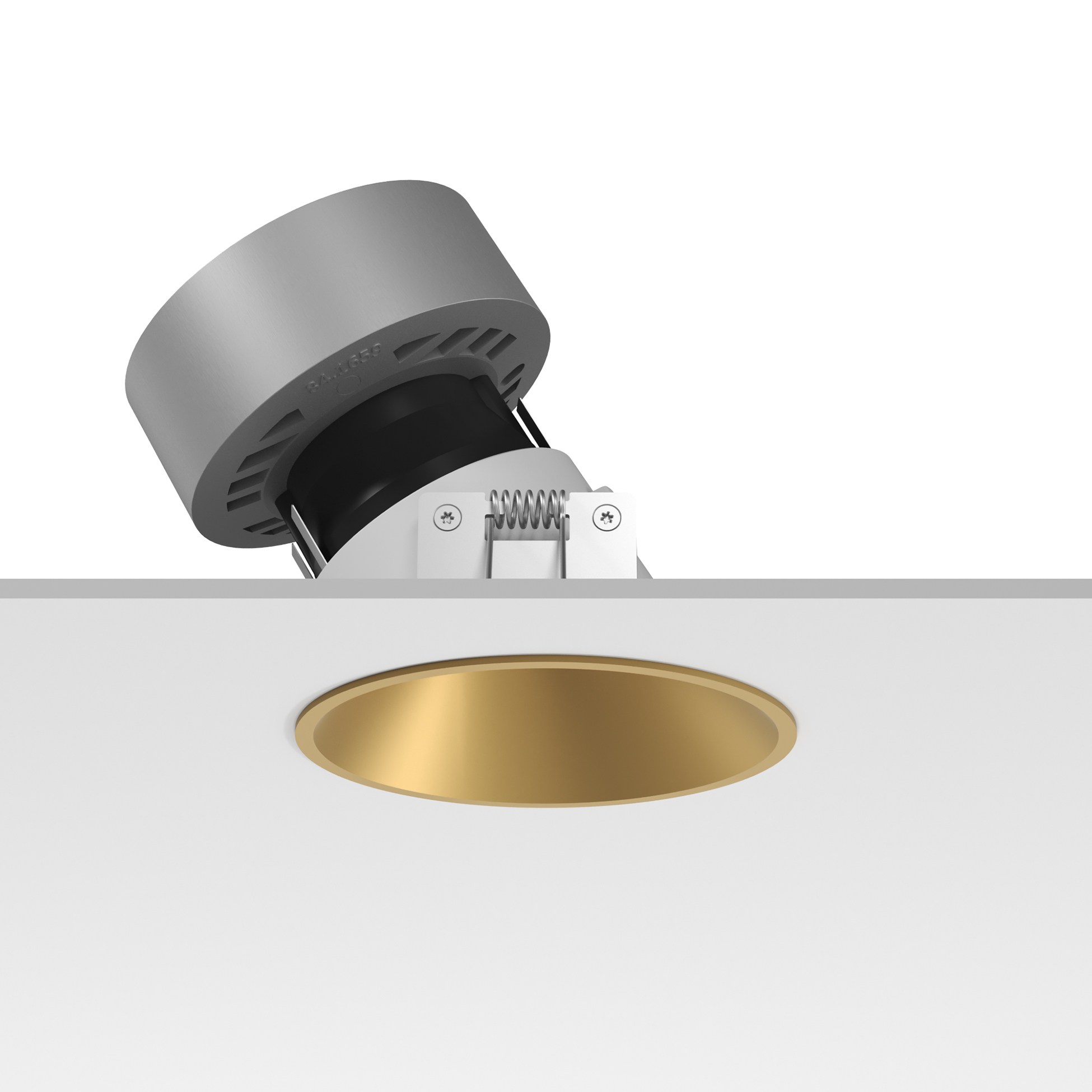

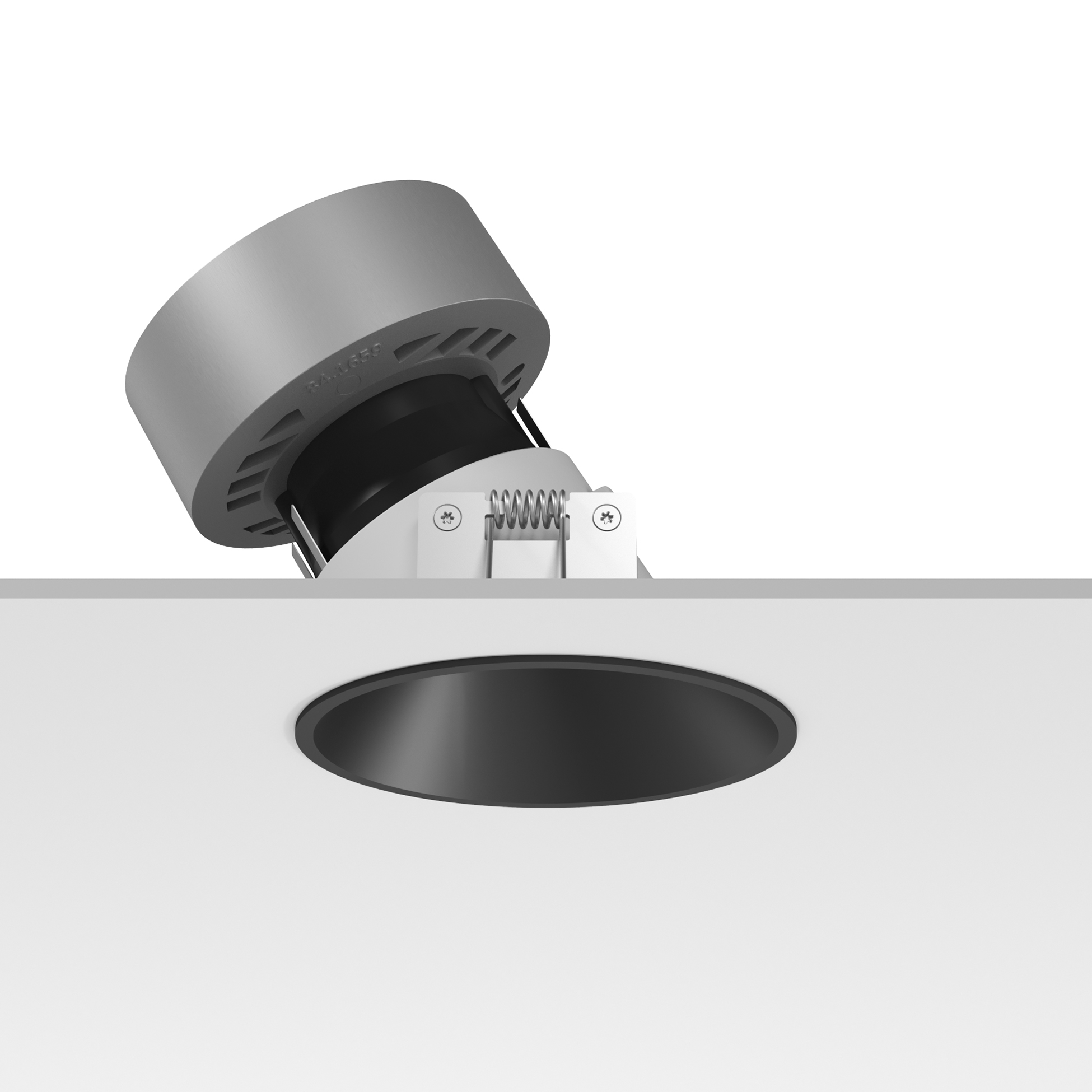

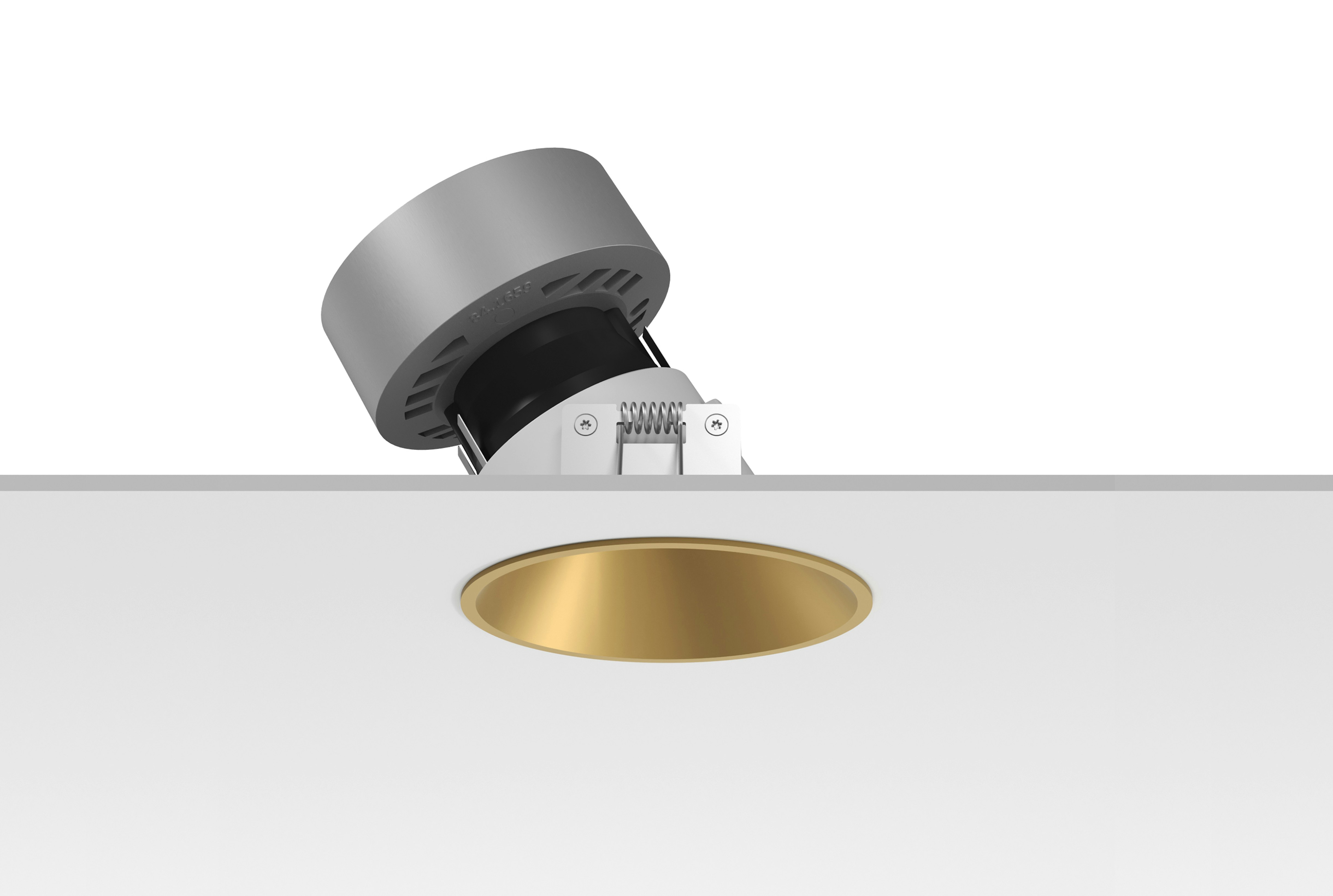

05.7021.GL	Easy Kap Ø 105 Wall-Washer	22.8	1898	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7021.B1	Easy Kap Ø 105 Wall-Washer	22.8	2500	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7021.74	Easy Kap Ø 105 Wall-Washer	22.8	1898	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7020.GL	Easy Kap Ø 105 Wall-Washer	22.8	1638	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7020.B1	Easy Kap Ø 105 Wall-Washer	22.8	1621	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7020.74	Easy Kap Ø 105 Wall-Washer	22.8	1431	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed

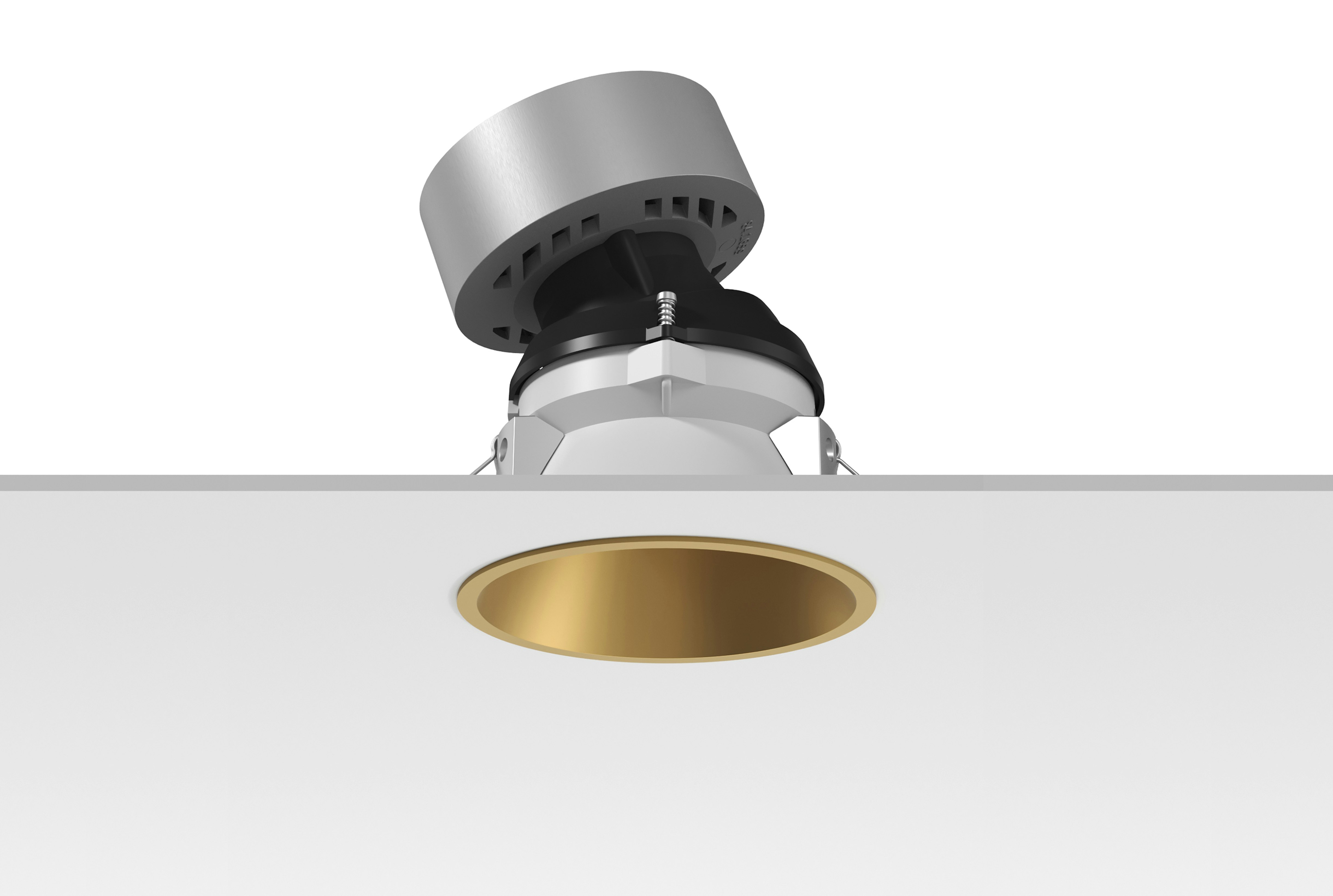

05.7017.GL	Easy Kap Ø 105 Adjustable Optic Flood	22.8	2370	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7017.B1	Easy Kap Ø 105 Adjustable Optic Flood	22.8	2407	3000	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7017.74	Easy Kap Ø 105 Adjustable Optic Flood	22.8	2077	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7016.GL	Easy Kap Ø 105 Adjustable Optic Medium	22.8	2026	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7016.B1	Easy Kap Ø 105 Adjustable Optic Medium	22.8	2222	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7016.74	Easy Kap Ø 105 Adjustable Optic Medium	22.8	1871	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7015.GL	Easy Kap Ø 105 Adjustable Optic Spot	22.8	2190	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7015.B1	Easy Kap Ø 105 Adjustable Optic Spot	22.8	2275	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7015.74	Easy Kap Ø 105 Adjustable Optic Spot	22.8	1930	3000	90	16	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7012.GL	Easy Kap Ø 105 Adjustable Optic Flood	22.8	1786	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7012.B1	Easy Kap Ø 105 Adjustable Optic Flood	22.8	1815	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7012.74	Easy Kap Ø 105 Adjustable Optic Flood	22.8	1566	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7011.GL	Easy Kap Ø 105 Adjustable Optic Medium	22.8	1528	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7011.B1	Easy Kap Ø 105 Adjustable Optic Medium	22.8	1675	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7011.74	Easy Kap Ø 105 Adjustable Optic Medium	22.8	1410	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7010.GL	Easy Kap Ø 105 Adjustable Optic Spot	22.8	1651	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7010.B1	Easy Kap Ø 105 Adjustable Optic Spot	22.8	1715	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7010.74	Easy Kap Ø 105 Adjustable Optic Spot	22.8	1455	2700	90	16	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7007.GL	Easy Kap Ø 105 Fixed Optic Flood	22.8	2370	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7007.B1	Easy Kap Ø 105 Fixed Optic Flood	22.8	2407	3000	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7007.74	Easy Kap Ø 105 Fixed Optic Flood	22.8	1985	3000	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7006.GL	Easy Kap Ø 105 Fixed Optic Medium	22.8	2026	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7006.B1	Easy Kap Ø 105 Fixed Optic Medium	22.8	2222	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7006.74	Easy Kap Ø 105 Fixed Optic Medium	22.8	1825	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7005.GL	Easy Kap Ø 105 Fixed Optic Spot	22.8	2190	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7005.B1	Easy Kap Ø 105 Fixed Optic Spot	22.8	2275	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7005.74	Easy Kap Ø 105 Fixed Optic Spot	22.8	1884	3000	90	16	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7002.GL	Easy Kap Ø 105 Fixed Optic Flood	22.8	1786	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7002.B1	Easy Kap Ø 105 Fixed Optic Flood	22.8	1815	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7002.74	Easy Kap Ø 105 Fixed Optic Flood	22.8	1497	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7001.GL	Easy Kap Ø 105 Fixed Optic Medium	22.8	1528	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7001.B1	Easy Kap Ø 105 Fixed Optic Medium	22.8	1675	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7001.74	Easy Kap Ø 105 Fixed Optic Medium	22.8	1376	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7000.GL	Easy Kap Ø 105 Fixed Optic Spot	22.8	1651	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7000.B1	Easy Kap Ø 105 Fixed Optic Spot	22.8	1715	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
05.7000.74	Easy Kap Ø 105 Fixed Optic Spot	22.8	1421	2700	90	16	Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V	Ceiling recessed
