Find Me 1

Designed by Jorge Herrera

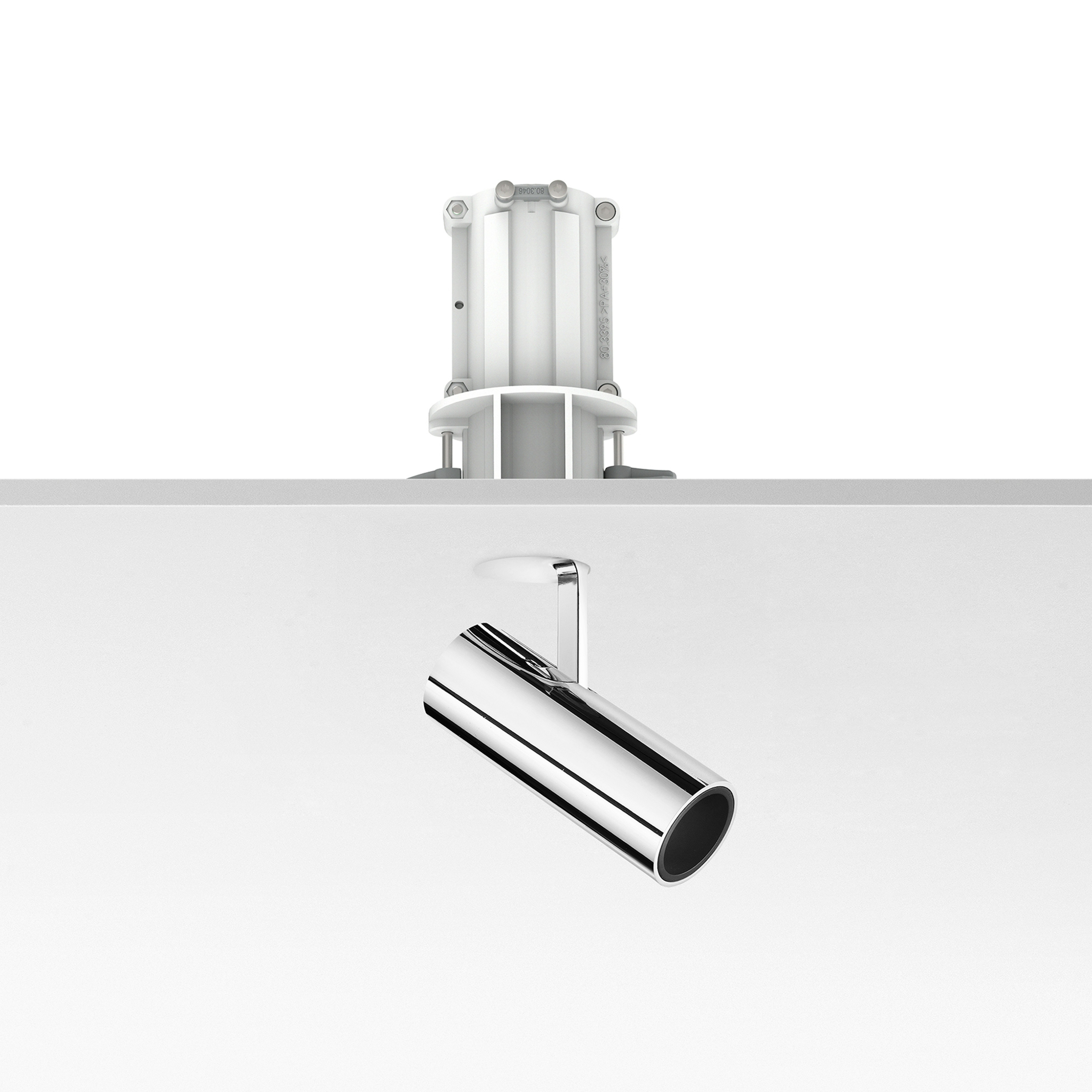

Recessed adjustable luminaire for indoor application. Remote power supply 500 mA not included.

Download Documentation

Product highlight

Seeking the essence of design

The solution for a total fusion with architecture achieved with luminaries that disappear into surfaces.

Luminaire

(12)

Optical Type

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
09.3756.30A	Find Me 1 (Trim/No Trim)	6	321	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Mains Cut Dimming	Ceiling recessed
09.3756.14A	Find Me 1 (Trim/No Trim)	6	321	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3756.05A	Find Me 1 (Trim/No Trim)	6	321	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3755.30A	Find Me 1 (Trim/No Trim)	6	350	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3755.14A	Find Me 1 (Trim/No Trim)	6	350	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3755.05A	Find Me 1 (Trim/No Trim)	6	350	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3751.30A	Find Me 1 (Trim/No Trim)	6	344	2700	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3751.14A	Find Me 1 (Trim/No Trim)	6	344	2700	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3751.05A	Find Me 1 (Trim/No Trim)	6	344	2700	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3750.30A	Find Me 1 (Trim/No Trim)	6	365	3000	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3750.14A	Find Me 1 (Trim/No Trim)	6	365	3000	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
09.3750.05A	Find Me 1 (Trim/No Trim)	6	365	3000	90	14	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2	Ceiling recessed
