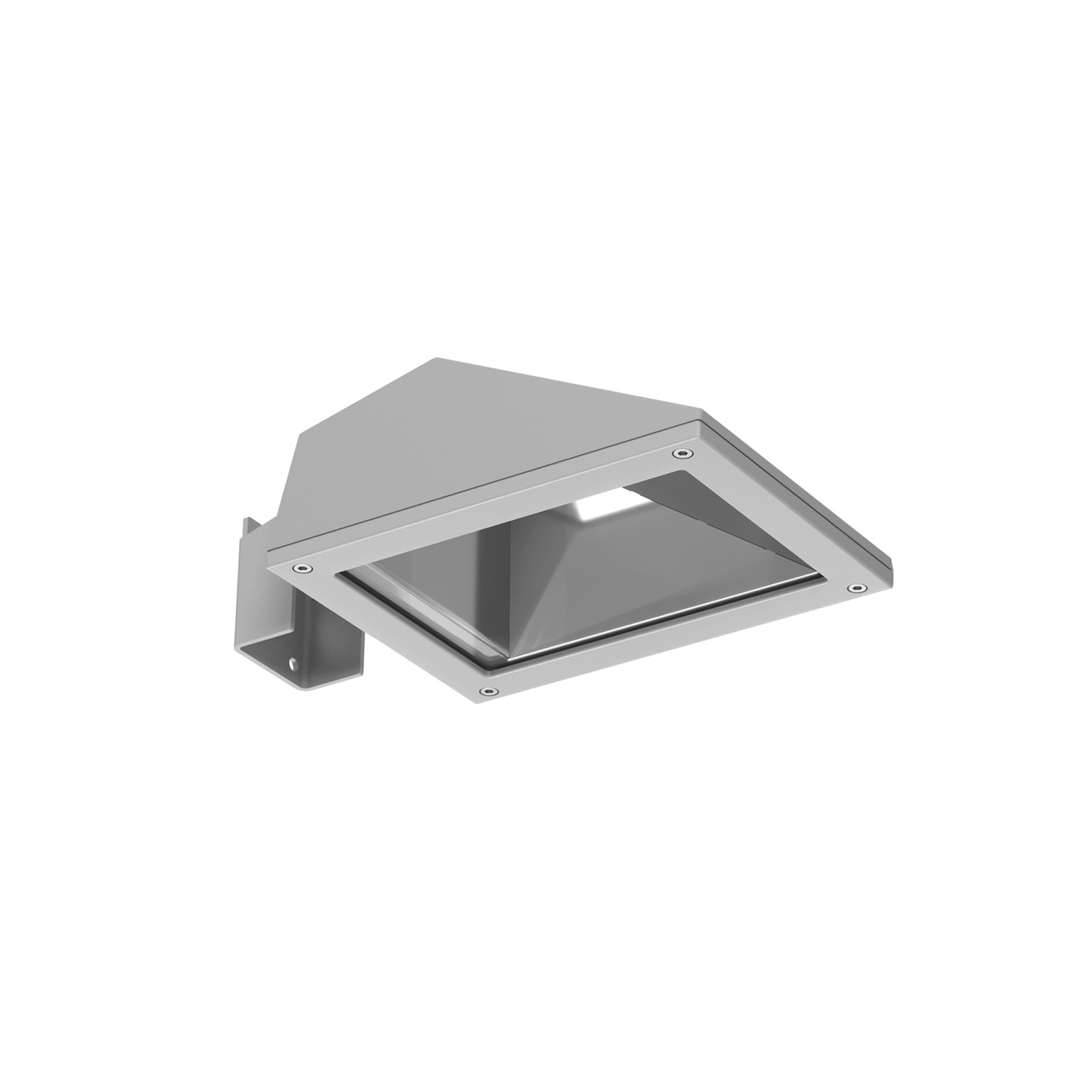

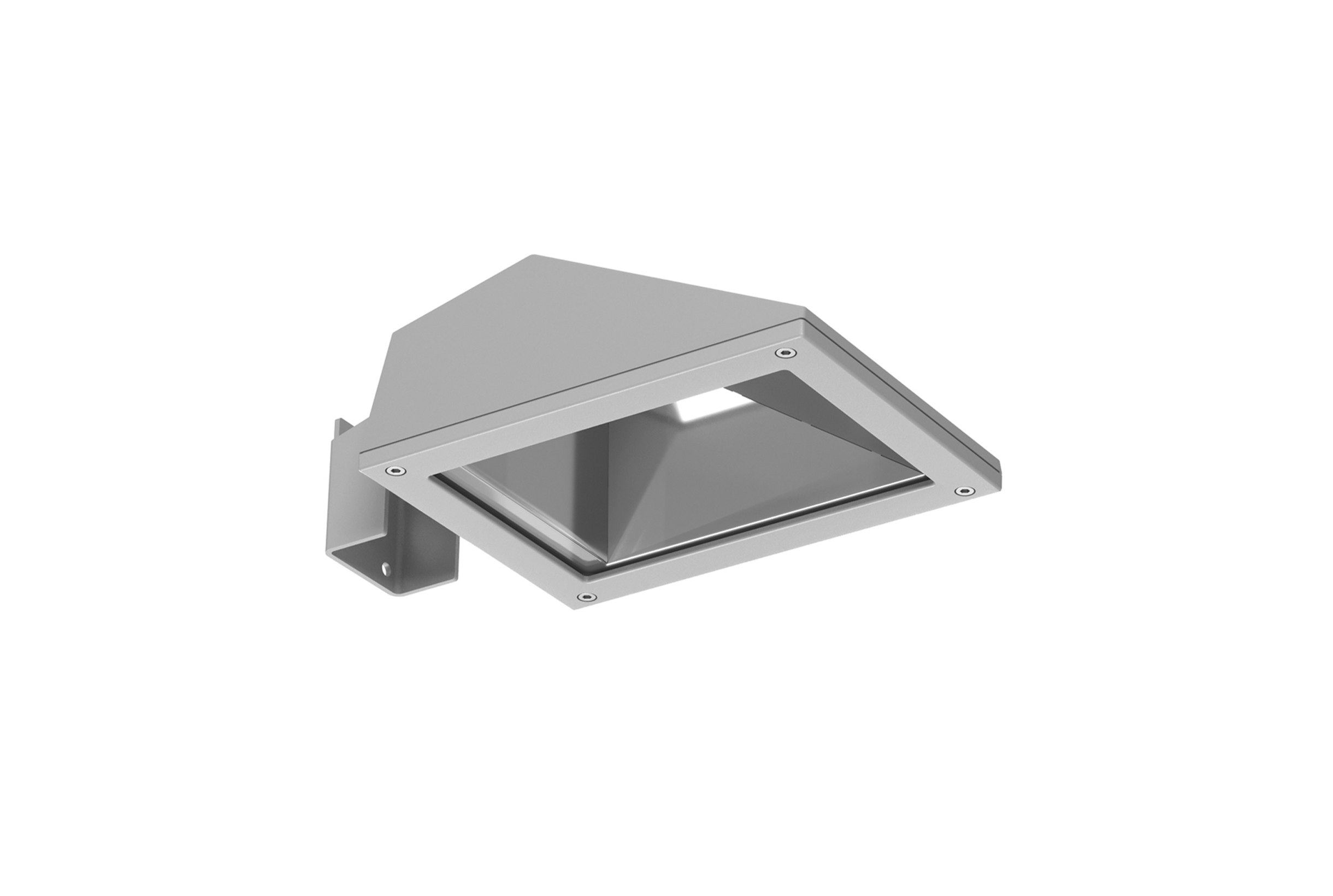

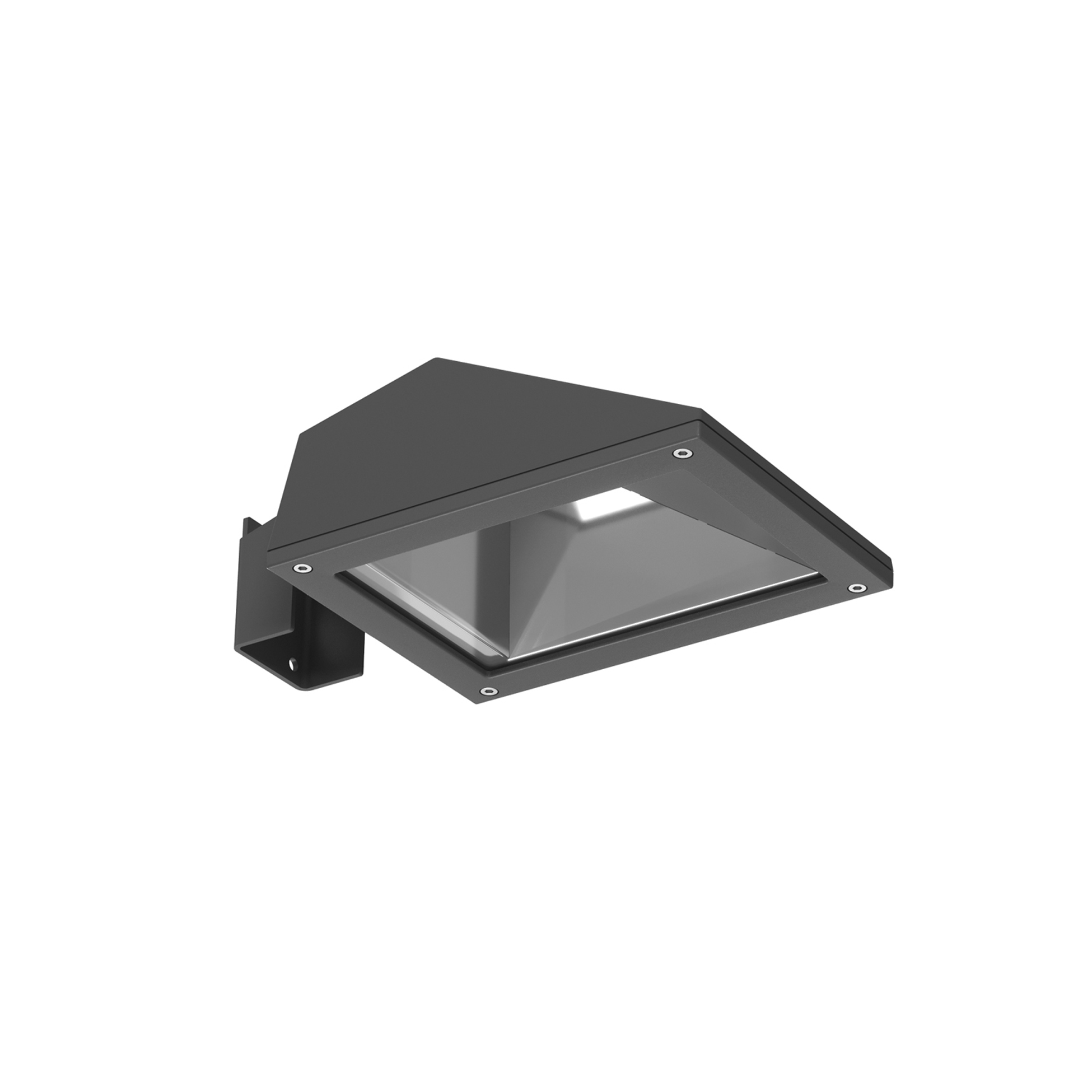

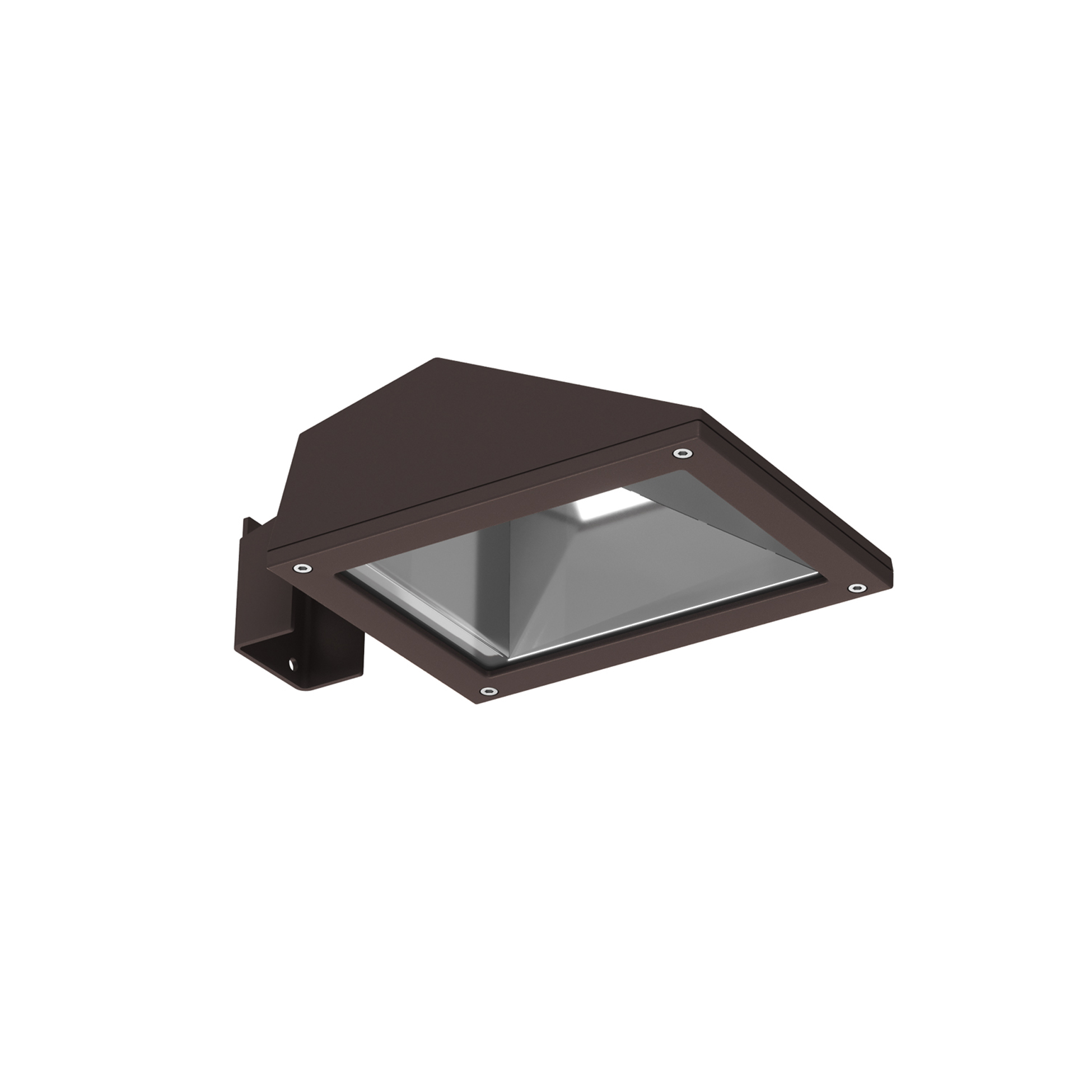

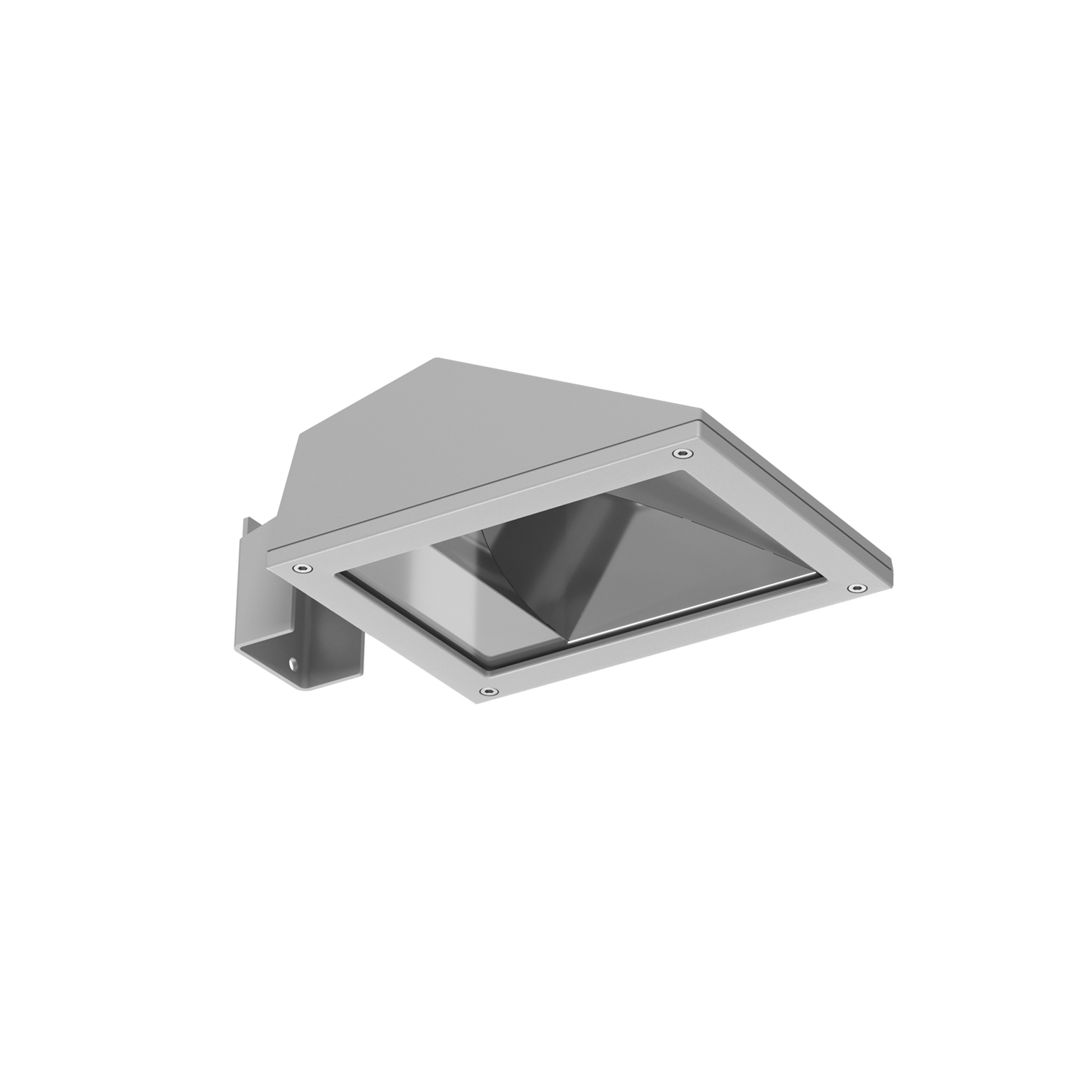

Franco 1 CoB Led

Designed by FLOS Outdoor

Range of trapezoidal-shaped adjustable projectors for wall/pole installation with a glass diffuser, fixed through a robotic gluing system.

Download Documentation

Product highlight

Congenial lighting design

The ideal light to make a building, a dark street or a parking lot shine, Franco is extremely versatile thanks to its adjustable projector.

Luminaire

(36)

Optical Type

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
FA162812433.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812430.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812418.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812412.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812406.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812401.A	Franco 1 CoB Led Asymmetric Optic	24	1506	2700	80	-	Non Dimmable	Ground
FA162812333.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162812330.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162812318.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162812312.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162812306.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162812301.A	Franco 1 CoB Led Symmetric Optic	24	1920	2700	80	75	Non Dimmable	Ground
FA162811433.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811430.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811418.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811412.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811406.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811401.A	Franco 1 CoB Led Asymmetric Optic	24	1619	3000	80	-	Non Dimmable	Ground
FA162811333.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162811330.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162811318.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162811312.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162811306.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162811301.A	Franco 1 CoB Led Symmetric Optic	24	2065	3000	80	75	Non Dimmable	Ground
FA162801433.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801430.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801418.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801412.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801406.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801401.A	Franco 1 CoB Led Asymmetric Optic	24	1698	4000	80	-	Non Dimmable	Ground
FA162801333.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
FA162801330.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
FA162801318.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
FA162801312.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
FA162801306.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
FA162801301.A	Franco 1 CoB Led Symmetric Optic	24	2166	4000	80	75	Non Dimmable	Ground
