Johnny 120

Designed by FLOS Architectural

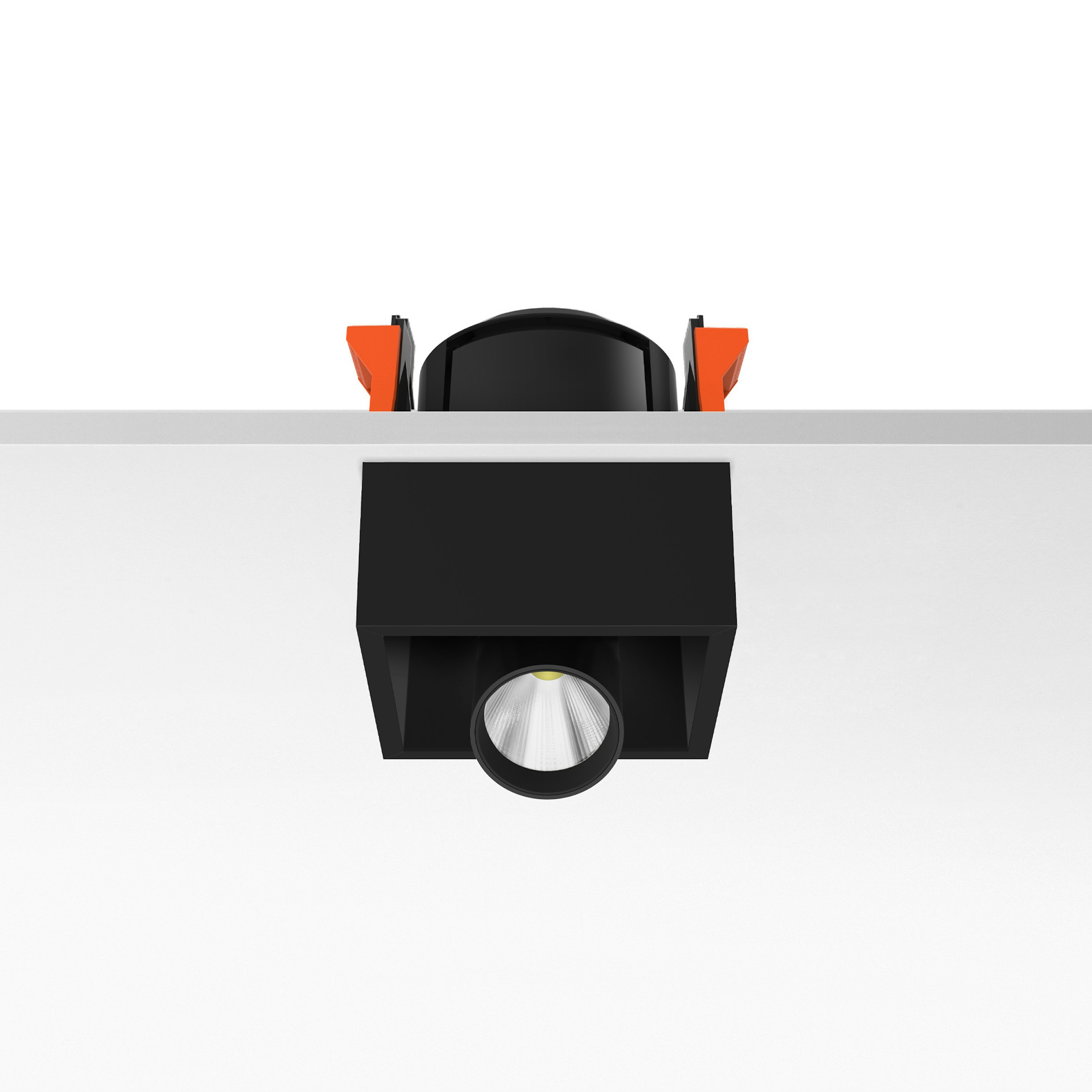

Maximum integration with recessed and semi-recessed versions. Fitted with a mechanical rotation system ensuring efficiency and stability.

Download Documentation

Product highlight

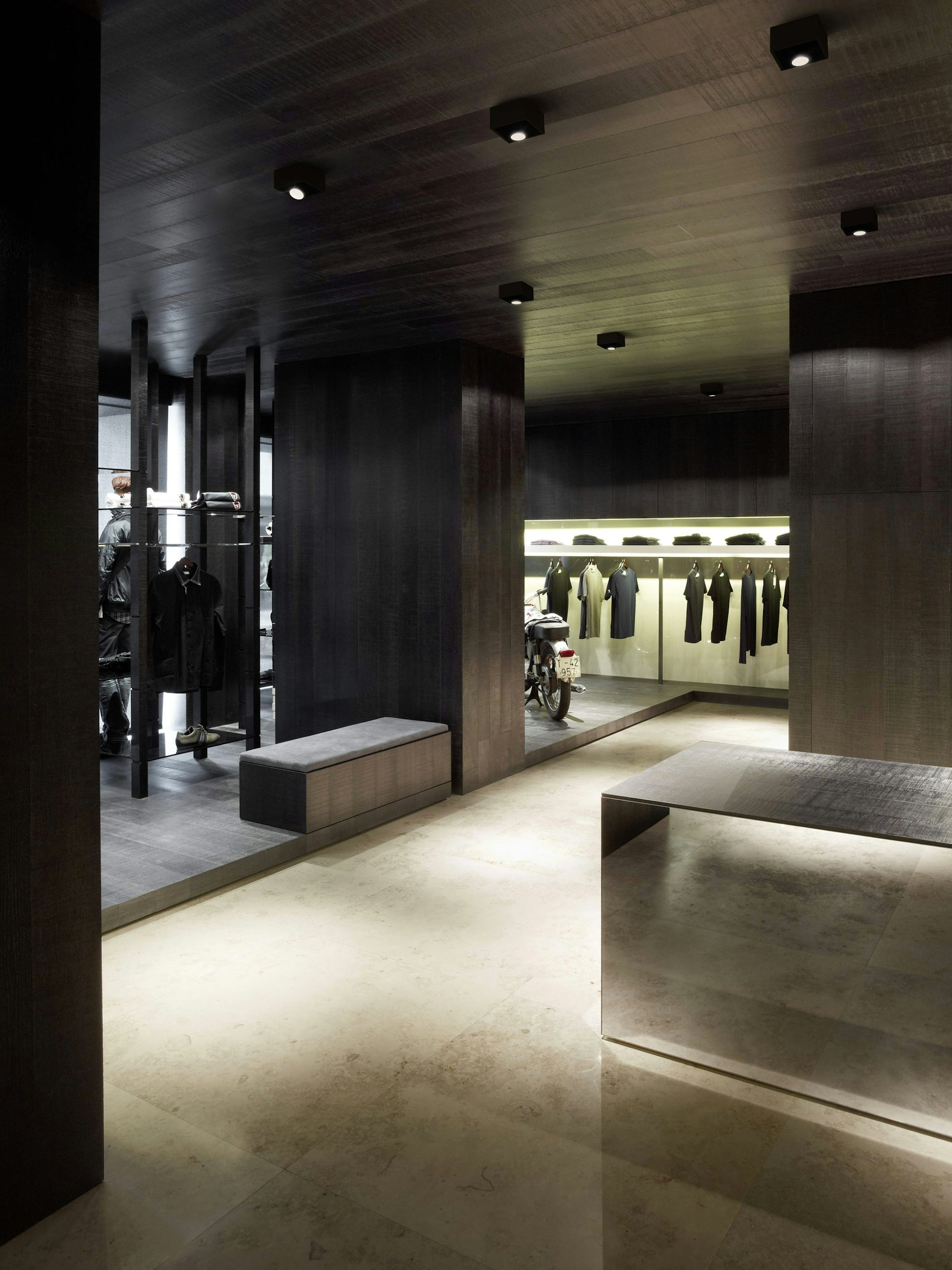

The sky is the limit

Extremely versatile projector thanks to the two available sizes and the great variety of installation possibilities.

Luminaire

(24)

Optical Type

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.0805.40A	Johnny 120 Light Source	18	-	2700	90	36	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0805.14A	Johnny 120 Light Source	18	-	2700	90	36	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0804.40A	Johnny 120 Light Source	18	-	3000	90	36	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0804.14A	Johnny 120 Light Source	18	-	3000	90	36	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0803.40A	Johnny 120 Light Source	18	1544	2700	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0803.14A	Johnny 120 Light Source	18	1544	2700	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0802.40A	Johnny 120 Light Source	18	1645	3000	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0802.14A	Johnny 120 Light Source	18	1645	3000	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0801.40A	Johnny 120 Light Source	18	-	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0801.14A	Johnny 120 Light Source	18	-	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0800.40A	Johnny 120 Light Source	18	-	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0800.14A	Johnny 120 Light Source	18	-	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0745.40	Johnny 120 Light Source	18	1456	2700	90	41	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0745.14	Johnny 120 Light Source	18	1456	2700	90	41	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0744.40	Johnny 120 Light Source	18	1531	3000	90	41	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0744.14	Johnny 120 Light Source	18	1531	3000	90	41	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0743.40	Johnny 120 Light Source	18	1222	2700	90	22	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0743.14	Johnny 120 Light Source	18	1222	2700	90	22	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0742.40	Johnny 120 Light Source	18	1285	3000	90	22	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0742.14	Johnny 120 Light Source	18	1285	3000	90	22	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0741.40	Johnny 120 Light Source	18	1324	2700	90	13	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0741.14	Johnny 120 Light Source	18	1324	2700	90	13	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0740.40	Johnny 120 Light Source	18	1393	3000	90	13	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0740.14	Johnny 120 Light Source	18	1393	3000	90	13	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
