Light Shadow Mini Dots

Designed by FLOS Architectural

Light Shadow Mini Dots offers precise and flexible lighting in an ultra-compact format. It allows the creation of customized configurations with one or multiple light sources, always ensuring maximum visual comfort and discreet integration within the space.

Download Documentation

Product highlight

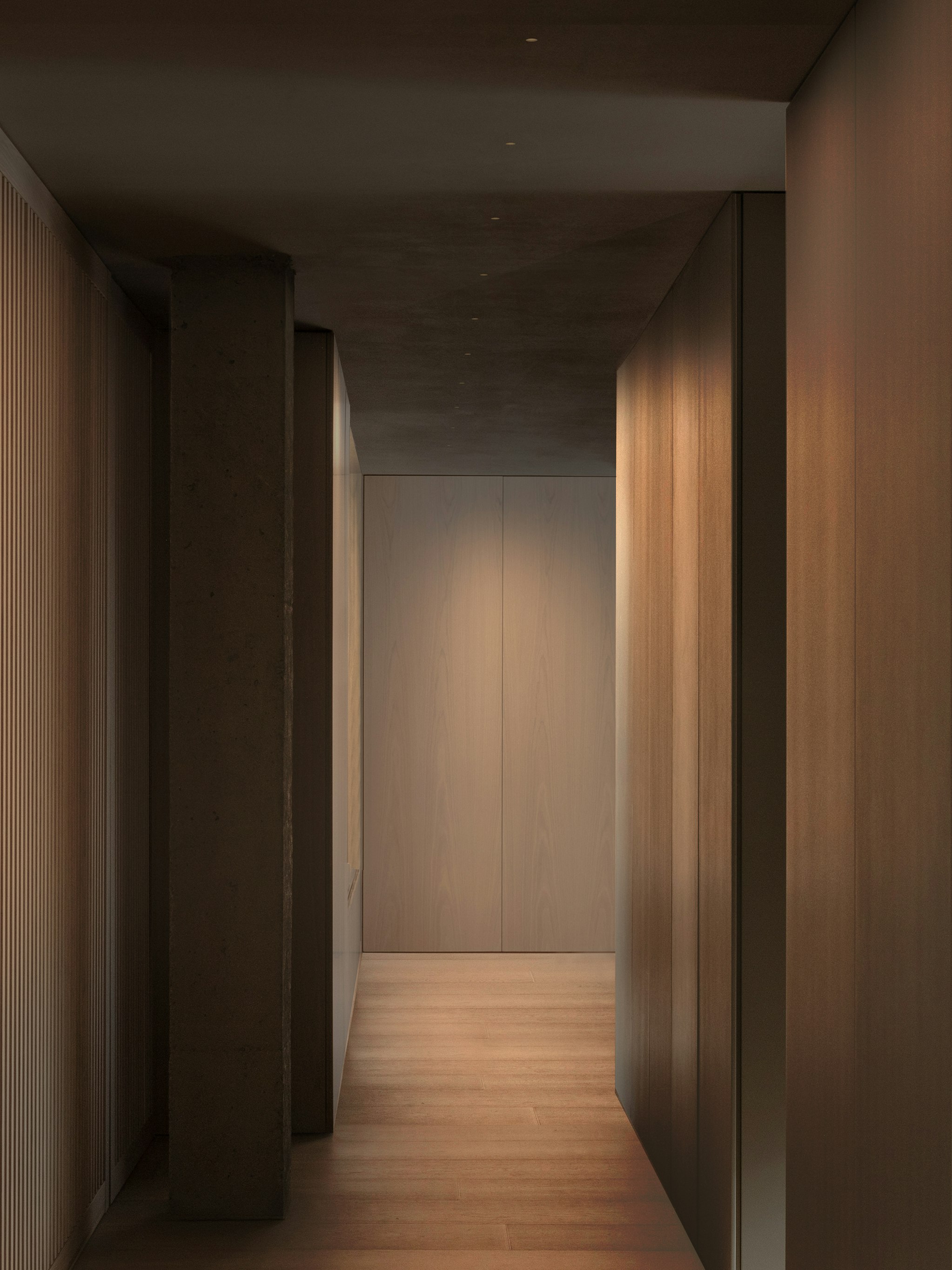

Maximum comfort in a mini format

The compact design and revolutionary optical system provide a superior visual experience, eliminating unwanted reflections and enhancing visual comfort in any environment.

Discover the Story


Luminaire

(72)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.8427.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	3000	90	-	Dimmable	Recessed
05.8427.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	3000	90	-	Dimmable	Recessed
05.8427.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	3000	90	-	Dimmable	Recessed
05.8427.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	3000	90	-	Dimmable	Recessed
05.8426.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	3000	90	-	Dimmable	Recessed
05.8426.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	3000	90	-	Dimmable	Recessed
05.8426.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	3000	90	-	Dimmable	Recessed
05.8426.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	3000	90	-	Dimmable	Recessed
05.8425.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	3000	90	-	Dimmable	Recessed
05.8425.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	3000	90	-	Dimmable	Recessed
05.8425.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	3000	90	-	Dimmable	Recessed
05.8425.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	3000	90	-	Dimmable	Recessed
05.8422.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	2700	90	-	Dimmable	Recessed
05.8422.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	2700	90	-	Dimmable	Recessed
05.8422.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	2700	90	-	Dimmable	Recessed
05.8422.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Flood	1.5	-	2700	90	-	Dimmable	Recessed
05.8421.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	2700	90	-	Dimmable	Recessed
05.8421.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	2700	90	-	Dimmable	Recessed
05.8421.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	2700	90	-	Dimmable	Recessed
05.8421.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Medium	1.5	-	2700	90	-	Dimmable	Recessed
05.8420.ES	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	2700	90	-	Dimmable	Recessed
05.8420.ER	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	2700	90	-	Dimmable	Recessed
05.8420.40	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	2700	90	-	Dimmable	Recessed
05.8420.14	Light Shadow Mini Dots - Single Spot Module. Set of 4 Spots Optic Spot	1.5	-	2700	90	-	Dimmable	Recessed
05.8417.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	137	3000	90	-	Dimmable	Recessed
05.8417.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	137	3000	90	-	Dimmable	Recessed
05.8417.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	136	3000	90	-	Dimmable	Recessed
05.8417.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	140	3000	90	-	Dimmable	Recessed
05.8416.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	140	3000	90	-	Dimmable	Recessed
05.8416.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	140	3000	90	-	Dimmable	Recessed
05.8416.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	139	3000	90	-	Dimmable	Recessed
05.8416.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	143	3000	90	-	Dimmable	Recessed
05.8415.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	137	3000	90	-	Dimmable	Recessed
05.8415.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	137	3000	90	-	Dimmable	Recessed
05.8415.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	136	3000	90	-	Dimmable	Recessed
05.8415.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	139	3000	90	-	Dimmable	Recessed
05.8412.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	131	2700	90	-	Dimmable	Recessed
05.8412.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	131	2700	90	-	Dimmable	Recessed
05.8412.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	130	2700	90	-	Dimmable	Recessed
05.8412.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Flood	1.5	133	2700	90	-	Dimmable	Recessed
05.8411.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	134	2700	90	-	Dimmable	Recessed
05.8411.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	133	2700	90	-	Dimmable	Recessed
05.8411.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	133	2700	90	-	Dimmable	Recessed
05.8411.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Medium	1.5	136	2700	90	-	Dimmable	Recessed
05.8410.ES	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	131	2700	90	-	Dimmable	Recessed
05.8410.ER	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	131	2700	90	-	Dimmable	Recessed
05.8410.40	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	130	2700	90	-	Dimmable	Recessed
05.8410.14	Light Shadow Mini Dots - Single Spot Module. Set of 2 Spots Optic Spot	1.5	133	2700	90	-	Dimmable	Recessed
05.8407.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	137	3000	90	37	Dimmable	Recessed
05.8407.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	137	3000	90	37	Dimmable	Recessed
05.8407.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	140	3000	90	37	Dimmable	Recessed
05.8407.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	136	3000	90	37	Dimmable	Recessed
05.8406.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	140	3000	90	25	Dimmable	Recessed
05.8406.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	140	3000	90	26	Dimmable	Recessed
05.8406.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	143	3000	90	26	Dimmable	Recessed
05.8406.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	139	3000	90	25	Dimmable	Recessed
05.8405.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	137	3000	90	14	Dimmable	Recessed
05.8405.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	137	3000	90	14	Dimmable	Recessed
05.8405.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	139	3000	90	14	Dimmable	Recessed
05.8405.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	136	3000	90	14	Dimmable	Recessed
05.8402.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	131	2700	90	37	Dimmable	Recessed
05.8402.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	131	2700	90	37	Dimmable	Recessed
05.8402.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	134	2700	90	37	Dimmable	Recessed
05.8402.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood	1.5	130	2700	90	37	Dimmable	Recessed
05.8401.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	133	2700	90	25	Dimmable	Recessed
05.8401.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	133	2700	90	26	Dimmable	Recessed
05.8401.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	136	2700	90	26	Dimmable	Recessed
05.8401.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium	1.5	133	2700	90	25	Dimmable	Recessed
05.8400.ES	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	131	2700	90	14	Dimmable	Recessed
05.8400.ER	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	131	2700	90	14	Dimmable	Recessed
05.8400.40	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	133	2700	90	14	Dimmable	Recessed
05.8400.14	Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Spot	1.5	130	2700	90	14	Dimmable	Recessed
