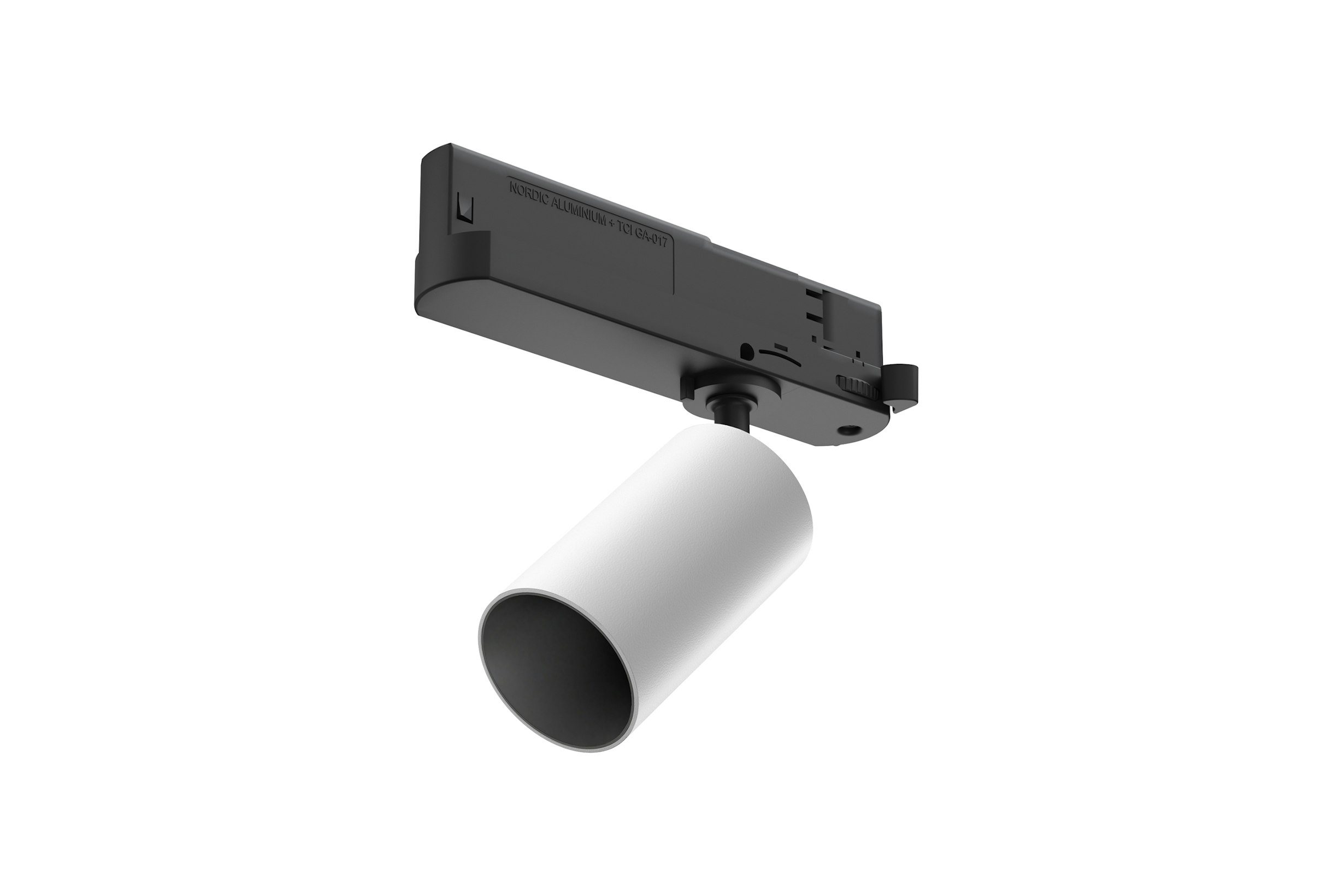

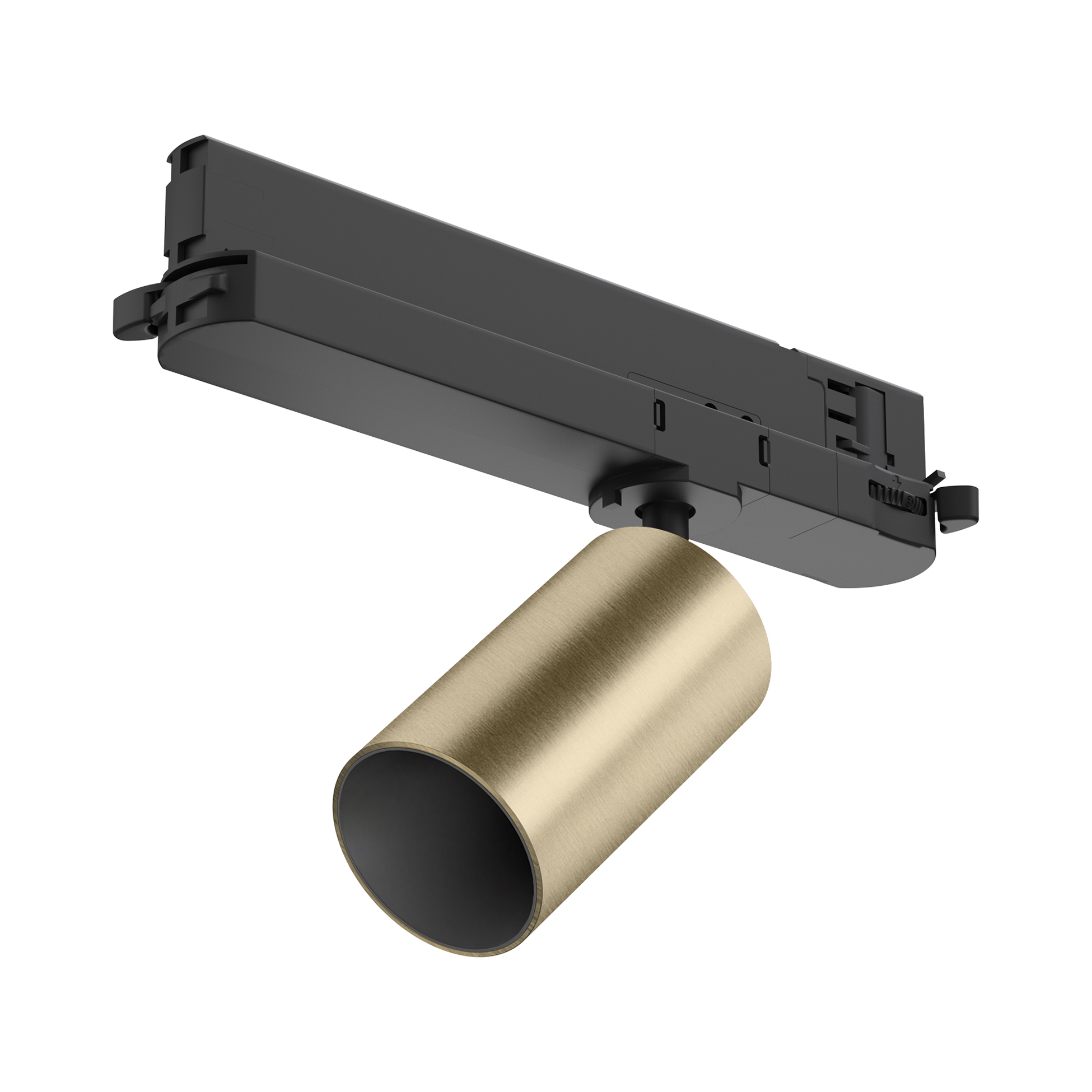

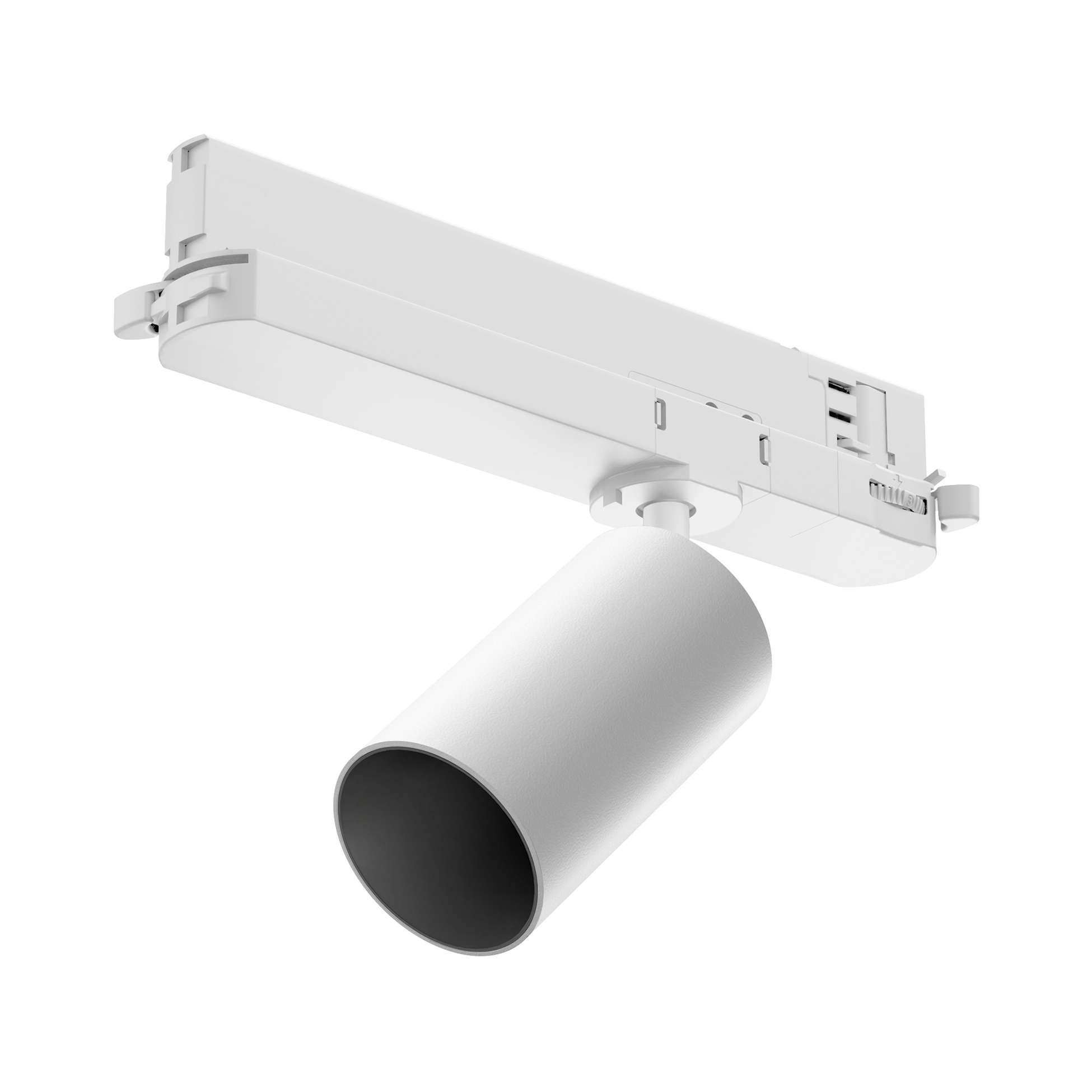

Light Shadow Spot 45

Designed by FLOS Architectural

Projector to be installed on threephase track with LED light source. Built-in 220-240V, 50-60Hz power supply.

Download Documentation

Product highlight

Light Shadow lens technology: on track to impress.

The new Spot version of Light Shadow is compatible with Flos systems and standard three-phase tracks.

Discover the Story

Luminaire

(90)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.9212.ESADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	31	Dimmable DALI 2	Track
05.9212.ESACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	31	Dimmable Casambi	Track
05.9212.ES	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	31	Non Dimmable	Track
05.9212.ERADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	31	Dimmable DALI 2	Track
05.9212.ERACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	31	Dimmable Casambi	Track
05.9212.ER	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	31	Non Dimmable	Track
05.9212.40AYU	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	31	Dimmable DALI 2	Track
05.9212.40ADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	31	Dimmable DALI 2	Track
05.9212.40ACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	31	Dimmable Casambi	Track
05.9212.40AC6	Light Shadow Spot 45 Casambi	11.5	739	4000	90	31	Dimmable Casambi	Track
05.9212.40.78	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	31	Non Dimmable	Track
05.9212.40	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	31	Dimmer on board	Track
05.9212.14ADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	31	Dimmable DALI 2	Track
05.9212.14ACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	31	Dimmable Casambi	Track
05.9212.14	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	31	Non Dimmable	Track
05.9211.ESADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	21	Dimmable DALI 2	Track
05.9211.ESACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	21	Dimmable Casambi	Track
05.9211.ES	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	21	Non Dimmable	Track
05.9211.ERADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	21	Dimmable DALI 2	Track
05.9211.ERACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	21	Dimmable Casambi	Track
05.9211.ER	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	21	Non Dimmable	Track
05.9211.40AYU	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	21	Dimmable DALI 2	Track
05.9211.40ADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	21	Dimmable DALI 2	Track
05.9211.40ACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	21	Dimmable Casambi	Track
05.9211.40AC6	Light Shadow Spot 45 Casambi	11.5	739	4000	90	21	Dimmable Casambi	Track
05.9211.40.78	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	21	Non Dimmable	Track
05.9211.40	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	21	Dimmer on board	Track
05.9211.14ADA	Light Shadow Spot 45 Dali Version	11.5	739	4000	90	21	Dimmable DALI 2	Track
05.9211.14ACB	Light Shadow Spot 45 Casambi	11.5	739	4000	90	21	Dimmable Casambi	Track
05.9211.14	Light Shadow Spot 45 Non Dimmable	11.5	739	4000	90	21	Non Dimmable	Track
05.9210.ESADA	Light Shadow Spot 45 Dali Version	11.5	744	4000	90	15	Dimmable DALI 2	Track
05.9210.ESACB	Light Shadow Spot 45 Casambi	11.5	744	4000	90	15	Dimmable Casambi	Track
05.9210.ES	Light Shadow Spot 45 Non Dimmable	11.5	744	4000	90	15	Non Dimmable	Track
05.9210.ERADA	Light Shadow Spot 45 Dali Version	11.5	744	4000	90	15	Dimmable DALI 2	Track
05.9210.ERACB	Light Shadow Spot 45 Casambi	11.5	744	4000	90	15	Dimmable Casambi	Track
05.9210.ER	Light Shadow Spot 45 Non Dimmable	11.5	744	4000	90	15	Non Dimmable	Track
05.9210.40AYU	Light Shadow Spot 45 Dali Version	11.5	744	4000	90	15	Dimmable DALI 2	Track
05.9210.40ADA	Light Shadow Spot 45 Dali Version	11.5	744	4000	90	15	Dimmable DALI 2	Track
05.9210.40ACB	Light Shadow Spot 45 Casambi	11.5	744	4000	90	15	Dimmable Casambi	Track
05.9210.40AC6	Light Shadow Spot 45 Casambi	11.5	744	4000	90	15	Dimmable Casambi	Track
05.9210.40.78	Light Shadow Spot 45 Non Dimmable	11.5	744	4000	90	15	Non Dimmable	Track
05.9210.40	Light Shadow Spot 45 Non Dimmable	11.5	744	4000	90	15	Dimmer on board	Track
05.9210.14ADA	Light Shadow Spot 45 Dali Version	11.5	744	4000	90	15	Dimmable DALI 2	Track
05.9210.14ACB	Light Shadow Spot 45 Casambi	11.5	744	4000	90	15	Dimmable Casambi	Track
05.9210.14	Light Shadow Spot 45 Non Dimmable	11.5	744	4000	90	15	Non Dimmable	Track
05.9207.ESADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	31	Dimmable DALI 2	Track
05.9207.ESACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	31	Dimmable Casambi	Track
05.9207.ES	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	31	Non Dimmable	Track
05.9207.ERADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	31	Dimmable DALI 2	Track
05.9207.ERACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	31	Dimmable Casambi	Track
05.9207.ER	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	31	Non Dimmable	Track
05.9207.40AYU	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	31	Dimmable DALI 2	Track
05.9207.40ADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	31	Dimmable DALI 2	Track
05.9207.40ACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	31	Dimmable Casambi	Track
05.9207.40AC6	Light Shadow Spot 45 Casambi	11.5	682	3000	90	31	Dimmable Casambi	Track
05.9207.40.78	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	31	Non Dimmable	Track
05.9207.40	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	31	Dimmer on board	Track
05.9207.14ADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	31	Dimmable DALI 2	Track
05.9207.14ACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	31	Dimmable Casambi	Track
05.9207.14	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	31	Non Dimmable	Track
05.9206.ESADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	21	Dimmable DALI 2	Track
05.9206.ESACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	21	Dimmable Casambi	Track
05.9206.ES	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	21	Non Dimmable	Track
05.9206.ERADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	21	Dimmable DALI 2	Track
05.9206.ERACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	21	Dimmable Casambi	Track
05.9206.ER	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	21	Non Dimmable	Track
05.9206.40AYU	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	21	Dimmable DALI 2	Track
05.9206.40ADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	21	Dimmable DALI 2	Track
05.9206.40ACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	21	Dimmable Casambi	Track
05.9206.40AC6	Light Shadow Spot 45 Casambi	11.5	682	3000	90	21	Dimmable Casambi	Track
05.9206.40.78	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	21	Non Dimmable	Track
05.9206.40	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	21	Dimmer on board	Track
05.9206.14ADA	Light Shadow Spot 45 Dali Version	11.5	682	3000	90	21	Dimmable DALI 2	Track
05.9206.14ACB	Light Shadow Spot 45 Casambi	11.5	682	3000	90	21	Dimmable Casambi	Track
05.9206.14	Light Shadow Spot 45 Non Dimmable	11.5	682	3000	90	21	Non Dimmable	Track
05.9205.ESADA	Light Shadow Spot 45 Dali Version	11.5	686	3000	90	15	Dimmable DALI 2	Track
05.9205.ESACB	Light Shadow Spot 45 Casambi	11.5	686	3000	90	15	Dimmable Casambi	Track
05.9205.ES	Light Shadow Spot 45 Non Dimmable	11.5	686	3000	90	15	Non Dimmable	Track
05.9205.ERADA	Light Shadow Spot 45 Dali Version	11.5	686	3000	90	15	Dimmable DALI 2	Track
05.9205.ERACB	Light Shadow Spot 45 Casambi	11.5	686	3000	90	15	Dimmable Casambi	Track
05.9205.ER	Light Shadow Spot 45 Non Dimmable	11.5	686	3000	90	15	Non Dimmable	Track
05.9205.40AYU	Light Shadow Spot 45 Dali Version	11.5	686	3000	90	15	Dimmable DALI 2	Track
05.9205.40ADA	Light Shadow Spot 45 Dali Version	11.5	686	3000	90	15	Dimmable DALI 2	Track
05.9205.40ACB	Light Shadow Spot 45 Casambi	11.5	686	3000	90	15	Dimmable Casambi	Track
05.9205.40AC6	Light Shadow Spot 45 Casambi	11.5	686	3000	90	15	Dimmable Casambi	Track
05.9205.40.78	Light Shadow Spot 45 Non Dimmable	11.5	686	3000	90	15	Non Dimmable	Track
05.9205.40	Light Shadow Spot 45 Non Dimmable	11.5	686	3000	90	15	Dimmer on board	Track
05.9205.14ADA	Light Shadow Spot 45 Dali Version	11.5	686	3000	90	15	Dimmable DALI 2	Track
05.9205.14ACB	Light Shadow Spot 45 Casambi	11.5	686	3000	90	15	Dimmable Casambi	Track
05.9205.14	Light Shadow Spot 45 Non Dimmable	11.5	686	3000	90	15	Non Dimmable	Track
