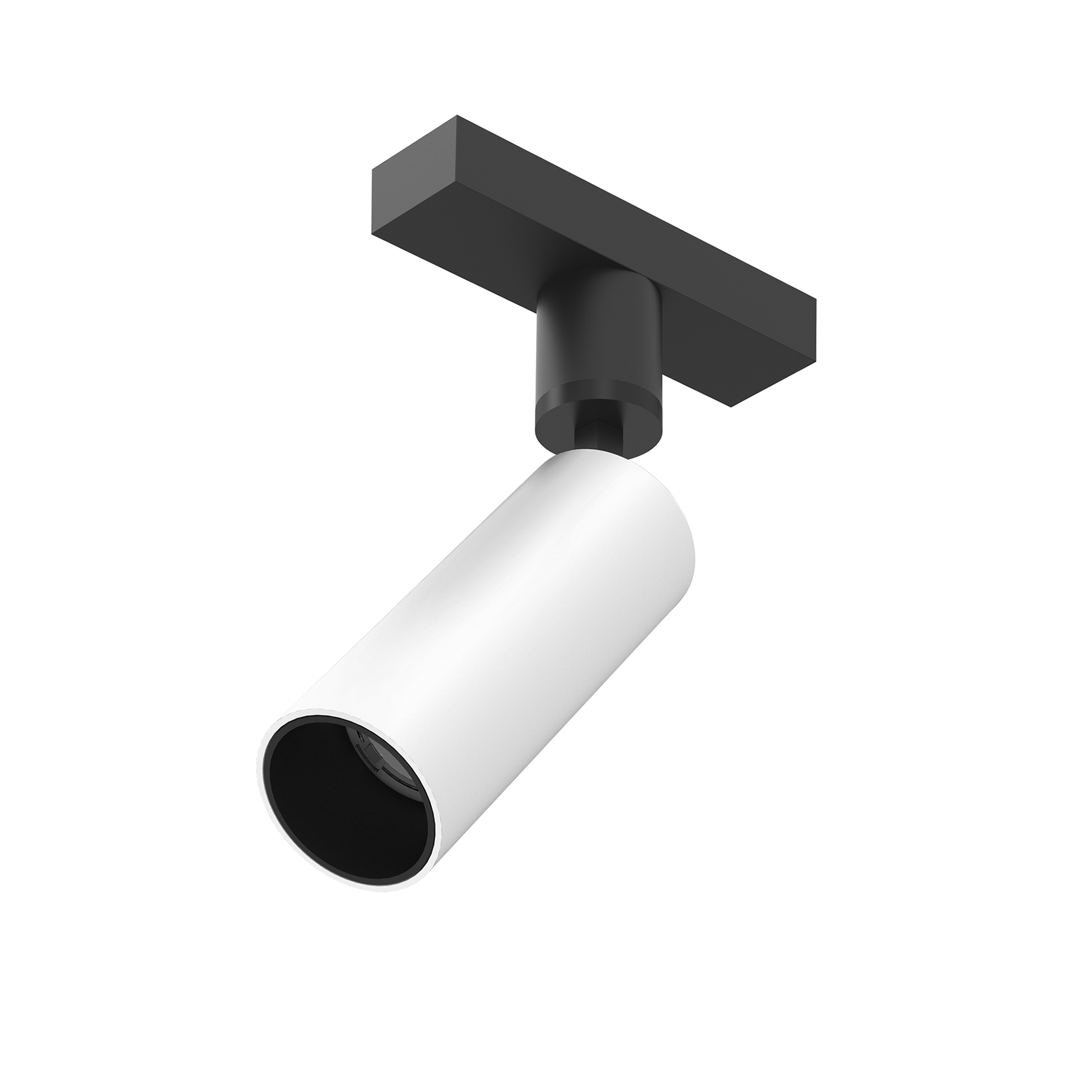

Spot 120

Designed by FLOS Architectural

Accent lighting LED module to be installed in The Running Magnet System. Built-in DC/DC electronic voltage converter.

Download Documentation

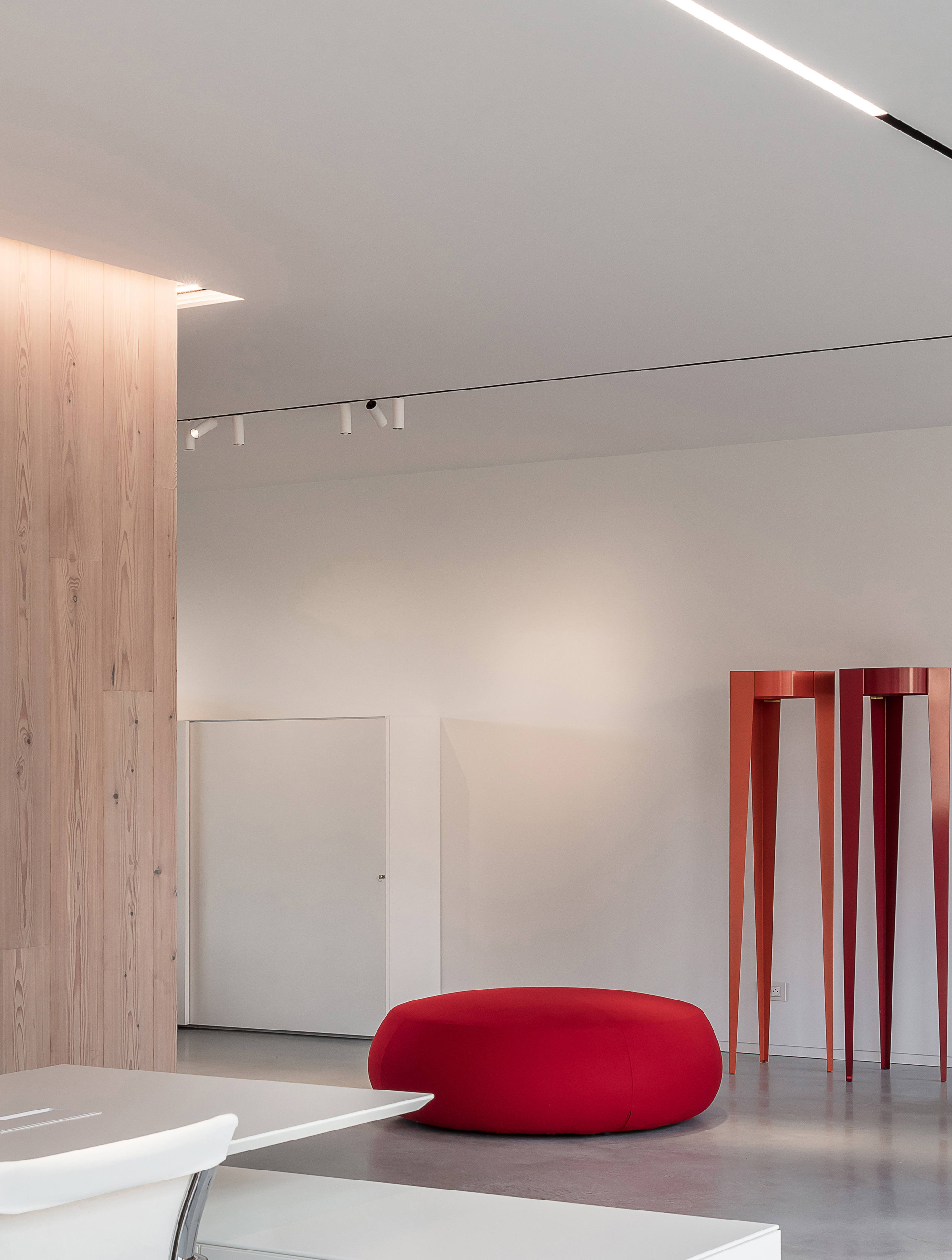

Product highlight

Magnetic character

Multipurpose program of structures in recessed, surface and suspended versions.

Discover the Story


Luminaire

(24)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.6287.40CDA	Spot 120 Dali Version	14	458	3000	90	31	Dimmable DALI 2	Track
03.6287.40CCB	Spot 120 Casambi integrated	12.5	458	3000	90	31	Dimmable Casambi	Track
03.6287.40C	Spot 120 On Board Dimmer	12.5	458	3000	90	31	Dimmer on board	Track
03.6287.14CDA	Spot 120 Dali Version	14	458	3000	90	31	Dimmable DALI 2	Track
03.6287.14CCB	Spot 120 Casambi integrated	12.5	458	3000	90	31	Dimmable Casambi	Track
03.6287.14C	Spot 120 On Board Dimmer	12.5	458	3000	90	31	Dimmer on board	Track
03.6286.40CDA	Spot 120 Dali Version	14	458	2700	90	31	Dimmable DALI 2	Track
03.6286.40CCB	Spot 120 Casambi integrated	12.5	458	2700	90	31	Dimmable Casambi	Track
03.6286.40C	Spot 120 On Board Dimmer	12.5	458	2700	90	31	Dimmer on board	Track
03.6286.14CDA	Spot 120 Dali Version	14	458	2700	90	31	Dimmable DALI 2	Track
03.6286.14CCB	Spot 120 Casambi integrated	12.5	458	2700	90	31	Dimmable Casambi	Track
03.6286.14C	Spot 120 On Board Dimmer	12.5	458	2700	90	31	Dimmer on board	Track
03.6285.40CDA	Spot 120 Dali Version	14	746	2700	90	18	Dimmable DALI 2	Track
03.6285.40CCB	Spot 120 Casambi integrated	12.5	746	2700	90	18	Dimmable Casambi	Track
03.6285.40C	Spot 120 On Board Dimmer	12.5	746	2700	90	18	Dimmer on board	Track
03.6285.14CDA	Spot 120 Dali Version	14	746	2700	90	18	Dimmable DALI 2	Track
03.6285.14CCB	Spot 120 Casambi integrated	12.5	746	2700	90	18	Dimmable Casambi	Track
03.6285.14C	Spot 120 On Board Dimmer	12.5	746	2700	90	18	Dimmer on board	Track
03.6284.40CDA	Spot 120 Dali Version	14	745	3000	90	18	Dimmable DALI 2	Track
03.6284.40CCB	Spot 120 Casambi integrated	12.5	745	3000	90	18	Dimmable Casambi	Track
03.6284.40C	Spot 120 On Board Dimmer	12.5	745	3000	90	18	Dimmer on board	Track
03.6284.14CDA	Spot 120 Dali Version	14	745	3000	90	18	Dimmable DALI 2	Track
03.6284.14CCB	Spot 120 Casambi integrated	12.5	745	3000	90	18	Dimmable Casambi	Track
03.6284.14C	Spot 120 On Board Dimmer	12.5	745	3000	90	18	Dimmer on board	Track
