2097
A1351057

2097/18 (frosted bulbs)

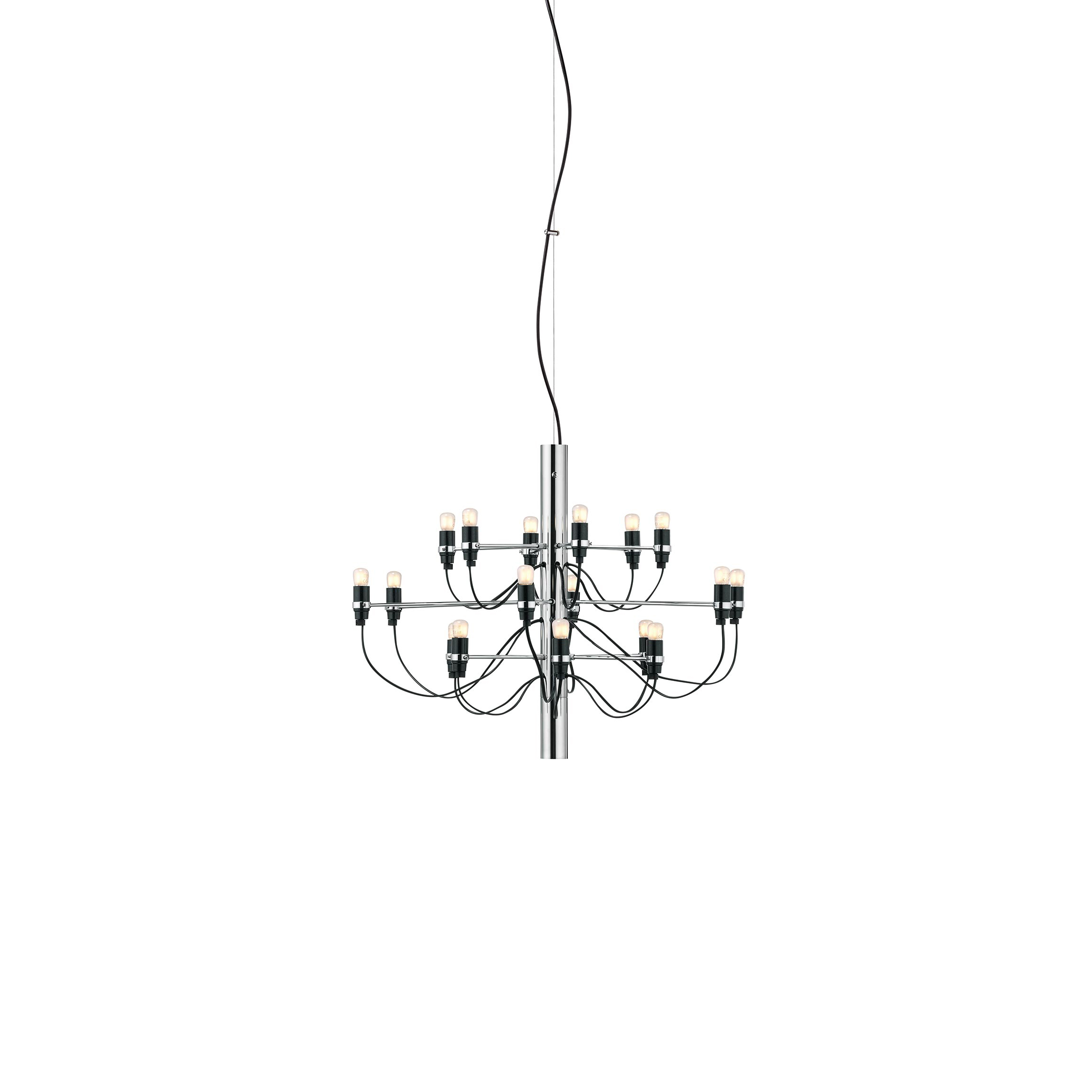

Suspension lamp emitting diffused light. Central steel structure with brass arms, available chrome-plated, matt black, matt white or brass, each holding an exposed bulb. Exposed wiring. Steel ceiling fitting and rose.

LED retrofit - 18 x 3W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-2097-18
Main specifications
EAN
8059607000373
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Ilcos
IBS/F
Number of lamps
18
Power (W)
3
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
670
Cord colour
productFields.physical.cordLength
2800
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
3.3
Package volume (m3)
0.02
IP internal

Download

Tech spec pdf

Technical Drawings

Bulbs

Thumbnail
x18
NOT INCLUDEDLED Frosted Lamp 2,7W E14 150lm 2700K Dimmable T26 DimmableRF25316
Thumbnail
x18
NOT INCLUDEDLED Clear Lamp 2W E14 220-240 2200K T26 DimmableRF28422
Thumbnail
x1
INCLUDEDLED Frosted Mini Lamp E14 2,7W 2700K Dimmable (Set 20pcs)RF28889
Thumbnail
x1
NOT INCLUDEDLED Clear Mini Lamp E14 2W 2200K Dimmable (Set 20pcs)RF28890

Spare Parts

A1351057-2097-18-flos-boom
01. 2097-18-30-50 black ceiling rose
RF1500331
02. Chrome short arm (200mm)
RL7060457
03. 2097/18 Chrome Medium Arm (310mm)
RF33863
04. 2097 E14 lamp holder
RL7050100
05. Chrome screw kit
RL7050757
06. Chrome lower cap
RL7050900
x1
2097-18-30-50 black ceiling roseRF1500331
Thumbnail
x1
Chrome short arm (200mm)RL7060457
x1
2097/18 Chrome Medium Arm (310mm)RF33863
x1
2097 E14 lamp holderRL7050100
Thumbnail
x1
Chrome screw kitRL7050757
Thumbnail
x1
Chrome lower capRL7050900
