Related to

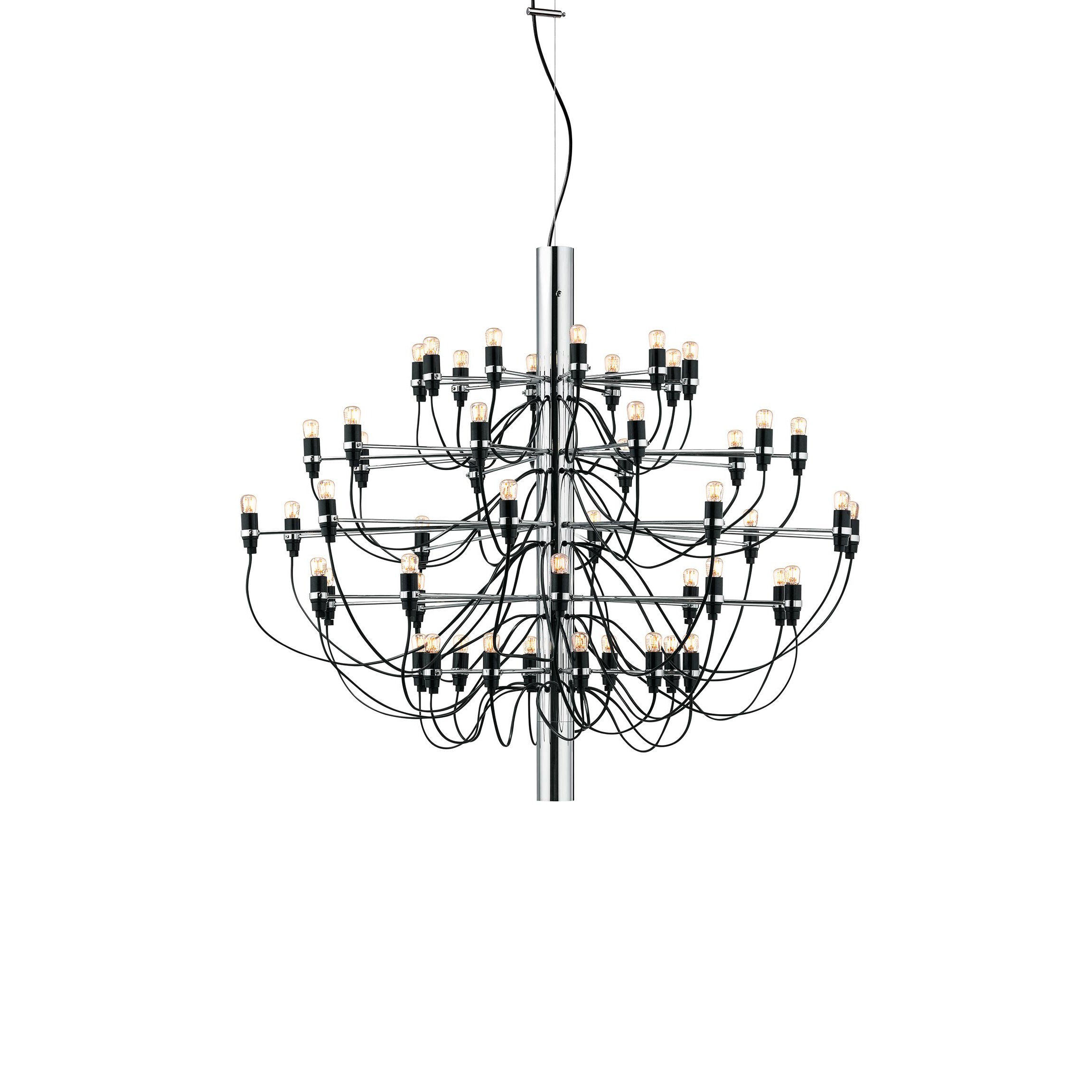

20972097/50 (clear bulbs)
Designed by Gino Sarfatti, 1958
Suspension lamp emitting diffused light. Central steel structure with brass arms, available chrome-plated, matt black, matt white or brass, each holding an exposed bulb. Exposed wiring. Steel ceiling fitting and rose.
LED retrofit - 50 x 2W
Technical Drawing
Main specifications
EAN
8059607000496
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Ilcos
IBS/F
Number of lamps
50
Power (W)
2
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1000
Cord colour
productFields.physical.cordLength
2800
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
9.4
Package volume (m3)
0.04
IP internal
Bulbs
Spare Parts
01. 2097-18-30-50 black ceiling rose
RF1500331

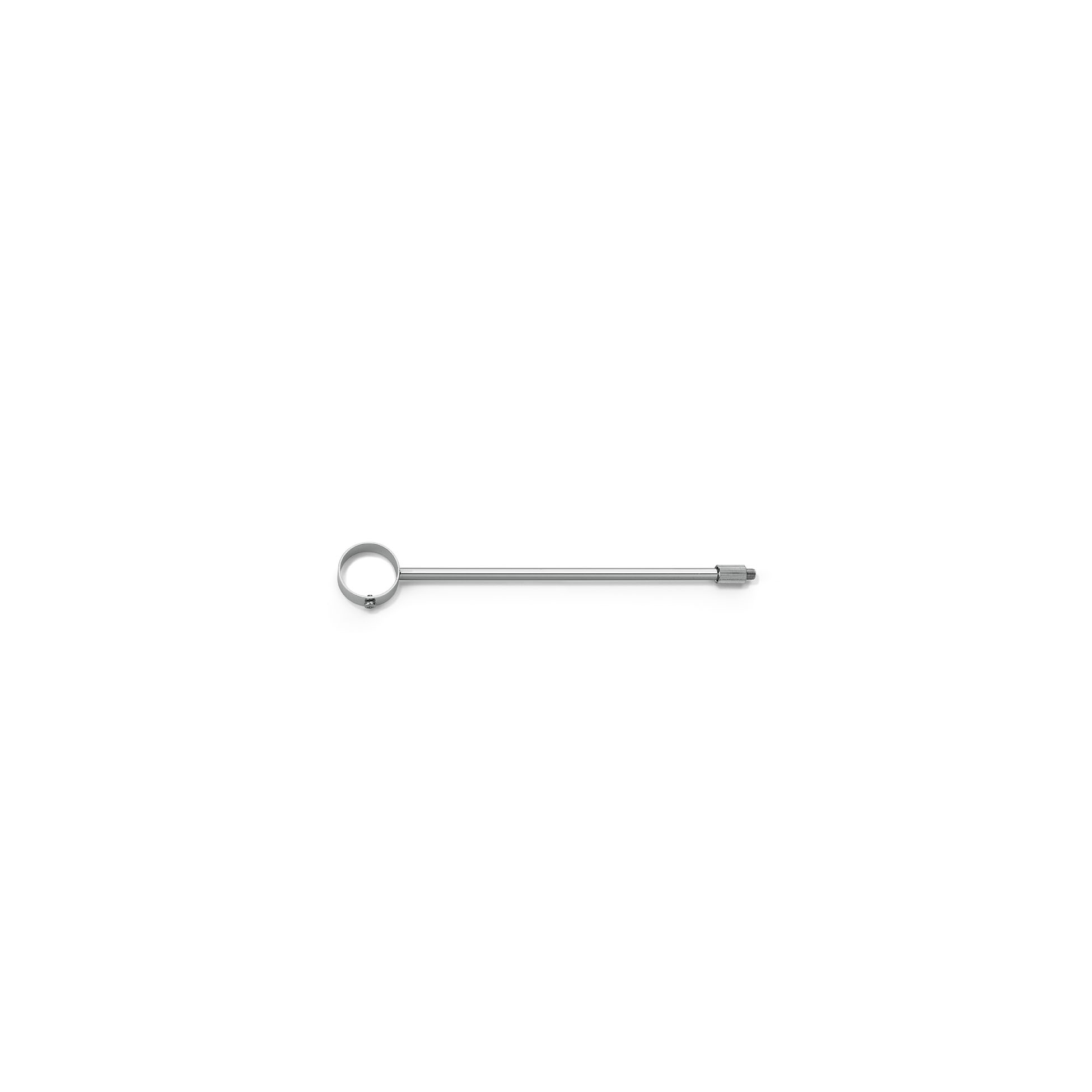

02. Chrome short arm (200mm)
RL7060457

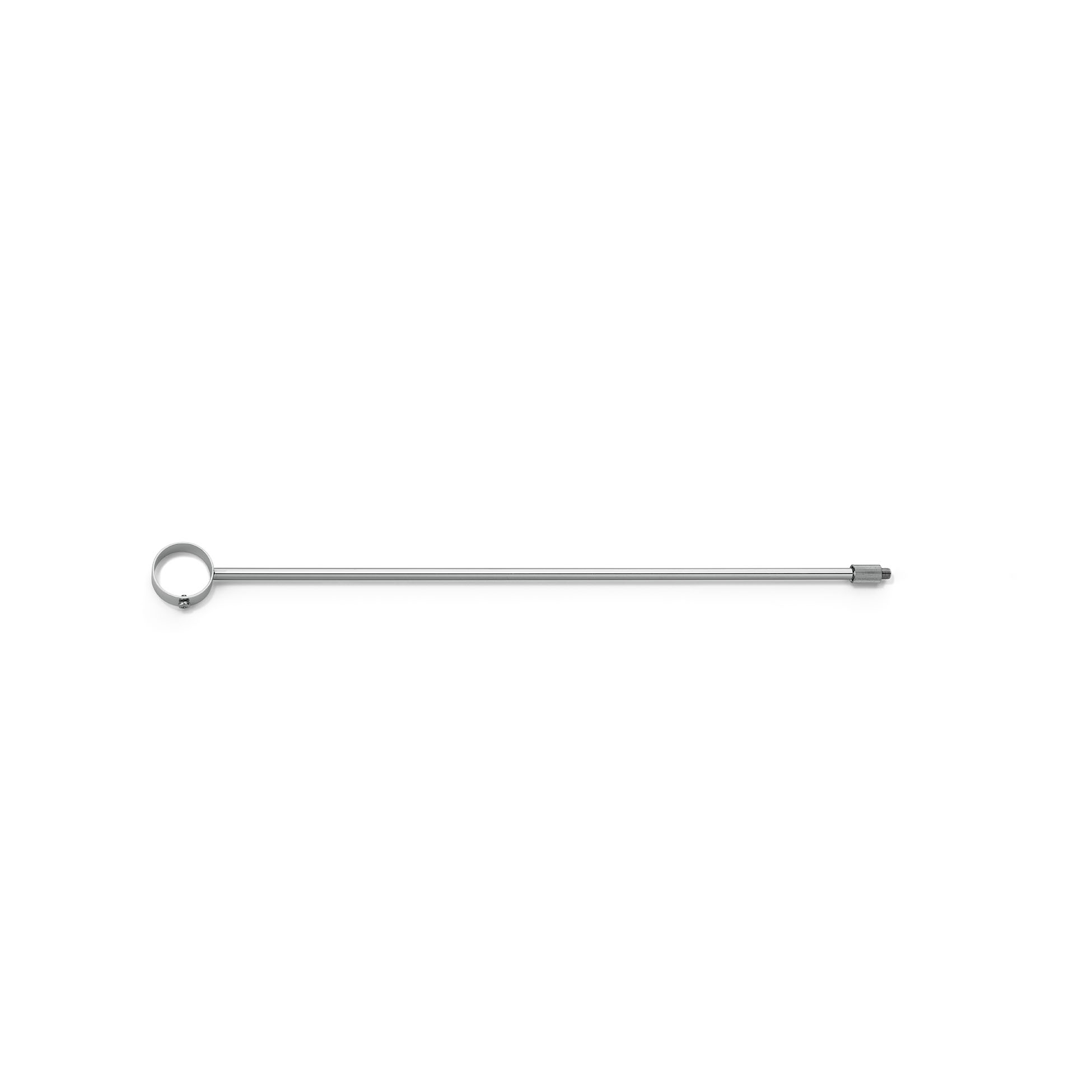

03. 2097/50 Chrome medium arm (375mm)
RL7060557

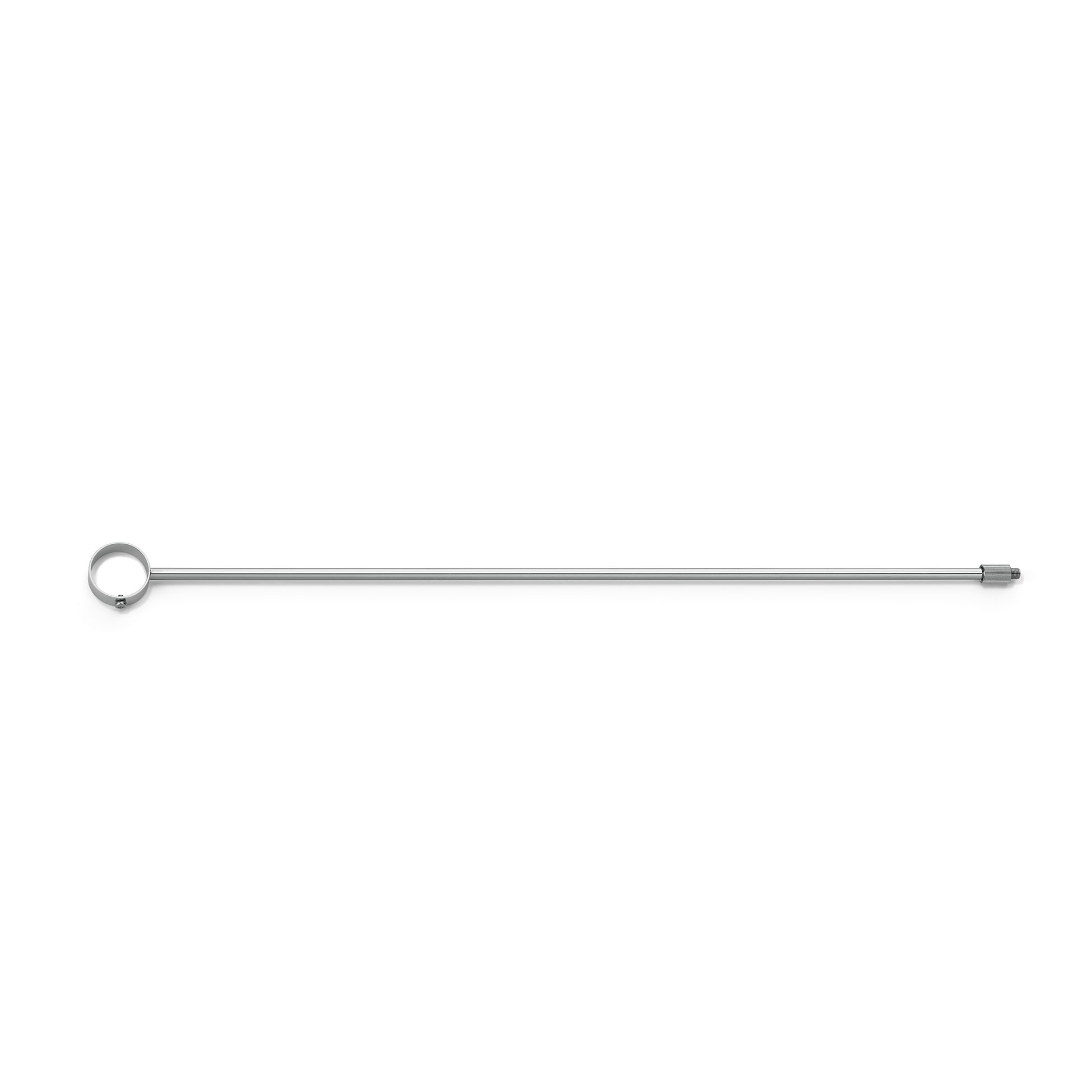

04. 2097/50 Chrome long arm (475mm
RL7060657
05. 2097 E14 lamp holder
RL7050100

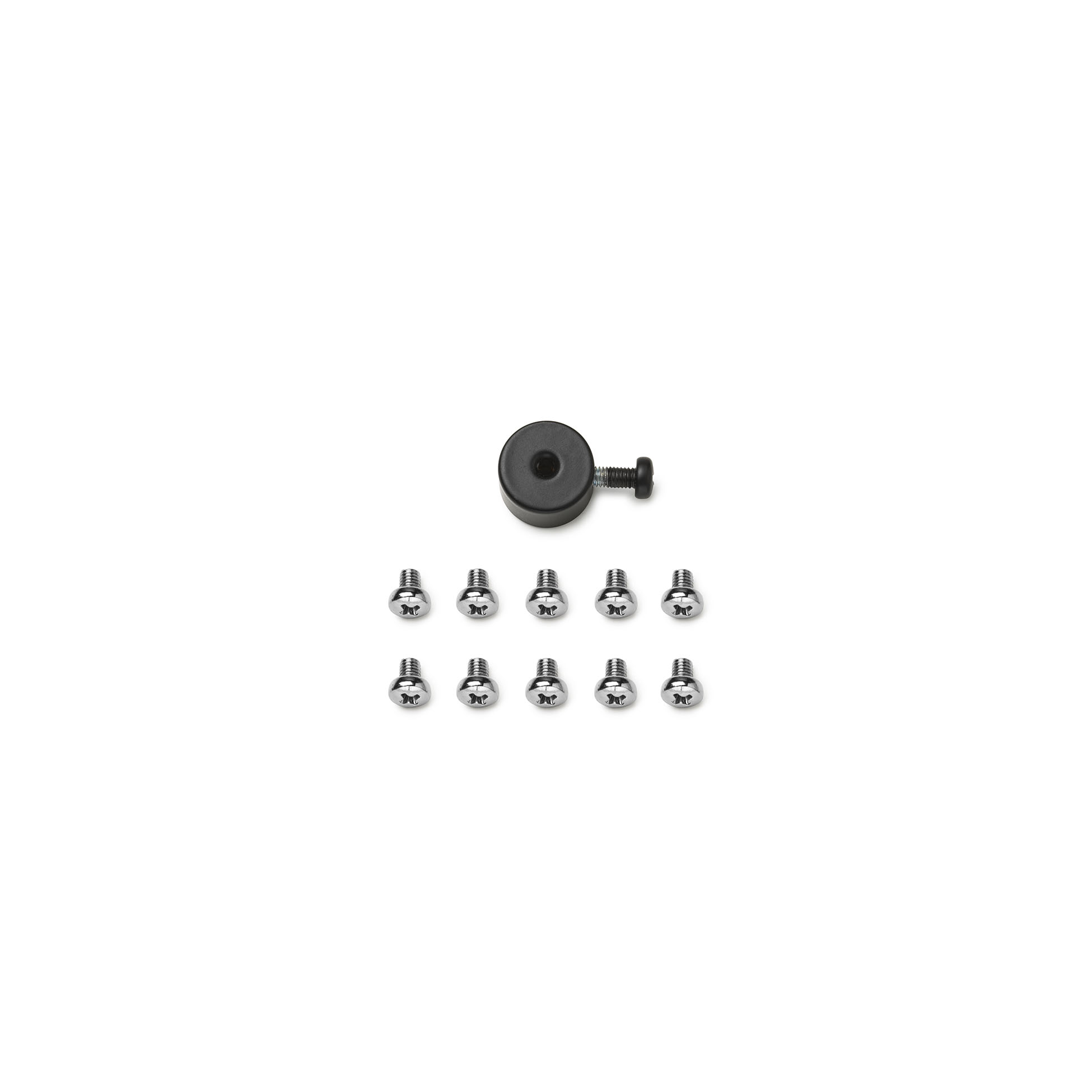

06. Chrome screw kit
RL7050757

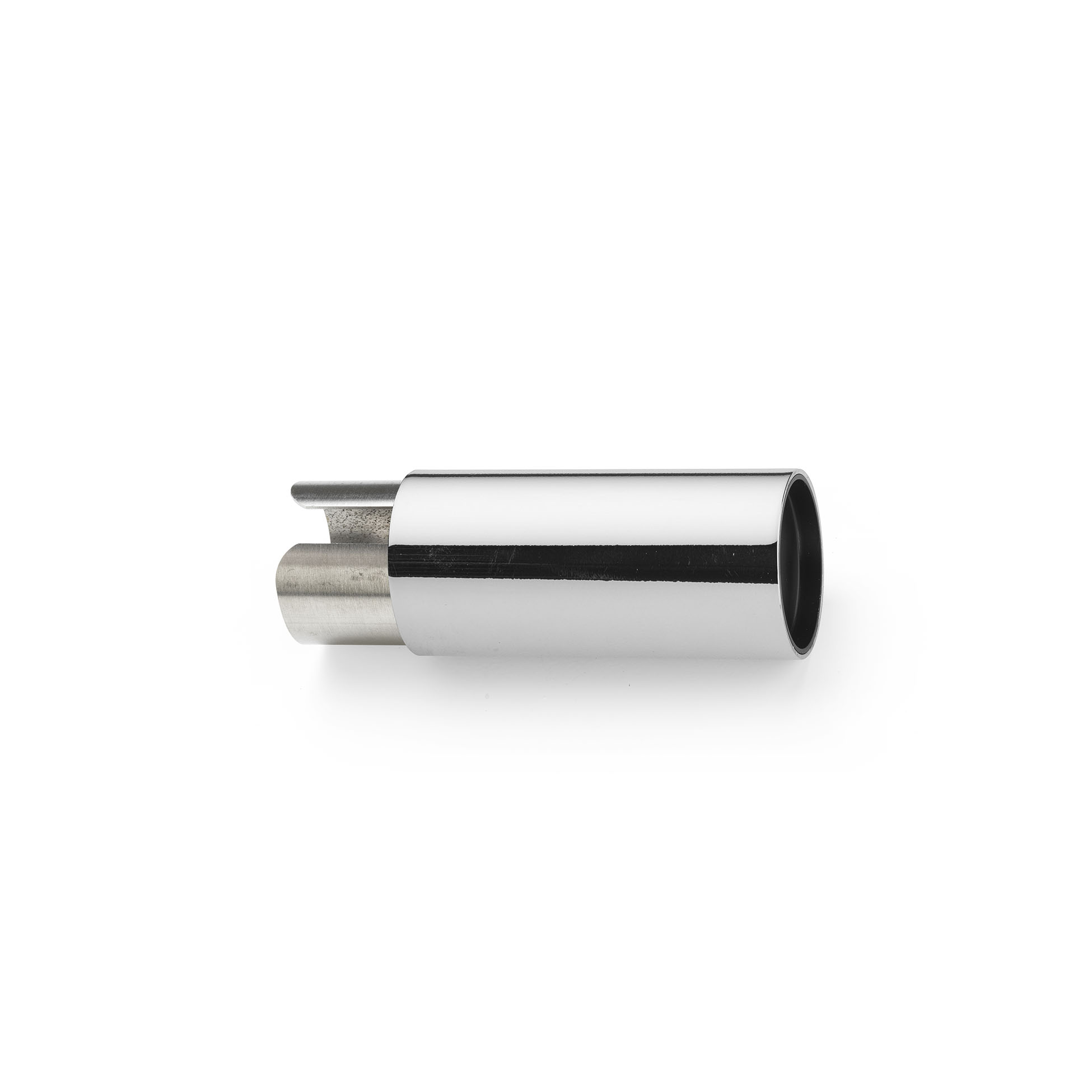

07. 2097/50 Chrome lower cap
RL7060157
