265
A0300030

265

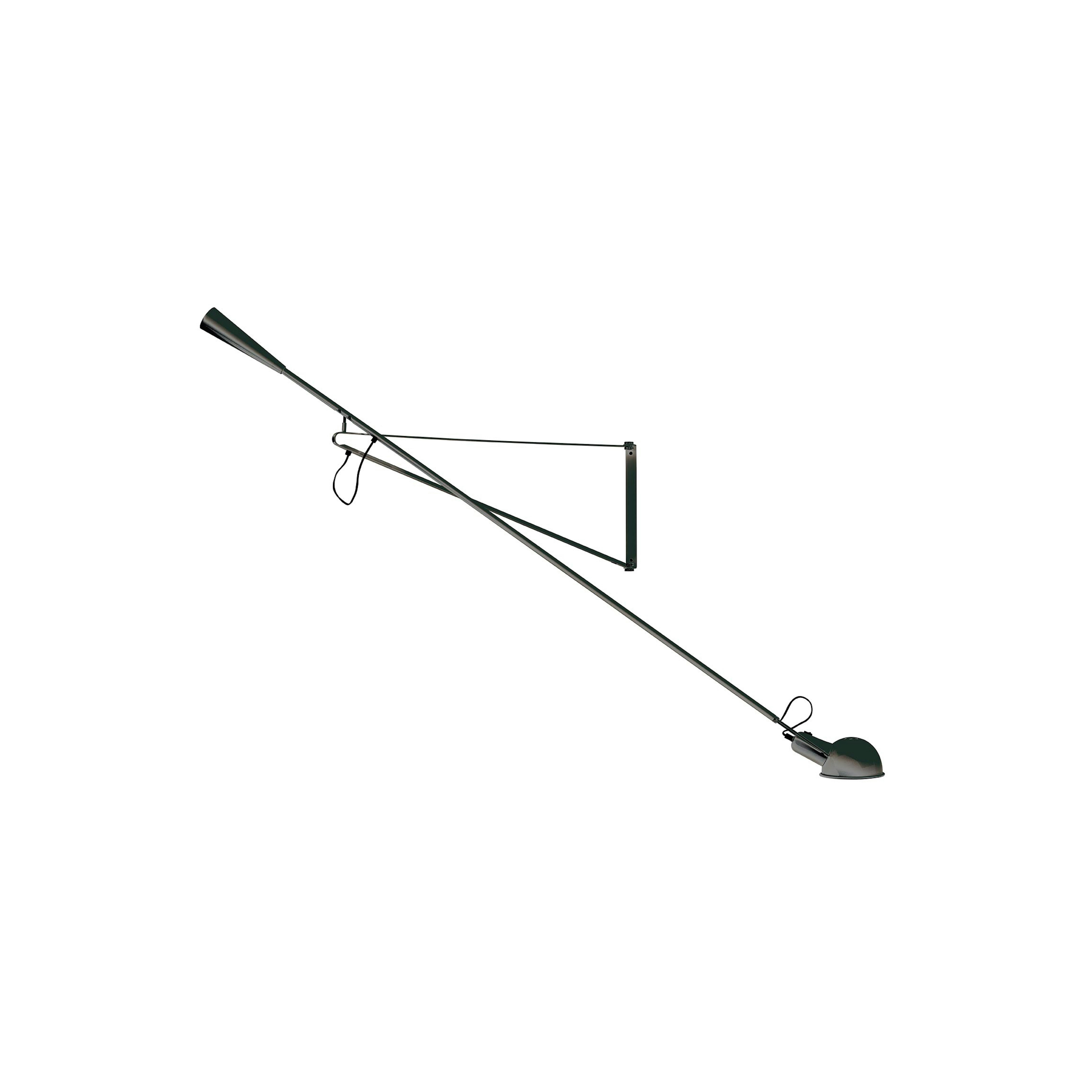

Wall lamp providing direct light. Painted steel adjustable arm and reflector. Chrome-plated brass reflector support. Cast iron tapered counterweight. Painted steel wall fixture.

Halogen - 75W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-265
Main specifications
EAN
8059607012277
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA
Number of lamps
1
Power (W)
75
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Colour
Length (mm)
2450
productFields.physical.cordLength
2030
Net weight (kg)
5.7
Package height (mm)
2110
Package width (mm)
150
Package length (mm)
390
Package volume (m3)
0.12
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

A0300030-265-flos-boom
01. 265/265 Small Screw set for wall attachment
RA0300200

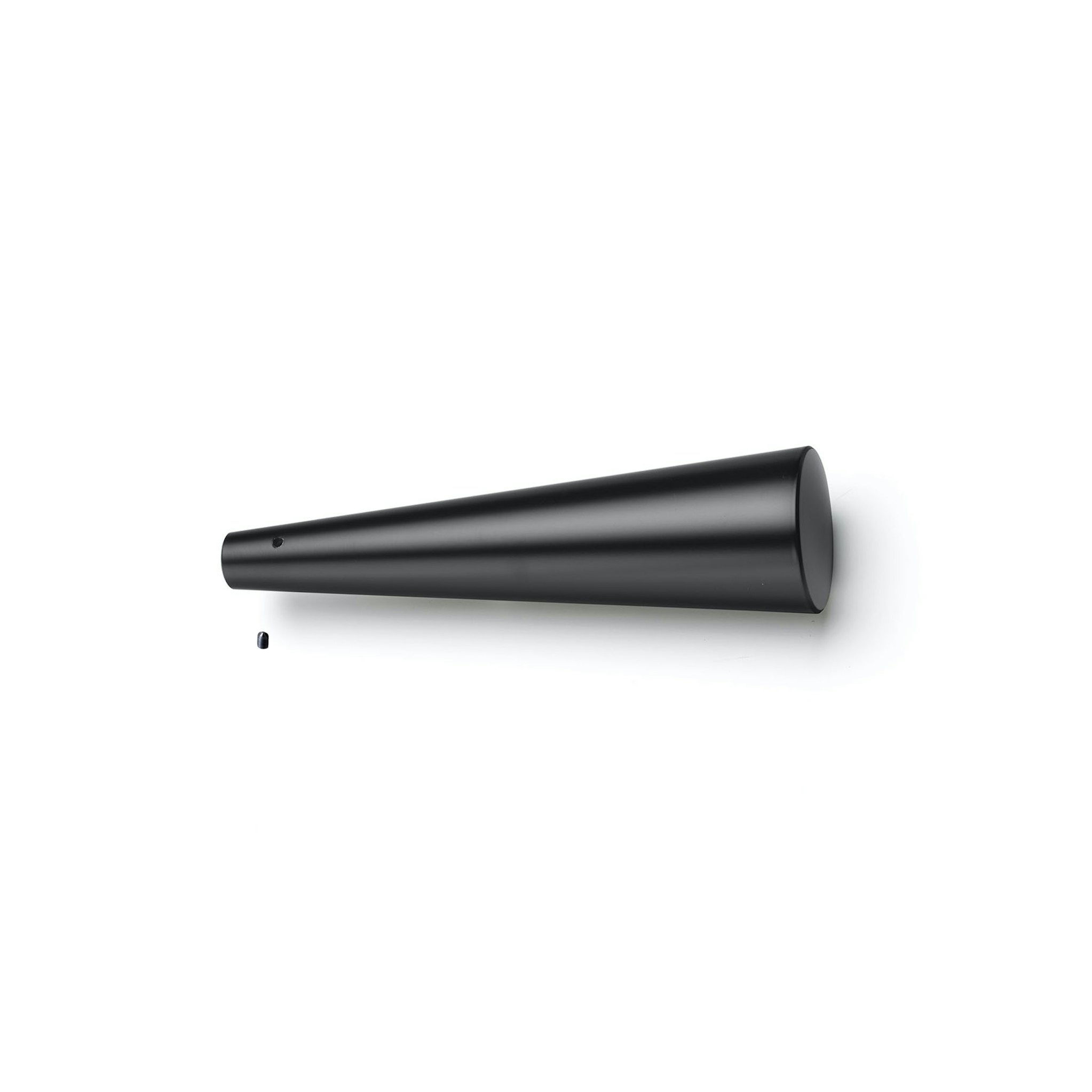

02. 265 Black counterweight
RF01856
03. 265/265 Small Black lamp holder with reflector support and electrical cable assembly
RF01396

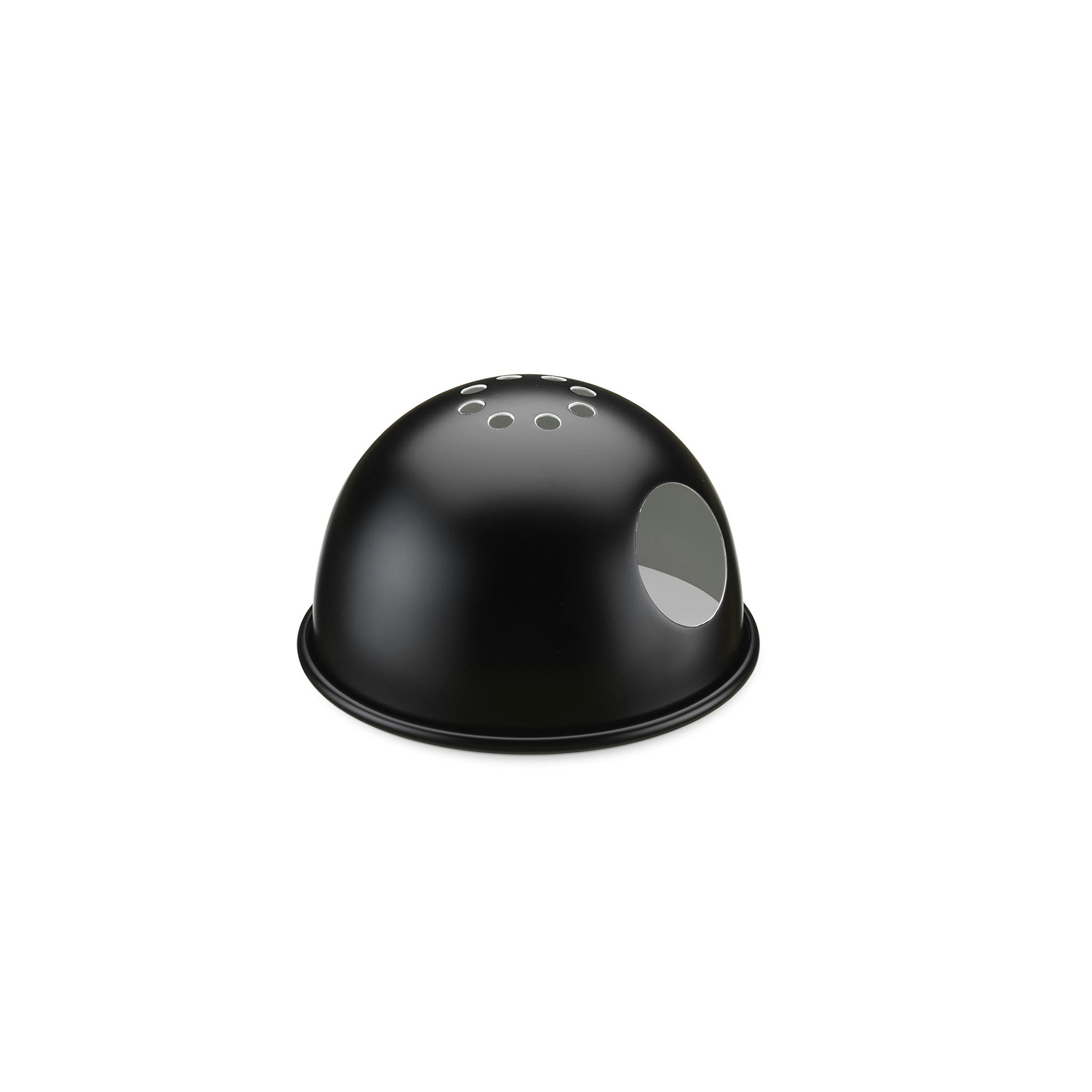

04. Black reflector
RF00785

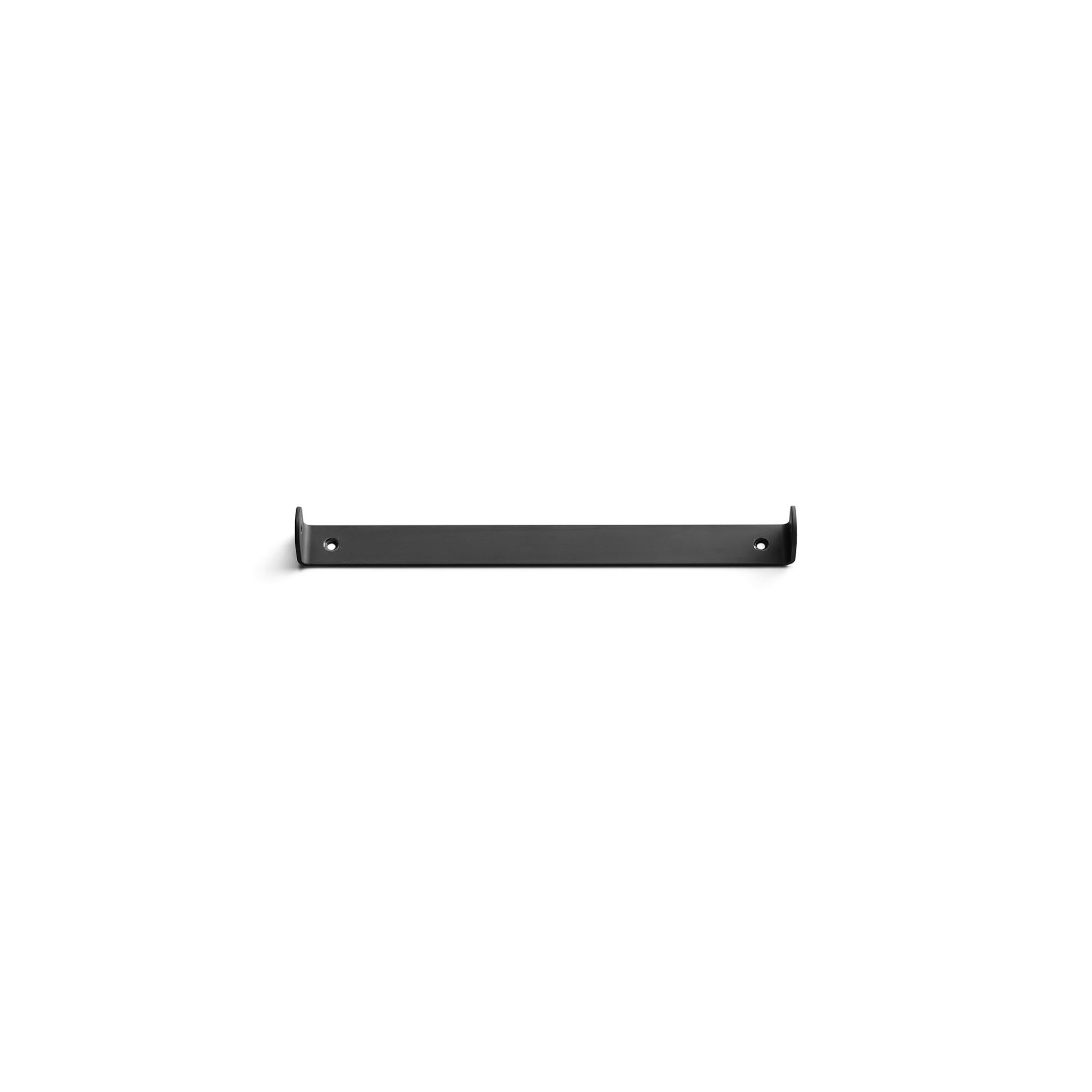

05. 265 Black wall attachment
RF02566

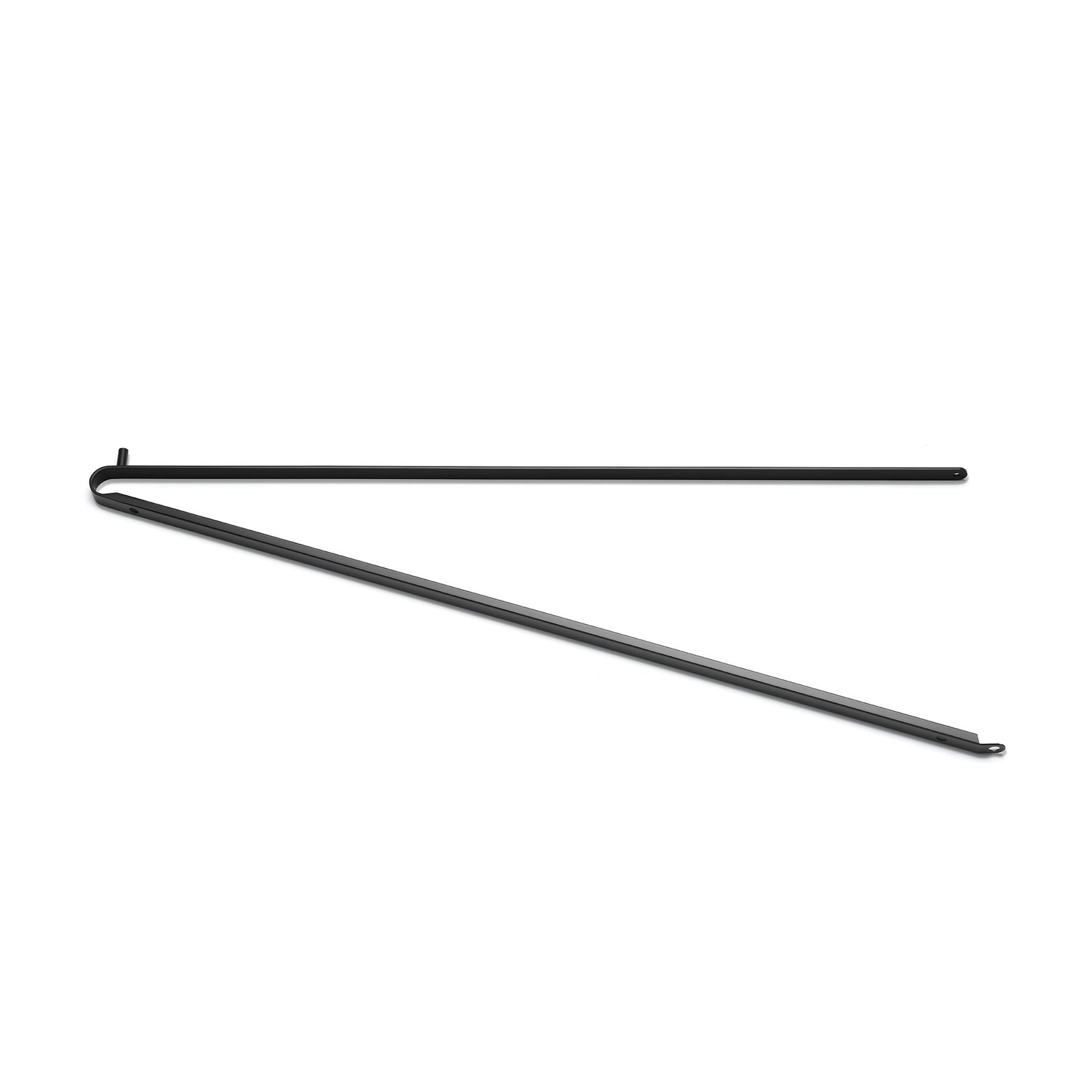

06. 265 Black triangle bracket support
RF02564
07. 265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
Thumbnail
x1
265/265 Small Screw set for wall attachmentRA0300200
x1
265 Black counterweightRF01856
x1
265/265 Small Black lamp holder with reflector support and electrical cable assemblyRF01396
Thumbnail
x1
Black reflectorRF00785
Thumbnail
x1
265 Black wall attachmentRF02566
Thumbnail
x1
265 Black triangle bracket supportRF02564
Thumbnail
x1
265/265 Small Screws bag group stm3x 3 ce c.10 pRF11719
