265
A0320099

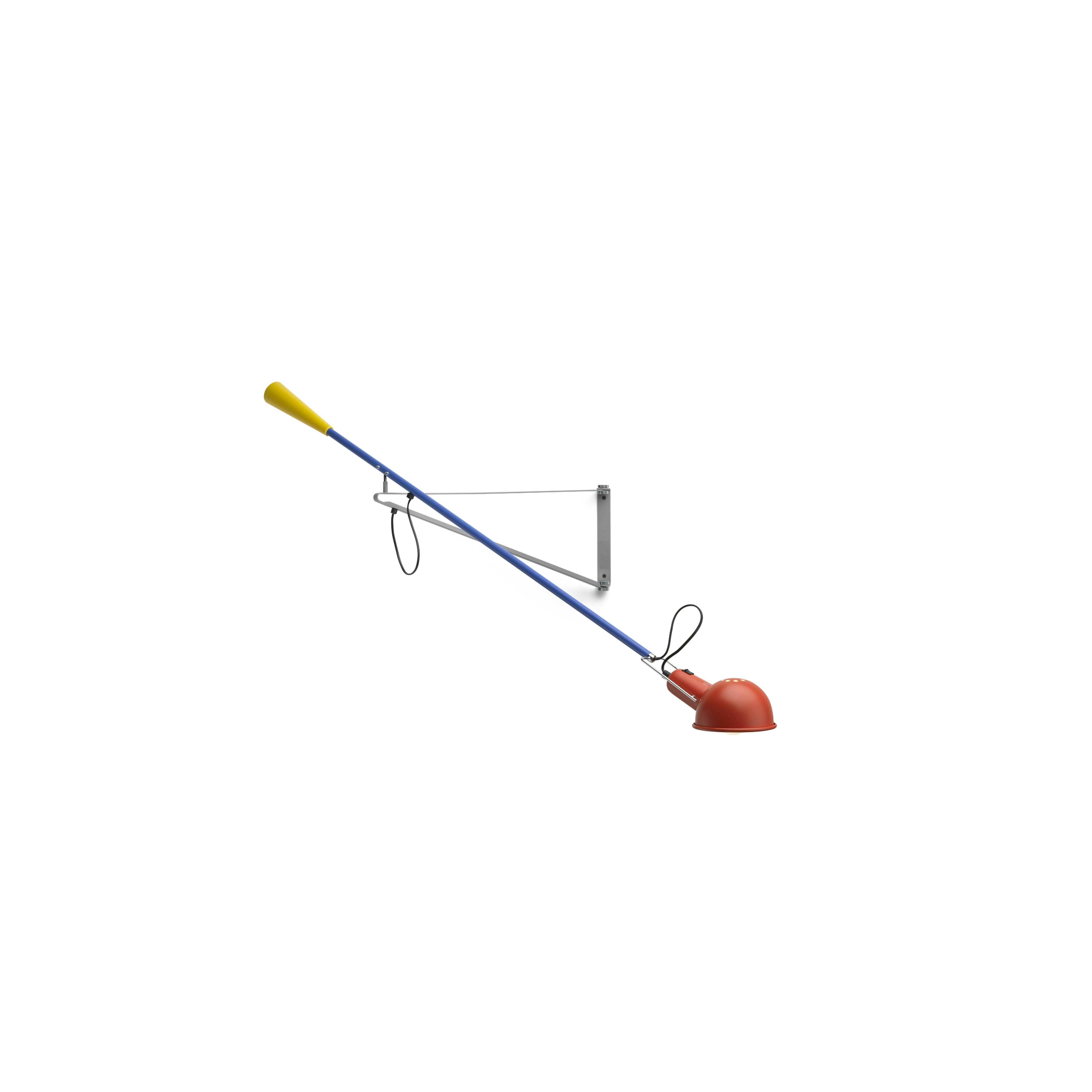

265 Small

Wall lamp providing direct light. Painted steel adjustable arm and reflector. Chrome-plated brass reflector support. Cast iron tapered counterweight. Painted steel wall fixture.

Halogen - 75W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-265_Small
Main specifications
EAN
8059607047309
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA
Number of lamps
1
Power (W)
75
Photometric
Lighting type
Light distribution
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Colour
Length (mm)
1680
productFields.physical.cordLength
2030
Net weight (kg)
3.8
Package height (mm)
1725
Package width (mm)
150
Package length (mm)
340
Package volume (m3)
0.09
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

A0320099-265-small-flos-boom
01. 265/265 Small Screw set for wall attachment
RA0300200

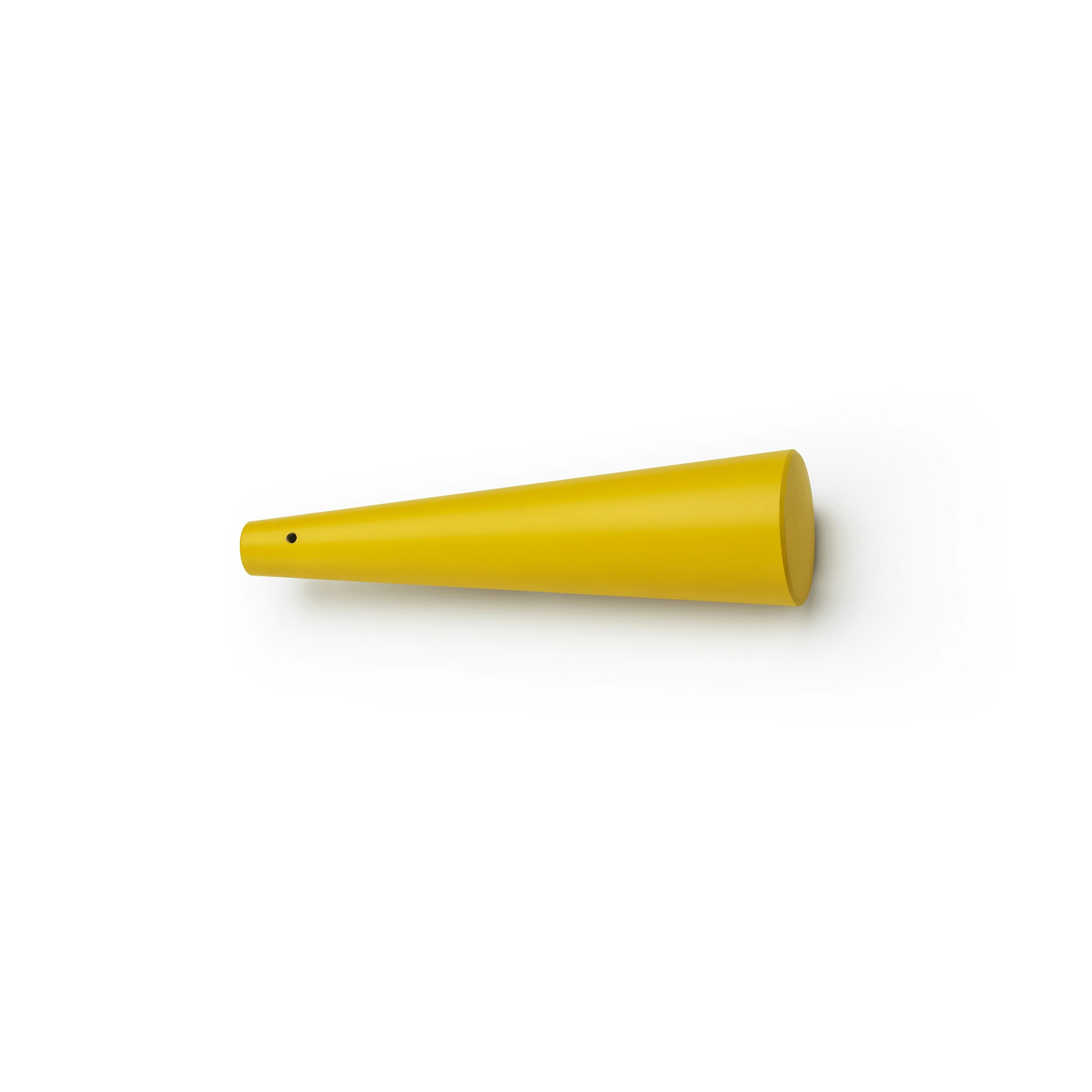

02. 265 Small Counterweight Grey
RF32750
03. 265 / 265 Small , Matt Red Lamp Holder with Reflector Support Assembly
RF31190
04. 265 / 265 Small, Matt Red Reflector
RF31189

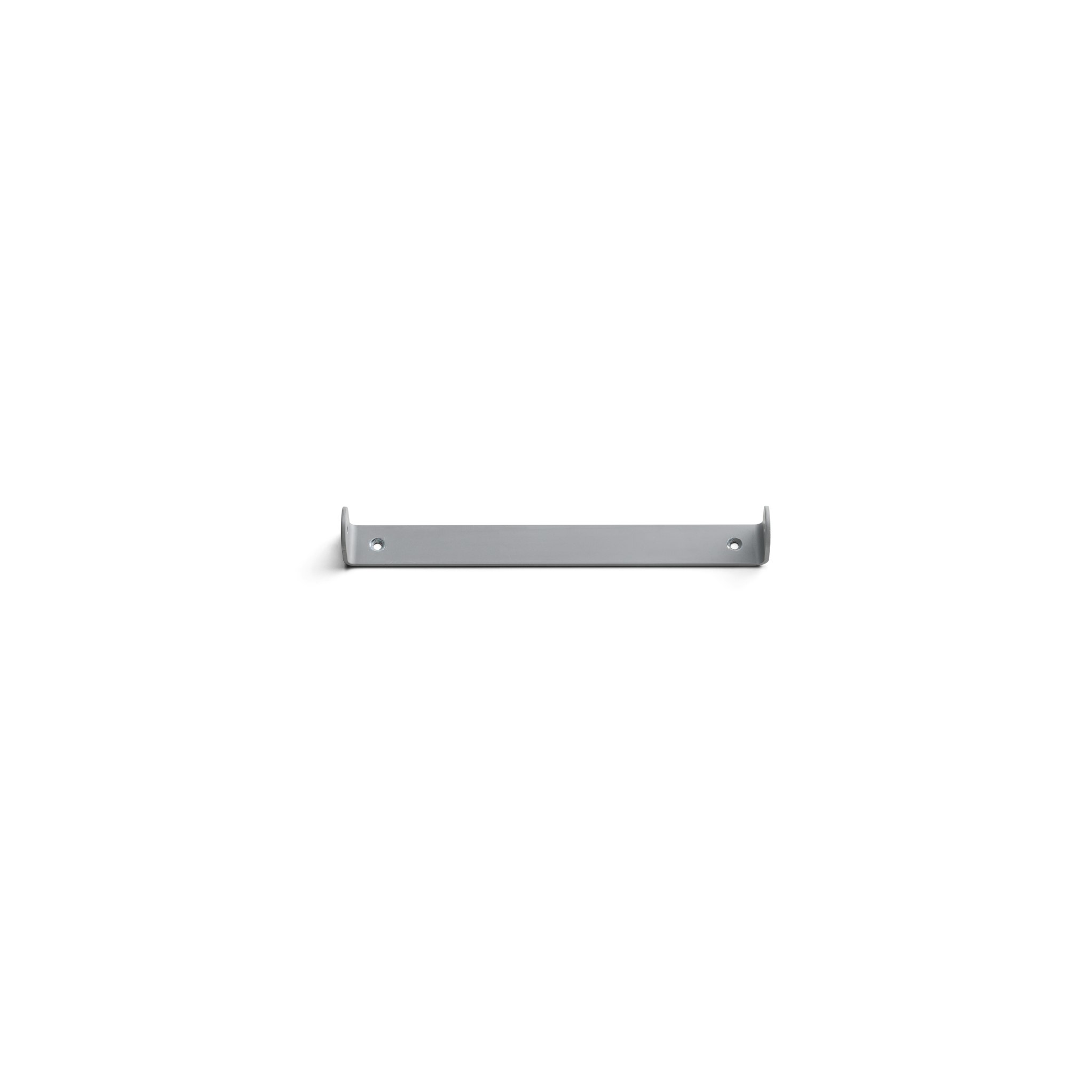

05. 265 Small Wall Attachment Grey
RF32752

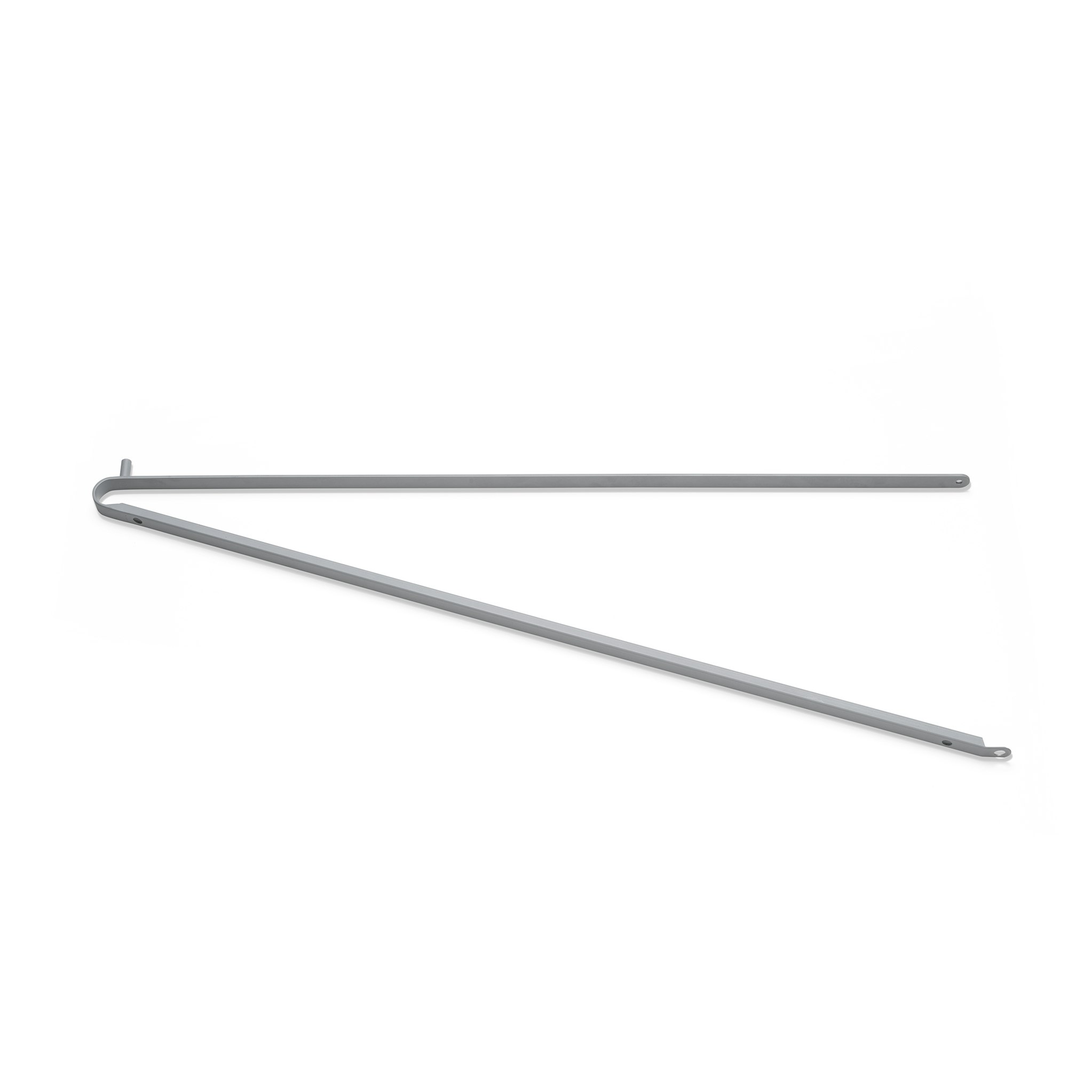

06. 265 Small Bracket Support Grey
RF32751
07. 265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
Thumbnail
x1
265/265 Small Screw set for wall attachmentRA0300200
x1
265 Small Counterweight GreyRF32750
x1
265 / 265 Small , Matt Red Lamp Holder with Reflector Support AssemblyRF31190
x1
265 / 265 Small, Matt Red ReflectorRF31189
x1
265 Small Wall Attachment GreyRF32752
x1
265 Small Bracket Support GreyRF32751
Thumbnail
x1
265/265 Small Screws bag group stm3x 3 ce c.10 pRF11719
