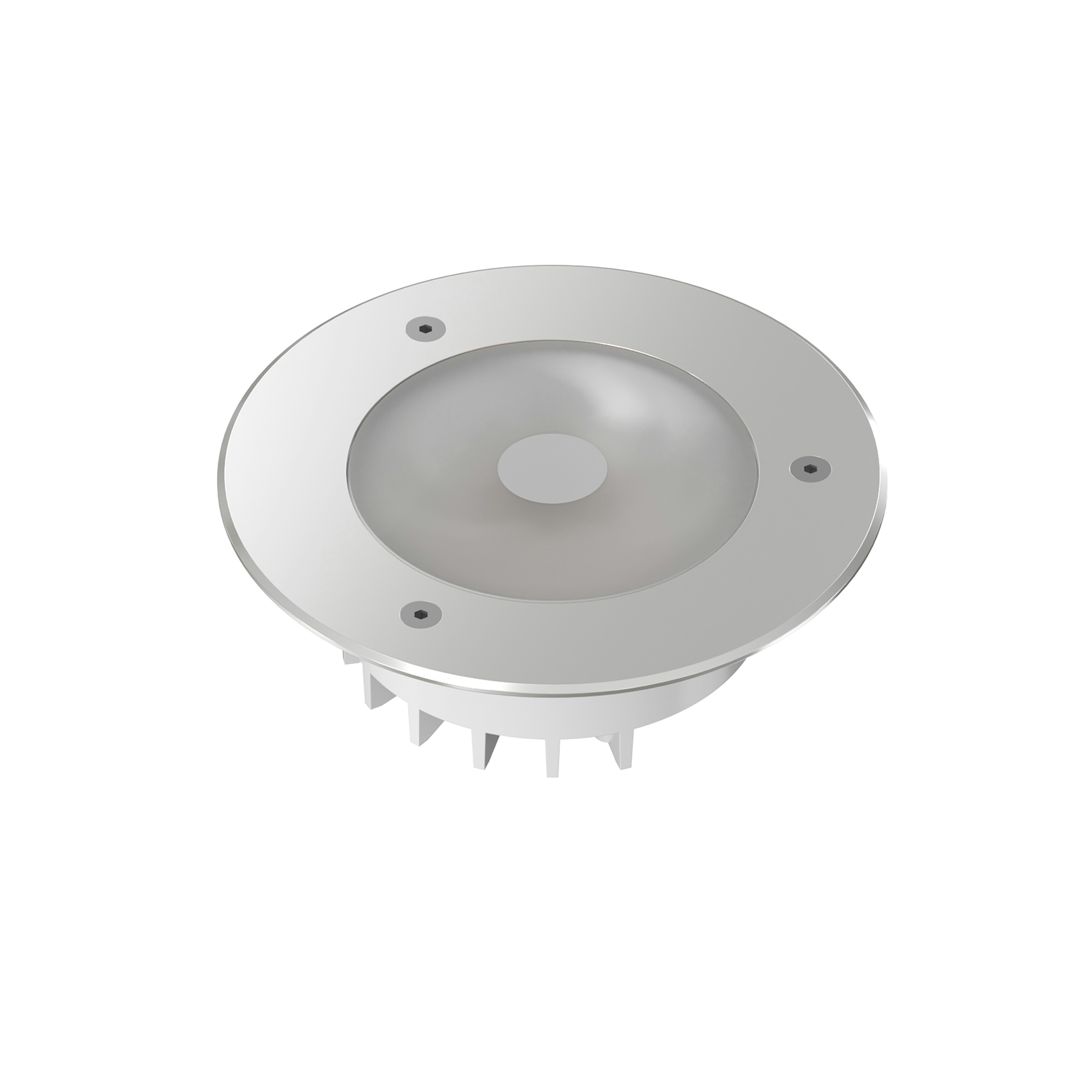

A-RiseA-Rise 130
Designed by FLOS Outdoor, 2012
Mains voltage LED light source included. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 250 mm cable with an integrated 2-way, 3-pole H2O STOP connection system guaranteeing the water tightness of the connection. Frosted glass.
4W - 189lm - 3000K - CRI> 80 - Beam° 120
Technical Drawing
Main specifications
EAN
8054793649825
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
4
System power (W)
4
Source flux (lm)
380
Lumen Output (lm)
189
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-230
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
0.53
Package height (mm)
175
Package width (mm)
135
Package length (mm)
135
IP internal
IP external
