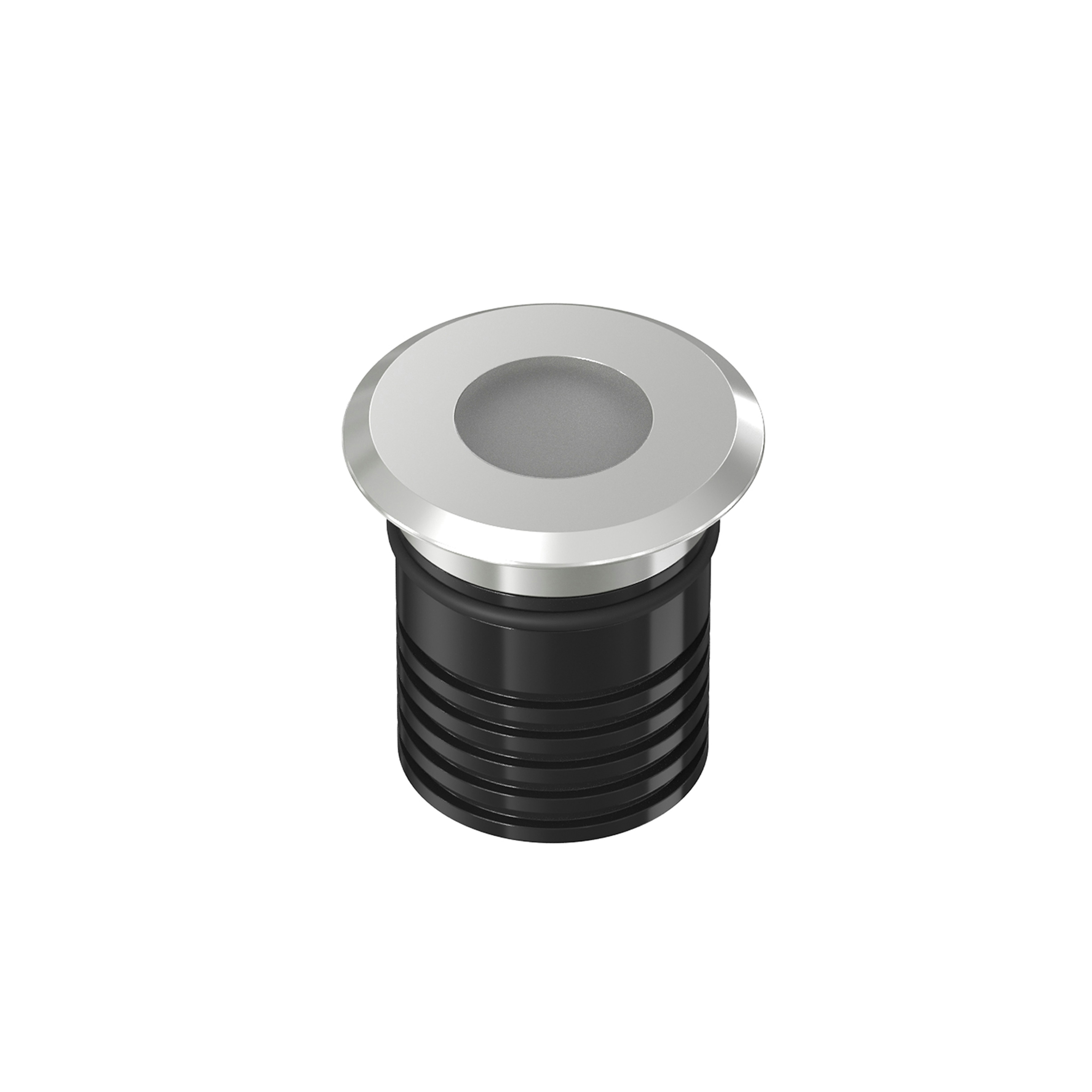

A-RiseA-Rise 65 Opal
Designed by FLOS Outdoor, 2012
LED light source included. 24V dc remote electric power supply to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Opal polycarbonate diffuser. Adjustable light intensity version available upon request.
2W - 22lm - 3000K - CRI> 80 - Beam° 100
Technical Drawing
Main specifications
EAN
8054793637839
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
2
System power (W)
3.4
Source flux (lm)
182
Lumen Output (lm)
22
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
100
Beam angle C90-270 (º)
100
Extreme cut off
No
Electrical
Insulation class
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
0.31
Package height (mm)
134
Package width (mm)
70
Package length (mm)
83
IP internal
IP external
Notes
Dimmable version on request
