Aim
F0090030

Aim

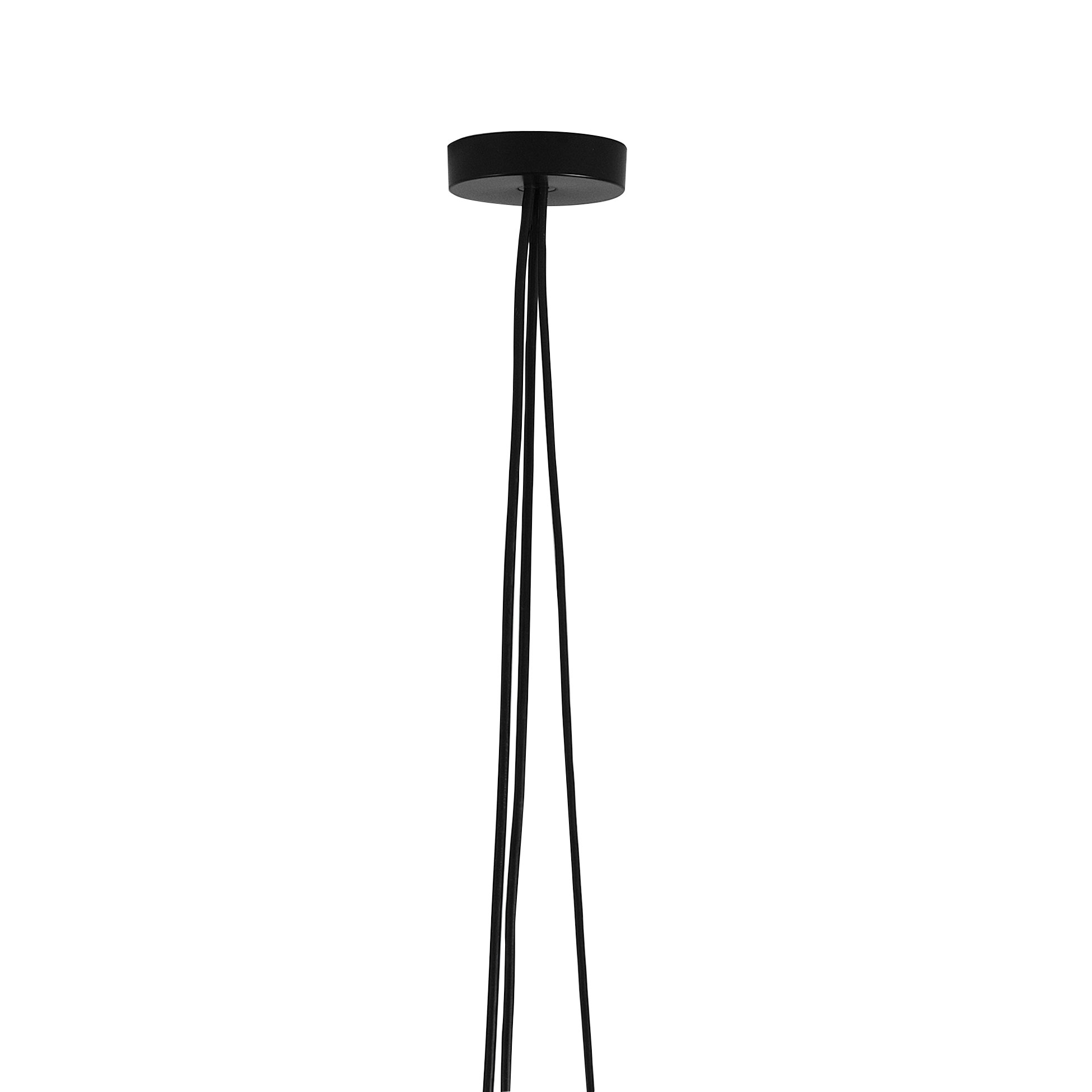

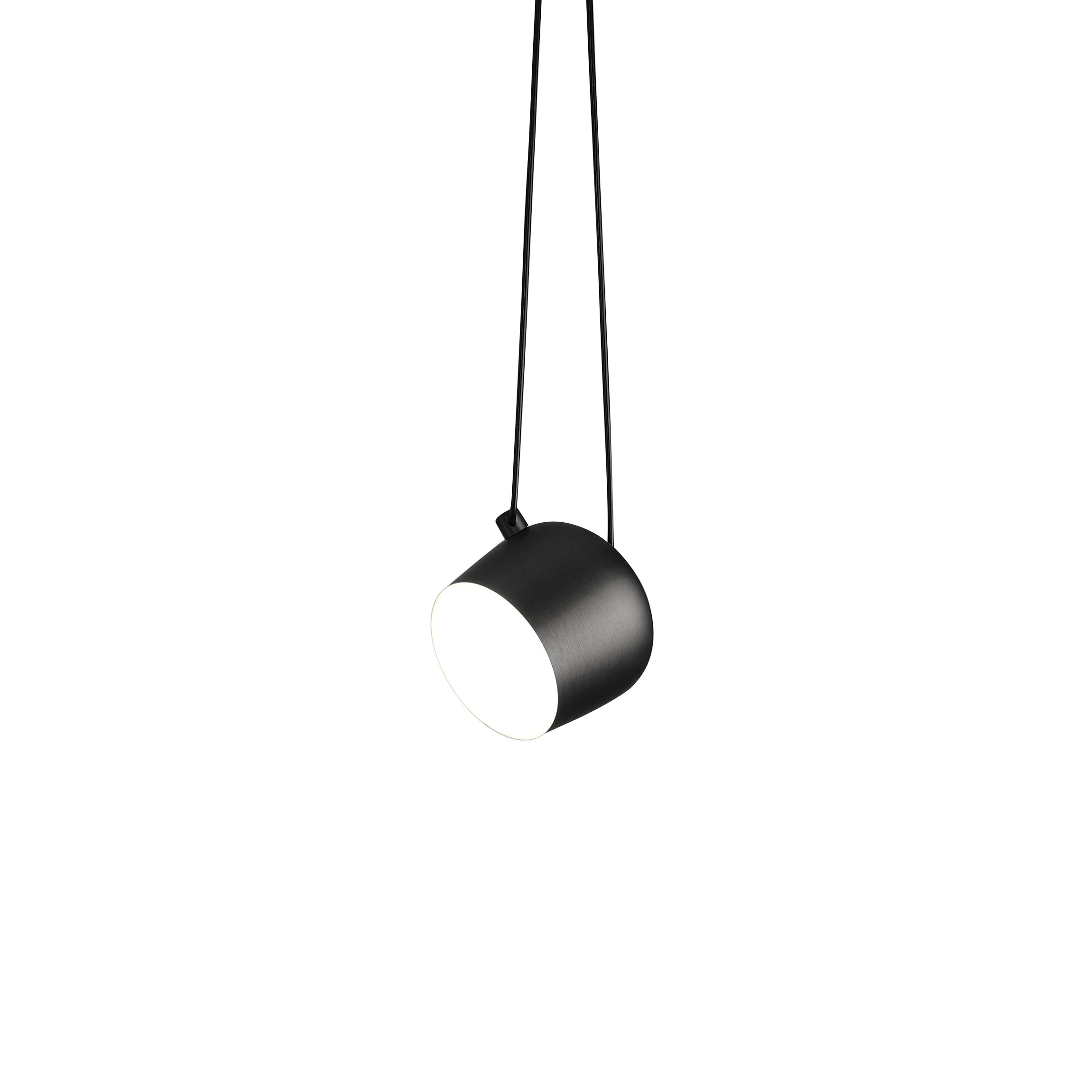

Suspension lamp emitting direct light. Features body in varnished aluminium with photo-etched optical polycarbonate shade and internal reflector in photo-etched ABS. Adjustable head allows flexible aiming of light. Supplied with 9-metre cable for suspension up to 3 metres from ceiling. Available in hardwired and plug-in versions. Dimmable via Flos-approved LED Triac dimmer. Multiple ceiling rose available to connect up to five Aim units.

16W - 895lm - 2700K

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Aim-Large
Main specifications
EAN
8059607013281
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
16
Lumen Output (lm)
895
Schematic light drawing
F00900XXWAIM_16W-LED
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
243
Cord colour
productFields.physical.cordLength
9000
Canopy colour
Canopy length/diameter (mm)
80
Canopy height (mm)
23
Net weight (kg)
3
Package height (mm)
375
Package width (mm)
300
Package length (mm)
300
Package volume (m3)
0.03
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

Accessories & Power Supply

Optional(2)

Spare Parts

F0090030-aim-flos-boom

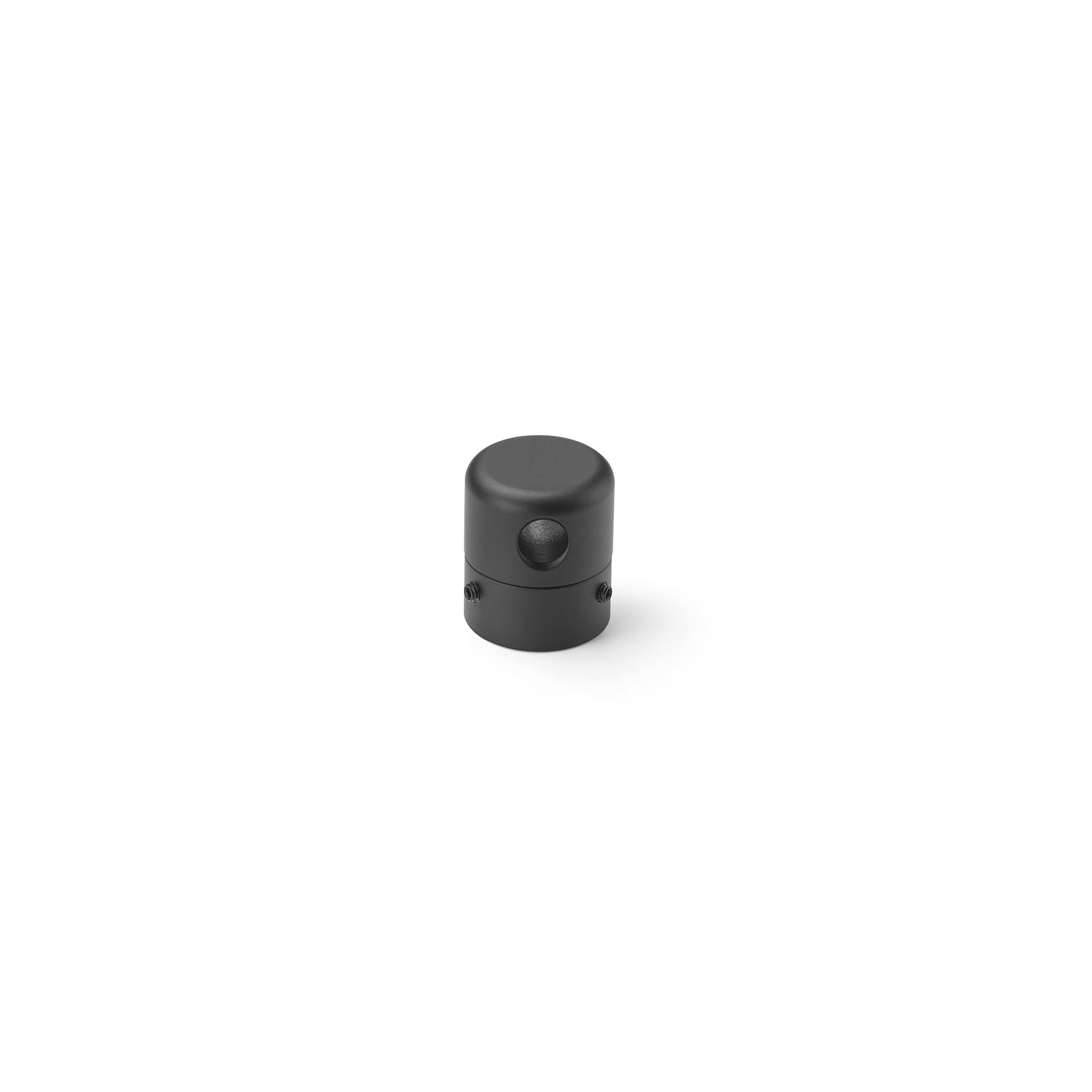

01. Aim/Aim Small Black ceiling attachment assembly
RF0090130

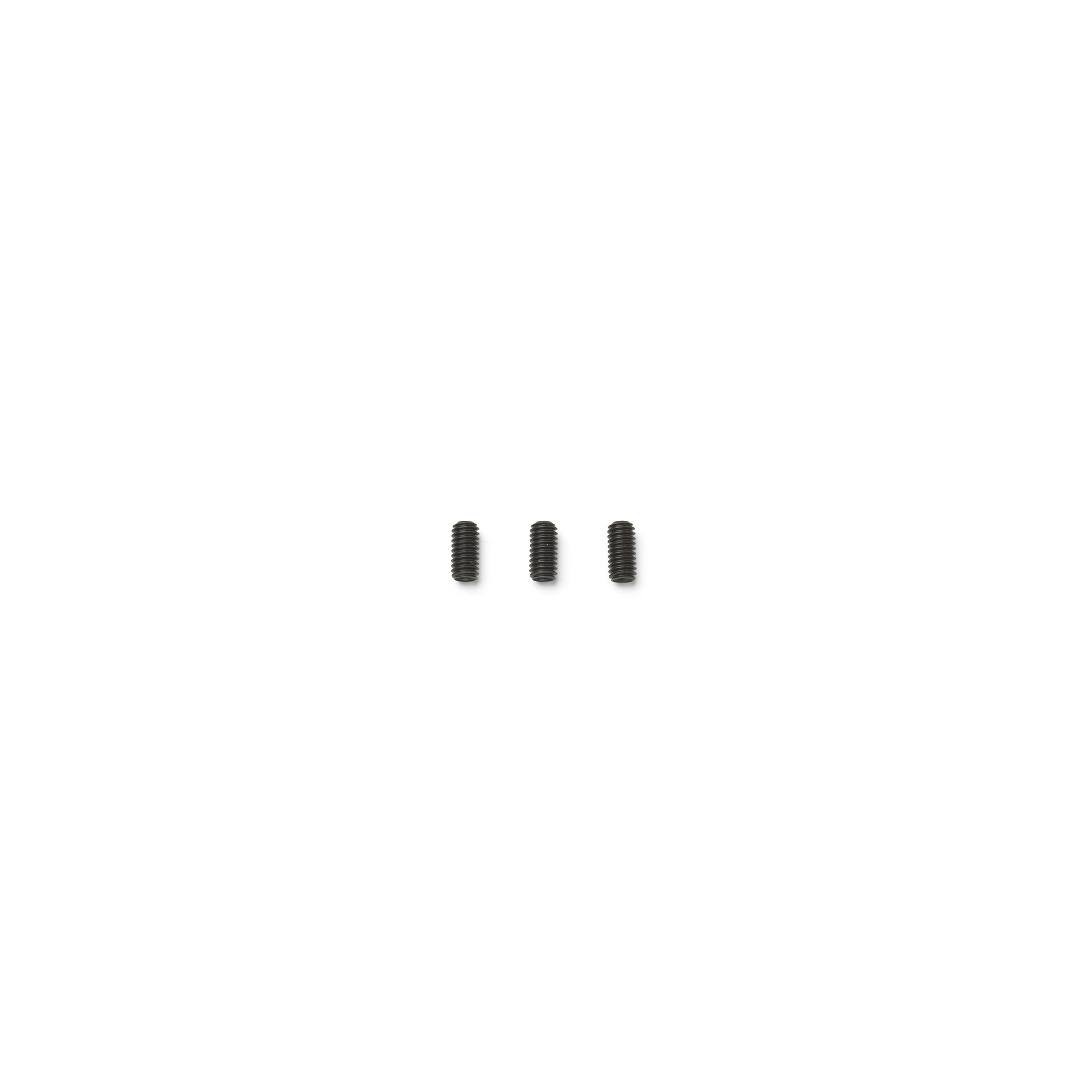

02. Aim/Aim Small Kit of quantity 3 m4 screws
RF06750

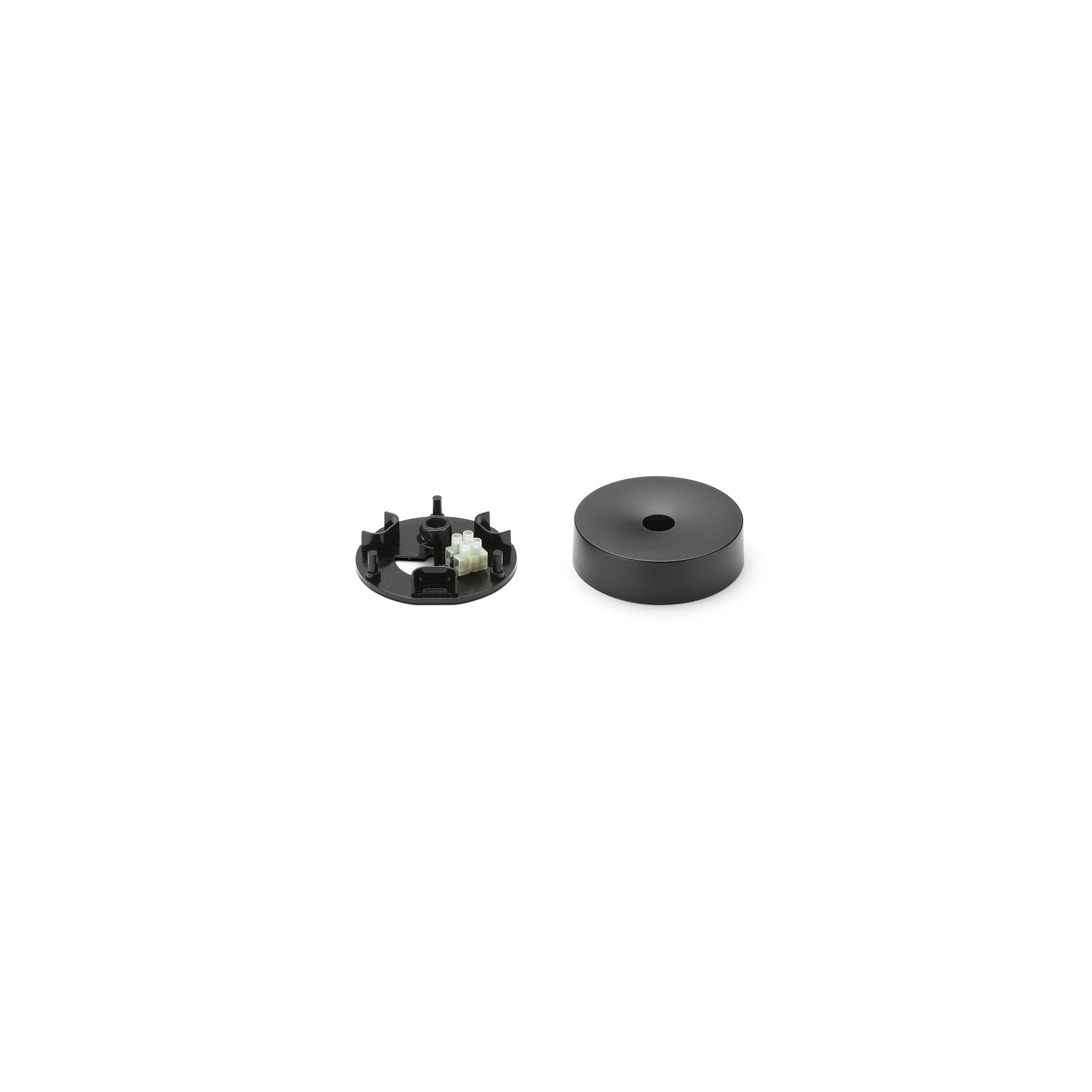

03. Aim Black ceiling rose assembly
RF0090230

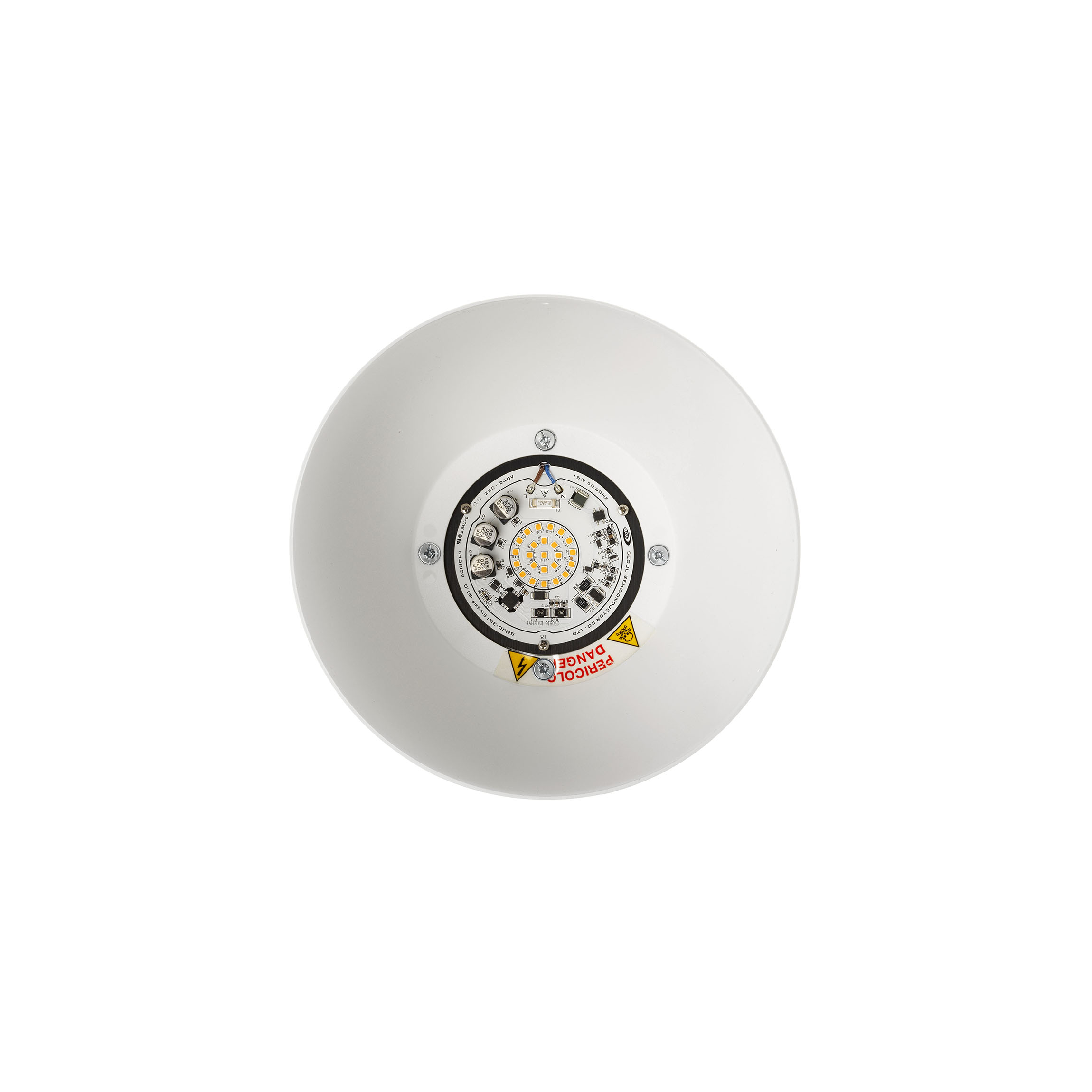

04. Aim Heatsink, 2700K Led Module & Reflector Assembly
RF0090700

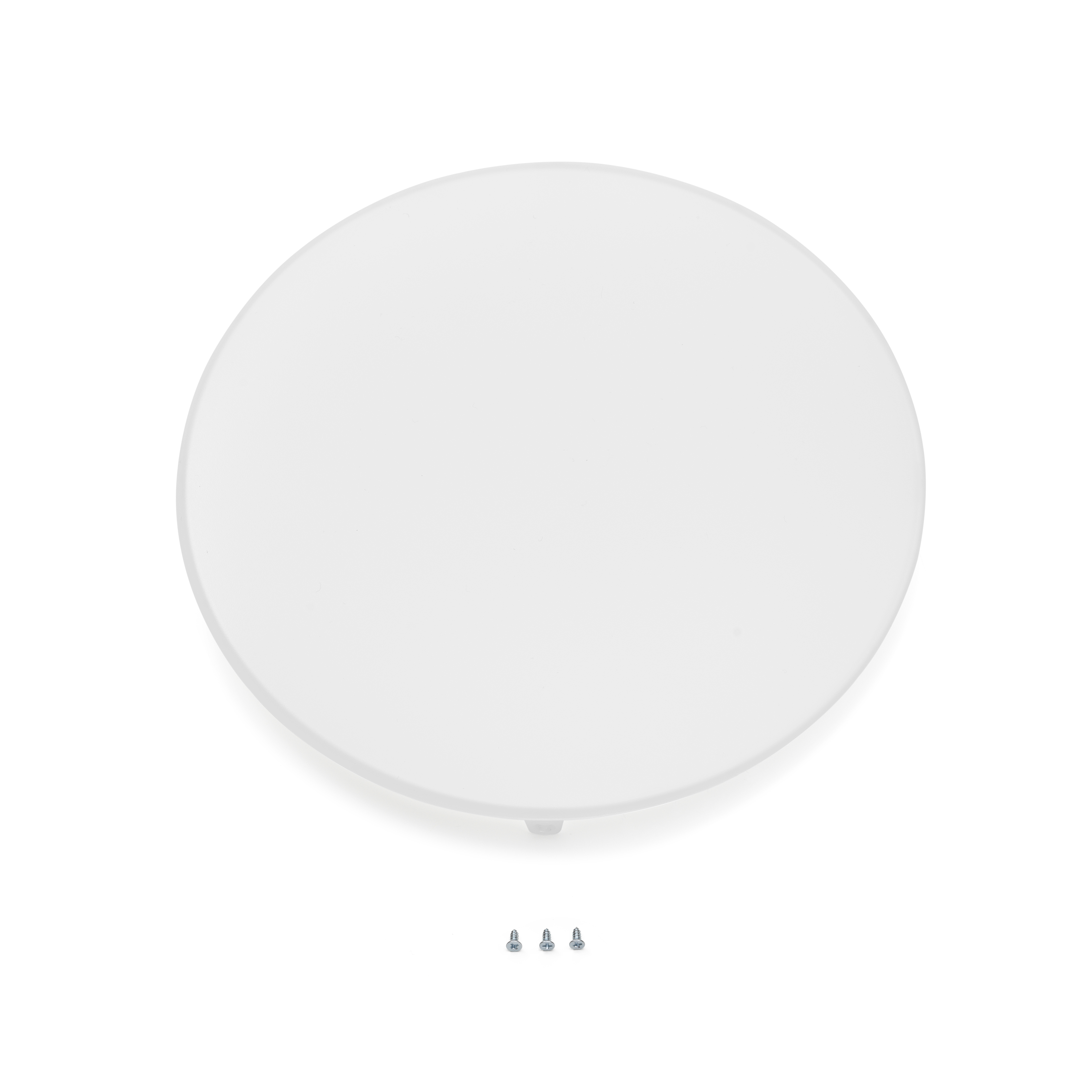

05. Aim opal diffuser
RF0090600
Thumbnail
x1
Aim/Aim Small Black ceiling attachment assemblyRF0090130
Thumbnail
x1
Aim/Aim Small Kit of quantity 3 m4 screwsRF06750
Thumbnail
x1
Aim Black ceiling rose assemblyRF0090230
x1
Aim Heatsink, 2700K Led Module & Reflector AssemblyRF0090700
x1
Aim opal diffuserRF0090600
