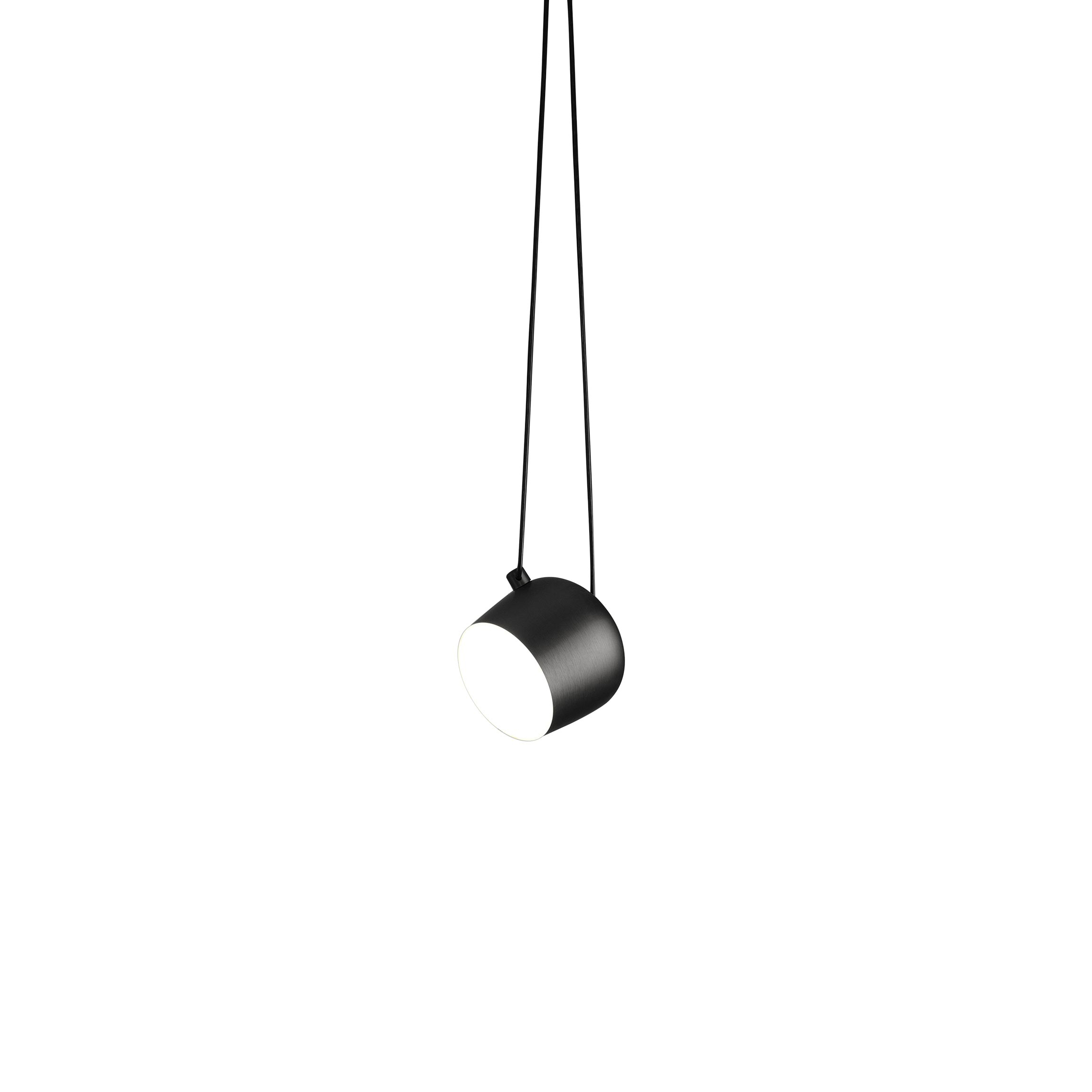

AimAim Small
Designed by Ronan & Erwan Bouroullec, 2014
Suspension lamp emitting direct light. Features body in varnished aluminium with photo-etched optical polycarbonate shade and internal reflector in photo-etched ABS. Adjustable head allows flexible aiming of light. Supplied with 9-metre cable for suspension up to 3 metres from ceiling. Available in hardwired and plug-in versions. Dimmable via Flos-approved LED Triac dimmer. Multiple ceiling rose available to connect up to five Aim units.
12W - 725lm - 2700K - CRI> 90
Also available in:
Technical Drawing
Main specifications
EAN
8059607013526
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
12
Lumen Output (lm)
725
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
170
Cord colour
productFields.physical.cordLength
9000
Canopy colour
Canopy length/diameter (mm)
80
Canopy height (mm)
23
Net weight (kg)
1.6
Package height (mm)
310
Package width (mm)
300
Package length (mm)
300
Package volume (m3)
0.03
IP internal
Spare Parts
01. Aim/Aim Small Black ceiling attachment assembly
RF0090130
02. Aim/Aim Small Kit of quantity 3 m4 screws
RF06750

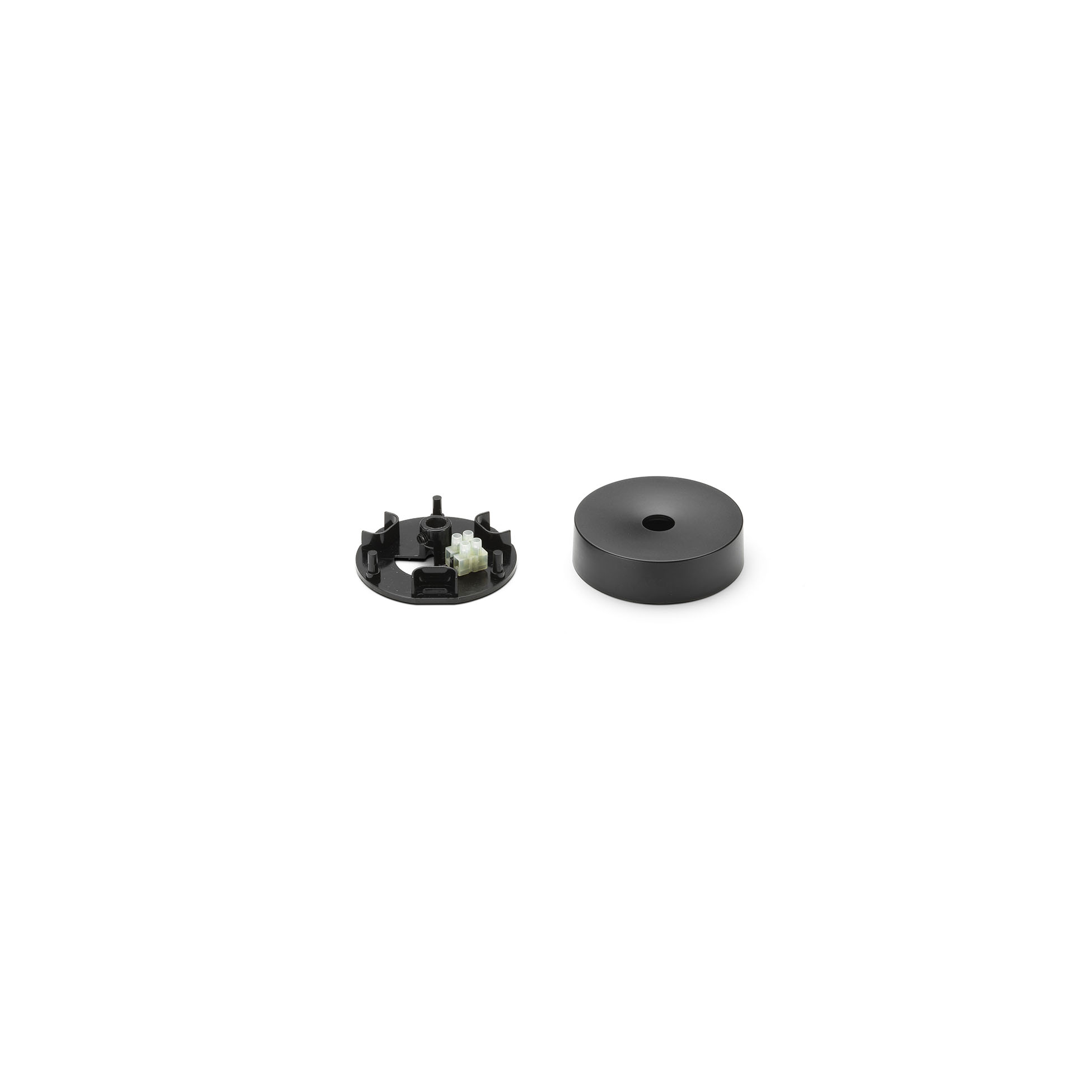

03. Ceiling rose assembly
RF1555030

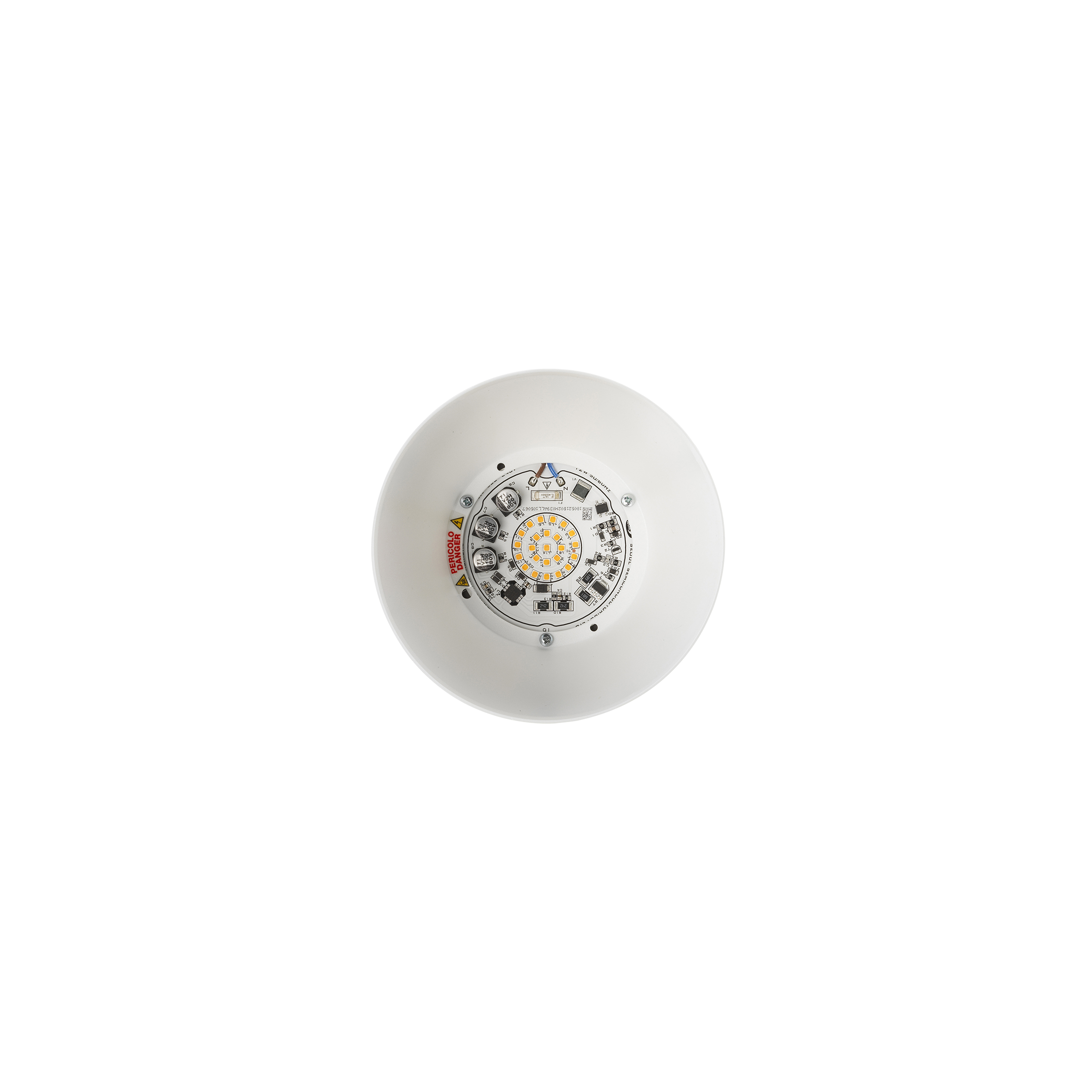

04. Aim Small Heatsink, 2700K Led Module & Reflector Assembly
RF0095600

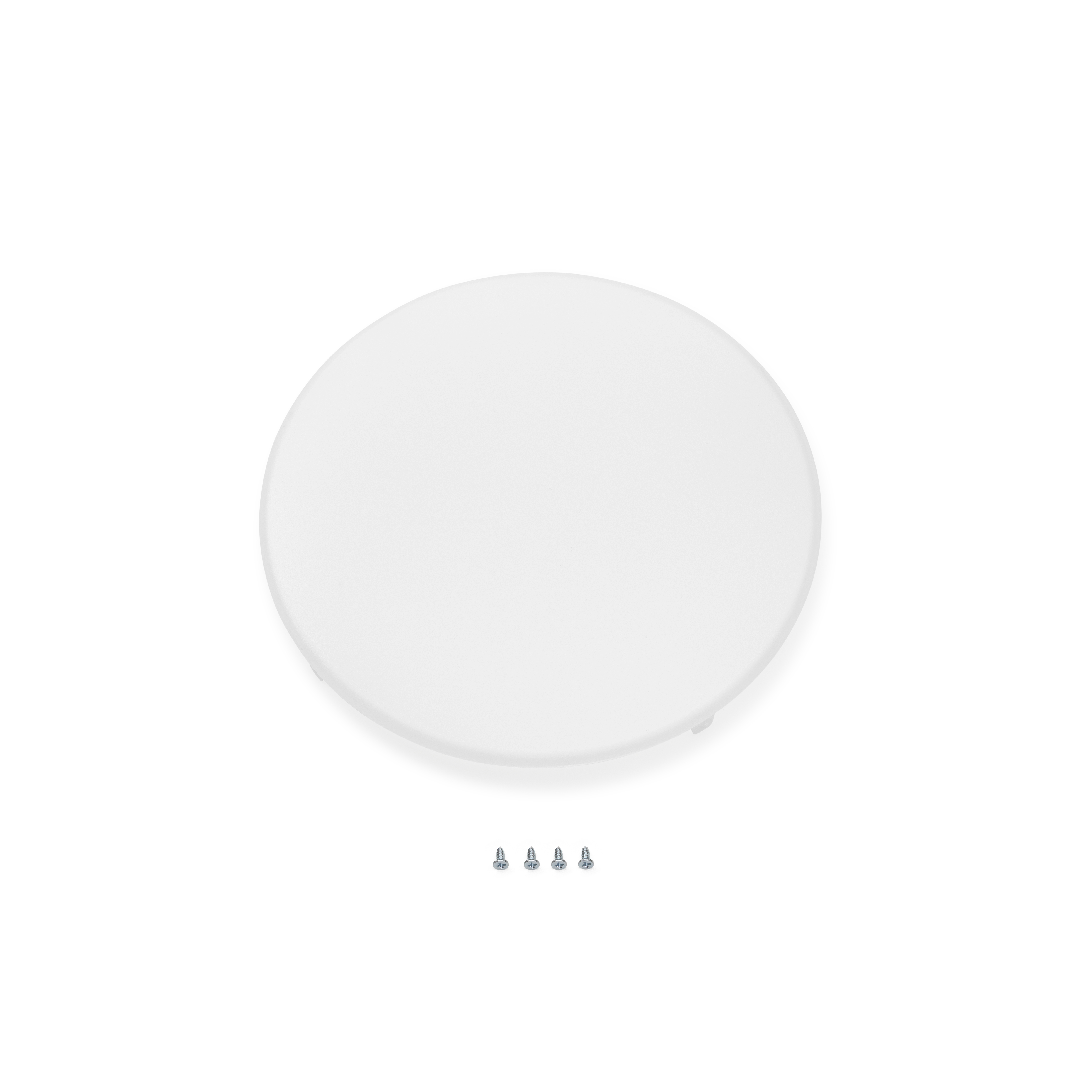

05. Aim small opal diffuser
RF0095500
