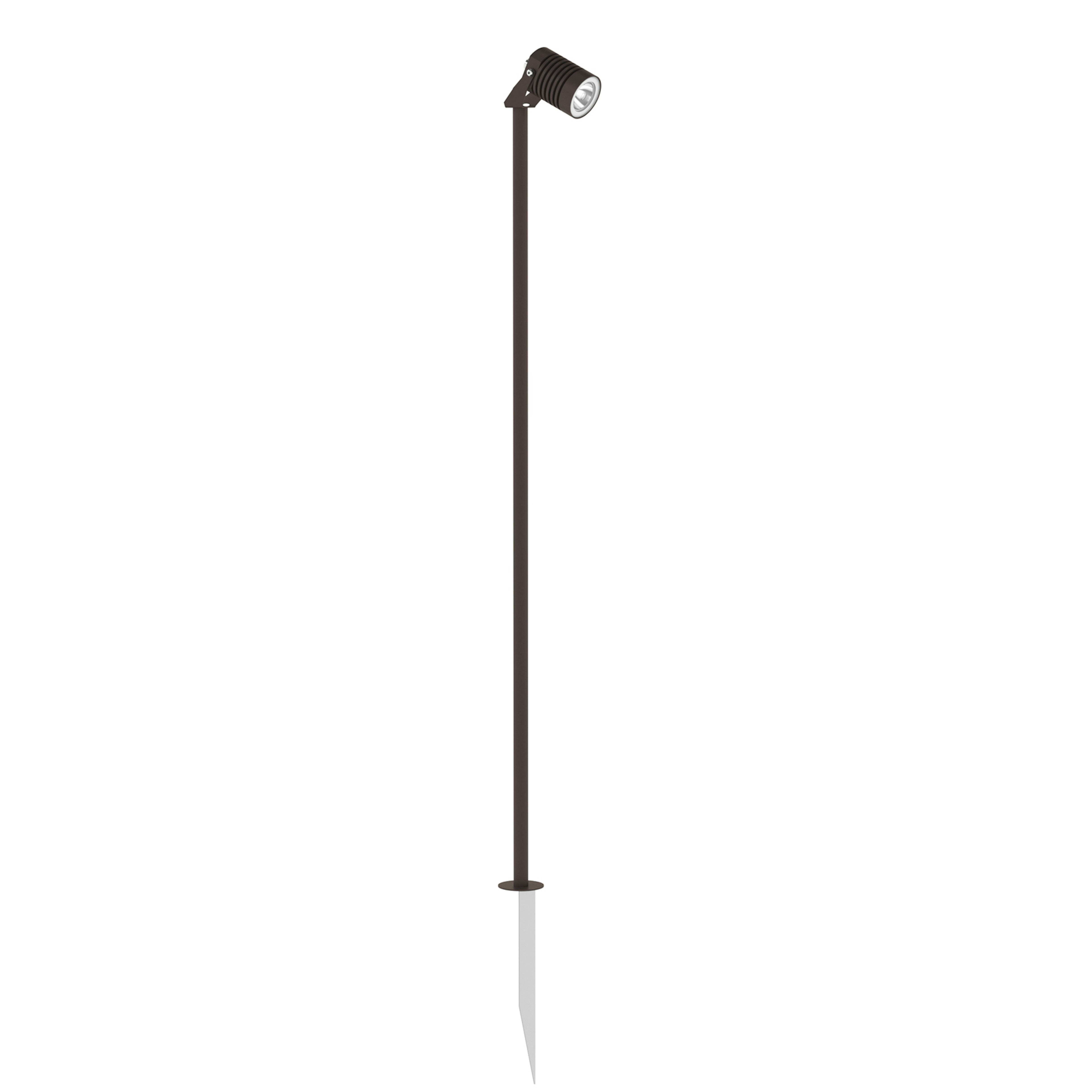

AimerAimer 2 Pole 900
Designed by FLOS Outdoor, 2011
LED source included. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Equipped with a 2000 mm protruding section of neoprene cable and a 2-pole and 3-way connection box with H2O STOP system that guarantee the tightness of the connection. Extraclear transparent glass. Metal nail for ground installation included. Dimmable version available upon request.
2W - 136lm - 4000K - CRI> 80 - Beam° 24
Technical Drawing
Main specifications
EAN
8054793631851
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
2
System power (W)
3.4
Source flux (lm)
224
Lumen Output (lm)
136
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
24
Beam angle C90-270 (º)
24
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
174
Net weight (kg)
1.28
Package height (mm)
120
Package width (mm)
1450
Package length (mm)
117
Package volume (m3)
0.02
IP internal
Notes
Dimmable version on request
